阿里路由框架ARouter 源码解析之Compiler

@AutoService(Processor.class)@SupportedOptions(KEY_MODULE_NAME)@SupportedSourceVersion(SourceVersion.RELEASE_7)@SupportedAnnotationTypes({ANNOTATION_TYPE_ROUTE, ANNOTATION_TYPE_AUTOWIRED})public class RouteProcessor extends AbstractProcessor {

 // 初始化处理器 @Override public synchronized void init(ProcessingEnvironment processingEnv) {  super.init(processingEnv);  // 文件管理器  mFiler = processingEnv.getFiler();     // Generate class.  // 获取类型处理工具类  types = processingEnv.getTypeUtils();   // Get type utils.  // 获取日志信息工具类  elements = processingEnv.getElementUtils();  // Get class meta.  typeUtils = new TypeUtils(types, elements);  // 封装日志信息类  logger = new Logger(processingEnv.getMessager()); // Package the log utils.  // 获取用户配置的[moduleName]  Map<String, String> options = processingEnv.getOptions();  if (MapUtils.isNotEmpty(options)) {   moduleName = options.get(KEY_MODULE_NAME);  }  if (StringUtils.isNotEmpty(moduleName)) {   // 格式化   moduleName = moduleName.replaceAll("[^0-9a-zA-Z_]+", "");   logger.info("The user has configuration the module name, it was [" + moduleName + "]");  } else {   // 如果没有在build.gradle中配置moduleName，则会抛出异常。   logger.error("These no module name, at 'build.gradle', like :/n" +     "apt {/n" +     " arguments {/n" +     "  moduleName project.getName();/n" +     " }/n" +     "}/n");   throw new RuntimeException("ARouter::Compiler >>> No module name, for more information, look at gradle log.");  }  //   iProvider = elements.getTypeElement(Consts.IPROVIDER).asType();  // RouterProcessor 初始化完毕  logger.info(">>> RouteProcessor init. <<<"); }

// Consts.javapublic static final String KEY_MODULE_NAME = "moduleName";

javaCompileOptions {   annotationProcessorOptions {    arguments = [ moduleName : project.getName() ]   }  }

 @Override public boolean process(Set<? extends TypeElement> annotations, RoundEnvironment roundEnv) {  if (CollectionUtils.isNotEmpty(annotations)) {   // 获取所有添加Route注解的元素   Set<? extends Element> routeElements = roundEnv.getElementsAnnotatedWith(Route.class);   try {    logger.info(">>> Found routes, start... <<<");    // 调用arseRoute()函数进行处理获取的注解元素集合    this.parseRoutes(routeElements);   } catch (Exception e) {    logger.error(e);   }   // 如果有Route元素的注解，并且处理过程中无异常则返回true   return true;  }  // 否则返回false  return false; }

 // Consts.java public static final String ACTIVITY = "android.app.Activity"; public static final String FRAGMENT = "android.app.Fragment"; public static final String FRAGMENT_V4 = "android.support.v4.app.Fragment"; public static final String SERVICE = "android.app.Service"; private static final String FACADE_PACKAGE = "com.alibaba.android.arouter.facade"; private static final String TEMPLATE_PACKAGE = ".template"; public static final String IROUTE_GROUP = FACADE_PACKAGE + TEMPLATE_PACKAGE + ".IRouteGroup"; public static final String IPROVIDER_GROUP = FACADE_PACKAGE + TEMPLATE_PACKAGE + ".IProviderGroup";

private void parseRoutes(Set<? extends Element> routeElements) throws IOException {  if (CollectionUtils.isNotEmpty(routeElements)) {   // ...   rootMap.clear();   // 获取ACTIVITY, SERVICE, FRAGMENT, FRAGMENT_V4 这四种 类型镜像   TypeMirror type_Activity = elements.getTypeElement(ACTIVITY).asType();   TypeMirror type_Service = elements.getTypeElement(SERVICE).asType();   TypeMirror fragmentTm = elements.getTypeElement(FRAGMENT).asType();   TypeMirror fragmentTmV4 = elements.getTypeElement(Consts.FRAGMENT_V4).asType();   // ARouter的接口   TypeElement type_IRouteGroup = elements.getTypeElement(IROUTE_GROUP);   TypeElement type_IProviderGroup = elements.getTypeElement(IPROVIDER_GROUP);   //    // 下面就是遍历获取的注解信息，通过javapoet来生成类文件了    ClassName routeMetaCn = ClassName.get(RouteMeta.class);   ClassName routeTypeCn = ClassName.get(RouteType.class);   /*    ParameterizedTypeName用来创建类型对象，例如下面    ```Map<String, Class<? extends IRouteGroup>>```    */   ParameterizedTypeName inputMapTypeOfRoot = ParameterizedTypeName.get(     ClassName.get(Map.class),     ClassName.get(String.class),     ParameterizedTypeName.get(       ClassName.get(Class.class),       WildcardTypeName.subtypeOf(ClassName.get(type_IRouteGroup))     )   );   /*    RouteMeta封装了路由相关的信息    ```Map<String, RouteMeta>```    */   ParameterizedTypeName inputMapTypeOfGroup = ParameterizedTypeName.get(     ClassName.get(Map.class),     ClassName.get(String.class),     ClassName.get(RouteMeta.class)   );   /*    创建输入参数    */   // 1。 生成的参数：Map<String, Class<? extends IRouteGroup>> routes   ParameterSpec rootParamSpec = ParameterSpec.builder(inputMapTypeOfRoot, "routes").build(); // 第一个参数表示参数类型，第二个函数表示参数名称   // 2。 Map<String, RouteMeta> atlas   ParameterSpec groupParamSpec = ParameterSpec.builder(inputMapTypeOfGroup, "atlas").build();   // 3。 Map<String, RouteMeta> providers   ParameterSpec providerParamSpec = ParameterSpec.builder(inputMapTypeOfGroup, "providers").build();    // MethodSpec用来创建方法   // public static final String METHOD_LOAD_INTO = "loadInto";   /*    Build method : 'loadInto'    */   MethodSpec.Builder loadIntoMethodOfRootBuilder = MethodSpec.methodBuilder(METHOD_LOAD_INTO)     .addAnnotation(Override.class) // override     .addModifiers(PUBLIC) // public     .addParameter(rootParamSpec); // 参数   // 创建出来的函数如下   /**    * @Override    * public void loadInto(Map<String, Class<? extends IRouteGroup>> routes) { }     */    //   // 接下来的代码就是遍历注解元素，进行分组，进而声称java文件   for (Element element : routeElements) { // 遍历每个元素    TypeMirror tm = element.asType();    Route route = element.getAnnotation(Route.class);    RouteMeta routeMete = null;    // 判断类型    if (types.isSubtype(tm, type_Activity)) { // Activity     logger.info(">>> Found activity route: " + tm.toString() + " <<<");     Map<String, Integer> paramsType = new HashMap<>();     // 遍历查找所有添加 @AutoWired 注解的变量     for (Element field : element.getEnclosedElements()) {      // 1. 必须是field      // 2. 必须有注解AutoWired      // 3. 必须不是IProvider类型      if (field.getKind().isField() && field.getAnnotation(Autowired.class) != null && !types.isSubtype(field.asType(), iProvider)) {       // 满足上述条件后，获取注解       Autowired paramConfig = field.getAnnotation(Autowired.class);       // 看过源码就知道，Autowired支持写别名，当指定name属性之后，就会以name为准，否则以field的名字为准。       // TypeUtils是自定义工具类，用来判断field的数据类型的，转换成int值。       paramsType.put(StringUtils.isEmpty(paramConfig.name()) ? field.getSimpleName().toString() : paramConfig.name(), typeUtils.typeExchange(field));      }     // 构建一条路由信息，将字段注解信息保存进去     routeMete = new RouteMeta(route, element, RouteType.ACTIVITY, paramsType);    }     // 如果是IProvider类型的注解，则直接创建一条PROVIDER类型的路由信息    else if (types.isSubtype(tm, iProvider)) {        routeMete = new RouteMeta(route, element, RouteType.PROVIDER, null);    }     // 如果是Service类型的注解，则直接创建一条Service类型的路由信息    else if (types.isSubtype(tm, type_Service)) {   // Service     routeMete = new RouteMeta(route, element, RouteType.parse(Service), null);    }     // 如果是fragmentTmV4类型的注解，则直接创建一条Fragment类型的路由信息    else if (types.isSubtype(tm, fragmentTm) || types.isSubtype(tm, fragmentTmV4)) {     routeMete = new RouteMeta(route, element, RouteType.parse(FRAGMENT), null);    }    // 将路由信息进行分组 （每个路由信息对象中都保存着它所属的组别信息，在调用categories()函数之前所有的组别信息都是默认值"" ）    categories(routeMete);   }   // 第一次遍历之前，已经创建了ROOT类的loadInto函数   // 下面开始创建Provider类的loadInto函数   MethodSpec.Builder loadIntoMethodOfProviderBuilder = MethodSpec.methodBuilder(METHOD_LOAD_INTO)     .addAnnotation(Override.class)     .addModifiers(PUBLIC)     .addParameter(providerParamSpec);   // 创建出来的函数如下   /**    * @Override    * public void loadInto(Map<String, RouteMeta> providers) { }     */      // 接着，遍历所有在 categories(routeMete); 得到的所有组别   for (Map.Entry<String, Set<RouteMeta>> entry : groupMap.entrySet()) {    String groupName = entry.getKey();    // 创建分组类的函数 -- loadInto(Map<String, RouteMeta> atlas)    MethodSpec.Builder loadIntoMethodOfGroupBuilder = MethodSpec.methodBuilder(METHOD_LOAD_INTO)      .addAnnotation(Override.class)      .addModifiers(PUBLIC)      .addParameter(groupParamSpec);    // 往组别函数loadInto中添加数据    Set<RouteMeta> groupData = entry.getValue();    // PROVIDERL 类型的数据需要特殊处理    for (RouteMeta routeMeta : groupData) {     switch (routeMeta.getType()) {      case PROVIDER:        List<? extends TypeMirror> interfaces = ((TypeElement) routeMeta.getRawType()).getInterfaces();       // 遍历当前类的接口       for (TypeMirror tm : interfaces) {        // 如果当前类直接实现了IProvider接口        if (types.isSameType(tm, iProvider)) {    // 这种情况下，在loadInfo()函数里面添加的语句类似于：   // singleService直接实现IProvider接口   /**    * @Route(path = "/service/single")    * public class SingleService implements IProvider    *     * providers.put("com.alibaba.android.arouter.demo.testservice.SingleService", RouteMeta.build(RouteType.PROVIDER, SingleService.class, "/service/single", "service", null, -1, -2147483648));     */                  loadIntoMethodOfProviderBuilder.addStatement(           "providers.put($S, $T.build($T." + routeMeta.getType() + ", $T.class, $S, $S, null, " + routeMeta.getPriority() + ", " + routeMeta.getExtra() + "))",           (routeMeta.getRawType()).toString(),           routeMetaCn,           routeTypeCn,           ClassName.get((TypeElement) routeMeta.getRawType()),           routeMeta.getPath(),           routeMeta.getGroup());        } else if (types.isSubtype(tm, iProvider)) {         // 如果是接口继承的IProvider   // 这种情况下，在loadInfo()函数里面添加的语句类似于：   // singleService直接实现IProvider接口   /**    * @Route(path = "/service/hello")    * public class HelloServiceImpl implements HelloService     * public interface HelloService extends IProvider    * //    * providers.put("com.alibaba.android.arouter.demo.testservice.HelloService", RouteMeta.build(RouteType.PROVIDER, HelloServiceImpl.class, "/service/hello", "service", null, -1, -2147483648));     */                     loadIntoMethodOfProviderBuilder.addStatement(           "providers.put($S, $T.build($T." + routeMeta.getType() + ", $T.class, $S, $S, null, " + routeMeta.getPriority() + ", " + routeMeta.getExtra() + "))",           tm.toString(), // So stupid, will duplicate only save class name.           routeMetaCn,           routeTypeCn,           ClassName.get((TypeElement) routeMeta.getRawType()),           routeMeta.getPath(),           routeMeta.getGroup());        }       }       break;      default:       break;     }     // 拼接添加注解的字段     StringBuilder mapBodyBuilder = new StringBuilder();     Map<String, Integer> paramsType = routeMeta.getParamsType();     if (MapUtils.isNotEmpty(paramsType)) {      for (Map.Entry<String, Integer> types : paramsType.entrySet()) {       mapBodyBuilder.append("put(/"").append(types.getKey()).append("/", ").append(types.getValue()).append("); ");      }     }     // // 形式如： put("pac", 9); put("obj", 10);     String mapBody = mapBodyBuilder.toString();     // 往loadInto函数里面添加一个语句     loadIntoMethodOfGroupBuilder.addStatement(       "atlas.put($S, $T.build($T." + routeMeta.getType() + ", $T.class, $S, $S, " + (StringUtils.isEmpty(mapBody) ? null : ("new java.util.HashMap<String, Integer>(){{" + mapBodyBuilder.toString() + "}}")) + ", " + routeMeta.getPriority() + ", " + routeMeta.getExtra() + "))",       routeMeta.getPath(), // 完整路径       routeMetaCn, // RouteMeta       routeTypeCn, // RouteType       ClassName.get((TypeElement) routeMeta.getRawType()), // 注解原生类的名称       routeMeta.getPath().toLowerCase(), // 完整路径       routeMeta.getGroup().toLowerCase()); // 组名    }    // 添加的语句如下：    // atlas.put("/test/activity1", RouteMeta.build(RouteType.ACTIVITY, Test1Activity.class, "/test/activity1", "test", new java.util.HashMap<String, Integer>(){{put("pac", 9); put("obj", 10); put("name", 8); put("boy", 0); put("age", 3); put("url", 8); }}, -1, -2147483648));    // 生成组类别java文件    // public static final String NAME_OF_GROUP = PROJECT + SEPARATOR + "Group" + SEPARATOR;    // public static final String SEPARATOR = "$$";    // public static final String PROJECT = "ARouter";    String groupFileName = NAME_OF_GROUP + groupName;    JavaFile.builder(PACKAGE_OF_GENERATE_FILE, // package 名称 --"com.alibaba.android.arouter.routes"      TypeSpec.classBuilder(groupFileName) //java类名        .addJavadoc(WARNING_TIPS) // doc        .addSuperinterface(ClassName.get(type_IRouteGroup)) // 添加继承的接口        .addModifiers(PUBLIC) //　作用域为public        .addMethod(loadIntoMethodOfGroupBuilder.build()) // 添加函数（包括了函数里面的代码块）        .build()    ).build().writeTo(mFiler);    // 将组名和组文件名放到map中，方便按需加载    rootMap.put(groupName, groupFileName);   }  // .................................................................... //   // 经过了上面的for循环，生成了如 ARouter$$Group$$service.java 和ARouter$$Group$$test.java 文件，它们所在的包是 com.alibaba.android.arouter.routes。   if (MapUtils.isNotEmpty(rootMap)) {    // 遍历这些group，进而生成Root类文件    for (Map.Entry<String, String> entry : rootMap.entrySet()) {     loadIntoMethodOfRootBuilder.addStatement("routes.put($S, $T.class)", entry.getKey(), ClassName.get(PACKAGE_OF_GENERATE_FILE, entry.getValue()));     // 每一个statement如： routes.put("test", ARouter$$Group$$test.class);    }   }   // 生成provider类文件   // provider文件名为：ARouter$$Providers$$xxx   String providerMapFileName = NAME_OF_PROVIDER + SEPARATOR + moduleName;   JavaFile.builder(PACKAGE_OF_GENERATE_FILE,     TypeSpec.classBuilder(providerMapFileName)        .addJavadoc(WARNING_TIPS)       .addSuperinterface(ClassName.get(type_IProviderGroup))       .addModifiers(PUBLIC)       .addMethod(loadIntoMethodOfProviderBuilder.build())       .build()   ).build().writeTo(mFiler);   // 生成root文件   // ARouter$$Root$$xxx   String rootFileName = NAME_OF_ROOT + SEPARATOR + moduleName;   JavaFile.builder(PACKAGE_OF_GENERATE_FILE,     TypeSpec.classBuilder(rootFileName)       .addJavadoc(WARNING_TIPS)       .addSuperinterface(ClassName.get(elements.getTypeElement(ITROUTE_ROOT)))       .addModifiers(PUBLIC)       .addMethod(loadIntoMethodOfRootBuilder.build())       .build()   ).build().writeTo(mFiler);  } }

private void categories(RouteMeta routeMete) {  // 首先去验证这条路由信息  if (routeVerify(routeMete)) {   // 尝试从groupMap中通过group名称获取路由信息   Set<RouteMeta> routeMetas = groupMap.get(routeMete.getGroup());   if (CollectionUtils.isEmpty(routeMetas)) { // 如果map中没有相关记录，则表示这个组别还未添加到map中    Set<RouteMeta> routeMetaSet = new TreeSet<>(new Comparator<RouteMeta>() {     @Override     public int compare(RouteMeta r1, RouteMeta r2) {      try {       return r1.getPath().compareTo(r2.getPath());      } catch (NullPointerException npe) {       logger.error(npe.getMessage());       return 0;      }     }    });    // 添加该组别到map中    routeMetaSet.add(routeMete);    groupMap.put(routeMete.getGroup(), routeMetaSet);   } else { // 如果存在该组别则添加到这一组中    routeMetas.add(routeMete);   }  } else {   // 验证路由信息不正确是会在编译期间输出错误日志   logger.warning(">>> Route meta verify error, group is " + routeMete.getGroup() + " <<<");  } }

// 验证路由信息的正确性private boolean routeVerify(RouteMeta meta) {  String path = meta.getPath();  // 判断路径是否为空或者是否以“/”开头  if (StringUtils.isEmpty(path) || !path.startsWith("/")) { // The path must be start with '/' and not empty!   return false;  }  // 没有分组时，group为""  if (StringUtils.isEmpty(meta.getGroup())) { // Use default group(the first word in path)   try {    // 截取字符串获取group    String defaultGroup = path.substring(1, path.indexOf("/", 1));    if (StringUtils.isEmpty(defaultGroup)) {     return false;    }    meta.setGroup(defaultGroup);    return true;   } catch (Exception e) {    logger.error("Failed to extract default group! " + e.getMessage());    return false;   }  }  return true; }

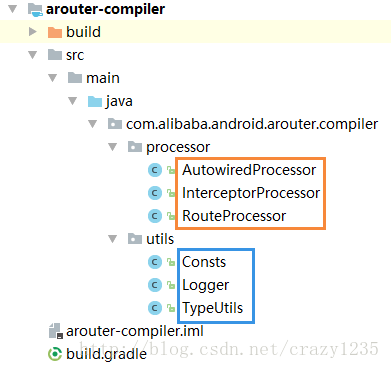

@AutoService(Processor.class)@SupportedOptions(KEY_MODULE_NAME)@SupportedSourceVersion(SourceVersion.RELEASE_7)@SupportedAnnotationTypes(ANNOTATION_TYPE_INTECEPTOR)public class InterceptorProcessor extends AbstractProcessor

 @Override public synchronized void init(ProcessingEnvironment processingEnv) {  super.init(processingEnv);  // ... 省略代码与RouteProcressor基本一样  iInterceptor = elementUtil.getTypeElement(Consts.IINTERCEPTOR).asType(); }

 @Override public boolean process(Set<? extends TypeElement> annotations, RoundEnvironment roundEnv) {  if (CollectionUtils.isNotEmpty(annotations)) {   // 获取Interceptor注解的集合   Set<? extends Element> elements = roundEnv.getElementsAnnotatedWith(Interceptor.class);   try {    // 处理注解信息    parseInterceptors(elements);   } catch (Exception e) {    logger.error(e);   }   return true;  }  return false; }

private Map<Integer, Element> interceptors = new TreeMap<>();

private void parseInterceptors(Set<? extends Element> elements) throws IOException {  if (CollectionUtils.isNotEmpty(elements)) {   // 遍历注解元素   for (Element element : elements) {    if (verify(element)) { // 做验证     Interceptor interceptor = element.getAnnotation(Interceptor.class);     // 尝试从拦截器结合中根据优先级获取     Element lastInterceptor = interceptors.get(interceptor.priority());     // 如果是已经存在相同优先级的拦截器，就会抛出异常     if (null != lastInterceptor) {       throw new IllegalArgumentException(        String.format(Locale.getDefault(), "More than one interceptors use same priority [%d], They are [%s] and [%s].",          interceptor.priority(),          lastInterceptor.getSimpleName(),          element.getSimpleName())      );     }     // 添加到集合中     interceptors.put(interceptor.priority(), element);    } else {     logger.error("A interceptor verify failed, its " + element.asType());    }   }   // Interface of ARouter.   TypeElement type_ITollgate = elementUtil.getTypeElement(IINTERCEPTOR);   TypeElement type_ITollgateGroup = elementUtil.getTypeElement(IINTERCEPTOR_GROUP);   /**    * 创建类型对象    *    * ```Map<Integer, Class<? extends IInterceptor>>```    */   ParameterizedTypeName inputMapTypeOfTollgate = ParameterizedTypeName.get(     ClassName.get(Map.class),     ClassName.get(Integer.class),     ParameterizedTypeName.get(       ClassName.get(Class.class),       WildcardTypeName.subtypeOf(ClassName.get(type_ITollgate))     )   );   // 构建输入参数   ParameterSpec tollgateParamSpec = ParameterSpec.builder(inputMapTypeOfTollgate, "interceptors").build();   // 创建函数 : 'loadInto'   MethodSpec.Builder loadIntoMethodOfTollgateBuilder = MethodSpec.methodBuilder(METHOD_LOAD_INTO)     .addAnnotation(Override.class)     .addModifiers(PUBLIC)     .addParameter(tollgateParamSpec);   // 遍历拦截器结合，往loadInto函数中添加语句   if (null != interceptors && interceptors.size() > 0) {    // Build method body    for (Map.Entry<Integer, Element> entry : interceptors.entrySet()) {     loadIntoMethodOfTollgateBuilder.addStatement("interceptors.put(" + entry.getKey() + ", $T.class)", ClassName.get((TypeElement) entry.getValue()));    // 语句类似于    // interceptors.put(1, Test1Interceptor.class);    }   }   // 写入文件   JavaFile.builder(PACKAGE_OF_GENERATE_FILE,     TypeSpec.classBuilder(NAME_OF_INTERCEPTOR + SEPARATOR + moduleName)       .addModifiers(PUBLIC)       .addJavadoc(WARNING_TIPS)       .addMethod(loadIntoMethodOfTollgateBuilder.build())       .addSuperinterface(ClassName.get(type_ITollgateGroup))       .build()   ).build().writeTo(mFiler);   logger.info(">>> Interceptor group write over. <<<");  } }

// 验证注解元素是否合格private boolean verify(Element element) {  Interceptor interceptor = element.getAnnotation(Interceptor.class);  return null != interceptor && ((TypeElement)element).getInterfaces().contains(iInterceptor); }

@AutoService(Processor.class)@SupportedOptions(KEY_MODULE_NAME)@SupportedSourceVersion(SourceVersion.RELEASE_7)@SupportedAnnotationTypes({ANNOTATION_TYPE_AUTOWIRED})public class AutowiredProcessor extends AbstractProcessor

 @Override public synchronized void init(ProcessingEnvironment processingEnvironment) {  super.init(processingEnvironment);  mFiler = processingEnv.getFiler();     // Generate class.  types = processingEnv.getTypeUtils();   // Get type utils.  elements = processingEnv.getElementUtils();  // Get class meta.  typeUtils = new TypeUtils(types, elements);  logger = new Logger(processingEnv.getMessager()); // Package the log utils. }

 // process函数主要关注两点 categories() 和 generateHelper() @Override public boolean process(Set<? extends TypeElement> set, RoundEnvironment roundEnvironment) {  if (CollectionUtils.isNotEmpty(set)) {   try {    logger.info(">>> Found autowired field, start... <<<");    // 1. 分组    categories(roundEnvironment.getElementsAnnotatedWith(Autowired.class));    // 2.     generateHelper();   } catch (Exception e) {    logger.error(e);   }   return true;  }  return false; }

private Map<TypeElement, List<Element>> parentAndChild = new HashMap<>();

// 将注解元素分组private void categories(Set<? extends Element> elements) throws IllegalAccessException {  if (CollectionUtils.isNotEmpty(elements)) {   for (Element element : elements) { // 遍历    // 获取注解字段所在的类信息    TypeElement enclosingElement = (TypeElement) element.getEnclosingElement();    // 注解的字段不能为private，否则抛出异常    if (element.getModifiers().contains(Modifier.PRIVATE)) {     throw new IllegalAccessException("The autowired fields CAN NOT BE 'private'!!! please check field ["       + element.getSimpleName() + "] in class [" + enclosingElement.getQualifiedName() + "]");    }    // 判断集合中是否存在集合中    if (parentAndChild.containsKey(enclosingElement)) { // Has categries     parentAndChild.get(enclosingElement).add(element);    } else {     List<Element> childs = new ArrayList<>();     childs.add(element);     parentAndChild.put(enclosingElement, childs);    }   }   logger.info("categories finished.");  } }

 //  private void generateHelper() throws IOException, IllegalAccessException {  // ISyringe  TypeElement type_ISyringe = elements.getTypeElement(ISYRINGE);  // SerializationService  TypeElement type_JsonService = elements.getTypeElement(JSON_SERVICE);  TypeMirror iProvider = elements.getTypeElement(Consts.IPROVIDER).asType();  TypeMirror activityTm = elements.getTypeElement(Consts.ACTIVITY).asType();  TypeMirror fragmentTm = elements.getTypeElement(Consts.FRAGMENT).asType();  TypeMirror fragmentTmV4 = elements.getTypeElement(Consts.FRAGMENT_V4).asType();  // 构建输入参数  ParameterSpec objectParamSpec = ParameterSpec.builder(TypeName.OBJECT, "target").build();  // 遍历分组的集合  if (MapUtils.isNotEmpty(parentAndChild)) {   for (Map.Entry<TypeElement, List<Element>> entry : parentAndChild.entrySet()) {    // 构建函数 : 'inject'    MethodSpec.Builder injectMethodBuilder = MethodSpec.methodBuilder(METHOD_INJECT)      .addAnnotation(Override.class)      .addModifiers(PUBLIC)      .addParameter(objectParamSpec); // 添加参数    TypeElement parent = entry.getKey();    List<Element> childs = entry.getValue();    String qualifiedName = parent.getQualifiedName().toString();    String packageName = qualifiedName.substring(0, qualifiedName.lastIndexOf("."));    // 文件名称例如：Test1Activity$$ARouter$$Autowired    String fileName = parent.getSimpleName() + NAME_OF_AUTOWIRED;    //     TypeSpec.Builder helper = TypeSpec.classBuilder(fileName)      .addJavadoc(WARNING_TIPS)      .addSuperinterface(ClassName.get(type_ISyringe))      .addModifiers(PUBLIC);    // 构建SerializationService 字段    FieldSpec jsonServiceField = FieldSpec.builder(TypeName.get(type_JsonService.asType()), "serializationService", Modifier.PRIVATE).build();    // 添加字段    helper.addField(jsonServiceField);    // inject函数中添加语句    // serializationService = ARouter.getInstance().navigation(SerializationService.class);    injectMethodBuilder.addStatement("serializationService = $T.getInstance().navigation($T.class);", ARouterClass, ClassName.get(type_JsonService));    // 转换对象    // 比如：Test1Activity substitute = (Test1Activity)target;    injectMethodBuilder.addStatement("$T substitute = ($T)target", ClassName.get(parent), ClassName.get(parent));    // 遍历注解变量    for (Element element : childs) {     Autowired fieldConfig = element.getAnnotation(Autowired.class);     String fieldName = element.getSimpleName().toString();     // 判断是否是IProvider类型     if (types.isSubtype(element.asType(), iProvider)) {       // 如果name为空，则通过Type方式      if ("".equals(fieldConfig.name())) {        injectMethodBuilder.addStatement(         "substitute." + fieldName + " = $T.getInstance().navigation($T.class)",         ARouterClass,         ClassName.get(element.asType())       );      } else { // 如果name不为空，则通过name方式       injectMethodBuilder.addStatement(         "substitute." + fieldName + " = ($T)$T.getInstance().build($S).navigation();",         ClassName.get(element.asType()),         ARouterClass,         fieldConfig.name()       );      }      // 是否是必须传值字段，这里加入了if判断      if (fieldConfig.required()) {       injectMethodBuilder.beginControlFlow("if (substitute." + fieldName + " == null)");       injectMethodBuilder.addStatement(         "throw new RuntimeException(/"The field '" + fieldName + "' is null, in class '/" + $T.class.getName() + /"!/")", ClassName.get(parent));       injectMethodBuilder.endControlFlow();      }     } else { // It's normal intent value      String statment = "substitute." + fieldName + " = substitute.";      boolean isActivity = false;      // Activity类型时，通过 getIntent() 方式      if (types.isSubtype(parent.asType(), activityTm)) {        isActivity = true;       statment += "getIntent().";      }      // Fragment类型, 使用 getArguments()       else if (types.isSubtype(parent.asType(), fragmentTm) || types.isSubtype(parent.asType(), fragmentTmV4)) {        statment += "getArguments().";      }       // 非Activity或者非Fragment，则抛出异常      else {       throw new IllegalAccessException("The field [" + fieldName + "] need autowired from intent, its parent must be activity or fragment!");      }      statment = buildStatement(statment, typeUtils.typeExchange(element), isActivity);      // 针对SerializationService添加判空操作      if (statment.startsWith("serializationService.")) { // Not mortals       injectMethodBuilder.beginControlFlow("if (null != serializationService)");       injectMethodBuilder.addStatement(         "substitute." + fieldName + " = " + statment,         (StringUtils.isEmpty(fieldConfig.name()) ? fieldName : fieldConfig.name()),         ClassName.get(element.asType())       );       injectMethodBuilder.nextControlFlow("else");       injectMethodBuilder.addStatement(         "$T.e(/"" + Consts.TAG + "/", /"You want automatic inject the field '" + fieldName + "' in class '$T' , then you should implement 'SerializationService' to support object auto inject!/")", AndroidLog, ClassName.get(parent));       injectMethodBuilder.endControlFlow();      } else {       injectMethodBuilder.addStatement(statment, StringUtils.isEmpty(fieldConfig.name()) ? fieldName : fieldConfig.name());      }      // Validator      if (fieldConfig.required() && !element.asType().getKind().isPrimitive()) { // Primitive wont be check.       injectMethodBuilder.beginControlFlow("if (null == substitute." + fieldName + ")");       injectMethodBuilder.addStatement(         "$T.e(/"" + Consts.TAG + "/", /"The field '" + fieldName + "' is null, in class '/" + $T.class.getName() + /"!/")", AndroidLog, ClassName.get(parent));       injectMethodBuilder.endControlFlow();      }     }    }    // 往类中添加inject() 函数    helper.addMethod(injectMethodBuilder.build());    // 写入文件    JavaFile.builder(packageName, helper.build()).build().writeTo(mFiler);   }   logger.info(">>> Autowired processor stop. <<<");  } }

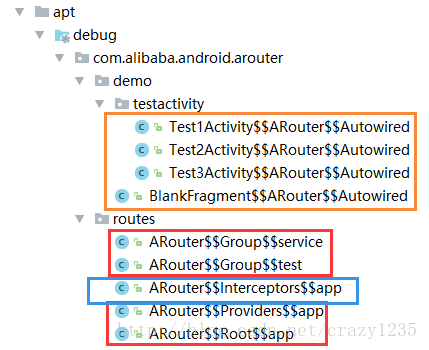

public class Test1Activity$$ARouter$$Autowired implements ISyringe { private SerializationService serializationService; @Override public void inject(Object target) { serializationService = ARouter.getInstance().navigation(SerializationService.class);; Test1Activity substitute = (Test1Activity)target; substitute.name = substitute.getIntent().getStringExtra("name"); substitute.age = substitute.getIntent().getIntExtra("age", 0); substitute.girl = substitute.getIntent().getBooleanExtra("boy", false); substitute.pac = substitute.getIntent().getParcelableExtra("pac"); if (null != serializationService) {  substitute.obj = serializationService.json2Object(substitute.getIntent().getStringExtra("obj"), TestObj.class); } else {  Log.e("ARouter::", "You want automatic inject the field 'obj' in class 'Test1Activity' , then you should implement 'SerializationService' to support object auto inject!"); } substitute.url = substitute.getIntent().getStringExtra("url"); substitute.helloService = ARouter.getInstance().navigation(HelloService.class); }}
