Unity3D 冲锋效果、角色拖尾效果

2024-07-16 17:46:18
字体:
来源:转载
供稿:网友

《魔兽世界》,本人最喜欢的网络游戏,如果你玩过战士,你一定对战士的冲锋非常熟悉,现在接触 Unity3D,因为最近用到了刀光、拖尾特效,所以就想做一个类似战士的冲锋效果,在本场景用到的拖尾效果可以查看我的另一篇文章,里面有详细的介绍,刀光效果来自 Unity3D Assets 商店,只是把原作者的例子代码整理了一下,变得非常简单实用的类。

最终效果如下:

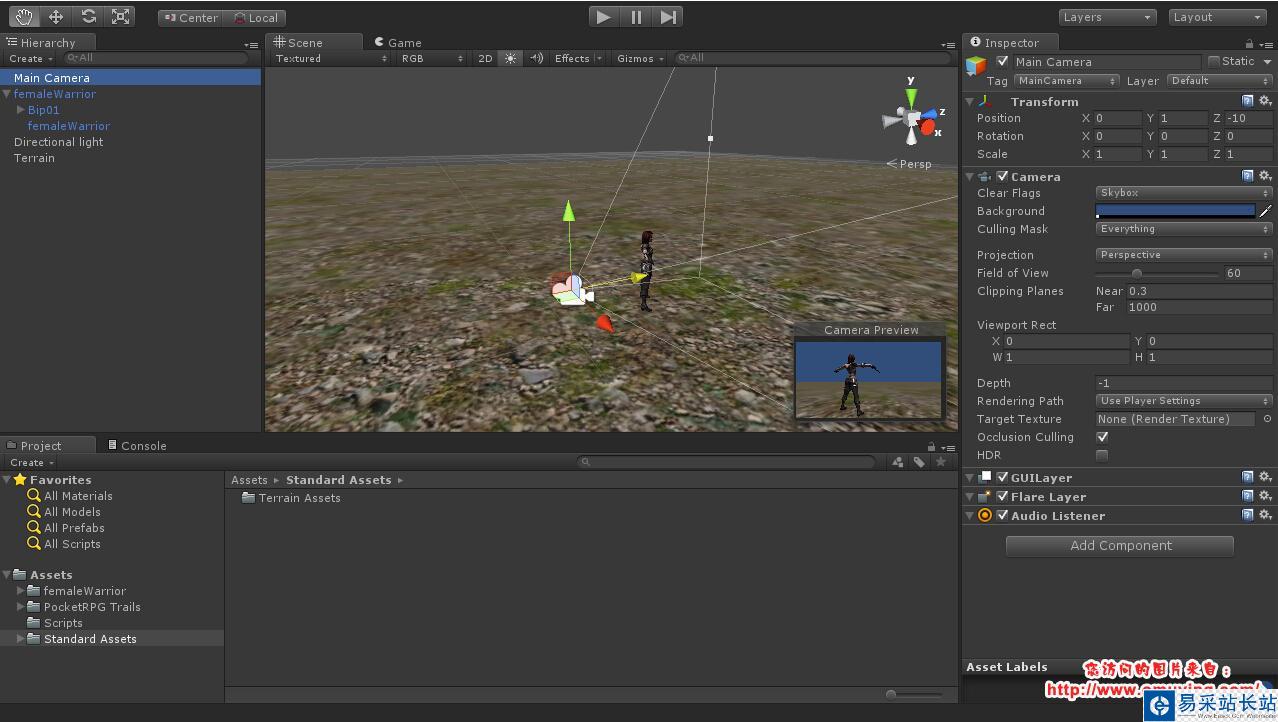

先来搭建我们的场景,如图:

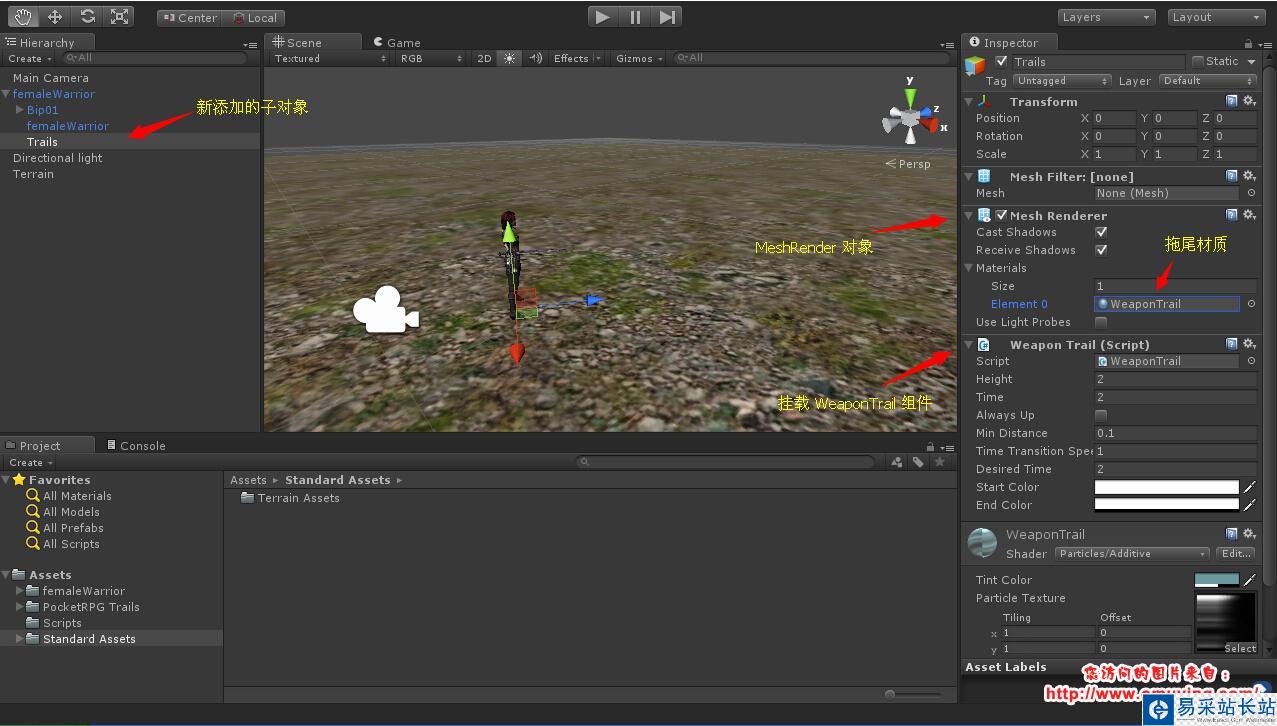

然后给角色的模型添加一个空对象,并且加上 MeshRender,并且设置好材质为 WeaponTrail,另外给这个空对象添加 WeaponTrail.cs 对象,设置好相关属性,如图:

下面的代码是修改另一篇文章的 TrailsBladeMaster.cs 类,新的代码如下:


复制代码代码如下:
using UnityEngine;
using System.Collections;
using System.Collections.Generic;
[AddComponentMenu("PocketRPG/Blade Master")]
public class TrailsBladeMaster : MonoBehaviour
{
/// <summary>
/// 拖尾效果
/// </summary>
public WeaponTrail weaponSwipe;
public AnimationClip idleClip;
public AnimationClip runClip;
/// <summary>
/// 移动速度
/// </summary>
public float speed = 20.0f;
public Camera mainCamera;
private Animation animation;
protected TrailsAnimationController animationController;
protected CharacterController characterController;
/// <summary>
/// 运行状态
/// </summary>
private bool isMoving = false;
/// <summary>
/// 目标位置
/// </summary>
private Vector3 targetPosition;
/// <summary>
/// 移动向量
/// </summary>
private Vector3 moveDirection;
protected void Awake ()
{
this.animation = this.GetComponent<Animation> ();
this.animationController = this.GetComponent<TrailsAnimationController> ();
this.characterController = this.GetComponent<CharacterController> ();
this.animation.CrossFade (this.idleClip.name);
}
protected void Start ()
{
if (this.weaponSwipe != null) this.animationController.AddTrail (this.weaponSwipe);
}
protected void Update ()
{
if (!this.isMoving && Input.GetMouseButtonDown(0))
{
this.targetPosition = this.GetWorldPosition();
if(this.targetPosition != Vector3.zero)
{
this.isMoving = true;
this.moveDirection = (this.targetPosition - this.transform.position).normalized * this.speed;
this.transform.rotation = Quaternion.LookRotation(new Vector3(this.moveDirection.x, 0f, this.moveDirection.z));
