超炫酷的WPF实现Loading控件效果

2019-10-29 21:35:21

字体：大中小

来源：转载

供稿：网友

这篇文章主要介绍了超炫酷的WPF实现Loading控件效果，感兴趣的小伙伴们可以参考一下

Win8系统的Loading效果还是很不错的，网上也有人用CSS3等技术实现，研究了一下，并打算用WPF自定义一个Loading控件实现类似的效果，并可以让用户对Loading的颗粒(Particle)背景颜色进行自定义，话不多说，直接上代码：

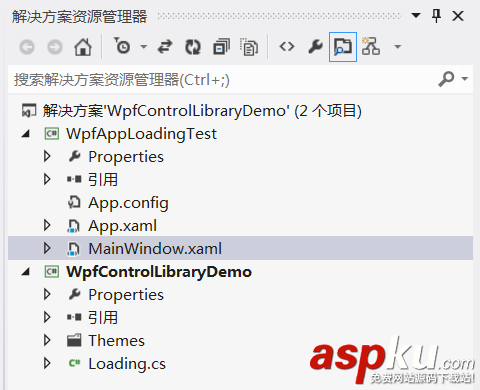

1、用VS2012新建一个WPF的用户控件库项目WpfControlLibraryDemo，VS自动生成如下结构：

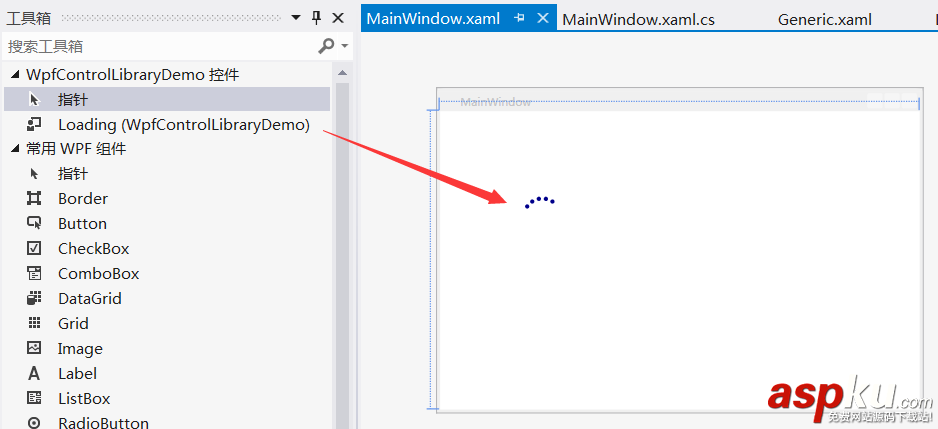

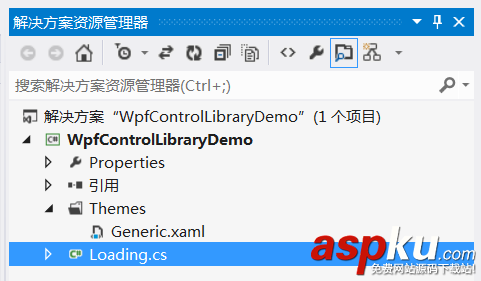

2、删除UserControl1.xaml，并新建一个Loading的CustomControl(不是UserControl),如下图所示：

3、如果报错找不到Loading类型，请编译，下面在Generic.xaml主题文件中对Loading的样式和内容进行定义(注意添加

xmlns:system = "clr-namespace:System;assembly=mscorlib"），代码如下：

<ResourceDictionary

xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

xmlns:system = "clr-namespace:System;assembly=mscorlib"

xmlns:local="clr-namespace:WpfControlLibraryDemo">

<Style TargetType="{x:Type local:Loading}">

<Setter Property="Template">

<Setter.Value>

<ControlTemplate TargetType="{x:Type local:Loading}">

<Border Background="{TemplateBinding Background}"

BorderBrush="{TemplateBinding BorderBrush}"

BorderThickness="{TemplateBinding BorderThickness}">

<Grid Width = "50" Height = "50">

<Grid.Resources>





<SolidColorBrush x:Key = "ParticleColor" Color = "{Binding Path=FillColor,RelativeSource={RelativeSource TemplatedParent}}" />

<SolidColorBrush x:Key = "ParticleBackgroundColor" Color = "Transparent"/>

<system:Double x:Key = "ParticleOpacity">1</system:Double>

<system:Double x:Key = "ParticleRadius">5</system:Double>

<system:Double x:Key = "StartingPointX">0</system:Double>

<system:Double x:Key = "StartingPointY">-20</system:Double>

<system:Double x:Key = "RotationPointX">0.5</system:Double>

<system:Double x:Key = "RotationPointY">0.5</system:Double>



<system:TimeSpan x:Key = "StoryBoardBeginTimeP0">00:00:00.000</system:TimeSpan>

<system:TimeSpan x:Key = "StoryBoardBeginTimeP1">00:00:00.100</system:TimeSpan>

<system:TimeSpan x:Key = "StoryBoardBeginTimeP2">00:00:00.200</system:TimeSpan>

<system:TimeSpan x:Key = "StoryBoardBeginTimeP3">00:00:00.300</system:TimeSpan>

<system:TimeSpan x:Key = "StoryBoardBeginTimeP4">00:00:00.400</system:TimeSpan>

<Duration x:Key = "StoryBoardDuration">00:00:01.800</Duration>



<system:Double x:Key = "ParticleOriginAngleP0">0</system:Double>

<system:Double x:Key = "ParticleOriginAngleP1">-10</system:Double>

<system:Double x:Key = "ParticleOriginAngleP2">-20</system:Double>

<system:Double x:Key = "ParticleOriginAngleP3">-30</system:Double>

<system:Double x:Key = "ParticleOriginAngleP4">-40</system:Double>



<system:Double x:Key = "ParticleBeginAngle1">0</system:Double>

<system:Double x:Key = "ParticleEndAngle1">90</system:Double>

<system:TimeSpan x:Key = "ParticleBeginTime1">00:00:00.000</system:TimeSpan>

<Duration x:Key = "ParticleDuration1">00:00:00.750</Duration>



<system:Double x:Key = "ParticleBeginAngle2">90</system:Double>

<system:Double x:Key = "ParticleEndAngle2">270</system:Double>

<system:TimeSpan x:Key = "ParticleBeginTime2">00:00:00.751</system:TimeSpan>

<Duration x:Key = "ParticleDuration2">00:00:00.300</Duration>



<system:Double x:Key = "ParticleBeginAngle3">270</system:Double>

<system:Double x:Key = "ParticleEndAngle3">360</system:Double>

<system:TimeSpan x:Key = "ParticleBeginTime3">00:00:01.052</system:TimeSpan>

<Duration x:Key = "ParticleDuration3">00:00:00.750</Duration>

<Style x:Key = "EllipseStyle" TargetType = "Ellipse">

<Setter Property = "Width" Value = "{StaticResource ParticleRadius}"/>

<Setter Property = "Height" Value = "{StaticResource ParticleRadius}"/>

<Setter Property = "Fill" Value = "{StaticResource ParticleColor}"/>

<Setter Property = "RenderTransformOrigin" Value = "0.5, 0.5"/>

<Setter Property = "Opacity" Value = "{StaticResource ParticleOpacity}"/>

</Style>

</Grid.Resources>

<Canvas Width = "1" Height = "1" Margin="0,0,0,0">

<Canvas.Triggers>

<EventTrigger RoutedEvent = "Canvas.Loaded">

<EventTrigger.Actions>

<BeginStoryboard>

<Storyboard

BeginTime = "{StaticResource StoryBoardBeginTimeP0}"

Duration = "{StaticResource StoryBoardDuration}"

RepeatBehavior = "Forever">

<DoubleAnimation

Storyboard.TargetName = "p0"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle1}"

To = "{StaticResource ParticleEndAngle1}"

BeginTime = "{StaticResource ParticleBeginTime1}"

Duration = "{StaticResource ParticleDuration1}"/>

<DoubleAnimation

Storyboard.TargetName = "p0"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle2}"

To = "{StaticResource ParticleEndAngle2}"

BeginTime = "{StaticResource ParticleBeginTime2}"

Duration = "{StaticResource ParticleDuration2}"/>

<DoubleAnimation

Storyboard.TargetName = "p0"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle3}"

To = "{StaticResource ParticleEndAngle3}"

BeginTime = "{StaticResource ParticleBeginTime3}"

Duration = "{StaticResource ParticleDuration3}"/>

</Storyboard>

</BeginStoryboard>

<BeginStoryboard>

<Storyboard

BeginTime = "{StaticResource StoryBoardBeginTimeP1}"

Duration = "{StaticResource StoryBoardDuration}"

RepeatBehavior = "Forever">

<DoubleAnimation

Storyboard.TargetName = "p1"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle1}"

To = "{StaticResource ParticleEndAngle1}"

BeginTime = "{StaticResource ParticleBeginTime1}"

Duration = "{StaticResource ParticleDuration1}"/>

<DoubleAnimation

Storyboard.TargetName = "p1"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle2}"

To = "{StaticResource ParticleEndAngle2}"

BeginTime = "{StaticResource ParticleBeginTime2}"

Duration = "{StaticResource ParticleDuration2}"/>

<DoubleAnimation

Storyboard.TargetName = "p1"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle3}"

To = "{StaticResource ParticleEndAngle3}"

BeginTime = "{StaticResource ParticleBeginTime3}"

Duration = "{StaticResource ParticleDuration3}"/>

</Storyboard>

</BeginStoryboard>

<BeginStoryboard>

<Storyboard

BeginTime = "{StaticResource StoryBoardBeginTimeP2}"

Duration = "{StaticResource StoryBoardDuration}"

RepeatBehavior = "Forever">

<DoubleAnimation

Storyboard.TargetName = "p2"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle1}"

To = "{StaticResource ParticleEndAngle1}"

BeginTime = "{StaticResource ParticleBeginTime1}"

Duration = "{StaticResource ParticleDuration1}"/>

<DoubleAnimation

Storyboard.TargetName = "p2"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle2}"

To = "{StaticResource ParticleEndAngle2}"

BeginTime = "{StaticResource ParticleBeginTime2}"

Duration = "{StaticResource ParticleDuration2}"/>

<DoubleAnimation

Storyboard.TargetName = "p2"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle3}"

To = "{StaticResource ParticleEndAngle3}"

BeginTime = "{StaticResource ParticleBeginTime3}"

Duration = "{StaticResource ParticleDuration3}"/>

</Storyboard>

</BeginStoryboard>

<BeginStoryboard>

<Storyboard

BeginTime = "{StaticResource StoryBoardBeginTimeP3}"

Duration = "{StaticResource StoryBoardDuration}"

RepeatBehavior = "Forever">

<DoubleAnimation

Storyboard.TargetName = "p3"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle1}"

To = "{StaticResource ParticleEndAngle1}"

BeginTime = "{StaticResource ParticleBeginTime1}"

Duration = "{StaticResource ParticleDuration1}"/>

<DoubleAnimation

Storyboard.TargetName = "p3"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle2}"

To = "{StaticResource ParticleEndAngle2}"

BeginTime = "{StaticResource ParticleBeginTime2}"

Duration = "{StaticResource ParticleDuration2}"/>

<DoubleAnimation

Storyboard.TargetName = "p3"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle3}"

To = "{StaticResource ParticleEndAngle3}"

BeginTime = "{StaticResource ParticleBeginTime3}"

Duration = "{StaticResource ParticleDuration3}"/>

</Storyboard>

</BeginStoryboard>

<BeginStoryboard>

<Storyboard

BeginTime = "{StaticResource StoryBoardBeginTimeP4}"

Duration = "{StaticResource StoryBoardDuration}"

RepeatBehavior = "Forever">

<DoubleAnimation

Storyboard.TargetName = "p4"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle1}"

To = "{StaticResource ParticleEndAngle1}"

BeginTime = "{StaticResource ParticleBeginTime1}"

Duration = "{StaticResource ParticleDuration1}"/>

<DoubleAnimation

Storyboard.TargetName = "p4"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle2}"

To = "{StaticResource ParticleEndAngle2}"

BeginTime = "{StaticResource ParticleBeginTime2}"

Duration = "{StaticResource ParticleDuration2}"/>

<DoubleAnimation

Storyboard.TargetName = "p4"

Storyboard.TargetProperty = "(UIElement.RenderTransform).(RotateTransform.Angle)"

From = "{StaticResource ParticleBeginAngle3}"

To = "{StaticResource ParticleEndAngle3}"

BeginTime = "{StaticResource ParticleBeginTime3}"

Duration = "{StaticResource ParticleDuration3}"/>

</Storyboard>

</BeginStoryboard>

</EventTrigger.Actions>

</EventTrigger>

</Canvas.Triggers>

<Border

x:Name = "p0"

Background = "{StaticResource ParticleBackgroundColor}"

Opacity = "{StaticResource ParticleOpacity}">

<Border.RenderTransform>

<RotateTransform/>

</Border.RenderTransform>

<Border.RenderTransformOrigin>

<Point X = "{StaticResource RotationPointX}" Y = "{StaticResource RotationPointY}"/>

</Border.RenderTransformOrigin>

<Ellipse Style = "{StaticResource EllipseStyle}">

<Ellipse.RenderTransform>

<TransformGroup>

<TranslateTransform X = "{StaticResource StartingPointX}" Y = "{StaticResource StartingPointY}"/>

<RotateTransform Angle = "{StaticResource ParticleOriginAngleP0}"/>

</TransformGroup>

</Ellipse.RenderTransform>

</Ellipse>

</Border>

<Border

x:Name = "p1"

Background = "{StaticResource ParticleBackgroundColor}"

Opacity = "{StaticResource ParticleOpacity}">

<Border.RenderTransform>

<RotateTransform/>

</Border.RenderTransform>

<Border.RenderTransformOrigin>

<Point X = "{StaticResource RotationPointX}" Y = "{StaticResource RotationPointY}"/>

</Border.RenderTransformOrigin>

<Ellipse Style = "{StaticResource EllipseStyle}">

<Ellipse.RenderTransform>

<TransformGroup>

<TranslateTransform X = "{StaticResource StartingPointX}" Y = "{StaticResource StartingPointY}"/>

<RotateTransform Angle = "{StaticResource ParticleOriginAngleP1}"/>

</TransformGroup>

</Ellipse.RenderTransform>

</Ellipse>

</Border>

<Border

x:Name = "p2"

Background = "{StaticResource ParticleBackgroundColor}"

Opacity = "{StaticResource ParticleOpacity}">

<Border.RenderTransform>

<RotateTransform/>

</Border.RenderTransform>

<Border.RenderTransformOrigin>

<Point X = "{StaticResource RotationPointX}" Y = "{StaticResource RotationPointY}"/>

</Border.RenderTransformOrigin>

<Ellipse Style = "{StaticResource EllipseStyle}">

<Ellipse.RenderTransform>

<TransformGroup>

<TranslateTransform X = "{StaticResource StartingPointX}" Y = "{StaticResource StartingPointY}"/>

<RotateTransform Angle = "{StaticResource ParticleOriginAngleP2}"/>

</TransformGroup>

</Ellipse.RenderTransform>

</Ellipse>

</Border>

<Border

x:Name = "p3"

Background = "{StaticResource ParticleBackgroundColor}"

Opacity = "{StaticResource ParticleOpacity}">

<Border.RenderTransform>

<RotateTransform/>

</Border.RenderTransform>

<Border.RenderTransformOrigin>

<Point X = "{StaticResource RotationPointX}" Y = "{StaticResource RotationPointY}"/>

</Border.RenderTransformOrigin>

<Ellipse Style = "{StaticResource EllipseStyle}">

<Ellipse.RenderTransform>

<TransformGroup>

<TranslateTransform X = "{StaticResource StartingPointX}" Y = "{StaticResource StartingPointY}"/>

<RotateTransform Angle = "{StaticResource ParticleOriginAngleP3}"/>

</TransformGroup>

</Ellipse.RenderTransform>

</Ellipse>

</Border>

<Border

x:Name = "p4"

Background = "{StaticResource ParticleBackgroundColor}"

Opacity = "{StaticResource ParticleOpacity}">

<Border.RenderTransform>

<RotateTransform/>

</Border.RenderTransform>

<Border.RenderTransformOrigin>

<Point X = "{StaticResource RotationPointX}" Y = "{StaticResource RotationPointY}"/>

</Border.RenderTransformOrigin>

<Ellipse Style = "{StaticResource EllipseStyle}">

<Ellipse.RenderTransform>

<TransformGroup>

<TranslateTransform X = "{StaticResource StartingPointX}" Y = "{StaticResource StartingPointY}"/>

<RotateTransform Angle = "{StaticResource ParticleOriginAngleP4}"/>

</TransformGroup>

</Ellipse.RenderTransform>

</Ellipse>

</Border>

</Canvas>

</Grid>

</Border>

</ControlTemplate>

</Setter.Value>

</Setter>

</Style>

</ResourceDictionary>

在构建中发现，一开始在设定绑定时，写成一直都无法绑定成功，后来查了资料，改成后成功。

4、编辑Loading.cs文件，对自定义属性FillColor和逻辑进行编码：

using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.Threading.Tasks;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Data;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Imaging;

using System.Windows.Navigation;

using System.Windows.Shapes;

namespace WpfControlLibraryDemo

{

using System.ComponentModel;

/// <summary>

/// 按照步骤 1a 或 1b 操作，然后执行步骤 2 以在 XAML 文件中使用此自定义控件。

///

/// 步骤 1a) 在当前项目中存在的 XAML 文件中使用该自定义控件。

/// 将此 XmlNamespace 特性添加到要使用该特性的标记文件的根

/// 元素中:

///

/// xmlns:MyNamespace="clr-namespace:WpfControlLibraryDemo"

///

///

/// 步骤 1b) 在其他项目中存在的 XAML 文件中使用该自定义控件。

/// 将此 XmlNamespace 特性添加到要使用该特性的标记文件的根

/// 元素中:

///

/// xmlns:MyNamespace="clr-namespace:WpfControlLibraryDemo;assembly=WpfControlLibraryDemo"

///

/// 您还需要添加一个从 XAML 文件所在的项目到此项目的项目引用，

/// 并重新生成以避免编译错误:

///

/// 在解决方案资源管理器中右击目标项目，然后依次单击

/// “添加引用”->“项目”->[浏览查找并选择此项目]

///

///

/// 步骤 2)

/// 继续操作并在 XAML 文件中使用控件。

///

/// <MyNamespace:Loading/>

///

/// </summary>

public class Loading : Control

{

static Loading()

{

//重载默认样式

DefaultStyleKeyProperty.OverrideMetadata(typeof(Loading), new FrameworkPropertyMetadata(typeof(Loading)));

//DependencyProperty 注册 FillColor

FillColorProperty = DependencyProperty.Register("FillColor",

typeof(Color),

typeof(Loading),

new UIPropertyMetadata(Colors.DarkBlue,

new PropertyChangedCallback(OnUriChanged))

);

//Colors.DarkBlue为控件初始化默认值

}

//属性变更回调函数

private static void OnUriChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)

{

//Border b = (Border)d;

//MessageBox.Show(e.NewValue.ToString());

}

#region 自定义Fields

// DependencyProperty属性定义 FillColorProperty=FillColor+Property组成

public static readonly DependencyProperty FillColorProperty;

#endregion

//VS设计器属性支持

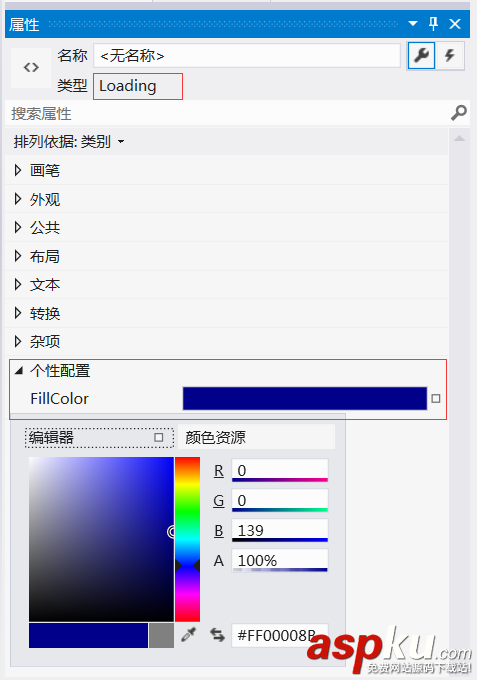

[Description("背景色"), Category("个性配置"), DefaultValue("#FF668899")]

public Color FillColor

{

//GetValue,SetValue为固定写法，此处一般不建议处理其他逻辑

get { return (Color)GetValue(FillColorProperty); }

set { SetValue(FillColorProperty, value); }

}

}

}
