Android自定义wheelview实现滚动日期选择器

2019-10-21 21:45:39
字体:
来源:转载
供稿:网友

本文实例为大家分享了Android实现滚动日期选择器的具体代码,供大家参考,具体内容如下

wheelview滚动效果的View

这段时间需要用到一个时间选择器,但是不能使用日期对话框,
因为它是筛选条件框架下的,只能是View!这个WheelView改造后可以达到要求!
这个wheelview框架使用的类不多,就几个,还有一些资源文件。
我根据这个框架设计了日期的选择器。

主页面:

Android,wheelview,日期选择器

第一种日期选择器页面:

Android,wheelview,日期选择器

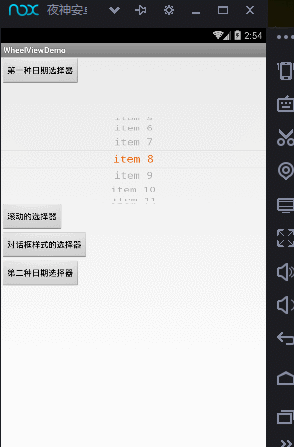

动态效果:

Android,wheelview,日期选择器

使用:

具体的实现是一个LoopView的类,这是一个继承View的类!
理解LoopView的公开方法就可以了。

1.布局文件

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"       xmlns:app="http://schemas.android.com/apk/res-auto"       android:orientation="vertical"       android:layout_width="match_parent"       android:layout_height="match_parent"       android:background="#fff"    >  <com.example.wheelview.loopview.LoopView    android:layout_marginTop="50dp"    android:id="@+id/loopView"    android:layout_width="match_parent"    android:layout_height="150dp"    app:awv_textsize="18"    /></LinearLayout>

2.控制代码

package com.example.wheelview.activity;import android.app.Activity;import android.content.Intent;import android.os.Bundle;import android.view.View;import android.widget.Toast;import com.example.wheelview.R;import com.example.wheelview.loopview.LoopView;import com.example.wheelview.loopview.OnItemSelectedListener;import java.util.ArrayList;public class MyActivity extends Activity {  private Toast toast;  @Override  protected void onCreate(Bundle savedInstanceState) {    super.onCreate(savedInstanceState);    setContentView(R.layout.activity_main);    final LoopView loopView = (LoopView) findViewById(R.id.loopView);    ArrayList<String> list = new ArrayList<String>();    for (int i = 0; i < 15; i++) {      list.add("item " + i);    }    //设置是否循环播放//    loopView.setNotLoop();    //滚动监听    loopView.setListener(new OnItemSelectedListener() {      @Override      public void onItemSelected(int index) {        if (toast == null) {          toast = Toast.makeText(MyActivity.this, "item " + index, Toast.LENGTH_SHORT);        }        toast.setText("item " + index);        toast.show();      }    });    //设置原始数据    loopView.setItems(list);  }}

那个日期选择器就是使用三个LoopView结合而成的!
LoopView类里面控制字体颜色和横线颜色的地方:

//中间选中的字体颜色:   灰色:0xff313131,橙色:0xffec6f1acenterTextColor = typedArray.getInteger(R.styleable.androidWheelView_awv_centerTextColor, 0xffec6f1a);//没被选中的字体的颜色 outerTextColor = typedArray.getInteger(R.styleable.androidWheelView_awv_outerTextColor, 0xffafafaf);//中间字体上下两条横线的颜色dividerColor = typedArray.getInteger(R.styleable.androidWheelView_awv_dividerTextColor, 0xffc5c5c5);

其他的控制可以参考我的代码
我的项目的代码:wheelview滚动效果的View
我的代码中有一个时间的工具类,可以很方便的取到任何时间,你也可以在日期选择器中多加一个按钮,设置到今天的日期。
