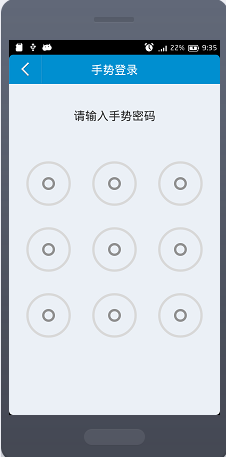

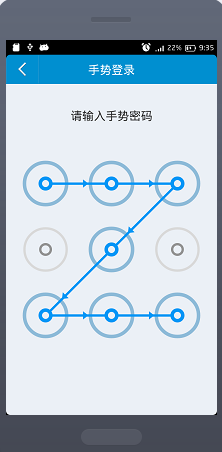

纯android代码实现九宫格手势密码

/**  * 点位置  */ public class Point {  public static int STATE_NORMAL = 0;  public static int STATE_CHECK = 1; //  public static int STATE_CHECK_ERROR = 2; //   public float x;  public float y;  public int state = 0;  public int index = 0;//   public Point() {   }   public Point(float x, float y, int value) {   this.x = x;   this.y = y;   index = value;  }    public int getColNum() {   return (index - 1) % 3;  }    public int getRowNum() {   return (index - 1) / 3;  }  }

public class MathUtil {  /**   *   * @param x1   * @param y1   * @param x2   * @param y2   * @return   */  public static double distance(double x1, double y1, double x2, double y2) {   return Math.sqrt(Math.abs(x1 - x2) * Math.abs(x1 - x2)     + Math.abs(y1 - y2) * Math.abs(y1 - y2));  }   /**   *   * @param x   * @param y   * @return   */  public static double pointTotoDegrees(double x, double y) {   return Math.toDegrees(Math.atan2(x, y));  }    public static boolean checkInRound(float sx, float sy, float r, float x,    float y) {   return Math.sqrt((sx - x) * (sx - x) + (sy - y) * (sy - y)) < r;  } }

import android.content.Context; import android.graphics.Canvas; import android.graphics.Paint; import android.graphics.Paint.Style; import android.graphics.Path; import android.util.AttributeSet; import android.util.Log; import android.view.MotionEvent; import android.view.View; import android.widget.Toast; import com.example.esop.util.MathUtil; import com.example.esop.util.Point;  import java.util.ArrayList; import java.util.List; import java.util.Timer; import java.util.TimerTask;  public class LocusPassWordView extends View {  private float width = 0;  private float height = 0;   //  private boolean isCache = false;  //  private Paint mPaint = new Paint(Paint.ANTI_ALIAS_FLAG);   //  private Point[][] mPoints = new Point[3][3];  //  private float dotRadius = 0;  //  private List<Point> sPoints = new ArrayList<Point>();  private boolean checking = false;  private long CLEAR_TIME = 1000;  private int pwdMaxLen = 9;  private int pwdMinLen = 4;  private boolean isTouch = true;    private Paint arrowPaint;  private Paint linePaint;  private Paint selectedPaint;  private Paint errorPaint;  private Paint normalPaint;  private int errorColor = 0xffea0945;  private int selectedColor = 0xff0596f6;  private int outterSelectedColor = 0xff8cbad8;  private int outterErrorColor = 0xff901032;  private int dotColor = 0xffd9d9d9;  private int outterDotColor = 0xff929292;   public LocusPassWordView(Context context, AttributeSet attrs, int defStyle) {   super(context, attrs, defStyle);  }   public LocusPassWordView(Context context, AttributeSet attrs) {   super(context, attrs);  }   public LocusPassWordView(Context context) {   super(context);  }   @Override  public void onDraw(Canvas canvas) {   if (!isCache) {    initCache();   }   drawToCanvas(canvas);  }   private void drawToCanvas(Canvas canvas) {   boolean inErrorState = false;   for (int i = 0; i < mPoints.length; i++) {    for (int j = 0; j < mPoints[i].length; j++) {     Point p = mPoints[i][j];     if (p.state == Point.STATE_CHECK) {      selectedPaint.setColor(outterSelectedColor);      canvas.drawCircle(p.x, p.y, dotRadius, selectedPaint);      selectedPaint.setColor(selectedColor);      canvas.drawCircle(p.x, p.y, dotRadius/4, selectedPaint);     } else if (p.state == Point.STATE_CHECK_ERROR) {      inErrorState = true;      errorPaint.setColor(outterErrorColor);      canvas.drawCircle(p.x, p.y, dotRadius, errorPaint);      errorPaint.setColor(errorColor);      canvas.drawCircle(p.x, p.y, dotRadius/4, errorPaint);     } else {      normalPaint.setColor(dotColor);      canvas.drawCircle(p.x, p.y, dotRadius, normalPaint);      normalPaint.setColor(outterDotColor);      canvas.drawCircle(p.x, p.y, dotRadius/4, normalPaint);     }    }   }      if (inErrorState) {    arrowPaint.setColor(errorColor);    linePaint.setColor(errorColor);   } else {    arrowPaint.setColor(selectedColor);    linePaint.setColor(selectedColor);   }    if (sPoints.size() > 0) {    int tmpAlpha = mPaint.getAlpha();    Point tp = sPoints.get(0);    for (int i = 1; i < sPoints.size(); i++) {     Point p = sPoints.get(i);     drawLine(tp, p, canvas, linePaint);     drawArrow(canvas, arrowPaint, tp, p, dotRadius/4, 38);     tp = p;    }    if (this.movingNoPoint) {     drawLine(tp, new Point(moveingX, moveingY, -1), canvas, linePaint);    }    mPaint.setAlpha(tmpAlpha);   }   }    private void drawLine(Point start, Point end, Canvas canvas, Paint paint) {   double d = MathUtil.distance(start.x, start.y, end.x, end.y);   float rx = (float) ((end.x-start.x) * dotRadius / 4 / d);   float ry = (float) ((end.y-start.y) * dotRadius / 4 / d);   canvas.drawLine(start.x+rx, start.y+ry, end.x-rx, end.y-ry, paint);  }    private void drawArrow(Canvas canvas, Paint paint, Point start, Point end, float arrowHeight, int angle) {   double d = MathUtil.distance(start.x, start.y, end.x, end.y);   float sin_B = (float) ((end.x - start.x) / d);   float cos_B = (float) ((end.y - start.y) / d);   float tan_A = (float) Math.tan(Math.toRadians(angle));   float h = (float) (d - arrowHeight - dotRadius * 1.1);   float l = arrowHeight * tan_A;   float a = l * sin_B;   float b = l * cos_B;   float x0 = h * sin_B;   float y0 = h * cos_B;   float x1 = start.x + (h + arrowHeight) * sin_B;   float y1 = start.y + (h + arrowHeight) * cos_B;   float x2 = start.x + x0 - b;   float y2 = start.y + y0 + a;   float x3 = start.x + x0 + b;   float y3 = start.y + y0 - a;   Path path = new Path();   path.moveTo(x1, y1);   path.lineTo(x2, y2);   path.lineTo(x3, y3);   path.close();   canvas.drawPath(path, paint);  }   private void initCache() {   width = this.getWidth();   height = this.getHeight();   float x = 0;   float y = 0;    if (width > height) {    x = (width - height) / 2;    width = height;   } else {    y = (height - width) / 2;    height = width;   }      int leftPadding = 15;   float dotPadding = width / 3 - leftPadding;   float middleX = width / 2;   float middleY = height / 2;    mPoints[0][0] = new Point(x + middleX - dotPadding, y + middleY - dotPadding, 1);   mPoints[0][1] = new Point(x + middleX, y + middleY - dotPadding, 2);   mPoints[0][2] = new Point(x + middleX + dotPadding, y + middleY - dotPadding, 3);   mPoints[1][0] = new Point(x + middleX - dotPadding, y + middleY, 4);   mPoints[1][1] = new Point(x + middleX, y + middleY, 5);   mPoints[1][2] = new Point(x + middleX + dotPadding, y + middleY, 6);   mPoints[2][0] = new Point(x + middleX - dotPadding, y + middleY + dotPadding, 7);   mPoints[2][1] = new Point(x + middleX, y + middleY + dotPadding, 8);   mPoints[2][2] = new Point(x + middleX + dotPadding, y + middleY + dotPadding, 9);      Log.d("jerome", "canvas width:"+width);   dotRadius = width / 10;   isCache = true;      initPaints();  }    private void initPaints() {   arrowPaint = new Paint();   arrowPaint.setColor(selectedColor);   arrowPaint.setStyle(Style.FILL);   arrowPaint.setAntiAlias(true);      linePaint = new Paint();   linePaint.setColor(selectedColor);   linePaint.setStyle(Style.STROKE);   linePaint.setAntiAlias(true);   linePaint.setStrokeWidth(dotRadius / 9);      selectedPaint = new Paint();   selectedPaint.setStyle(Style.STROKE);   selectedPaint.setAntiAlias(true);   selectedPaint.setStrokeWidth(dotRadius / 6);      errorPaint = new Paint();   errorPaint.setStyle(Style.STROKE);   errorPaint.setAntiAlias(true);   errorPaint.setStrokeWidth(dotRadius / 6);      normalPaint = new Paint();   normalPaint.setStyle(Style.STROKE);   normalPaint.setAntiAlias(true);   normalPaint.setStrokeWidth(dotRadius / 9);  }   /**   *   *   * @param index   * @return   */  public int[] getArrayIndex(int index) {   int[] ai = new int[2];   ai[0] = index / 3;   ai[1] = index % 3;   return ai;  }   /**   * @param x   * @param y   * @return   */  private Point checkSelectPoint(float x, float y) {   for (int i = 0; i < mPoints.length; i++) {    for (int j = 0; j < mPoints[i].length; j++) {     Point p = mPoints[i][j];     if (MathUtil.checkInRound(p.x, p.y, dotRadius, (int) x, (int) y)) {      return p;     }    }   }   return null;  }   /**   *   */  private void reset() {   for (Point p : sPoints) {    p.state = Point.STATE_NORMAL;   }   sPoints.clear();   this.enableTouch();  }   /**   *   *   * @param p   * @return   */  private int crossPoint(Point p) {   // reset   if (sPoints.contains(p)) {    if (sPoints.size() > 2) {     //     if (sPoints.get(sPoints.size() - 1).index != p.index) {      return 2;     }    }    return 1; //   } else {    return 0; //   }  }   /**   *   *   * @param point   */  private void addPoint(Point point) {   if (sPoints.size() > 0) {    Point lastPoint = sPoints.get(sPoints.size() - 1);    int dx = Math.abs(lastPoint.getColNum() - point.getColNum());    int dy = Math.abs(lastPoint.getRowNum() - point.getRowNum());    if ((dx > 1 || dy > 1) && (dx == 0 || dy == 0 || dx == dy)) { //   if ((dx > 1 || dy > 1) && (dx != 2 * dy) && (dy != 2 * dx)) {     int middleIndex = (point.index + lastPoint.index) / 2 - 1;     Point middlePoint = mPoints[middleIndex / 3][middleIndex % 3];     if (middlePoint.state != Point.STATE_CHECK) {      middlePoint.state = Point.STATE_CHECK;      sPoints.add(middlePoint);     }    }   }   this.sPoints.add(point);  }   /**   * @param   * @return   */  private String toPointString() {   if (sPoints.size() >= pwdMinLen && sPoints.size() <= pwdMaxLen) {    StringBuffer sf = new StringBuffer();    for (Point p : sPoints) {     sf.append(p.index);    }    return sf.toString();   } else {    return "";   }  }   boolean movingNoPoint = false;  float moveingX, moveingY;   @Override  public boolean onTouchEvent(MotionEvent event) {   //   if (!isTouch) {    return false;   }    movingNoPoint = false;    float ex = event.getX();   float ey = event.getY();   boolean isFinish = false;   boolean redraw = false;   Point p = null;   switch (event.getAction()) {   case MotionEvent.ACTION_DOWN: //    //    if (task != null) {     task.cancel();     task = null;     Log.d("task", "touch cancel()");    }    //    reset();    p = checkSelectPoint(ex, ey);    if (p != null) {     checking = true;    }    break;   case MotionEvent.ACTION_MOVE:    if (checking) {     p = checkSelectPoint(ex, ey);     if (p == null) {      movingNoPoint = true;      moveingX = ex;      moveingY = ey;     }    }    break;   case MotionEvent.ACTION_UP:    p = checkSelectPoint(ex, ey);    checking = false;    isFinish = true;    break;   }   if (!isFinish && checking && p != null) {     int rk = crossPoint(p);    if (rk == 2) //    {     // reset();     // checking = false;      movingNoPoint = true;     moveingX = ex;     moveingY = ey;      redraw = true;    } else if (rk == 0) //    {     p.state = Point.STATE_CHECK;     addPoint(p);     redraw = true;    }    // rk == 1    }    //   if (redraw) {    }   if (isFinish) {    if (this.sPoints.size() == 1) {     this.reset();    } else if (sPoints.size() < pwdMinLen || sPoints.size() > pwdMaxLen) {     // mCompleteListener.onPasswordTooMin(sPoints.size());     error();     clearPassword();     Toast.makeText(this.getContext(), "手势密码少于4个点", Toast.LENGTH_SHORT).show();    } else if (mCompleteListener != null) {     this.disableTouch();     mCompleteListener.onComplete(toPointString());    }   }   this.postInvalidate();   return true;  }   /**   *   */  private void error() {   for (Point p : sPoints) {    p.state = Point.STATE_CHECK_ERROR;   }  }   public void markError() {   markError(CLEAR_TIME);  }   public void markError(final long time) {   for (Point p : sPoints) {    p.state = Point.STATE_CHECK_ERROR;   }   this.clearPassword(time);  }   public void enableTouch() {   isTouch = true;  }   public void disableTouch() {   isTouch = false;  }   private Timer timer = new Timer();  private TimerTask task = null;    public void clearPassword() {   clearPassword(CLEAR_TIME);  }   public void clearPassword(final long time) {   if (time > 1) {    if (task != null) {     task.cancel();     Log.d("task", "clearPassword cancel()");    }    postInvalidate();    task = new TimerTask() {     public void run() {      reset();      postInvalidate();     }    };    Log.d("task", "clearPassword schedule(" + time + ")");    timer.schedule(task, time);   } else {    reset();    postInvalidate();   }   }   //  private OnCompleteListener mCompleteListener;   /**   * @param mCompleteListener   */  public void setOnCompleteListener(OnCompleteListener mCompleteListener) {   this.mCompleteListener = mCompleteListener;  }   public interface OnCompleteListener {      public void onComplete(String password);  } }
