一个强大的侧滑菜单控件ASwipeLayout

2019-10-21 21:41:15
字体:
来源:转载
供稿:网友

前言

该控件的优点:

1.无论是在RecyclerView,ListView,还是LinearLayout等,只要是ViewGroup用该控件都能实现侧滑。
2.控件的手势滑动冲突已解决,不会出现嵌套到ScrollView等控件出现滑动不流畅的情况
3.控件使用简单,只需要在xml外套一层该控件就好了,秒接入
4.点击事件很方便,原来什么写法就什么写法

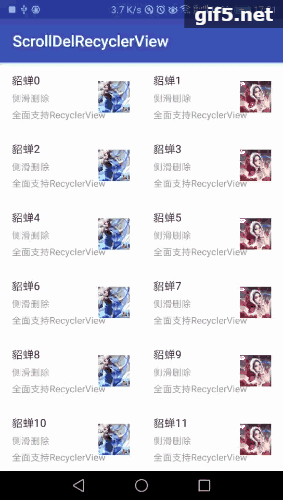

1.效果图

侧滑菜单控件,ASwipeLayout

侧滑菜单控件,ASwipeLayout

2.使用方式其实挺简单的,在设计的时候,就是想着怎么简单怎么来

2.1引入库:

Step 1. Add it in your root build.gradle at the end of repositories:

allprojects { repositories {  ...  maven { url 'https://jitpack.io' } } }

Step 2. Add the dependency

 dependencies {     implementation 'com.github.WelliJohn:ASwipeLayout:0.0.2' }

2.2在需要侧滑的布局的根布局中添加下面这段代码,注意注释的地方才是可以定制的:

<?xml version="1.0" encoding="utf-8"?><wellijohn.org.swipevg.ASwipeLayout xmlns:android="http://schemas.android.com/apk/res/android"  xmlns:app="http://schemas.android.com/apk/res-auto"  android:layout_width="match_parent"  android:layout_height="wrap_content"  android:orientation="horizontal">  <LinearLayout    android:id="@+id/ll_content"    android:layout_width="match_parent"    android:layout_height="wrap_content"    android:background="#FFFFFF"    android:orientation="horizontal">    //在这里是实现你的主item的东西,根据你们的项目随便添加  </LinearLayout>  <LinearLayout    android:id="@+id/right_menu_content"    android:layout_width="wrap_content"    android:layout_height="match_parent">     //在这里是实现右侧的菜单,根据你们的项目随便添加  </LinearLayout></wellijohn.org.swipevg.SwipeLayout>

注意在这里ll_content,right_menu_content是一定要的,这个id对应的布局不要自己去改变,以后有需要会放开,目前的话,一般的情况你们只需要定制主item的内容和右侧菜单栏了,在这里我也省去了定义一些额外的自定义view了,单纯就是用id,来区分主item和右侧的菜单。

3.因为RecyclerView中有复用Item的情况,针对这种情况的解决方案

因为item复用会使得当我们滑出某个menu的时候,再进行RecyclerView的上下滑动时,会使得其他的Item也滑出了menu,这就是item复用导致了布局错乱,所以针对这类型的问题的话,我在这里已经提供了OnSwipeStateChangeListener接口,在这里你们可以记录下滑动的状态,在onBindViewHolder方法里面,根据状态来设定Item是打开menu还是关闭menu:

 @Override  public void onBindViewHolder(ViewHolder holder, int position) {    final Person person = mDatas.get(position);    holder.scrollDelLl.setOpen(person.isOpen());    holder.scrollDelLl.setOnSwipeStateChangeListener(new OnSwipeStateChangeListener() {      @Override      public void onSwipeStateChange(boolean open) {        person.setOpen(open);      }    });  }

如上代码就可以解决Item复用导致布局错乱的问题了(粑粑再也不用担心RecyclerView复用的问题了)。

4.如果你们在项目使用的过程中,有新的需求或者是bug的话,可以在github上提你们的需求或者issue

5.代码已上传github,ASwipeLayout

以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持VEVB武林网。
