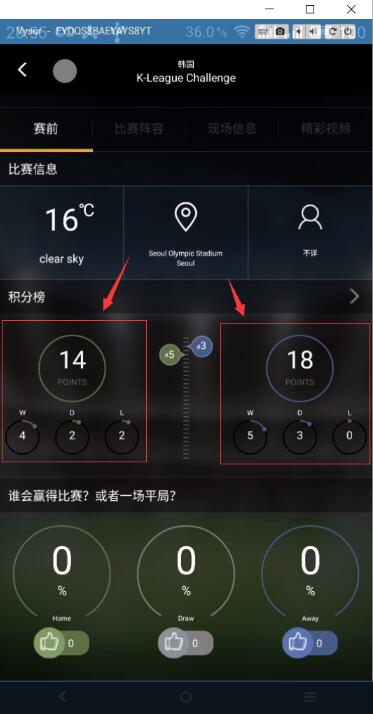

public class ScoreBoardView extends View { private Context context; /*弧的颜色*/ private int mColor; /*积分数，胜场数，平局数，负场数*/ private int mScore, mWinNumber, mDrawNumber, mLoseNumber; /*传入数字的最大值*/ private final int FULL_SCORE = 30; /*动画插值器*/ DecelerateInterpolator mDecelerateInterpolator = new DecelerateInterpolator(); /*动画持续时间（刷新次数）*/ private int mDuration = 10; /*动画刷新过程中的当前值*/ private int mCurrentTime = 0; private TypedValue typedValue; private TypedValue typedValue1; private Handler mHandler = new Handler(); private Runnable mAnimation = new Runnable() { @Override public void run() { if (mCurrentTime < mDuration) { mCurrentTime++; /*导致重绘调用onDraw，onDraw最后再次postDelay执行此动画，直到达到指定的次数*/ ScoreBoardView.this.invalidate(); } } }; /*绘制图形*/ private Paint paint = new Paint(); /*绘制文字*/ private Paint paintText = new Paint(); public ScoreBoardView(Context context) { super(context); this.context=context; init(); } public ScoreBoardView(Context context, AttributeSet attrs) { super(context, attrs); this.context=context; init(); } public ScoreBoardView(Context context, AttributeSet attrs, int defStyleAttr) { super(context, attrs, defStyleAttr); this.context=context; init(); } private void init() { /*数据初始化，默认属性*/ mColor = Color.rgb(95, 112, 72); mScore = 0; mWinNumber = 0; mDrawNumber = 0; mLoseNumber = 0; typedValue=new TypedValue(); typedValue1=new TypedValue(); context.getTheme().resolveAttribute(R.attr.maintextclor, typedValue, true); context.getTheme().resolveAttribute(R.attr.maintextclor_reverse,typedValue1,true); } @Override protected void onDraw(Canvas canvas) { super.onDraw(canvas); /*获取控件总的宽高*/ float totalWidth = getWidth(); float totalHeight = getHeight(); /* * DecelerateInterpolator：动画从开始到结束，变化率是一个减速的过程。 * AccelerateInterpolator：动画从开始到结束，变化率是一个加速的过程。 * CycleInterpolator：动画从开始到结束，变化率是循环给定次数的正弦曲线 * AccelerateDecelerateInterpolator：动画从开始到结束，变化率是先加速后减速的过程。 * LinearInterpolator：动画从开始到结束，变化率是线性变化。 * */ /*计算当前时刻动画进度值*/ float AnimCurrentValue =mDecelerateInterpolator.getInterpolation(1.0f * mCurrentTime / mDuration); /*图形画笔设置*/ paint.setAntiAlias(true); paint.setStyle(Paint.Style.STROKE); /*积分数，上边的大圆*/ paint.setStrokeWidth(4); paint.setColor(mColor); /*积分大圆的中心坐标和半径*/ float score_radius = totalHeight * 1 / 5, score_circle_x = totalWidth / 2, score_circle_y = totalHeight / 3; /*绘制圆弧*/ canvas.drawCircle(score_circle_x, score_circle_y, score_radius, paint); /*文字画笔基本设置*/ paintText.setAntiAlias(true); paintText.setStyle(Paint.Style.STROKE); /*文字从中间开始绘制*/ /*Paint.Align.CENTER：The text is drawn centered horizontally on the x,y origin*/ paintText.setTextAlign(Paint.Align.CENTER); /*文字画笔大小和颜色设置*/ paintText.setTextSize(score_radius * 3 / 4); paintText.setColor(getResources().getColor(typedValue.resourceId)); /*圆心位置绘制积分数值*/ canvas.drawText("" + mScore, score_circle_x, score_circle_y, paintText); /*缩小字体绘制文本信息*/ paintText.setTextSize(score_radius * 1 / 4); paintText.setAlpha(80); /*圆心下边绘制文本*/ canvas.drawText("积分", score_circle_x, score_circle_y + score_radius / 2, paintText); /*设置画笔，画下边的三个小圆*/ paint.setStrokeWidth(4); paint.setAlpha(255); /*下边三个小圆的半径*/ float small_radius = totalHeight / 10; /*三个小圆的圆心的x坐标*/ float[] circleXs = new float[]{totalWidth / 2 - score_radius * 3 / 2, totalWidth / 2, totalWidth / 2 + score_radius * 3 / 2}; /*三个小圆的圆心的y坐标*/ float circleY = totalHeight * 3 / 4; /*计算三个小圆弧扫过的角度*/ float[] theta_values = new float[]{360 * mWinNumber / FULL_SCORE* AnimCurrentValue, 360 * mDrawNumber / FULL_SCORE* AnimCurrentValue, 360 * mLoseNumber / FULL_SCORE* AnimCurrentValue}; /*设置画笔颜色，绘制外围圆环*/ paint.setColor(getResources().getColor(typedValue1.resourceId)); /*分别绘制三个外围圆环*/ canvas.drawCircle(circleXs[0], circleY, small_radius, paint);//画WIN背景圆 canvas.drawCircle(circleXs[1], circleY, small_radius, paint);//画DRAW背景圆 canvas.drawCircle(circleXs[2], circleY, small_radius, paint);//画LOSE背景圆 /*更改画笔颜色，绘制圆弧进度条*/ paint.setColor(mColor); /*drawArc的起始角度是3点钟方向，因此要从12点钟方向开始绘制，起始角度为270度*/ canvas.drawArc(new RectF(circleXs[0] - small_radius, circleY - small_radius, circleXs[0] + small_radius, circleY + small_radius), 270, theta_values[0], false, paint);//画WIN圆形进度条 canvas.drawArc(new RectF(circleXs[1] - small_radius, circleY - small_radius, circleXs[1] + small_radius, circleY + small_radius), 270, theta_values[1], false, paint);//画DRAW圆形进度条 canvas.drawArc(new RectF(circleXs[2] - small_radius, circleY - small_radius, circleXs[2] + small_radius, circleY + small_radius), 270, theta_values[2], false, paint);//画LOSE圆形进度条 /*绘制圆弧结束处的小圆点，实心圆*/ paint.setStyle(Paint.Style.FILL); /*已知半径、圆心位置、便宜角度，根据三角函数很方便计算出小实心圆圆心坐标*/ canvas.drawCircle(circleXs[0] + small_radius * (float) Math.sin(theta_values[0] * Math.PI / 180), circleY - small_radius * (float) Math.cos(theta_values[0] * Math.PI / 180), 6, paint);//画WIN末尾小圆点 canvas.drawCircle(circleXs[1] + small_radius * (float) Math.sin(theta_values[1] * Math.PI / 180), circleY - small_radius * (float) Math.cos(theta_values[1] * Math.PI / 180), 6, paint);//画DRAW末尾小圆点 canvas.drawCircle(circleXs[2] + small_radius * (float) Math.sin(theta_values[2] * Math.PI / 180), circleY - small_radius * (float) Math.cos(theta_values[2] * Math.PI / 180), 6, paint);//画LOSE末尾小圆点 /*绘制文字*/ paintText.setColor(getResources().getColor(typedValue.resourceId)); paintText.setTextSize(small_radius * 2 / 3); /*测量文字大小，确定绘制文字时垂直方向的位置*/ Paint.FontMetrics fontMetrics = paint.getFontMetrics(); float textBaseLineOffset = (fontMetrics.bottom - fontMetrics.top) / 2 - fontMetrics.bottom; /*在三个小圆的正中心位置绘制相应的数字*/ canvas.drawText("" + (int)(mWinNumber * AnimCurrentValue), circleXs[0], circleY + textBaseLineOffset, paintText); canvas.drawText("" + (int)(mDrawNumber * AnimCurrentValue), circleXs[1], circleY + textBaseLineOffset, paintText); canvas.drawText("" + (int)(mLoseNumber * AnimCurrentValue), circleXs[2], circleY + textBaseLineOffset, paintText); /*调整字体大小，绘制文本信息*/ paintText.setTextSize(small_radius * 4 / 9); canvas.drawText("胜场", circleXs[0], circleY - small_radius*4/3, paintText); canvas.drawText("平局", circleXs[1], circleY - small_radius*4/3, paintText); canvas.drawText("负场", circleXs[2], circleY - small_radius*4/3, paintText); /*20ms刷新一次数据*/ mHandler.postDelayed(mAnimation, 20);//启动动画 } public void setColor(int mColor) { this.mColor = mColor; invalidate(); } public void setScore(int score) { this.mScore = score; invalidate(); } public void setWinDrawLose(int win,int draw,int lose) { this.mWinNumber = win; this.mDrawNumber = draw; this.mLoseNumber = lose; mCurrentTime =0; invalidate(); }}
