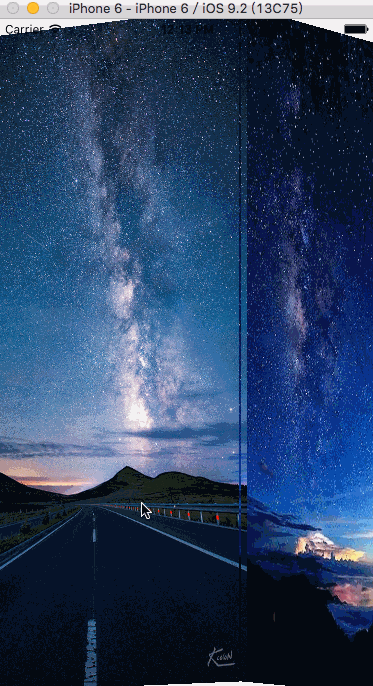

iOS动画特效之立方体翻转

//*******添加scrollView*******  [self createScrollView];//******创建立方体视图组******  [self createCubicViewArray];

//添加视图到scrollView上  for (int i=0; i<_viewArray.count; i++) {    UIImageView *transView=_viewArray[i];    //视图在scrollView上对应的位置    transView.x=self.view.bounds.size.width * i;

#pragma mark - scrollView滑动事件-(void)scrollViewDidScroll:(UIScrollView *)scrollView{  //当前页数  NSInteger currentPage=_currentPage;  //当前视图  UIView *currentView=_viewArray[currentPage];  //上一个视图  UIView *lastView=nil;  if (currentPage-1>=0) {    lastView=_viewArray[currentPage-1];  }  //下一个视图控制器视图  UIView *nextView;  if (currentPage+1<=3) {    nextView=_viewArray[currentPage+1];  }  //本次偏移距离  CGFloat currentOffset=scrollView.contentOffset.x-currentPage*self.view.bounds.size.width;  //本次偏移角度  CGFloat deltaAngle=currentOffset/self.view.bounds.size.width * M_PI_2;  //****************当前视图移动变幻***************  //设置锚点  currentView.layer.anchorPoint=CGPointMake(0.5, 0.5);  //向屏幕前方移动  CATransform3D move = CATransform3DMakeTranslation(0, 0, self.view.bounds.size.width/2);  //旋转  CATransform3D rotate = CATransform3DMakeRotation(-deltaAngle, 0, 1, 0);  //平移  CATransform3D plaintMove=CATransform3DMakeTranslation( currentOffset, 0, 0);  //向屏幕后方移动  CATransform3D back = CATransform3DMakeTranslation(0, 0, -self.view.bounds.size.width/2);  //连接  CATransform3D concat=CATransform3DConcat( CATransform3DConcat(move, CATransform3DConcat(rotate, plaintMove)),back);  CATransform3D transform=CATransform3DPerspect(concat, CGPointMake(currentOffset/2, self.view.bounds.size.height), 5000.0f);  //添加变幻特效  currentView.layer.transform=transform;  //****************下一个视图移动变幻***************  //设置锚点  nextView.layer.anchorPoint=CGPointMake(0.5, 0.5);  //向屏幕前方移动  CATransform3D move2 = CATransform3DMakeTranslation(0, 0, self.view.bounds.size.width/2);  //旋转  CATransform3D rotate2 = CATransform3DMakeRotation(-deltaAngle+M_PI_2, 0, 1, 0);  //平移  CATransform3D plaintMove2=CATransform3DMakeTranslation( currentOffset-self.view.bounds.size.width, 0, 0);  //向屏幕后方移动  CATransform3D back2 = CATransform3DMakeTranslation(0, 0, -self.view.bounds.size.width/2);  //拼接  CATransform3D concat2=CATransform3DConcat( CATransform3DConcat(move2, CATransform3DConcat(rotate2, plaintMove2)),back2);  CATransform3D transform2=CATransform3DPerspect(concat2, CGPointMake(self.view.bounds.size.width/2+currentOffset/2, self.view.bounds.size.height), 5000.0f);  //添加变幻特效  nextView.layer.transform=transform2;  //****************上一个视图移动变幻***************  //设置锚点  lastView.layer.anchorPoint=CGPointMake(0.5, 0.5);  //向屏幕前方移动  CATransform3D move3 = CATransform3DMakeTranslation(0, 0, self.view.bounds.size.width/2);  //旋转  CATransform3D rotate3 = CATransform3DMakeRotation(-deltaAngle-M_PI_2, 0, 1, 0);  //平移  CATransform3D plaintMove3=CATransform3DMakeTranslation( currentOffset+self.view.bounds.size.width, 0, 0);  //向屏幕后方移动  CATransform3D back3 = CATransform3DMakeTranslation(0, 0, -self.view.bounds.size.width/2);  //拼接  CATransform3D concat3=CATransform3DConcat(CATransform3DConcat(move3, CATransform3DConcat(rotate3, plaintMove3)),back3);  CATransform3D transform3=CATransform3DPerspect(concat3, CGPointMake(-self.view.bounds.size.width/2+currentOffset/2, self.view.bounds.size.height), 5000.0f);  //添加变幻特效  lastView.layer.transform=transform3;}

-(void)scrollViewDidEndDecelerating:(UIScrollView *)scrollView{  //改变选中页序号  [self changeIndex];  //3D变幻恢复原状态  for (UIView * view in _viewArray) {    view.layer.transform=CATransform3DIdentity;  }}

//3D透视函数CATransform3D CATransform3DMakePerspective(CGPoint center, float disZ){  CATransform3D transToCenter = CATransform3DMakeTranslation(-center.x, -center.y, 0);  CATransform3D transBack = CATransform3DMakeTranslation(center.x, center.y, 0);  CATransform3D scale = CATransform3DIdentity;  scale.m34 = -1.0f/disZ;  return CATransform3DConcat(CATransform3DConcat(transToCenter, scale), transBack);}
