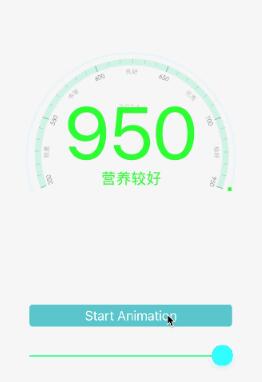

iOS仿支付宝芝麻信用分数仪表盘动画效果

/** * 根据跃动数字 * * 确定百分比 * 现在的跳动数字——>背景颜色变化 * */#import <UIKit/UIKit.h>@interface ZLDashboardView : UIView@property (nonatomic, strong) UIImage *bgImage;@property (nonatomic, copy) void(^TimerBlock)(NSInteger);/** * 跃动数字刷新 * */- (void)refreshJumpNOFromNO:(NSString *)startNO toNO:(NSString *)toNO;@end

#import "ZLDashboardView.h"#import "UIView+Extensions.h" #define degreesToRadians(x) (M_PI*(x)/180.0) //把角度转换成PI的方式static const CGFloat kMarkerRadius = 5.f; // 光标直径static const CGFloat kTimerInterval = 0.03;static const CGFloat kFastProportion = 0.9;static const NSInteger MaxNumber = 1000;@interface ZLDashboardView () {  CGFloat animationTime;  NSInteger beginNO;  NSInteger jumpCurrentNO;  NSInteger endNO;}// 百分比 0 - 100 根据跃动数字设置@property (nonatomic, assign) CGFloat percent;@property (nonatomic, strong) CAShapeLayer *bottomLayer; // 进度条底色@property (nonatomic, assign) CGFloat lineWidth; // 弧线宽度@property (nonatomic, strong) UIImageView *markerImageView; // 光标@property (nonatomic, strong) UIImageView *bgImageView; // 背景图片@property (nonatomic, assign) CGFloat circelRadius; //圆直径@property (nonatomic, assign) CGFloat startAngle; // 开始角度@property (nonatomic, assign) CGFloat endAngle; // 结束角度@property (nonatomic, strong) UILabel *showLable; // 跳跃数字@property (nonatomic, strong) UILabel *markedLabel; // 提示语@property (nonatomic, strong) NSTimer *fastTimer;@property (nonatomic, strong) NSTimer *slowTimer;@property (nonatomic, assign) NSInteger intervalNum;@end@implementation ZLDashboardView#pragma mark - Life cycle- (instancetype)initWithFrame:(CGRect)frame {  self = [super initWithFrame:frame];  if (self) {    self.backgroundColor = [UIColor clearColor];    self.circelRadius = self.frame.size.width - 10.f;    self.lineWidth = 2.f;    self.startAngle = -200.f;    self.endAngle = 20.f;    // 尺寸需根据图片进行调整    self.bgImageView.frame = CGRectMake(6, 6, self.circelRadius, self.circelRadius * 2 / 3);    self.bgImageView.backgroundColor = [UIColor clearColor];    [self addSubview:self.bgImageView];    //添加圆框    [self setupCircleBg];    //光标    [self setupMarkerImageView];    //添加跃动数字 及 提示语    [self setupJumpNOView];  }  return self;}- (void)setupCircleBg {  // 圆形路径  UIBezierPath *path = [UIBezierPath bezierPathWithArcCenter:CGPointMake(self.width / 2, self.height / 2)                            radius:(self.circelRadius - self.lineWidth) / 2                          startAngle:degreesToRadians(self.startAngle)                           endAngle:degreesToRadians(self.endAngle)                           clockwise:YES];  // 底色  self.bottomLayer = [CAShapeLayer layer];  self.bottomLayer.frame = self.bounds;  self.bottomLayer.fillColor = [[UIColor clearColor] CGColor];  self.bottomLayer.strokeColor = [[UIColor colorWithRed:206.f / 256.f green:241.f / 256.f blue:227.f alpha:1.f] CGColor];  self.bottomLayer.opacity = 0.5;  self.bottomLayer.lineCap = kCALineCapRound;  self.bottomLayer.lineWidth = self.lineWidth;  self.bottomLayer.path = [path CGPath];  [self.layer addSublayer:self.bottomLayer];// 240 是用整个弧度的角度之和 |-200| + 20 = 220//  [self createAnimationWithStartAngle:degreesToRadians(self.startAngle)//                endAngle:degreesToRadians(self.startAngle + 220 * 1)];}- (void)setupMarkerImageView {  if (_markerImageView) {    return;  }  _markerImageView = [[UIImageView alloc] init];  _markerImageView.backgroundColor = [UIColor clearColor];  _markerImageView.layer.backgroundColor = [UIColor greenColor].CGColor;  _markerImageView.layer.shadowColor = [UIColor whiteColor].CGColor;  _markerImageView.layer.shadowOffset = CGSizeMake(0, 0);  _markerImageView.layer.shadowRadius = kMarkerRadius*0.5;  _markerImageView.layer.shadowOpacity = 1;  _markerImageView.layer.masksToBounds = NO;  self.markerImageView.layer.cornerRadius = self.markerImageView.frame.size.height / 2;  [self addSubview:self.markerImageView];  _markerImageView.frame = CGRectMake(-100, self.height, kMarkerRadius, kMarkerRadius);}- (void)setupJumpNOView {  if (_showLable) {    return;  }  CGFloat width = self.circelRadius / 2 + 50;  CGFloat height = self.circelRadius / 2 - 50;  CGFloat xPixel = self.bgImageView.left + (self.bgImageView.width - width)*0.5;//self.circelRadius / 4;  CGFloat yPixel = self.circelRadius / 4;  CGRect labelFrame = CGRectMake(xPixel, yPixel, width, height);  _showLable = [[UILabel alloc] initWithFrame:labelFrame];  _showLable.backgroundColor = [UIColor clearColor];  _showLable.textColor = [UIColor greenColor];  _showLable.textAlignment = NSTextAlignmentCenter;  _showLable.font = [UIFont systemFontOfSize:100.f];  _showLable.text = [NSString stringWithFormat:@"%ld",jumpCurrentNO];  [self addSubview:_showLable];  // 提示语  _markedLabel = [[UILabel alloc] initWithFrame:CGRectMake(xPixel, CGRectGetMaxY(_showLable.frame), width, 30)];  _markedLabel.backgroundColor = [UIColor clearColor];  _markedLabel.textColor = [UIColor greenColor];  _markedLabel.textAlignment = NSTextAlignmentCenter;  _markedLabel.font = [UIFont systemFontOfSize:20.f];  _markedLabel.text = @"营养良好";  [self addSubview:_markedLabel];}#pragma mark - Animation- (void)createAnimationWithStartAngle:(CGFloat)startAngle endAngle:(CGFloat)endAngle { // 光标动画  //启动定时器  [_fastTimer setFireDate:[NSDate distantPast]];  // 设置动画属性  CAKeyframeAnimation *pathAnimation = [CAKeyframeAnimation animationWithKeyPath:@"position"];  pathAnimation.calculationMode = kCAAnimationPaced;  pathAnimation.fillMode = kCAFillModeForwards;  pathAnimation.removedOnCompletion = NO;  pathAnimation.duration = _percent * kTimerInterval;  pathAnimation.timingFunction = [CAMediaTimingFunction functionWithName:kCAMediaTimingFunctionEaseOut];  pathAnimation.repeatCount = 1;  // 设置动画路径  CGMutablePathRef path = CGPathCreateMutable();  CGPathAddArc(path, NULL, self.width / 2, self.height / 2, (self.circelRadius - kMarkerRadius / 2) / 2, startAngle, endAngle, 0);  pathAnimation.path = path;  CGPathRelease(path);  [self.markerImageView.layer addAnimation:pathAnimation forKey:@"moveMarker"];}#pragma mark - Setters / Getters/** * 开始动画 确定百分比 * */- (void)refreshJumpNOFromNO:(NSString *)startNO toNO:(NSString *)toNO {  beginNO = 0;//[startNO integerValue];  jumpCurrentNO = 0;//[startNO integerValue];  endNO = [toNO integerValue];  _percent = endNO * 100 / MaxNumber;  NSInteger diffNum = endNO - beginNO;  if (diffNum <= 0) {    return;  }  if (diffNum < 100) {    _intervalNum = 5;  } else if (diffNum < 300) {    _intervalNum = 15;  } else if (diffNum <= MaxNumber) {    _intervalNum = 10;  }  NSLog(@"数字间隔：%ld",_intervalNum);  //数字  [self setupJumpThings];  // 设置角度  NSInteger angle = 0;  NSInteger num = [toNO floatValue] - [startNO floatValue];  if (num < 200) {    angle = self.startAngle + 220 * (num / 200.0) / 5.0;  } else if (num < 350) {    angle = self.startAngle + 220 / 5.0 + (3 / 5.0 * 220) * (num - 200) / 150.0;  } else {    angle = self.startAngle + 220 / 5.0 * 4 + (220 / 5.0) * (num - 350) / 250.0;  }  //光标  [self createAnimationWithStartAngle:degreesToRadians(self.startAngle)                endAngle:degreesToRadians(angle)];}- (void)setBgImage:(UIImage *)bgImage {  _bgImage = bgImage;  self.bgImageView.image = bgImage;}- (UIImageView *)bgImageView {  if (nil == _bgImageView) {    _bgImageView = [[UIImageView alloc] init];  }  return _bgImageView;}#pragma mark - 跃动数字- (void)setupJumpThings {  animationTime = _percent * kTimerInterval;  self.fastTimer = [NSTimer timerWithTimeInterval:kTimerInterval*kFastProportion                       target:self                      selector:@selector(fastTimerAction)                      userInfo:nil                      repeats:YES];  [[NSRunLoop currentRunLoop] addTimer:_fastTimer forMode:NSRunLoopCommonModes];  //时间间隔 = （总时间 - 快时间间隔*变化次数）/ 再次需要变化的次数  //快时间  NSInteger fastEndNO = endNO * kFastProportion;  NSInteger fastJump = fastEndNO/_intervalNum;  if (fastJump % _intervalNum) {    fastJump++;    fastEndNO += _intervalNum;  }  CGFloat fastTTime = fastJump*kTimerInterval*kFastProportion;  //剩余应跳动次数  NSInteger changNO = endNO - fastEndNO;  NSInteger endJump = changNO / _intervalNum + changNO % _intervalNum;  //慢时间间隔  NSTimeInterval slowInterval = (animationTime - fastTTime) / endJump;  self.slowTimer = [NSTimer timerWithTimeInterval:slowInterval                       target:self                      selector:@selector(slowTimerAction)                      userInfo:nil                      repeats:YES];  [[NSRunLoop currentRunLoop] addTimer:_slowTimer forMode:NSRunLoopCommonModes];  [_fastTimer setFireDate:[NSDate distantFuture]];  [_slowTimer setFireDate:[NSDate distantFuture]];}#pragma mark 加速定时器触发事件- (void)fastTimerAction {  if (jumpCurrentNO >= endNO) {    [self.fastTimer invalidate];    return;  }  if (jumpCurrentNO >= endNO * kFastProportion) {    [self.fastTimer invalidate];    [self.slowTimer setFireDate:[NSDate distantPast]];    return;  }  [self commonTimerAction];}#pragma mark 减速定时器触发事件- (void)slowTimerAction {  if (jumpCurrentNO >= endNO) {    [self.slowTimer invalidate];    return;  }  [self commonTimerAction];}#pragma mark 计时器共性事件 - lable赋值 背景颜色及提示语变化- (void)commonTimerAction {  if (jumpCurrentNO % 100 == 0 && jumpCurrentNO != 0) {    NSInteger colorIndex = jumpCurrentNO / 100;    dispatch_async(dispatch_get_main_queue(), ^{      if (self.TimerBlock) {        self.TimerBlock(colorIndex);      }    });  }  NSInteger changeValueBy = endNO - jumpCurrentNO;  if (changeValueBy/10 < 1) {    jumpCurrentNO++;  } else {//    NSInteger changeBy = changeValueBy / 10;    jumpCurrentNO += _intervalNum;  }  _showLable.text = [NSString stringWithFormat:@"%ld",jumpCurrentNO];  if (jumpCurrentNO < 350) {    _markedLabel.text = @"营养太差";  } else if (jumpCurrentNO <= 550) {    _markedLabel.text = @"营养较差";  } else if (jumpCurrentNO <= 600) {    _markedLabel.text = @"营养中等";  } else if (jumpCurrentNO <= 650) {    _markedLabel.text = @"营养良好";  } else if (jumpCurrentNO <= 700) {    _markedLabel.text = @"营养优秀";  } else if (jumpCurrentNO <= 950) {    _markedLabel.text = @"营养较好";  }}@end在所需的当前控制器里展示://// ViewController.m// ZLDashboard//// Created by qtx on 16/9/19.// Copyright © 2016年 ZL. All rights reserved.//#import "ViewController.h"#import "ZLDashboardView.h"#import "ZLGradientView.h"#import "UIView+Extensions.h"#define SCREEN_WIDTH ([[UIScreen mainScreen] bounds].size.width)#define SCREEN_HEIGHT ([[UIScreen mainScreen] bounds].size.height)#define MinNumber 350#define MaxNumber 950@interface ViewController ()@property (nonatomic, strong) ZLDashboardView *dashboardView;@property (nonatomic, strong) ZLGradientView * gradientView;@property (nonatomic, strong) UIButton * clickBtn;@property (nonatomic, strong) UISlider * slider;@end@implementation ViewController- (void)viewDidLoad {  [super viewDidLoad];  //创建背景色  [self setupGradientView];  //创建仪表盘  [self setupCircleView];  //添加触发动画的点击button  [self addActionButton];  //改变value  [self addSlideChnageValue];}- (void)addActionButton {  UIButton *stareButton = [UIButton buttonWithType:UIButtonTypeCustom];  stareButton.frame = CGRectMake(10.f, self.dashboardView.bottom + 50.f, SCREEN_WIDTH - 20.f, 38.f);  [stareButton addTarget:self action:@selector(onStareButtonClick:) forControlEvents:UIControlEventTouchUpInside];  [stareButton setTitle:@"Start Animation" forState:UIControlStateNormal];  [stareButton setBackgroundColor:[UIColor lightGrayColor]];  stareButton.layer.masksToBounds = YES;  stareButton.layer.cornerRadius = 4.f;  [self.view addSubview:stareButton];  _clickBtn = stareButton;}- (void)addSlideChnageValue {  CGFloat width = 280;  CGFloat height = 40;  CGFloat xPixel = (SCREEN_WIDTH - width) * 0.5;  CGFloat yPixel = CGRectGetMaxY(_clickBtn.frame) + 20;  CGRect slideFrame = CGRectMake(xPixel, yPixel, width, height);  UISlider *slider = [[UISlider alloc] initWithFrame:slideFrame];  slider.minimumValue = MinNumber;  slider.maximumValue = MaxNumber;  slider.minimumTrackTintColor = [UIColor colorWithRed:0.000 green:1.000 blue:0.502 alpha:1.000];  slider.maximumTrackTintColor = [UIColor colorWithWhite:0.800 alpha:1.000];  /**   * 注意这个属性：如果你没有设置滑块的图片，那个这个属性将只会改变已划过一段线条的颜色，不会改变滑块的颜色，如果你设置了滑块的图片，又设置了这个属性，那么滑块的图片将不显示，滑块的颜色会改变（IOS7）   */  [slider setThumbImage:[UIImage imageNamed:@""] forState:UIControlStateNormal];  slider.thumbTintColor = [UIColor cyanColor];  [slider setValue:0.5 animated:YES];  [slider addTarget:self action:@selector(slideTap:)forControlEvents:UIControlEventValueChanged];  [self.view addSubview:slider];  _slider = slider;}- (void)slideTap:(UISlider *)sender {  CGFloat value = sender.value;  NSLog(@"%.f",value);}- (void)setupGradientView {  self.gradientView = [[ZLGradientView alloc] initWithFrame:self.view.bounds];  [self.view addSubview:self.gradientView];}- (void)setupCircleView {  self.dashboardView = [[ZLDashboardView alloc] initWithFrame:CGRectMake(40.f, 70.f, SCREEN_WIDTH - 80.f, SCREEN_WIDTH - 80.f)];  self.dashboardView.bgImage = [UIImage imageNamed:@"backgroundImage"];  [self.view addSubview:self.dashboardView];}- (void)onStareButtonClick:(UIButton *)sender {  if (sender.selected) {    [self.gradientView removeFromSuperview];    self.gradientView = nil;    [self.dashboardView removeFromSuperview];    self.dashboardView = nil;    [self setupGradientView];    [self setupCircleView];    [self.view bringSubviewToFront:self.clickBtn];    [self.view bringSubviewToFront:_slider];  }  sender.selected = YES;  CGFloat value = _slider.value;  NSString *startNO = [NSString stringWithFormat:@"%d", MinNumber];  NSString *toNO = [NSString stringWithFormat:@"%.f",value];//@"693"; 950  NSLog(@"endNO:%@",toNO);  [self.dashboardView refreshJumpNOFromNO:startNO toNO:toNO];  __block typeof(self)blockSelf = self;  self.dashboardView.TimerBlock = ^(NSInteger index) {    [blockSelf.gradientView setUpBackGroundColorWithColorArrayIndex:index];  };}@end
