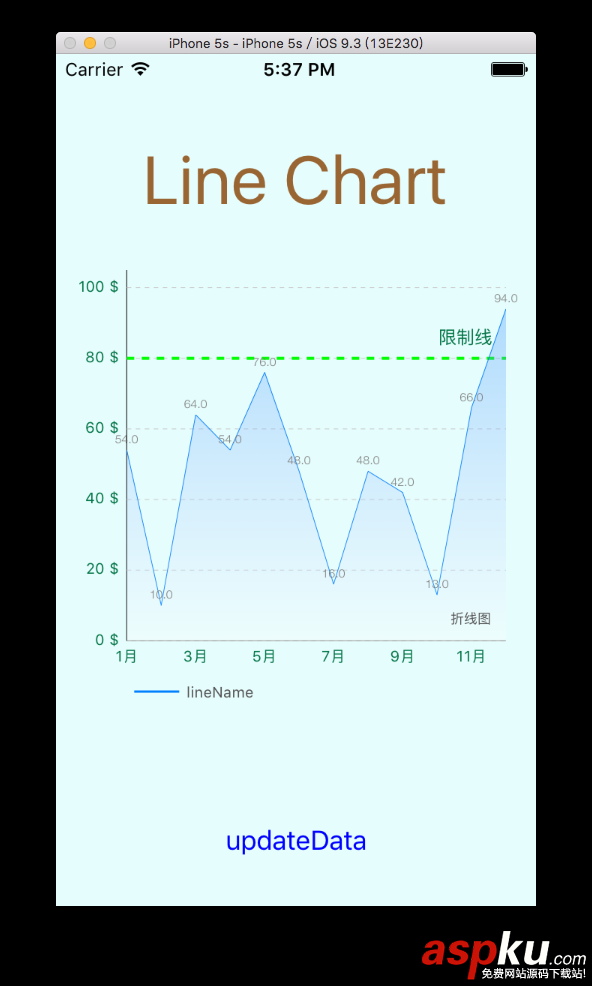

iOS使用Charts框架绘制折线图

self.LineChartView = [[LineChartView alloc] init];self.LineChartView.delegate = self;//设置代理[self.view addSubview:self.LineChartView];[self.LineChartView mas_makeConstraints:^(MASConstraintMaker *make) { make.size.mas_equalTo(CGSizeMake(self.view.bounds.size.width-20, 300)); make.center.mas_equalTo(self.view);}];self.LineChartView.backgroundColor = [UIColor colorWithRed:230/255.0f green:253/255.0f blue:253/255.0f alpha:1];self.LineChartView.noDataText = @"暂无数据";

self.LineChartView.scaleYEnabled = NO;//取消Y轴缩放self.LineChartView.doubleTapToZoomEnabled = NO;//取消双击缩放self.LineChartView.dragEnabled = YES;//启用拖拽图标self.LineChartView.dragDecelerationEnabled = YES;//拖拽后是否有惯性效果self.LineChartView.dragDecelerationFrictionCoef = 0.9;//拖拽后惯性效果的摩擦系数(0~1)，数值越小，惯性越不明显

ChartXAxis *xAxis = self.LineChartView.xAxis;xAxis.axisLineWidth = 1.0/[UIScreen mainScreen].scale;//设置X轴线宽xAxis.labelPosition = XAxisLabelPositionBottom;//X轴的显示位置，默认是显示在上面的xAxis.drawGridLinesEnabled = NO;//不绘制网格线xAxis.spaceBetweenLabels = 4;//设置label间隔xAxis.labelTextColor = [self colorWithHexString:@"#057748"];//label文字颜色

self.LineChartView.rightAxis.enabled = NO;//不绘制右边轴ChartYAxis *leftAxis = self.LineChartView.leftAxis;//获取左边Y轴leftAxis.labelCount = 5;//Y轴label数量，数值不一定，如果forceLabelsEnabled等于YES, 则强制绘制制定数量的label, 但是可能不平均leftAxis.forceLabelsEnabled = NO;//不强制绘制指定数量的labelleftAxis.showOnlyMinMaxEnabled = NO;//是否只显示最大值和最小值leftAxis.axisMinValue = 0;//设置Y轴的最小值leftAxis.startAtZeroEnabled = YES;//从0开始绘制leftAxis.axisMaxValue = 105;//设置Y轴的最大值leftAxis.inverted = NO;//是否将Y轴进行上下翻转leftAxis.axisLineWidth = 1.0/[UIScreen mainScreen].scale;//Y轴线宽leftAxis.axisLineColor = [UIColor blackColor];//Y轴颜色leftAxis.valueFormatter = [[NSNumberFormatter alloc] init];//自定义格式leftAxis.valueFormatter.positiveSuffix = @" $";//数字后缀单位leftAxis.labelPosition = YAxisLabelPositionOutsideChart;//label位置leftAxis.labelTextColor = [self colorWithHexString:@"#057748"];//文字颜色leftAxis.labelFont = [UIFont systemFontOfSize:10.0f];//文字字体

leftAxis.gridLineDashLengths = @[@3.0f, @3.0f];//设置虚线样式的网格线leftAxis.gridColor = [UIColor colorWithRed:200/255.0f green:200/255.0f blue:200/255.0f alpha:1];//网格线颜色leftAxis.gridAntialiasEnabled = YES;//开启抗锯齿

ChartLimitLine *limitLine = [[ChartLimitLine alloc] initWithLimit:80 label:@"限制线"];limitLine.lineWidth = 2;limitLine.lineColor = [UIColor greenColor];limitLine.lineDashLengths = @[@5.0f, @5.0f];//虚线样式limitLine.labelPosition = ChartLimitLabelPositionRightTop;//位置limitLine.valueTextColor = [self colorWithHexString:@"#057748"];//label文字颜色limitLine.valueFont = [UIFont systemFontOfSize:12];//label字体[leftAxis addLimitLine:limitLine];//添加到Y轴上leftAxis.drawLimitLinesBehindDataEnabled = YES;//设置限制线绘制在折线图的后面

[self.LineChartView setDescriptionText:@"折线图"];//折线图描述[self.LineChartView setDescriptionTextColor:[UIColor darkGrayColor]];self.LineChartView.legend.form = ChartLegendFormLine;//图例的样式self.LineChartView.legend.formSize = 30;//图例中线条的长度self.LineChartView.legend.textColor = [UIColor darkGrayColor];//图例文字颜色

- (LineChartData *)setData{ int xVals_count = 12;//X轴上要显示多少条数据 double maxYVal = 100;//Y轴的最大值 //X轴上面需要显示的数据 NSMutableArray *xVals = [[NSMutableArray alloc] init]; for (int i = 0; i < xVals_count; i++) { [xVals addObject:[NSString stringWithFormat:@"%d月", i+1]]; } //对应Y轴上面需要显示的数据 NSMutableArray *yVals = [[NSMutableArray alloc] init]; for (int i = 0; i < xVals_count; i++) { double mult = maxYVal + 1; double val = (double)(arc4random_uniform(mult)); ChartDataEntry *entry = [[ChartDataEntry alloc] initWithValue:val xIndex:i]; [yVals addObject:entry]; } LineChartDataSet *set1 = nil; if (self.LineChartView.data.dataSetCount > 0) { LineChartData *data = (LineChartData *)self.LineChartView.data; set1 = (LineChartDataSet *)data.dataSets[0]; set1.yVals = yVals; return data; }else{ //创建LineChartDataSet对象 set1 = [[LineChartDataSet alloc] initWithYVals:yVals label:@"lineName"]; //设置折线的样式 set1.lineWidth = 1.0/[UIScreen mainScreen].scale;//折线宽度 set1.drawValuesEnabled = YES;//是否在拐点处显示数据 set1.valueColors = @[[UIColor brownColor]];//折线拐点处显示数据的颜色 [set1 setColor:[self colorWithHexString:@"#007FFF"]];//折线颜色 set1.drawSteppedEnabled = NO;//是否开启绘制阶梯样式的折线图 //折线拐点样式 set1.drawCirclesEnabled = NO;//是否绘制拐点 set1.circleRadius = 4.0f;//拐点半径 set1.circleColors = @[[UIColor redColor], [UIColor greenColor]];//拐点颜色 //拐点中间的空心样式 set1.drawCircleHoleEnabled = YES;//是否绘制中间的空心 set1.circleHoleRadius = 2.0f;//空心的半径 set1.circleHoleColor = [UIColor blackColor];//空心的颜色 //折线的颜色填充样式 //第一种填充样式:单色填充// set1.drawFilledEnabled = YES;//是否填充颜色// set1.fillColor = [UIColor redColor];//填充颜色// set1.fillAlpha = 0.3;//填充颜色的透明度 //第二种填充样式:渐变填充 set1.drawFilledEnabled = YES;//是否填充颜色 NSArray *gradientColors = @[(id)[ChartColorTemplates colorFromString:@"#FFFFFFFF"].CGColor,     (id)[ChartColorTemplates colorFromString:@"#FF007FFF"].CGColor]; CGGradientRef gradientRef = CGGradientCreateWithColors(nil, (CFArrayRef)gradientColors, nil); set1.fillAlpha = 0.3f;//透明度 set1.fill = [ChartFill fillWithLinearGradient:gradientRef angle:90.0f];//赋值填充颜色对象 CGGradientRelease(gradientRef);//释放gradientRef //点击选中拐点的交互样式 set1.highlightEnabled = YES;//选中拐点,是否开启高亮效果(显示十字线) set1.highlightColor = [self colorWithHexString:@"#c83c23"];//点击选中拐点的十字线的颜色 set1.highlightLineWidth = 1.0/[UIScreen mainScreen].scale;//十字线宽度 set1.highlightLineDashLengths = @[@5, @5];//十字线的虚线样式 //将 LineChartDataSet 对象放入数组中 NSMutableArray *dataSets = [[NSMutableArray alloc] init]; [dataSets addObject:set1]; //添加第二个LineChartDataSet对象// LineChartDataSet *set2 = [set1 copy];// NSMutableArray *yVals2 = [[NSMutableArray alloc] init];// for (int i = 0; i < xVals_count; i++) {//  double mult = maxYVal + 1;//  double val = (double)(arc4random_uniform(mult));//  ChartDataEntry *entry = [[ChartDataEntry alloc] initWithValue:val xIndex:i];//  [yVals2 addObject:entry];// }// set2.yVals = yVals2;// [set2 setColor:[UIColor redColor]];// set2.drawFilledEnabled = YES;//是否填充颜色// set2.fillColor = [UIColor redColor];//填充颜色// set2.fillAlpha = 0.1;//填充颜色的透明度// [dataSets addObject:set2]; //创建 LineChartData 对象, 此对象就是lineChartView需要最终数据对象 LineChartData *data = [[LineChartData alloc] initWithXVals:xVals dataSets:dataSets]; [data setValueFont:[UIFont fontWithName:@"HelveticaNeue-Light" size:8.f]];//文字字体 [data setValueTextColor:[UIColor grayColor]];//文字颜色 NSNumberFormatter *formatter = [[NSNumberFormatter alloc] init]; //自定义数据显示格式 [formatter setNumberStyle:NSNumberFormatterDecimalStyle]; [formatter setPositiveFormat:@"#0.0"]; [data setValueFormatter:formatter]; return data; }}
