前言
最近在开发中遇到了百度地图的开发,功能类似于微信中的发送位置,拖拽从新定位,以及反编码,列表附近的位置。分析出来供大家参考学习,下面话不多说了,来一起看看详细的介绍吧。

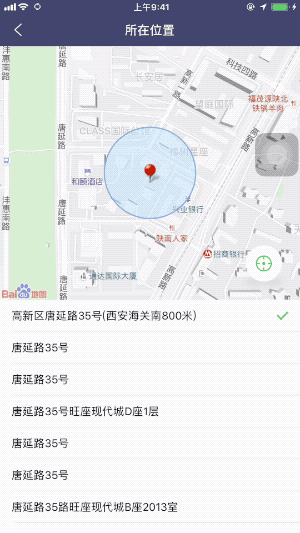

效果图:
实现思路
思路就是将一个UIImageView固定在地图中间,每次更新位置,给UIImageView添加动画即可。
代码如下:
#import "FTBasicController.h"typedef void (^SelectBlock) (NSString *address,CLLocationCoordinate2D select);@interface FTUploadAddressController : FTBasicController@property(nonatomic, copy)SelectBlock selectBlock;@end#import "FTUploadAddressController.h"#import "FTBMKPoiInfo.h"#import "FTPoiCell.h"@interface FTUploadAddressController ()@property(nonatomic,strong)BMKLocationService *locService;@property(nonatomic,strong)BMKUserLocation *userLocation;@property(nonatomic,strong)BMKMapView *mapView;@property(nonatomic,strong)UITableView *tableview;@property(nonatomic,strong)BMKGeoCodeSearch *geocodesearch;@property(nonatomic,strong)UIImageView *loactionView;@property(nonatomic,strong)NSMutableArray *dataA;@property(nonatomic,strong)LxButton *poiBackBtn;@property(nonatomic,assign)CLLocationCoordinate2D selectedCoordinate;@property(nonatomic,strong)NSString *selectAddress;@end@implementation FTUploadAddressController-(void)viewWillAppear:(BOOL)animated{ [super viewWillAppear:animated]; self.fd_interactivePopDisabled = YES; if (!([CLLocationManager authorizationStatus] == kCLAuthorizationStatusAuthorizedAlways || [CLLocationManager authorizationStatus] == kCLAuthorizationStatusAuthorizedWhenInUse) &&[CLLocationManager authorizationStatus] != kCLAuthorizationStatusNotDetermined){ [self judgeOpenlocation]; }else{ [_mapView viewWillAppear]; _mapView.delegate = self; // 此处记得不用的时候需要置nil,否则影响内存的释放 _locService.delegate = self; _geocodesearch.delegate = self; // 此处记得不用的时候需要置nil,否则影响内存的释放 _mapView.showsUserLocation = NO;//先关闭显示的定位图层 _mapView.userTrackingMode = 0; _mapView.showsUserLocation = YES;//显示定位图层 [self.locService startUserLocationService]; }}-(void)judgeOpenlocation{ UIAlertController *alertVC = [UIAlertController alertControllerWithTitle:@"打开[定位服务]来允许[应用名字]确定您的位置" message:@"请在系统设置中开启定位服务(设置>隐私>定位服务>应用名字>始终)" preferredStyle:UIAlertControllerStyleAlert]; [alertVC addAction:[UIAlertAction actionWithTitle:@"取消" style:UIAlertActionStyleCancel handler:nil]]; [alertVC addAction:[UIAlertAction actionWithTitle:@"去设置" style:UIAlertActionStyleDefault handler:^(UIAlertAction * _Nonnull action) { if ([[[UIDevice currentDevice] systemVersion] floatValue] >= 10.000000) { //跳转到定位权限页面 NSURL *url = [NSURL URLWithString:UIApplicationOpenSettingsURLString]; if( [[UIApplication sharedApplication]canOpenURL:url] ) { [[UIApplication sharedApplication] openURL:url]; } }else { //跳转到定位开关界面 NSURL *url = [NSURL URLWithString:@"prefs:root=LOCATION_SERVICES"]; if( [[UIApplication sharedApplication]canOpenURL:url] ) { [[UIApplication sharedApplication] openURL:url]; } } }]]; [self presentViewController:alertVC animated:YES completion:nil];}-(void)viewWillDisappear:(BOOL)animated{ self.fd_interactivePopDisabled = NO; [_mapView viewWillDisappear]; _mapView.delegate = nil; // 不用时,置nil [self.locService stopUserLocationService]; _geocodesearch.delegate = nil; // 不用时,置nil _locService.delegate = nil;}- (void)viewDidLoad { [super viewDidLoad]; // Do any additional setup after loading the view. self.title = @"所在位置"; self.locService = [[BMKLocationService alloc]init]; self.geocodesearch = [[BMKGeoCodeSearch alloc]init]; [self setup]; self.navigationItem.leftBarButtonItem =[[UIBarButtonItem alloc]initWithImage:[[UIImage imageNamed:@"return"]imageWithRenderingMode:UIImageRenderingModeAlwaysOriginal] style:UIBarButtonItemStylePlain target:self action:@selector(backReturn)];}-(void)backReturn{ if (self.selectBlock) { self.selectBlock(self.selectAddress, self.selectedCoordinate); [self.navigationController popViewControllerAnimated:YES]; }}-(void)setup{ [self.view addSubview:self.mapView]; [self.view addSubview:self.tableview]; [self.mapView addSubview:self.loactionView]; [self.mapView addSubview:self.poiBackBtn]; [self.poiBackBtn LX_SetShadowPathWith:[UIColor grayColor] shadowOpacity:0.5 shadowRadius:5 shadowSide:LXShadowPathBottom shadowPathWidth:3]; FTWS(weakSelf); [self.poiBackBtn addClickBlock:^(UIButton *button) { [weakSelf.mapView setCenterCoordinate:weakSelf.userLocation.location.coordinate]; }];}- (void)didUpdateBMKUserLocation:(BMKUserLocation *)userLocation{ // NSLog(@"didUpdateUserLocation lat %f,long %f",userLocation.location.coordinate.latitude,userLocation.location.coordinate.longitude); [_mapView updateLocationData:userLocation]; self.userLocation = userLocation; [self.mapView setCenterCoordinate:userLocation.location.coordinate]; BMKReverseGeoCodeOption * option = [[BMKReverseGeoCodeOption alloc]init]; option.reverseGeoPoint = userLocation.location.coordinate; BOOL flag = [_geocodesearch reverseGeoCode:option]; if (flag) { } //更新位置之后必须停止定位, [_locService stopUserLocationService];}-(void)mapView:(BMKMapView *)mapView regionDidChangeAnimated:(BOOL)animated{ NSLog(@"地图拖动"); [UIView animateWithDuration:0.30 animations:^{ self.loactionView.centerY -=8; } completion:^(BOOL finished) { self.loactionView.centerY +=8; }]; CGPoint touchPoint = self.mapView.center; CLLocationCoordinate2D touchMapCoordinate = [self.mapView convertPoint:touchPoint toCoordinateFromView:self.mapView];//这里touchMapCoordinate就是该点的经纬度了 NSLog(@"touching %f,%f",touchMapCoordinate.latitude,touchMapCoordinate.longitude); //选择的上传地址 self.selectedCoordinate = touchMapCoordinate; BMKReverseGeoCodeOption * option = [[BMKReverseGeoCodeOption alloc]init]; option.reverseGeoPoint = touchMapCoordinate; BOOL flag = [_geocodesearch reverseGeoCode:option]; if (flag) { }}#pragma mark---获取反编码的数据----(void)onGetReverseGeoCodeResult:(BMKGeoCodeSearch *)searcher result:(BMKReverseGeoCodeResult *)result errorCode:(BMKSearchErrorCode)error{ BMKAddressComponent *component=[[BMKAddressComponent alloc]init]; component=result.addressDetail; [self.dataA removeAllObjects]; for (int i =0; i< result.poiList.count; i++) { BMKPoiInfo *info = result.poiList[i]; FTBMKPoiInfo *ftInfo =[[FTBMKPoiInfo alloc]init]; ftInfo.address = info.address; ftInfo.seleced = NO; if (i == 0) { ftInfo.seleced = YES; self.selectAddress = ftInfo.address; } [self.dataA addObject:ftInfo]; } [self.tableview reloadData];}#pragma mark--- 定位的方法--- (void)didUpdateUserHeading:(BMKUserLocation *)userLocation{ [_mapView updateLocationData:userLocation]; // NSLog(@"heading is %@",userLocation.heading);}-(BMKMapView *)mapView{ if (!_mapView) { _mapView =[[BMKMapView alloc]initWithFrame:CGRectMake(0, NAVH, Device_Width, 350)]; _mapView.zoomLevel = 18; _mapView.minZoomLevel = 3; _mapView.maxZoomLevel = 21;// BMKLocationViewDisplayParam *displayParam = [[BMKLocationViewDisplayParam alloc]init];// displayParam.isRotateAngleValid = true;//跟随态旋转角度是否生效// displayParam.isAccuracyCircleShow = false;//精度圈是否显示// displayParam.locationViewOffsetX = 0;//定位偏移量(经度)// displayParam.locationViewOffsetY = 0;//定位偏移量(纬度)// [_mapView updateLocationViewWithParam:displayParam]; } return _mapView;}-(NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section{ return self.dataA.count;}-(UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath{ FTPoiCell *cell =[tableView dequeueReusableCellWithIdentifier:@"cell" forIndexPath:indexPath]; if (!cell) { cell =[[FTPoiCell alloc]initWithStyle:UITableViewCellStyleDefault reuseIdentifier:@"cell"]; } FTBMKPoiInfo *info = self.dataA[indexPath.row]; cell.info = info; return cell;}-(void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath{ [tableView deselectRowAtIndexPath:indexPath animated:YES]; FTBMKPoiInfo *info = self.dataA[indexPath.row]; self.selectAddress = info.address; [self.dataA enumerateObjectsUsingBlock:^(FTBMKPoiInfo * obj, NSUInteger idx, BOOL * _Nonnull stop) { if (obj == info) { obj.seleced = YES; }else{ obj.seleced = NO; } [self.tableview reloadData]; }]; if (self.selectBlock) { self.selectBlock(self.selectAddress,self.selectedCoordinate); [self.navigationController popViewControllerAnimated:YES]; } }-(UITableView *)tableview{ if (!_tableview) { _tableview =[[UITableView alloc]initWithFrame:CGRectMake(0, self.mapView.bottom, Device_Width, Device_Height - self.mapView.bottom) style:UITableViewStylePlain]; _tableview.delegate = self; _tableview.dataSource = self; _tableview.showsVerticalScrollIndicator = NO; _tableview.showsHorizontalScrollIndicator = NO; _tableview.tableFooterView = [UIView new]; _tableview.rowHeight = 44; [_tableview registerNib:[UINib nibWithNibName:@"FTPoiCell" bundle:nil] forCellReuseIdentifier:@"cell"];// [_tableview registerClass:[UITableViewCell class] forCellReuseIdentifier:@"cell"]; } return _tableview;}-(NSMutableArray *)dataA{ if (!_dataA) { _dataA =[NSMutableArray array]; } return _dataA;}-(UIImageView *)loactionView{ if (!_loactionView) { _loactionView =[[UIImageView alloc]initWithImage:[UIImage imageNamed:@"ditu_red"]]; _loactionView.center = CGPointMake(self.mapView.width/2, self.mapView.height/2); } return _loactionView;}-(LxButton *)poiBackBtn{ if (!_poiBackBtn) { _poiBackBtn =[LxButton LXButtonWithTitle:nil titleFont:nil Image:nil backgroundImage:nil backgroundColor:[UIColor whiteColor] titleColor:nil frame:CGRectMake(Device_Width - 75, self.mapView.height - 75, 50, 50)]; [_poiBackBtn setFTCornerdious:25]; UIImageView *imageView =[[UIImageView alloc]initWithImage:[UIImage imageNamed:@"poi_back"]]; imageView.center = CGPointMake(25, 25); [_poiBackBtn addSubview:imageView]; } return _poiBackBtn;}@end
总结
以上就是这篇文章的全部内容了,希望本文的内容对大家的学习或者工作具有一定的参考学习价值,如果有疑问大家可以留言交流,谢谢大家对VEVB武林网的支持。
