PowerShell脚本开发之批量扫描IP和端口

2020-10-29 21:01:21
字体:
来源:转载
供稿:网友

前面的文章中曾经发布了对指定IP进行批量端口扫描的方法和脚本,过PowerShell收发TCP和UDP消息包的方法以及通过PowerShell尝试登录SQLServer服务的方法,这构成了PSNet程序集用于通过PowerShell对网络状态进行操作。最近在不断尝试之下,找到了对指定范围的IP段进行扫描和对端口进行扫描的方法,本文将会介绍如何通过PowerShell批量扫描IP及其对应的端口。

依然在PSNet程序集的基础上进行扩展,首先在$env:PSSpace/PSNet/TCPOp下创建脚本文件Invoke-ScanIPPort.ps1,并在$env:PSSpace/PSNet/TCPOp/PSNet.psm1中添加对脚本文件的调用:

复制代码 代码如下:

. $env:PSSpace/PSNet/TCPOp/Invoke-ScanIPPort.ps1

首先对后面代码中将会出现的变量进行介绍:

复制代码 代码如下:

-StartAddress[扫描的起始IP地址],与-EndAddress配合使用,【此参数必须】
-EndAddress[扫描的结束IP地址],【此参数必须】
-ResolveHost[是否尝试对主机名尝试进行解析]
-ScanPort[是否进行端口扫描],如果要扫描端口此选项必须
-AllPort[是否对所有端口进行扫描],范围为1~65534(注意此选项扫描时间很长建议在选中单个IP的情况下进行使用,并且尽量少使用)
-StartPort[扫描的起始端口端口],与-EndPort配合使用,如果此选项与-Ports选项同时存在则-Port参数失效
-EndPort[扫描的结束端口]
-Ports扫描时默认扫描的端口,如果后续不带参数则仅扫描21,22,23,53,69,71,80,98,110,139,111,389,443,445,1080,1433,2001,2049,
3001,3128,5222,6667,6868,7777,7878,8080,1521,3306,3389,5801,5900,5555,5901如果后续带多个以逗号分割的多个数字则会扫描数字对应的端口,如果只扫描默认的端口,则不需此参数
-TimeOut超时时间,默认值为100ms(毫秒)

此函数的调用方式如下:

复制代码 代码如下:

Invoke-ScanIPPort -StartAddress 192.168.10.1 -EndAddress 192.168.10.254#扫描IP段
Invoke-ScanIPPort -StartAddress 192.168.10.1 -EndAddress 192.168.10.254 ResolveHost#扫描IP段,并尝试解析IP对应主机名
Invoke-ScanIPPort -StartAddress 192.168.10.1 -EndAddress 192.168.10.254 -ResolveHost ScanPort#扫描IP段,并尝试扫描默认端口
Invoke-ScanIPPort -StartAddress 192.168.10.1 -EndAddress 192.168.10.254 -ResolveHost -ScanPort -TimeOut 50 #扫描IP段,尝试扫描默认端口,端口扫描50ms超时
Invoke-ScanIPPort -StartAddress 192.168.10.1 -EndAddress 192.168.10.254 -ResolveHost -ScanPort -Port 80 #扫描IP段,并尝试扫描80端口
Invoke-ScanIPPort -StartAddress 192.168.10.1 -EndAddress 192.168.10.1 -ResolveHost -ScanPort AllPort#扫描ip,并尝试扫描所有1~65534之间端口
Invoke-ScanIPPort -StartAddress 192.168.10.1 -EndAddress 192.168.10.254 -ScanPort -StarPort 21 -EndPort 81#扫描IP段之间主机所有21至81之间的端口

上图来一张扫描过程中的图片

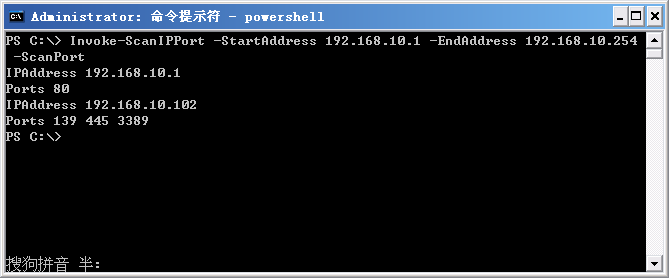

扫描结束后的结果:

代码如下:

复制代码 代码如下:

 =====文件名:Invoke-ScanIPPort.ps1=====
function Invoke-ScanIPPort {
  Param(
    [parameter(Mandatory = $true,
      Position = 0)]
    [ValidatePattern("/b/d{1,3}/./d{1,3}/./d{1,3}/./d{1,3}/b")]
    [string]$StartAddress,
    [parameter(Mandatory = $true,
      Position = 1)]
    [ValidatePattern("/b/d{1,3}/./d{1,3}/./d{1,3}/./d{1,3}/b")]
    [string]$EndAddress,
    [switch]$ResolveHost,
    [switch]$ScanPort,
    [switch]$AllPort,
    [int]$StartPort,
    [int]$EndPort,
    [int[]]$Ports = @(21,22,23,53,69,71,80,98,110,139,111,389,443,445,1080,1433,2001,`
2049,3001,3128,5222,6667,6868,7777,7878,8080,1521,3306,3389,5801,5900,5555,5901),
    [int]$TimeOut = 100
  )
  Begin {
    $ping = New-Object System.Net.Networkinformation.Ping
  }
  Process {
    foreach($a in ($StartAddress.Split(".")[0]..$EndAddress.Split(".")[0])) {
      foreach($b in ($StartAddress.Split(".")[1]..$EndAddress.Split(".")[1])) {
        foreach($c in ($StartAddress.Split(".")[2]..$EndAddress.Split(".")[2])) {
          foreach($d in ($StartAddress.Split(".")[3]..$EndAddress.Split(".")[3])) {
            $ip = "$a.$b.$c.$d"
            write-progress -activity "ScanIP Ping" -status "$ip" -percentcomplete (($d/($EndAddress.Split(".")[3])) * 100)
            $pingStatus = $ping.Send("$ip",$TimeOut)
            if($pingStatus.Status -eq "Success") {
              if($ResolveHost) {
                write-progress -activity ResolveHost -status "$ip" -percentcomplete (($d/($EndAddress.Split(".")[3])) * 100) -Id 1
                $getHostEntry = [Net.DNS]::BeginGetHostEntry($pingStatus.Address, $null, $null)
              }
              if($ScanPort) {
                if($AllPort) {
                    $Ports = @(1..65534)
                }
                if($StartPort -ne $null -and $EndPort -ne $null){
                    $Ports = @($StartPort..$EndPort)
                }
                $openPorts = @()
                for($i = 1; $i -le $Ports.Count;$i++) {
                  $port = $Ports[($i-1)]
                  write-progress -activity "PortScan[$port]$result" -status "$ip" -percentcomplete (($i/($Ports.Count)) * 100) -Id 2
                  $client = New-Object System.Net.Sockets.TcpClient
                  $beginConnect = $client.BeginConnect($pingStatus.Address,$port,$null,$null)
                  if($client.Connected) {
                    $openPorts += $port
                  } else {
                    # Wait
                    Start-Sleep -Milli $TimeOut
                    if($client.Connected) {
                      $openPorts += $port
                      $length=$openPorts.length
                      $result="[find $length ports.Last port $port]"
                    }
                  }
                  $client.Close()
                }
              }
              if($ResolveHost) {
                $hostName = ([Net.DNS]::EndGetHostEntry([IAsyncResult]$getHostEntry)).HostName
              }
              # Return Object
              if ($openPorts -ne $null)
              {
              write-host "IPAddress" "$ip"
              if ($getHostEntry -ne $null)
              {write-host "HostName" $getHostEntry}
              write-host "Ports" $openPorts
              }
           }
          }
        }
      }
    }
  }
  End {
  }
}
