3DSMAX教程：3DSMAX书房材质贴图制作方法

这篇教程是向大家介绍利用3DSMAX书房材质贴图的制作方法，教程比较实用，介绍制作方法及步骤也非常详细，所以推荐过来和学习3DSMA的朋友们一起分享，希望大家能喜欢。我们先来看看最终的效果：

INTRODUCTION | 介绍

Here will explain very simple practice interior render with HDRI lighting· 关于室内HDRI真实灯光的一篇简单教程

PREPARATION | 预置

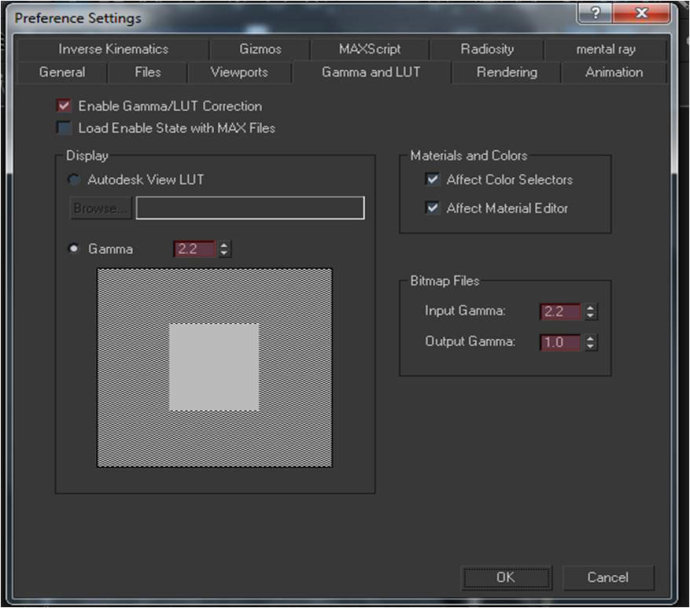

For all my projects I set my gamma for LWWF(Linear Workflow) to get a correct brightness and because I want to do post production on my image：个人的一个作图习惯 - 把gamma设置成LWWF(Linear Workflow.线性流程)以获得最真实的光感，减少后期工作。

MODELING | 建模

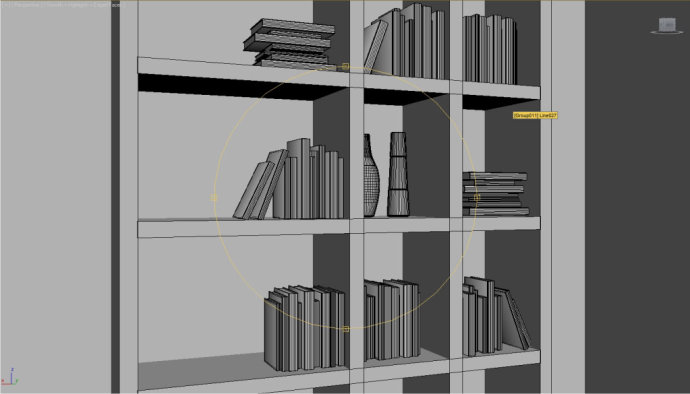

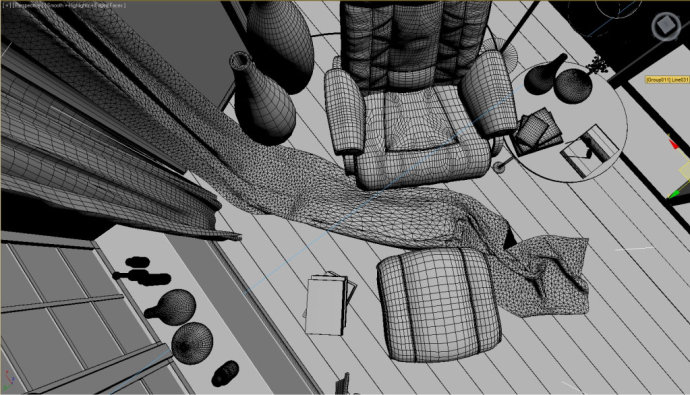

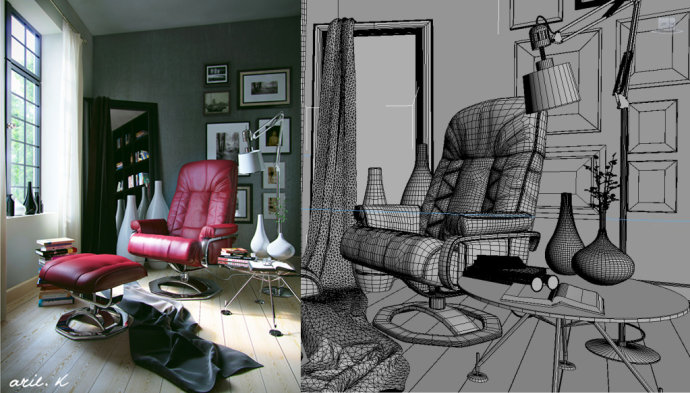

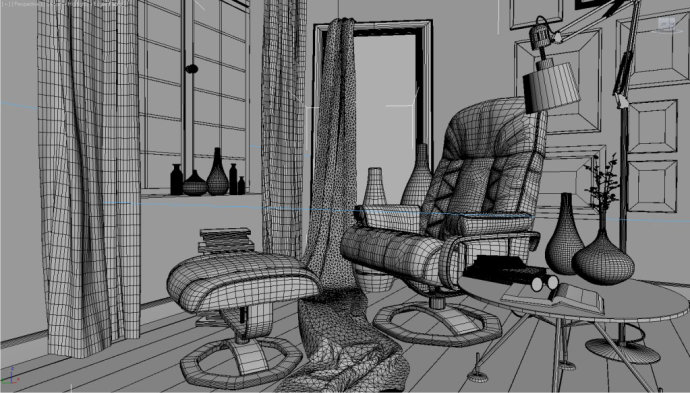

In this scene I used ready made models for accessaries, so I just modeled the wall, floor, window object using basic edit poly. And I created a simple decorative cloth model in Clo3d 2011.· 场景里基本使用的都是外部引入的家具摆设模型，只需要建门窗地板，然后要提到的是用Clo3d 2011(三维服装软件)做了个简单的衣服模型。

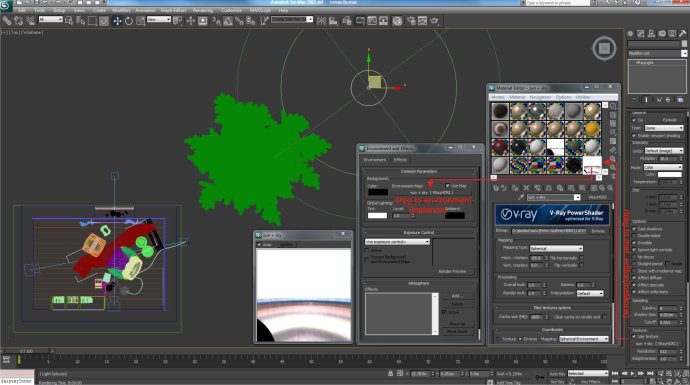

As I said before, in this scene I am using HDRI lighting with Vraylight Dome+HDRI map. You can see my method in the image below.· 场景用到的是HDRI 灯光和Vray灯光顶（Vraylight Dome）+ HDRI贴图，如下图所示。

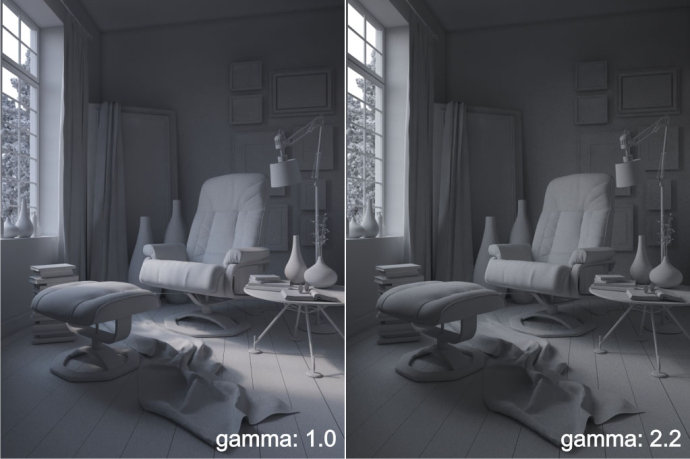

You only have to set the mapping type to spherical, horiz,. rotation to control the sum beam direction, and gamma to set a correct GI, sun and strong shadow shape.· 只需把设贴图设置成球形水平旋转来控制光束的大方向，把gamma设置成正确的GI，太阳光和重阴影形状。This is the simulation using different gamma values:· 下面是不同gamma值下的效果。

Increased gamma can make a soft shadow effect and weak sun lighting. Decreased gamma can make the shadow look sharpen and strong sun lighting.· 较高的gamma值能达到柔和的光影效果，而较低的光影对比更强烈。

Of course it is not a fixed setting. Different scenes require you to set different gamma values and also different horiz. rotation to get the correct lighting in your scene.· 当然这不是唯一的参数设置，对于不同场景要灵活运用不同的gamma值和不同的水平旋转来达到最佳的光影效果。

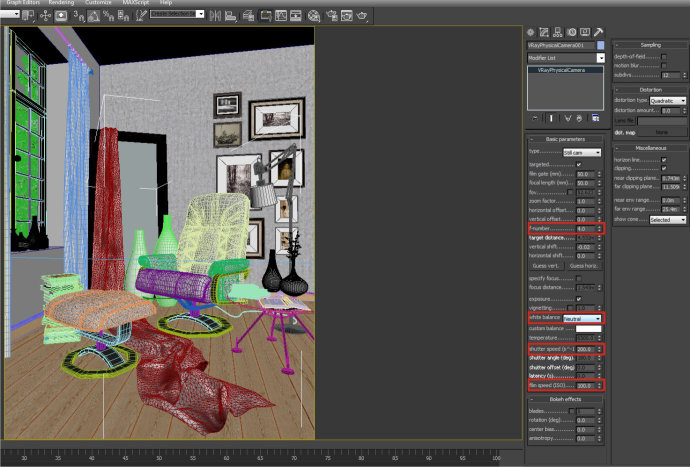

CAMERA SETTINGS | 相机设定 Just simple setting for my vrayphysical camera.· 以下是vray物理相机的简单参数

MATERIAL AND TEXTURING

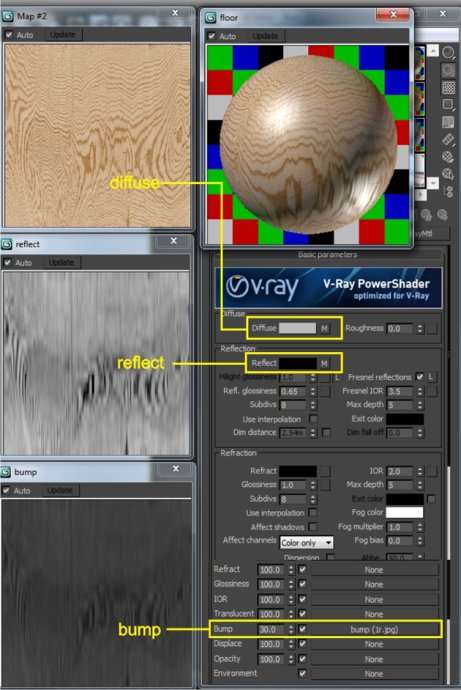

There are a lot of advanced materials that I use in the simple scene. I only use standard method color selector to set the diffuse and reflect properties.· 在这个简单的场景里有很多高级材质设置，在反射上只用到了基本的方法，没什么特别的。Wood floor · 地板
