python实战教程之自动扫雷

前言

自动扫雷一般分为两种，一种是读取内存数据，而另一种是通过分析图片获得数据，并通过模拟鼠标操作，这里我用的是第二种方式。

一、准备工作

1.扫雷游戏

我是win10，没有默认的扫雷，所以去扫雷网下载

http://www.saolei.net/BBS/

2.python 3

我的版本是 python 3.6.1

3.python的第三方库

win32api,win32gui,win32con,Pillow,numpy,opencv

可通过 pip install --upgrade SomePackage 来进行安装

注意：有的版本是下载pywin32，但是有的要把pywin32升级到最高并自动下载了pypiwin32，具体情况每个python版本可能都略有不同

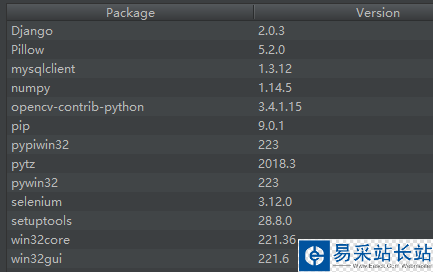

我给出我的第三方库和版本仅供参考

二、关键代码组成

1.找到游戏窗口与坐标

#扫雷游戏窗口class_name = "TMain"title_name = "Minesweeper Arbiter "hwnd = win32gui.FindWindow(class_name, title_name)#窗口坐标left = 0top = 0right = 0bottom = 0if hwnd: print("找到窗口") left, top, right, bottom = win32gui.GetWindowRect(hwnd) #win32gui.SetForegroundWindow(hwnd) print("窗口坐标：") print(str(left)+' '+str(right)+' '+str(top)+' '+str(bottom))else: print("未找到窗口")

2.锁定并抓取雷区图像

#锁定雷区坐标#去除周围功能按钮以及多余的界面#具体的像素值是通过QQ的截图来判断的left += 15top += 101right -= 15bottom -= 42#抓取雷区图像rect = (left, top, right, bottom)img = ImageGrab.grab().crop(rect)

3.各图像的RGBA值

#数字1-8 周围雷数#0 未被打开#ed 被打开 空白#hongqi 红旗#boom 普通雷#boom_red 踩中的雷rgba_ed = [(225, (192, 192, 192)), (31, (128, 128, 128))]rgba_hongqi = [(54, (255, 255, 255)), (17, (255, 0, 0)), (109, (192, 192, 192)), (54, (128, 128, 128)), (22, (0, 0, 0))]rgba_0 = [(54, (255, 255, 255)), (148, (192, 192, 192)), (54, (128, 128, 128))]rgba_1 = [(185, (192, 192, 192)), (31, (128, 128, 128)), (40, (0, 0, 255))]rgba_2 = [(160, (192, 192, 192)), (31, (128, 128, 128)), (65, (0, 128, 0))]rgba_3 = [(62, (255, 0, 0)), (163, (192, 192, 192)), (31, (128, 128, 128))]rgba_4 = [(169, (192, 192, 192)), (31, (128, 128, 128)), (56, (0, 0, 128))]rgba_5 = [(70, (128, 0, 0)), (155, (192, 192, 192)), (31, (128, 128, 128))]rgba_6 = [(153, (192, 192, 192)), (31, (128, 128, 128)), (72, (0, 128, 128))]rgba_8 = [(149, (192, 192, 192)), (107, (128, 128, 128))]rgba_boom = [(4, (255, 255, 255)), (144, (192, 192, 192)), (31, (128, 128, 128)), (77, (0, 0, 0))]rgba_boom_red = [(4, (255, 255, 255)), (144, (255, 0, 0)), (31, (128, 128, 128)), (77, (0, 0, 0))]

4.扫描雷区图像保存至一个二维数组map
