python生成ppt的方法

本文主要介绍如何通过python生成ppt文件，以及借助ppt模板来生成ppt

环境

python 3
python-pptx

安装

pip3 install python-pptx

将文字输出到ppt

效果图

代码

from pptx import Presentation# 创建幻灯片 ------prs = Presentation()title_slide_layout = prs.slide_layouts[0]slide = prs.slides.add_slide(title_slide_layout)title = slide.shapes.titlesubtitle = slide.placeholders[1]# 设置标题和副标题title.text = "Hello, World!"subtitle.text = "pip install python-pptx"prs.save("test.pptx")

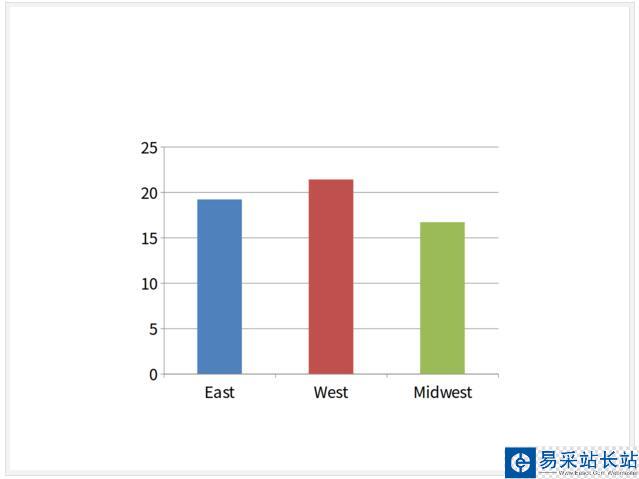

图表输出到ppt

效果图

代码

from pptx import Presentationfrom pptx.chart.data import ChartDatafrom pptx.enum.chart import XL_CHART_TYPEfrom pptx.util import Inches# 创建幻灯片 ------prs = Presentation()slide = prs.slides.add_slide(prs.slide_layouts[5])# 定义图表数据 ---------------------chart_data = ChartData()chart_data.categories = ['East', 'West', 'Midwest']chart_data.add_series('Series 1', (19.2, 21.4, 16.7))# 将图表添加到幻灯片 --------------------x, y, cx, cy = Inches(2), Inches(2), Inches(6), Inches(4.5)slide.shapes.add_chart(  XL_CHART_TYPE.COLUMN_CLUSTERED, x, y, cx, cy, chart_data)prs.save('chart-01.pptx')

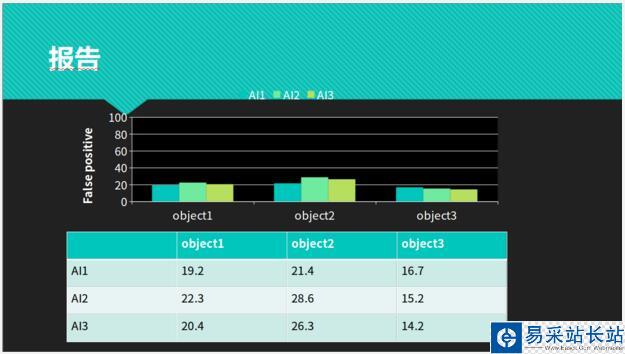

使用ppt模板来生成ppt

效果图

代码

from pptx import Presentationfrom pptx.util import Inchesfrom pptx import Presentationfrom pptx.chart.data import ChartDatafrom pptx.enum.chart import XL_CHART_TYPEfrom pptx.util import Cm #Inchesfrom pptx.enum.chart import XL_LEGEND_POSITIONif __name__ == '__main__':  # 创建幻灯片 ------  prs = Presentation('template.pptx')  title_only_slide_layout = prs.slide_layouts[5]  slide = prs.slides.add_slide(title_only_slide_layout)  shapes = slide.shapes  shapes.title.text = '报告'  # 定义表格数据 ------  name_objects = ["object1", "object2", "object3"]  name_AIs = ["AI1", "AI2", "AI3"]  val_AI1 = (19.2, 21.4, 16.7)  val_AI2 = (22.3, 28.6, 15.2)  val_AI3 = (20.4, 26.3, 14.2)  val_AIs = [val_AI1, val_AI2, val_AI3]  # 表格样式 --------------------  rows = 4  cols = 4  top  = Cm(12.5)  left  = Cm(3.5) #Inches(2.0)  width = Cm(24) # Inches(6.0)  height = Cm(6) # Inches(0.8)  # 添加表格到幻灯片 --------------------  table = shapes.add_table(rows, cols, left, top, width, height).table  # 设置单元格宽度  table.columns[0].width = Cm(6)# Inches(2.0)  table.columns[1].width = Cm(6)  table.columns[2].width = Cm(6)  table.columns[3].width = Cm(6)  # 设置标题行  table.cell(0, 1).text = name_objects[0]  table.cell(0, 2).text = name_objects[1]  table.cell(0, 3).text = name_objects[2]  # 填充数据  table.cell(1, 0).text = name_AIs[0]  table.cell(1, 1).text = str(val_AI1[0])  table.cell(1, 2).text = str(val_AI1[1])  table.cell(1, 3).text = str(val_AI1[2])  table.cell(2, 0).text = name_AIs[1]  table.cell(2, 1).text = str(val_AI2[0])  table.cell(2, 2).text = str(val_AI2[1])  table.cell(2, 3).text = str(val_AI2[2])  table.cell(3, 0).text = name_AIs[2]  table.cell(3, 1).text = str(val_AI3[0])  table.cell(3, 2).text = str(val_AI3[1])  table.cell(3, 3).text = str(val_AI3[2])  # 定义图表数据 ---------------------  chart_data = ChartData()  chart_data.categories = name_objects  chart_data.add_series(name_AIs[0], val_AI1)  chart_data.add_series(name_AIs[1], val_AI2)  chart_data.add_series(name_AIs[2], val_AI3)  # 添加图表到幻灯片 --------------------  x, y, cx, cy = Cm(3.5), Cm(4.2), Cm(24), Cm(8)  graphic_frame = slide.shapes.add_chart(    XL_CHART_TYPE.COLUMN_CLUSTERED, x, y, cx, cy, chart_data    )  chart = graphic_frame.chart  chart.has_legend = True  chart.legend.position = XL_LEGEND_POSITION.TOP  chart.legend.include_in_layout = False  value_axis = chart.value_axis  value_axis.maximum_scale = 100.0  value_axis.has_title = True  value_axis.axis_title.has_text_frame = True  value_axis.axis_title.text_frame.text = "False positive"  value_axis.axis_title.text_frame.auto_size  prs.save('test_template.pptx')
