Python实现PS滤镜功能之波浪特效示例

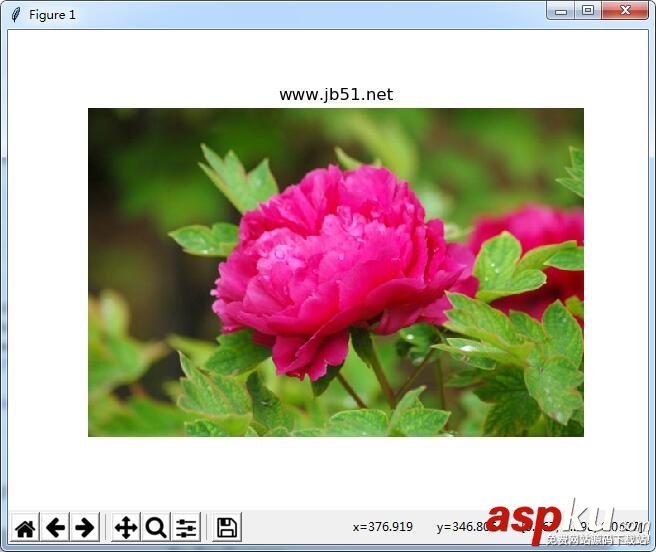

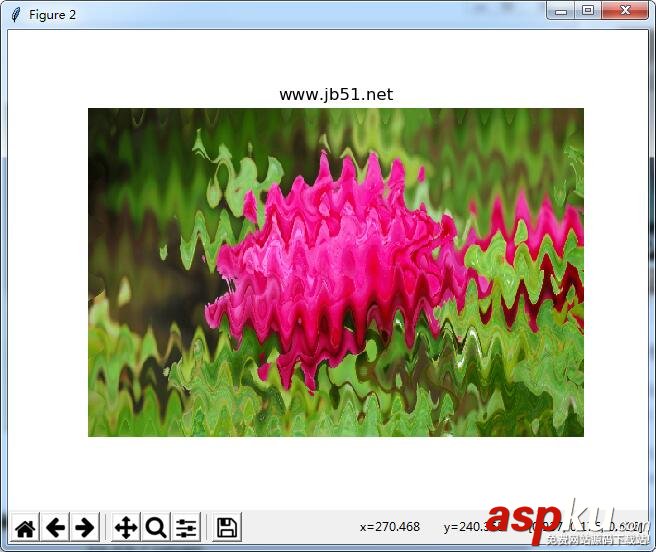

import numpy as npfrom skimage import img_as_floatimport matplotlib.pyplot as pltfrom skimage import ioimport numpy.matlibimport mathfile_name2='D:/Visual Effects/PS Algorithm/4.jpg'img=io.imread(file_name2)img = img_as_float(img)row, col, channel = img.shapeimg_out = img * 1.0alpha = 70.0beta = 30.0degree = 20.0center_x = (col-1)/2.0center_y = (row-1)/2.0xx = np.arange(col)yy = np.arange(row)x_mask = numpy.matlib.repmat (xx, row, 1)y_mask = numpy.matlib.repmat (yy, col, 1)y_mask = np.transpose(y_mask)xx_dif = x_mask - center_xyy_dif = center_y - y_maskx = degree * np.sin(2 * math.pi * yy_dif / alpha) + xx_dify = degree * np.cos(2 * math.pi * xx_dif / beta) + yy_difx_new = x + center_xy_new = center_y - y int_x = np.floor (x_new)int_x = int_x.astype(int)int_y = np.floor (y_new)int_y = int_y.astype(int)for ii in range(row):  for jj in range (col):    new_xx = int_x [ii, jj]    new_yy = int_y [ii, jj]    if x_new [ii, jj] < 0 or x_new [ii, jj] > col -1 :      continue    if y_new [ii, jj] < 0 or y_new [ii, jj] > row -1 :      continue    img_out[ii, jj, :] = img[new_yy, new_xx, :]plt.figure (1)plt.title('www.vevb.com')plt.imshow (img)plt.axis('off')plt.figure (2)plt.title('www.vevb.com')plt.imshow (img_out)plt.axis('off')plt.show()

%%% Wave%%% 波浪效果clc;clear all;close all;addpath('E:/PhotoShop Algortihm/Image Processing/PS Algorithm');I=imread('4.jpg');Image=double(I);% Image=0.2989 * I(:,:,1) + 0.5870 * I(:,:,2) + 0.1140 * I(:,:,3);[row, col,channel]=size(Image);R=floor(max(row, col)/2);Image_new=Image;Degree=30;  % 控制扭曲的程度Center_X=(col+1)/2;Center_Y=(row+1)/2;for i=1:row  for j=1:col    x0=j-Center_X;    y0=Center_Y-i;    x=Degree*sin(2*pi*y0/128)+x0;    y=Degree*cos(2*pi*x0/128)+y0;    x=x+col/2;    y=row/2-y;    if(x>1 && x<col && y<row && y>1)      x1=floor(x);      y1=floor(y);      p=x-x1;      q=y-y1;       Image_new(i,j,:)=(1-p)*(1-q)*Image(y1,x1,:)+p*(1-q)*Image(y1,x1+1,:)...              +q*(1-p)*Image(y1+1,x1,:)+p*q*Image(y1+1,x1+1,:);    end  endendfigure, imshow(Image_new/255);
