Upload files by sending multipart request programmatically

2019-11-10 21:29:13

字体：大中小

来源：转载

供稿：网友

In the article Upload file to servlet without using HTML form,we discussed how to fire an HTTP POST request to transfer a file to a server – but that request’s content type is not ofmultipart/form-data, so it may not work with the servers which handle multipart request and it requires both client and server are implemented in java. To overcome that limitation, in this article, we are going to discuss a different solution for uploading files from a Java client to any web server in a PRogrammatic way, without using upload form in HTML code. Let’s examine this interesting solution now.

Coding multipart utility class

We build the utility class called MultipartUtility with the following code:

123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151 package net.codejava.networking; import java.io.BufferedReader; import java.io.File;import java.io.FileInputStream;import java.io.IOException;import java.io.InputStreamReader;import java.io.OutputStream;import java.io.OutputStreamWriter;import java.io.PrintWriter;import java.net.HttpURLConnection;import java.net.URL;import java.net.URLConnection;import java.util.ArrayList;import java.util.List; /** * This utility class provides an abstraction layer for sending multipart HTTP * POST requests to a web server. * @author www.codejava.net * */public class MultipartUtility { privatefinal String boundary; privatestatic final String LINE_FEED = "/r/n"; privateHttpURLConnection httpConn; privateString charset; privateOutputStream outputStream; privatePrintWriter writer; /** * This constructor initializes a new HTTP POST request with content type * is set to multipart/form-data * @param requestURL * @param charset * @throws IOException */ publicMultipartUtility(String requestURL, String charset) throwsIOException { this.charset = charset; // creates a unique boundary based on time stamp boundary ="===" + System.currentTimeMillis() +"==="; URL url =new URL(requestURL); httpConn = (HttpURLConnection) url.openConnection(); httpConn.setUseCaches(false); httpConn.setDoOutput(true);// indicates POST method httpConn.setDoInput(true); httpConn.setRequestProperty("Content-Type", "multipart/form-data; boundary="+ boundary); httpConn.setRequestProperty("User-Agent","CodeJava Agent"); httpConn.setRequestProperty("Test","Bonjour"); outputStream = httpConn.getOutputStream(); writer =new PrintWriter(newOutputStreamWriter(outputStream, charset), true); } /** * Adds a form field to the request * @param name field name * @param value field value */ publicvoid addFormField(String name, String value) { writer.append("--"+ boundary).append(LINE_FEED); writer.append("Content-Disposition: form-data; name=/""+ name + "/"") .append(LINE_FEED); writer.append("Content-Type: text/plain; charset="+ charset).append( LINE_FEED); writer.append(LINE_FEED); writer.append(value).append(LINE_FEED); writer.flush(); } /** * Adds a upload file section to the request * @param fieldName name attribute in <input type="file" name="..." /> * @param uploadFile a File to be uploaded * @throws IOException */ publicvoid addFilePart(String fieldName, File uploadFile) throwsIOException { String fileName = uploadFile.getName(); writer.append("--"+ boundary).append(LINE_FEED); writer.append( "Content-Disposition: form-data; name=/""+ fieldName +"/"; filename=/"" + fileName + "/"") .append(LINE_FEED); writer.append( "Content-Type: " + URLConnection.guessContentTypeFromName(fileName)) .append(LINE_FEED); writer.append("Content-Transfer-Encoding: binary").append(LINE_FEED); writer.append(LINE_FEED); writer.flush(); FileInputStream inputStream =new FileInputStream(uploadFile); byte[] buffer =new byte[4096]; intbytesRead = -1; while((bytesRead = inputStream.read(buffer)) != -1) { outputStream.write(buffer,0, bytesRead); } outputStream.flush(); inputStream.close(); writer.append(LINE_FEED); writer.flush(); } /** * Adds a header field to the request. * @param name - name of the header field * @param value - value of the header field */ publicvoid addHeaderField(String name, String value) { writer.append(name +": " + value).append(LINE_FEED); writer.flush(); } /** * Completes the request and receives response from the server. * @return a list of Strings as response in case the server returned * status OK, otherwise an exception is thrown. * @throws IOException */ publicList<String> finish() throwsIOException { List<String> response =new ArrayList<String>(); writer.append(LINE_FEED).flush(); writer.append("--"+ boundary + "--").append(LINE_FEED); writer.close(); // checks server's status code first intstatus = httpConn.getResponseCode(); if(status == HttpURLConnection.HTTP_OK) { BufferedReader reader =new BufferedReader(newInputStreamReader( httpConn.getInputStream())); String line =null; while((line = reader.readLine()) != null) { response.add(line); } reader.close(); httpConn.disconnect(); }else { thrownew IOException("Server returned non-OK status: "+ status); } returnresponse; }}

This utility class uses java.net.HttpURLConnection class and follows the RFC 1867 (Form-based File Upload in HTML) to make an HTTP POST request withmultipart/form-data content type in order to upload files to a given URL. It has one constructor and three methods:MultipartUtility(String requestURL, String charset): creates a new instance of this class for a given request URL and charset.voidaddFormField(String name, String value): adds a regular text field to the request.voidaddHeaderField(String name, String value): adds an HTTP header field to the request.voidaddFilePart(String fieldName, File uploadFile): attach a file to be uploaded to the request.List<String>finish(): this method must be invoked lastly to complete the request and receive response from server as a list of String.Now let’s take a look at an example of how to use this utility class.

Coding a test program

Since the MultipartUtility class abstracts all the detailed implementation, a usage example would be pretty simple as shown in the following program:

12345678910111213141516171819202122232425262728293031323334353637383940414243 package net.codejava.networking; import java.io.File;import java.io.IOException;import java.util.List; /** * This program demonstrates a usage of the MultipartUtility class. * @author www.codejava.net * */public class MultipartFileUploader { publicstatic void main(String[] args) { String charset ="UTF-8"; File uploadFile1 =new File("e:/Test/PIC1.JPG"); File uploadFile2 =new File("e:/Test/PIC2.JPG"); String requestURL ="http://localhost:8080/FileUploadSpringMVC/uploadFile.do"; try{ MultipartUtility multipart =new MultipartUtility(requestURL, charset); multipart.addHeaderField("User-Agent","CodeJava"); multipart.addHeaderField("Test-Header","Header-Value"); multipart.addFormField("description","Cool Pictures"); multipart.addFormField("keyWords","Java,upload,Spring"); multipart.addFilePart("fileUpload", uploadFile1); multipart.addFilePart("fileUpload", uploadFile2); List<String> response = multipart.finish(); System.out.println("SERVER REPLIED:"); for(String line : response) { System.out.println(line); } }catch (IOException ex) { System.err.println(ex); } }}

In this program, we connect to the servlet’s URL of the application FileUploadSpringMVC (see this tutorial:Upload files with Spring MVC):

http://localhost:8080/FileUploadSpringMVC/uploadFile.do

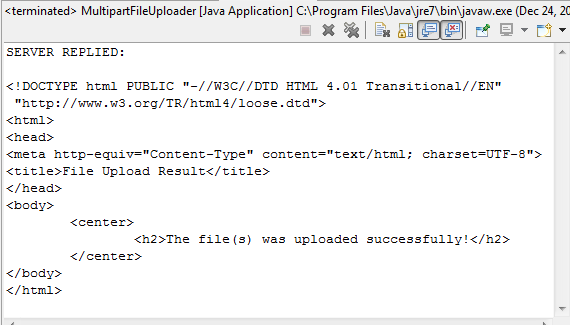

We added two header fields, two form fields and two upload files under the name “fileUpload” – which must match the fields declared in theupload form of the FileUploadSpringMVC application. When running the above program, it will produce the following output: server response

We can realize that the server’s response is actually HTML code of the application FileUploadSpringMVC’s result page. So far in this article, we’ve discussed about how to implement a command line program in Java which is capable of upload files to any URL that can handle multipart request, without implementing an HTML upload form. This would be very useful in case we want to upload files to a web server programmatically.
