本文以实例形式详细讲述了dotnetcharting控件的用法。分享给大家供大家参考。具体用法分析如下：
dotnetcharting 是一个很好用的图表控件，能画出很漂亮的报表，一般常用到的主要有柱状图、饼图、折线图三种。
dotnetcharting 有web版、winform版多个版本可供使用，官方网址：http://www.dotnetcharting.com/ ，官网有很多示例（http://www.dotnetcharting.com/gallery/），而且有winform安装版示例和代码，如下图。
dotnetcharting 有网上破解版的，去百度或谷歌一搜一堆。
说下个人感受，该控件是国外开发的，虽然说这个控件挺好用的，但是感觉这个控件应该在有xp系统的时候就应该有了吧？是国外剩下的技术，咱们一直在用别人不用的技术，捧为珍宝。
有些技术有些人，有些本事就开始自大起来，小有成就的那点技术还藏着掖着。 呵呵。。。
接下来上干货，前两天刚使用dotnetcharting 做了个统计报表，代码如下：
using System.Collections.Generic;
using System.Data;
using System.Drawing;
using dotnetCHARTING.WinForms;
using StationChart.Model;
using StationChart.Utility;
using Chart = dotnetCHARTING.WinForms.Chart;
using Series = dotnetCHARTING.WinForms.Series;
using SeriesCollection = dotnetCHARTING.WinForms.SeriesCollection;
namespace ManageSystem
{
// <summary>
// 作者：薛江涛
// 版本：V1.0.0
// 时间：2014/10/9 11:49:48
// </summary>
public class ShowData
{
#region 属性
private string _phaysicalimagepath;//图片存放路径
private string _xtitle;//图片x座标名称
private string _ytitle;//图片y座标名称
private string _seriesname;//图例名称
private int _picwidth;//图片宽度
private int _pichight;//图片高度
private DataTable _dt;//图片数据源
private DataSet _ds;//图片数据源
private Color _titleBoxColor;//图片标题背景色
private Font _titleBoxFont;//图片标题字体
private Color _chartAreaBackgroundColor;//图片背景颜色
private Font _xAxisLabelFont;//X轴柱状图值字体
private Font _yAxisLabelFont;//Y轴柱状图值字体
private Font _xAxisDefaultTickLabelFont;//X轴刻度字体
private Font _yAxisDefaultTickLabelFont;//Y轴刻度字体
private SeriesType _chartDefaultSeriesType;//图片类型
private ChartType _chartType;//图片类型
//private bool _isMonth; //是否是月显示
private int _staticColumnWidth;//设置柱状图每个单元格的宽度
private int _numberPercision;//设置数值小数点
/// <summary>
/// 图片存放路径
/// </summary>
public string PhaysicalImagePath
{
set { _phaysicalimagepath = value; }
get { return _phaysicalimagepath; }
}
/// <summary>
/// 图片标题
/// </summary>
public string Title { get; set; }
/// <summary>
/// 图片标题
/// </summary>
public string XTitle
{
set { _xtitle = value; }
get { return _xtitle; }
}
/// <summary>
/// 图片标题
/// </summary>
public string YTitle
{
set { _ytitle = value; }
get { return _ytitle; }
}
/// <summary>
/// 图例名称
/// </summary>
public string SeriesName
{
set { _seriesname = value; }
get { return _seriesname; }
}
/// <summary>
/// 图片宽度
/// </summary>
public int PicWidth
{
set { _picwidth = value; }
get { return _picwidth; }
}
/// <summary>
/// 图片高度
/// </summary>
public int PicHight
{
set { _pichight = value; }
get { return _pichight; }
}
/// <summary>
/// 图片数据源
/// </summary>
public DataTable DataSource
{
set { _dt = value; }
get { return _dt; }
}
/// <summary>
/// 图片数据源
/// </summary>
public DataSet DataSetSource
{
set { _ds = value; }
get { return _ds; }
}
public int NumberPercision
{
set { _numberPercision = value; }
get { return _numberPercision; }
}
public Color TitleBoxColor
{
get { return _titleBoxColor; }
set { _titleBoxColor = value; }
}
public Font TitleBoxFont
{
get { return _titleBoxFont; }
set { _titleBoxFont = value; }
}
public Color ChartAreaBackgroundColor
{
get { return _chartAreaBackgroundColor; }
set { _chartAreaBackgroundColor = value; }
}
public Font XAxisLabelFont
{
get { return _xAxisLabelFont; }
set { _xAxisLabelFont = value; }
}
public Font YAxisLabelFont
{
get { return _yAxisLabelFont; }
set { _yAxisLabelFont = value; }
}
public Font XAxisDefaultTickLabelFont
{
get { return _xAxisDefaultTickLabelFont; }
set { _xAxisDefaultTickLabelFont = value; }
}
public Font YAxisDefaultTickLabelFont
{
get { return _yAxisDefaultTickLabelFont; }
set { _yAxisDefaultTickLabelFont = value; }
}
public SeriesType ChartDefaultSeriesType
{
get { return _chartDefaultSeriesType; }
set { _chartDefaultSeriesType = value; }
}
public ChartType ChartType
{
get { return _chartType; }
set { _chartType = value; }
}
//public bool IsMonth
//{
// get { return _isMonth; }
// set { _isMonth = value; }
//}
public ModelConseme.DateChartEnum SeriesTypeE { get; set; }
public int StaticColumnWidth
{
get { return _staticColumnWidth; }
set { _staticColumnWidth = value; }
}
#endregion
#region 构造函数
public ShowData()
{
//
// TODO: 在此处添加构造函数逻辑
//
NumberPercision = 2;
}
public ShowData(string phaysicalImagePath, string title, string xTitle, string yTitle, string seriesName)
{
_phaysicalimagepath = phaysicalImagePath;
style="border-left-color: rgb(0, 153, 204); border-left-width: 1px; border-left-style: solid; padding: 0px 3px; margin: 3px auto 0px; width: 640px; background-color: rgb(242, 246, 251); clear: both; border-top-color: rgb(0, 153, 204); border-top-width: 1px; border-top-style: solid; border-right-color: rgb(0, 153, 204); border-right-width: 1px; border-right-style: solid;"> 复制代码代码如下:
//show.PicHight = 494;
//show.PicWidth = 1336;
show.SeriesName = "具体详情";
show.PhaysicalImagePath = "ChartImages";
show.TitleBoxColor = Color.Blue;
show.TitleBoxFont = new Font("Arial", 10, FontStyle.Bold);
show.ChartAreaBackgroundColor = Color.Honeydew;
show.XAxisLabelFont = new System.Drawing.Font("Microsoft Sans Serif", 10F, System.Drawing.FontStyle.Bold, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
show.YAxisLabelFont = new System.Drawing.Font("Microsoft Sans Serif", 10F, System.Drawing.FontStyle.Bold, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
show.XAxisDefaultTickLabelFont = new System.Drawing.Font("Microsoft Sans Serif", 10F, System.Drawing.FontStyle.Bold, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
show.YAxisDefaultTickLabelFont = new System.Drawing.Font("Microsoft Sans Serif", 10F, System.Drawing.FontStyle.Bold, System.Drawing.GraphicsUnit.Point, ((byte)(134)));
show.ChartDefaultSeriesType = SeriesType.Column;
show.DataSetSource = dsSet;
show.SeriesTypeE = modelConseme.DateChart;
//饼图
show.YTitle = "油量(升)";
//show.Title = strOils + strDate + strConsume + "销售油量报表统计图";
show.XTitle = "";
show.DataSource = dsSet.Tables[0];
show.CreatePie(this.chart1);
//柱状图（两条柱子对比）
show.YTitle = "油量(升)";
label2.Text = strDate + strOils + strConsume + @"油品对比图";
show.XTitle = "油品";
//show.DataSource = dsSet.Tables[2];
show.StaticColumnWidth = 0;
show.CreateColumn(chart2, new List<int>()
{
0,
1
});
//曲线图
show.YTitle = "油量(升)";
label5.Text = strDate + strOils + strConsume + @"油量环比图";
show.XTitle = "时间";
show.DataSource = dsSet.Tables[4];
show.CreateLine(this.chart5);
//单个柱子
var show = new ShowData
{

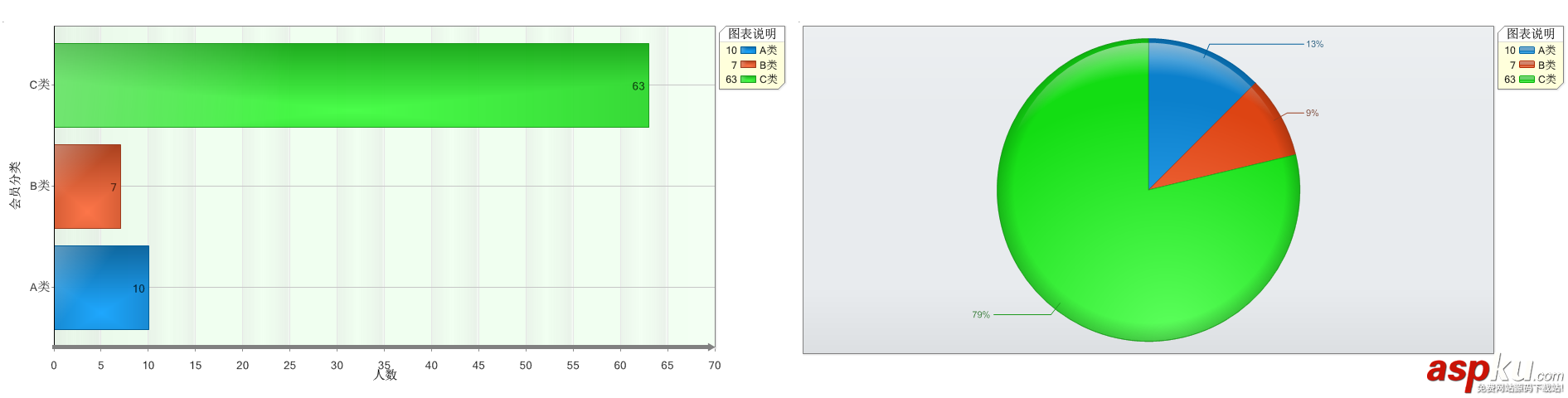

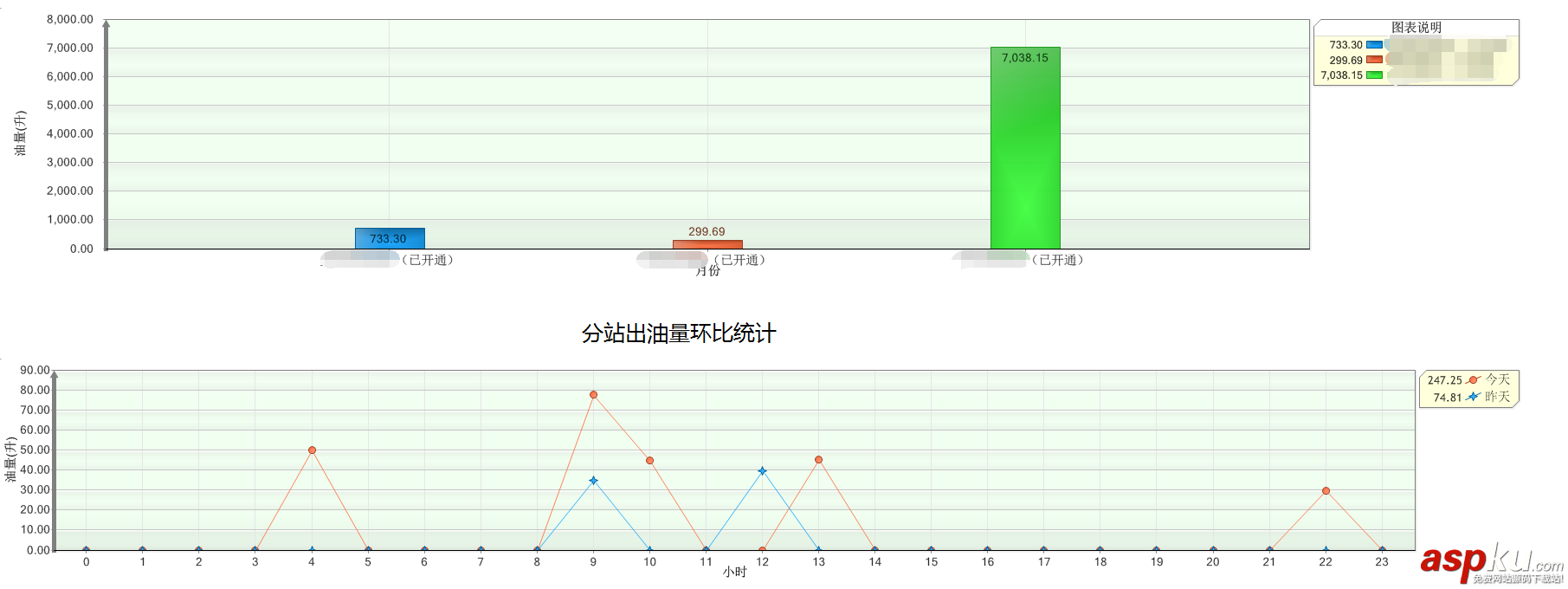

src="/uploads/allimg/150116/124253L45-1.png?201492991845" style="border: 1px solid rgb(204, 204, 204); padding: 3px; max-width: 620px; overflow: hidden;" />
希望本文所述对大家的C#程序设计有所帮助。
