Android 使用RadioGroup 实现底部导航菜单栏。

一、主界面布局的实现：

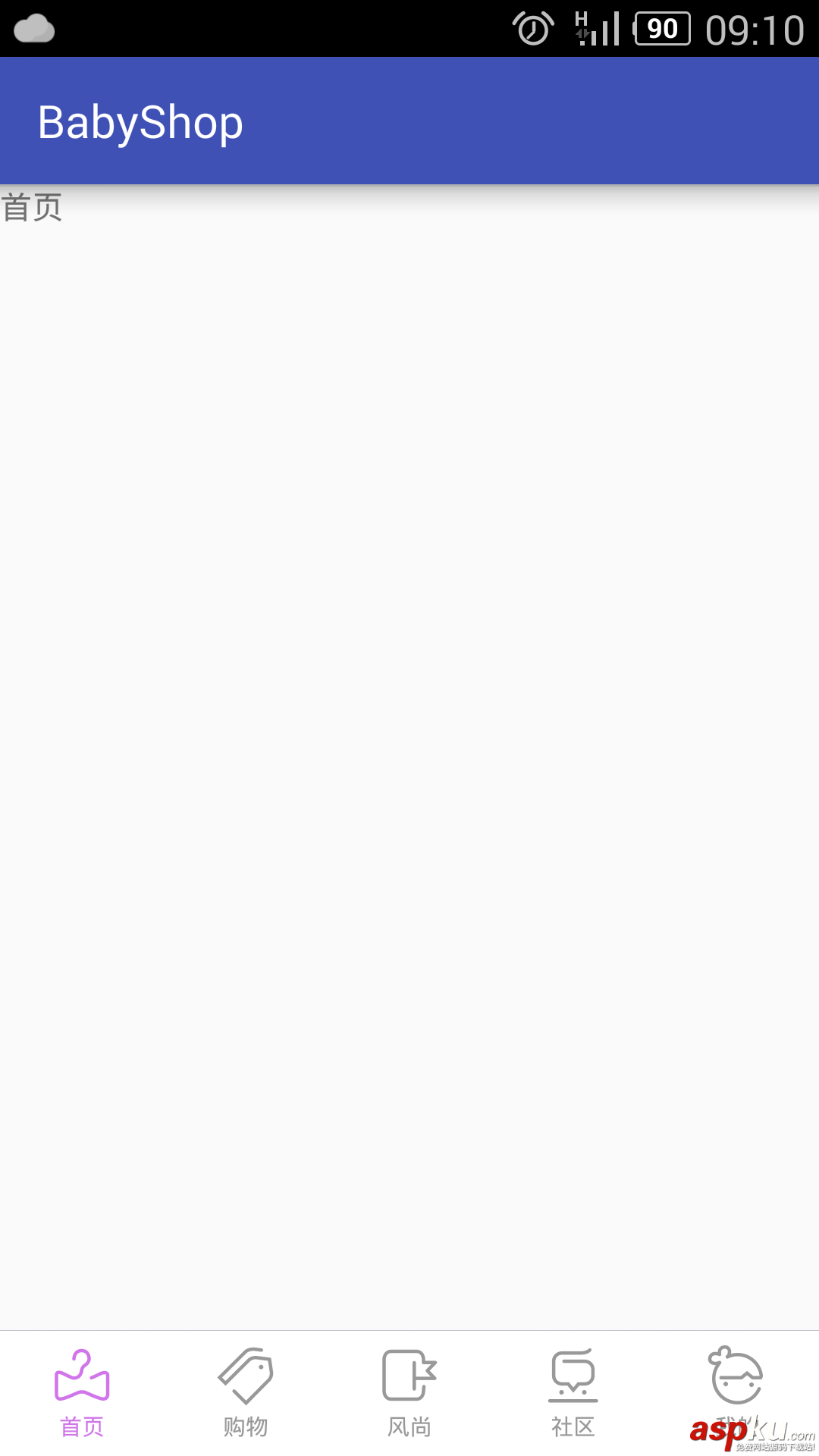

先来张效果图：

android,底部菜单,底部,菜单,代码

介绍一下总体界面包括的内容：底部五个导航按钮，主界面包括一个FrameLayout用来放五个Fragment。点击底部按钮会对应跳转到指定的界面。

实现布局：activity_main.xml

<?xml version="1.0" encoding="utf-8"?><RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context="com.garvey.activitys.MainActivity"> <FrameLayout android:id="@+id/id_fragment_content" android:layout_width="match_parent" android:layout_height="match_parent" android:layout_above="@+id/id_diverline"></FrameLayout> <View android:id="@+id/id_diverline" android:layout_above="@+id/id_bottom_tags" android:layout_width="match_parent" android:layout_height="0.1dp" android:background="#C2C5CE"/> <LinearLayout android:id="@+id/id_bottom_tags" android:layout_width="match_parent" android:layout_height="55dp" android:layout_alignParentBottom="true" android:background="@drawable/bt_tag_bg" android:orientation="horizontal"> <RadioGroup  android:id="@+id/id_navcontent"  android:layout_width="match_parent"  android:layout_height="match_parent"  android:layout_gravity="center"  android:background="@color/transparent"  android:gravity="center"  android:orientation="horizontal">  <RadioButton  android:id="@+id/id_nav_btshouye"  android:layout_width="0dp"  android:checked="true"  android:layout_height="wrap_content"  android:layout_gravity="center"  android:layout_weight="1"  android:background="@color/transparent"  android:button="@null"  android:clickable="true"  android:drawablePadding="2dp"  android:drawableTop="@drawable/x_nav_menu_sy"  android:gravity="center"  android:onClick="switchView"  android:text="首页"  android:textColor="@drawable/x_nav_menu_color"  android:textSize="10sp" />  <RadioButton  android:id="@+id/id_nav_btgouwu"  android:layout_width="0dp"  android:layout_height="wrap_content"  android:layout_gravity="center"  android:layout_weight="1"  android:background="@color/transparent"  android:button="@null"  android:clickable="true"  android:drawablePadding="2dp"  android:drawableTop="@drawable/x_nav_menu_gw"  android:gravity="center"  android:onClick="switchView"  android:text="购物"  android:textColor="@drawable/x_nav_menu_color"  android:textSize="10sp" />  <RadioButton  android:id="@+id/id_nav_btfengshang"  android:layout_width="0dp"  android:layout_height="wrap_content"  android:layout_gravity="center"  android:layout_weight="1"  android:background="@color/transparent"  android:button="@null"  android:clickable="true"  android:drawablePadding="2dp"  android:drawableTop="@drawable/x_nav_menu_fs"  android:gravity="center"  android:onClick="switchView"  android:text="风尚"  android:textColor="@drawable/x_nav_menu_color"  android:textSize="10sp" />  <RadioButton  android:id="@+id/id_nav_btshequ"  android:layout_width="0dp"  android:layout_height="wrap_content"  android:layout_gravity="center"  android:layout_weight="1"  android:background="@color/transparent"  android:button="@null"  android:clickable="true"  android:drawablePadding="2dp"  android:drawableTop="@drawable/x_nav_menu_sq"  android:gravity="center"  android:onClick="switchView"  android:text="社区"  android:textColor="@drawable/x_nav_menu_color"  android:textSize="10sp" />  <RadioButton  android:id="@+id/id_nav_btwode"  android:layout_width="0dp"  android:layout_height="wrap_content"  android:layout_gravity="center"  android:layout_weight="1"  android:background="@color/transparent"  android:button="@null"  android:clickable="true"  android:drawablePadding="2dp"  android:drawableTop="@drawable/x_nav_menu_wd"  android:gravity="center"  android:onClick="switchView"  android:text="我的"  android:textColor="@drawable/x_nav_menu_color"  android:textSize="10sp" /> </RadioGroup> </LinearLayout></RelativeLayout>

编写selector 用来设置点击后的背景变化：

x_nav_menu_fs.xml，x_nav_menu_gw.xml，x_nav_menu_sq.xml，x_nav_menu_sy.xml，x_nav_menu_wd.xml

例如x_nav_menu_sy.xml文件的书写为：

<?xml version="1.0" encoding="utf-8"?><selector xmlns:android="http://schemas.android.com/apk/res/android"> <item android:drawable="@mipmap/tabitem_0" android:state_checked="true"></item> <item android:drawable="@mipmap/tabitem0"></item></selector>

编写文字点击后颜色的变化drawable:x_nav_menu_color.xml

<?xml version="1.0" encoding="UTF-8"?><selector xmlns:android="http://schemas.android.com/apk/res/android"> <item android:color="#CF75E9" android:state_checked="true"></item> <item android:color="#989898"></item></selector>

编写底部菜单栏背景的drawablebt_tag_bg.xml:

<?xml version="1.0" encoding="utf-8"?><shape xmlns:android="http://schemas.android.com/apk/res/android"> <solid android:color="#FFFFFF" /></shape>

按照上述方式的就完成了底部菜单栏的布局方式，同时在布局的时候我们为每个RadioButton设置了点击监听器，监听方法是：switchView(View view)。

二、布局的代码实现

创建五个fragment,分别对应每个按钮的界面，Fragment的代码非常简单，例如下面一个Fragment：

package com.garvey.modules;import android.os.Bundle;import android.support.v4.app.Fragment;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;import com.garvey.babyshop.R;/** * 作者： Garvey on 2016/6/13. * 邮箱： lianjiawei18@163.com */public class ShouYeFragment extends Fragment{ // 缓存Fragment view private View rootView; private static ShouYeFragment shouYeFragment; public ShouYeFragment(){} public static ShouYeFragment getNewInstance(){ if (shouYeFragment ==null){  shouYeFragment =new ShouYeFragment(); } return shouYeFragment; } @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); } @Override public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) { if (rootView == null) {  rootView = inflater.inflate(R.layout.fragment_shouye, container, false); } // 缓存的rootView需要判断是否已经被加过parent， // 如果有parent需要从parent删除，要不然会发生这个rootview已经有parent的错误。 ViewGroup parent = (ViewGroup) rootView.getParent(); if (parent != null) {  parent.removeView(rootView); } return rootView; } @Override public void onResume() { super.onResume(); }}

然后编写MainActivity的代码，首先确立界面对应的索引：

 public static final int VIEW_SHOUYE_INDEX = 0; public static final int VIEW_GOUWU_INDEX = 1; public static final int VIEW_FENGSHANG_INDEX = 2; public static final int VIEW_SHEQU_INDEX = 3; public static final int VIEW_WODE_INDEX = 4; private int temp_position_index = -1;

然后书写对应的switchView(View view )方法来实现对应的界面切换：

public void switchView(View view) { switch (view.getId()) {  case R.id.id_nav_btshouye:  if (temp_position_index != VIEW_SHOUYE_INDEX) {   //显示   mTransaction = getSupportFragmentManager().beginTransaction();   mTransaction.replace(R.id.id_fragment_content, syFragemnt);   mTransaction.commit();  }  temp_position_index = VIEW_SHOUYE_INDEX;  break;  case R.id.id_nav_btgouwu:  if (temp_position_index != VIEW_GOUWU_INDEX) {   //显示   mTransaction = getSupportFragmentManager().beginTransaction();   mTransaction.replace(R.id.id_fragment_content, gwFragment);   mTransaction.commit();  }  temp_position_index = VIEW_GOUWU_INDEX;  break;  case R.id.id_nav_btfengshang:  if (temp_position_index != VIEW_FENGSHANG_INDEX) {   //显示   mTransaction = getSupportFragmentManager().beginTransaction();   mTransaction.replace(R.id.id_fragment_content, fsFragment);   mTransaction.commit();  }  temp_position_index = VIEW_FENGSHANG_INDEX;  break;  case R.id.id_nav_btshequ:  if (temp_position_index != VIEW_SHEQU_INDEX) {   //显示   mTransaction = getSupportFragmentManager().beginTransaction();   mTransaction.replace(R.id.id_fragment_content, sqFragment);   mTransaction.commit();  }  temp_position_index = VIEW_SHEQU_INDEX;  break;  case R.id.id_nav_btwode:  if (temp_position_index != VIEW_WODE_INDEX) {   //显示   mTransaction = getSupportFragmentManager().beginTransaction();   mTransaction.replace(R.id.id_fragment_content, wdFragment);   mTransaction.commit();  }  temp_position_index = VIEW_WODE_INDEX;  break; } }

MainActivity的总代码如下：

package com.garvey.activitys;import android.os.Bundle;import android.support.v4.app.Fragment;import android.support.v4.app.FragmentTransaction;import android.support.v7.app.AppCompatActivity;import android.view.View;import android.widget.RadioGroup;import com.garvey.babyshop.R;import com.garvey.modules.FengShangFragment;import com.garvey.modules.GouWuFragment;import com.garvey.modules.SheQuFragment;import com.garvey.modules.ShouYeFragment;import com.garvey.modules.WoDeFragment;public class MainActivity extends AppCompatActivity { /** * 底部导航栏的widdget */ private RadioGroup mNavGroup; private FragmentTransaction mTransaction; /** * 五个Fragments */ Fragment syFragemnt, gwFragment, fsFragment, sqFragment, wdFragment; public static final int VIEW_SHOUYE_INDEX = 0; public static final int VIEW_GOUWU_INDEX = 1; public static final int VIEW_FENGSHANG_INDEX = 2; public static final int VIEW_SHEQU_INDEX = 3; public static final int VIEW_WODE_INDEX = 4; private int temp_position_index = -1; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); initView(); } private void initView() { mNavGroup = (RadioGroup) findViewById(R.id.id_navcontent); syFragemnt = ShouYeFragment.getNewInstance(); gwFragment = GouWuFragment.getNewInstance(); fsFragment = FengShangFragment.getNewInstance(); sqFragment = SheQuFragment.getNewInstance(); wdFragment = WoDeFragment.getNewInstance(); //显示 mTransaction = getSupportFragmentManager().beginTransaction(); mTransaction.replace(R.id.id_fragment_content, syFragemnt); mTransaction.commit(); } public void switchView(View view) { switch (view.getId()) {  case R.id.id_nav_btshouye:  if (temp_position_index != VIEW_SHOUYE_INDEX) {   //显示   mTransaction = getSupportFragmentManager().beginTransaction();   mTransaction.replace(R.id.id_fragment_content, syFragemnt);   mTransaction.commit();  }  temp_position_index = VIEW_SHOUYE_INDEX;  break;  case R.id.id_nav_btgouwu:  if (temp_position_index != VIEW_GOUWU_INDEX) {   //显示   mTransaction = getSupportFragmentManager().beginTransaction();   mTransaction.replace(R.id.id_fragment_content, gwFragment);   mTransaction.commit();  }  temp_position_index = VIEW_GOUWU_INDEX;  break;  case R.id.id_nav_btfengshang:  if (temp_position_index != VIEW_FENGSHANG_INDEX) {   //显示   mTransaction = getSupportFragmentManager().beginTransaction();   mTransaction.replace(R.id.id_fragment_content, fsFragment);   mTransaction.commit();  }  temp_position_index = VIEW_FENGSHANG_INDEX;  break;  case R.id.id_nav_btshequ:  if (temp_position_index != VIEW_SHEQU_INDEX) {   //显示   mTransaction = getSupportFragmentManager().beginTransaction();   mTransaction.replace(R.id.id_fragment_content, sqFragment);   mTransaction.commit();  }  temp_position_index = VIEW_SHEQU_INDEX;  break;  case R.id.id_nav_btwode:  if (temp_position_index != VIEW_WODE_INDEX) {   //显示   mTransaction = getSupportFragmentManager().beginTransaction();   mTransaction.replace(R.id.id_fragment_content, wdFragment);   mTransaction.commit();  }  temp_position_index = VIEW_WODE_INDEX;  break; } }}

源码下载

以上就是这篇文章的全部内容了，希望本文的内容对大家的学习或者工作具有一定的参考学习价值，如果有疑问大家可以留言交流，谢谢大家对VEVB武林网的支持。
