android 中使用TableLayout实现表单布局效果示例

2019-10-22 18:09:52
字体:
来源:转载
供稿:网友

使用TableLayout表格布局实现表单效果

android,TableLayout,表单布局

1、核心知识点

android,TableLayout,表单布局

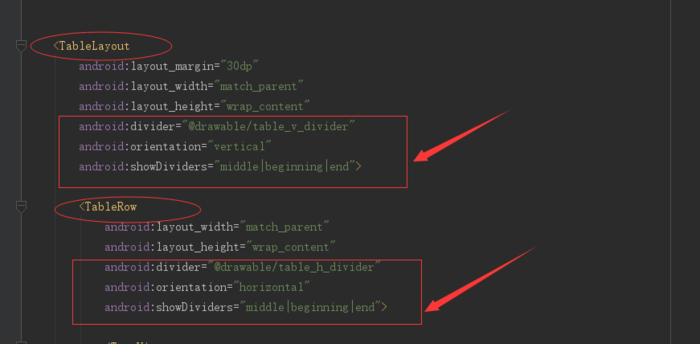

android:divider="@drawable/table_v_divider"android:showDividers="middle|beginning|end"

2、样式代码

style样式

<?xml version="1.0" encoding="utf-8"?><resources>  <!--灰色8a8a8a18号字体,130宽,主要用于确认个人信息表格样式-->  <style name="style_table_gray6_18_130_text">    <item name="android:layout_width">@dimen/dimen_0</item>    <item name="android:layout_height">wrap_content</item>    <item name="android:textSize">@dimen/text_18</item>    <item name="android:textColor">@color/c_gray_6</item>    <item name="android:gravity">center</item>    <item name="android:padding">@dimen/dimen_10</item>  </style>  <!--黑色1c1c1c18号字体-->  <style name="style_table_black1_18_text">    <item name="android:layout_width">@dimen/dimen_0</item>    <item name="android:layout_height">wrap_content</item>    <item name="android:textSize">@dimen/text_18</item>    <item name="android:textColor">@color/c_black_1</item>    <item name="android:gravity">center_vertical</item>    <item name="android:singleLine">true</item>    <item name="android:ellipsize">end</item>    <item name="android:padding">@dimen/dimen_10</item>  </style></resources>

table_v_divider.xml文件

<?xml version="1.0" encoding="utf-8"?><shape xmlns:android="http://schemas.android.com/apk/res/android"  android:shape="rectangle">  <size    android:height="1dp" />  <solid android:color="@color/c_gray_6" /></shape>

table_h_divider.xml文件

<?xml version="1.0" encoding="utf-8"?><shape xmlns:android="http://schemas.android.com/apk/res/android"  android:shape="rectangle">  <size    android:width="1dp" />  <solid android:color="@color/c_gray_6" /></shape>

颜色

<color name="c_gray_6">#8a8a8a</color>

3、完整代码如下

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"  xmlns:tools="http://schemas.android.com/tools"  android:orientation="vertical"  style="@style/style_match_background_content">  <LinearLayout    style="@style/style_match_wrap_content"    android:layout_marginTop="@dimen/dimen_30"    android:gravity="center_vertical"    android:orientation="horizontal"    android:padding="@dimen/dimen_10">    <android.support.v4.widget.Space      style="@style/style_black_2_26_text"      android:layout_weight="1" />    <TextView      style="@style/style_black_2_26_text"      android:gravity="right"      android:layout_weight="1"      android:layout_width="@dimen/dimen_0"      android:text="险种类型:" />    <EditText      android:id="@+id/et_plant_type"      style="@style/style_black_2_26_text"      android:layout_weight="3"      android:layout_width="@dimen/dimen_0"      android:background="@drawable/bg_et_down_selector"      android:hint="请选择" />    <android.support.v4.widget.Space      style="@style/style_black_2_26_text"      android:layout_weight="1" />  </LinearLayout>  <TableLayout    android:layout_margin="30dp"    android:layout_width="match_parent"    android:layout_height="wrap_content"    android:divider="@drawable/table_v_divider"    android:orientation="vertical"    android:showDividers="middle|beginning|end">    <TableRow      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:divider="@drawable/table_h_divider"      android:orientation="horizontal"      android:showDividers="middle|beginning|end">      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="10"        android:text="基本信息" />    </TableRow>    <TableRow      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:divider="@drawable/table_h_divider"      android:orientation="horizontal"      android:showDividers="middle|beginning|end">      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="1"        android:text="姓名" />      <TextView        android:id="@+id/tv_table_name"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="2"        tools:text="基本信息" />      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="1"        android:text="性别" />      <TextView        android:id="@+id/tv_table_sex"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="2"        tools:text="男" />      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="2"        android:text="身份证号" />      <TextView        android:id="@+id/tv_table_idnum"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="2"        tools:text="444444444444444444" />    </TableRow>    <TableRow      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:divider="@drawable/table_h_divider"      android:orientation="horizontal"      android:showDividers="middle|beginning|end">      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="3"        android:text="个人社保编号" />      <TextView        android:id="@+id/tv_table_ss_num"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="1"        tools:text="110" />      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="2"        android:text="现参保单位" />      <TextView        android:id="@+id/tv_table_ss_current_insured_unit"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="4"        tools:text="110" />    </TableRow>    <TableRow      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:divider="@drawable/table_h_divider"      android:orientation="horizontal"      android:showDividers="middle|beginning|end">      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="10"        android:text="参保情况" />    </TableRow>    <TableRow      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:divider="@drawable/table_h_divider"      android:orientation="horizontal"      android:showDividers="middle|beginning|end">      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="3"        android:text="参保状态" />      <TextView        android:id="@+id/tv_table_insured_state"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="3"        tools:text="参保缴费" />      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="2"        android:text="现缴费基数" />      <TextView        android:id="@+id/tv_table_payment_base"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="2"        tools:text="110" />    </TableRow>    <TableRow      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:divider="@drawable/table_h_divider"      android:orientation="horizontal"      android:showDividers="middle|beginning|end">      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="3"        android:text="参保起始时间" />      <TextView        android:id="@+id/tv_table_start_time"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="3"        tools:text="2018-06-12" />      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="2"        android:text="缴费截止时间" />      <TextView        android:id="@+id/tv_table_pay_end_time"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="2"        tools:text="2018-06-12" />    </TableRow>    <TableRow      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:divider="@drawable/table_h_divider"      android:orientation="horizontal"      android:showDividers="middle|beginning|end">      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="3"        android:text="个人账号总月数" />      <TextView        android:id="@+id/tv_table_total_accounts"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="3"        tools:text="2018-06-12" />      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="2"        android:text="个人账号存在额" />      <TextView        android:id="@+id/tv_table_personal_account_number"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="2"        tools:text="2018-06-12" />    </TableRow>    <TableRow      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:divider="@drawable/table_h_divider"      android:orientation="horizontal"      android:showDividers="middle|beginning|end">      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="3"        android:text="截止上月欠缴月数" />      <TextView        android:id="@+id/tv_table_not_months"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="3"        tools:text="2018-06-12" />      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="2"        android:text="截止上月欠费金额" />      <TextView        android:id="@+id/tv_table_owe_the_amount"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="2"        tools:text="2018-06-12" />    </TableRow>    <TableRow      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:divider="@drawable/table_h_divider"      android:orientation="horizontal"      android:showDividers="middle|beginning|end">      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="10"        android:text="其它" />    </TableRow>    <TableRow      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:divider="@drawable/table_h_divider"      android:orientation="horizontal"      android:showDividers="middle|beginning|end">      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="3"        android:text="中断开始时间" />      <TextView        android:id="@+id/tv_table_break_start_time"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="3"        tools:text="2018-06-12" />      <TextView        style="@style/style_table_gray6_18_130_text"        android:layout_width="0dp"        android:layout_weight="2"        android:text="中断截止时间" />      <TextView        android:id="@+id/tv_table_break_end_time"        style="@style/style_table_black1_18_text"        android:layout_width="0dp"        android:layout_weight="2"        tools:text="2018-06-12" />    </TableRow>  </TableLayout></LinearLayout>

以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持VEVB武林网。
