nginx+tomcat实现负载均衡，使用redis session共享

2024-08-30 12:28:23

字体：大中小

来源：转载

供稿：网友

环境准备

1、准备一台nginx服务器 ip192.168.1.133 端口81

安装过程：

＃首先安装依赖：yum -y install gcc-c++ yum -y install pcre pcre-devel yum -y install zlib zlib-devel yum -y install openssl openssl—devel#注意 ： 安装nginx必须使用 root 用户安装#创建一个nginx目录mkdir /usr/local/src/nginx#进入到nginx目录cd /usr/local/src/nginx#下载或上传安装包wget http://nginx.org/download/nginx.tar.gz 或 rz上传#解压安装包tar -xvf nginx.tar.gz#进入到解压后的目录cd nginx# 下面 才开始正式安装#把nginx安装到指定用户的目录mkdir -p /ucenter/soft/nginx#安装配置 prefix为安装目录 user为用户 group为 组./configure --prefix=/ucenter/soft/nginx --user=ucenter --group=ucenter#编译make #安装make install#在linux系统中由于非root用户不能占用80端口，所以需要使普通用户以root身份启动nginx。 cd /ucenter/soft/nginx/sbin#把soft文件下所有的文件所属者修改为ucener -R 表示递归chown ucenter:ucenter ./soft/ -R#修改 ./nginx 的所属为rootchown root nginx#让普通用户可以使用80端口，可以使用root权限启用nginxchmod u+s nginx#修改配置文件 在修改配置文件之前 ，要备份该文件cd conf/# 要注意nginx 的工作进程，一般根据cpu的核数去修改vim nginx.conf#关闭防火墙，打开80端口service iptables stop#启动nginx./nginx#重启nginx./nginx -s reload#关闭nginx./nginx -s stop

准备一台tomcat服务器，先准备java环境，安装jdk步骤省略

然后分别安装3个tomcat 服务器ip地址：192.168.1.143，tomcat1 8080端口，tomcat2 8081端口，tomcat3 8082端口。

nginx负载均衡session,nginx,tomcat负载均衡,redis,负载均衡

apache-tomcat-7.0.64/conf/server.xml配置文件修改这三个地方，这样端口就不会冲突

<Server port="8005" shutdown="SHUTDOWN"><Connector port="8080" protocol="HTTP/1.1"connectionTimeout="20000"redirectPort="8443" /><Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />

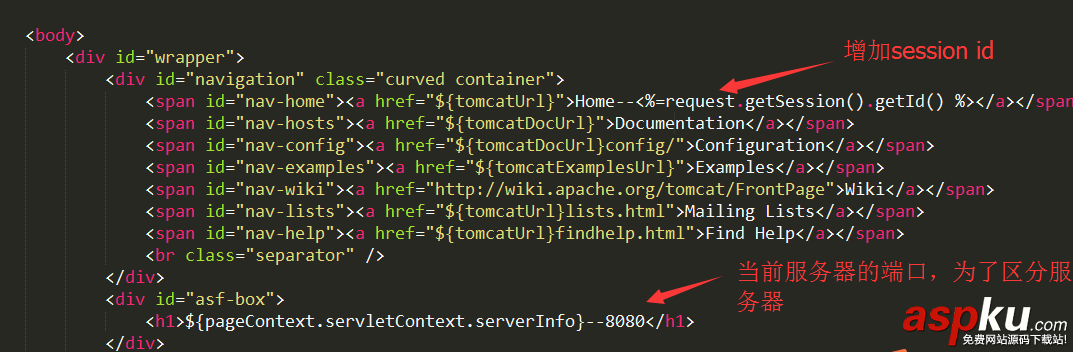

修改tomcat ROOT目录下index.jsp，分别增加每个tomcat的标识，以及在页面上显示session ID

<%--Licensed to the Apache Software Foundation (ASF) under one or morecontributor license agreements. See the NOTICE file distributed withthis work for additional information regarding copyright ownership.The ASF licenses this file to You under the Apache License, Version 2.0(the "License"); you may not use this file except in compliance withthe License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0Unless required by applicable law or agreed to in writing, softwaredistributed under the License is distributed on an "AS IS" BASIS,WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.See the License for the specific language governing permissions andlimitations under the License.--%><!DOCTYPE html><%@ page session="true" %><%java.text.SimpleDateFormat sdf = new java.text.SimpleDateFormat("yyyy");request.setAttribute("year", sdf.format(new java.util.Date()));request.setAttribute("tomcatUrl", "http://tomcat.apache.org/");request.setAttribute("tomcatDocUrl", "/docs/");request.setAttribute("tomcatExamplesUrl", "/examples/");%><html lang="en"> <head>  <title><%=request.getServletContext().getServerInfo() %></title>  <link href="favicon.ico" rel="icon" type="image/x-icon" />  <link href="favicon.ico" rel="shortcut icon" type="image/x-icon" />  <link href="tomcat.css" rel="stylesheet" type="text/css" /> </head> <body>  <div id="wrapper">   <div id="navigation" class="curved container">    <span id="nav-home"><a href="${tomcatUrl}">Home--<%=request.getSession().getId() %></a></span>    <span id="nav-hosts"><a href="${tomcatDocUrl}">Documentation</a></span>    <span id="nav-config"><a href="${tomcatDocUrl}config/">Configuration</a></span>    <span id="nav-examples"><a href="${tomcatExamplesUrl}">Examples</a></span>    <span id="nav-wiki"><a href="http://wiki.apache.org/tomcat/FrontPage">Wiki</a></span>    <span id="nav-lists"><a href="${tomcatUrl}lists.html">Mailing Lists</a></span>    <span id="nav-help"><a href="${tomcatUrl}findhelp.html">Find Help</a></span>    <br class="separator" />   </div>   <div id="asf-box">    <h1>${pageContext.servletContext.serverInfo}--8080</h1>   </div>   <div id="upper" class="curved container">    <div id="congrats" class="curved container">     <h2>If you're seeing this, you've successfully installed Tomcat. Congratulations!</h2>    </div>    <div id="notice">     <img src="tomcat.png"     <div id="tasks">      <h3>Recommended Reading:</h3>      <h4><a href="${tomcatDocUrl}security-howto.html">Security Considerations HOW-TO</a></h4>      <h4><a href="${tomcatDocUrl}manager-howto.html">Manager Application HOW-TO</a></h4>      <h4><a href="${tomcatDocUrl}cluster-howto.html">Clustering/Session Replication HOW-TO</a></h4>     </div>    </div>    <div id="actions">     <div class="button">      <a class="container shadow" href="/manager/status"><span>Server Status</span></a>     </div>     <div class="button">      <a class="container shadow" href="/manager/html"><span>Manager App</span></a>     </div>     <div class="button">      <a class="container shadow" href="/host-manager/html"><span>Host Manager</span></a>     </div>    </div>    <!--    <br class="separator" />    -->    <br class="separator" />   </div>   <div id="middle" class="curved container">    <h3>Developer Quick Start</h3>    <div class="col25">     <div class="container">      <p><a href="${tomcatDocUrl}setup.html">Tomcat Setup</a></p>      <p><a href="${tomcatDocUrl}appdev/">First Web Application</a></p>     </div>    </div>    <div class="col25">     <div class="container">      <p><a href="${tomcatDocUrl}realm-howto.html">Realms & AAA</a></p>      <p><a href="${tomcatDocUrl}jndi-datasource-examples-howto.html">JDBC DataSources</a></p>     </div>    </div>    <div class="col25">     <div class="container">      <p><a href="${tomcatExamplesUrl}">Examples</a></p>     </div>    </div>    <div class="col25">     <div class="container">      <p><a href="http://wiki.apache.org/tomcat/Specifications">Servlet Specifications</a></p>      <p><a href="http://wiki.apache.org/tomcat/TomcatVersions">Tomcat Versions</a></p>     </div>    </div>    <br class="separator" />   </div>   <div id="lower">    <div id="low-manage" class="">     <div class="curved container">      <h3>Managing Tomcat</h3>      <p>For security, access to the <a href="/manager/html">manager webapp</a> is restricted.      Users are defined in:</p>      <pre>$CATALINA_HOME/conf/tomcat-users.xml</pre>      <p>In Tomcat 7.0 access to the manager application is split between       different users.   <a href="${tomcatDocUrl}manager-howto.html">Read more...</a></p>      <br />      <h4><a href="${tomcatDocUrl}RELEASE-NOTES.txt">Release Notes</a></h4>      <h4><a href="${tomcatDocUrl}changelog.html">Changelog</a></h4>      <h4><a href="${tomcatUrl}migration.html">Migration Guide</a></h4>      <h4><a href="${tomcatUrl}security.html">Security Notices</a></h4>     </div>    </div>    <div id="low-docs" class="">     <div class="curved container">      <h3>Documentation</h3>      <h4><a href="${tomcatDocUrl}">Tomcat 7.0 Documentation</a></h4>      <h4><a href="${tomcatDocUrl}config/">Tomcat 7.0 Configuration</a></h4>      <h4><a href="http://wiki.apache.org/tomcat/FrontPage">Tomcat Wiki</a></h4>      <p>Find additional important configuration information in:</p>      <pre>$CATALINA_HOME/RUNNING.txt</pre>      <p>Developers may be interested in:</p>      <ul>       <li><a href="http://tomcat.apache.org/bugreport.html">Tomcat 7.0 Bug Database</a></li>       <li><a href="${tomcatDocUrl}api/index.html">Tomcat 7.0 JavaDocs</a></li>       <li><a href="http://svn.apache.org/repos/asf/tomcat/tc7.0.x/">Tomcat 7.0 SVN Repository</a></li>      </ul>     </div>    </div>    <div id="low-help" class="">     <div class="curved container">      <h3>Getting Help</h3>      <h4><a href="${tomcatUrl}faq/">FAQ</a> and <a href="${tomcatUrl}lists.html">Mailing Lists</a></h4>      <p>The following mailing lists are available:</p>      <ul>       <li id="list-announce"><strong><a href="${tomcatUrl}lists.html#tomcat-announce">tomcat-announce</a><br />        Important announcements, releases, security vulnerability notifications. (Low volume).</strong>       </li>       <li><a href="${tomcatUrl}lists.html#tomcat-users">tomcat-users</a><br />        User support and discussion       </li>       <li><a href="${tomcatUrl}lists.html#taglibs-user">taglibs-user</a><br />        User support and discussion for <a href="${tomcatUrl}taglibs/">Apache Taglibs</a>       </li>       <li><a href="${tomcatUrl}lists.html#tomcat-dev">tomcat-dev</a><br />        Development mailing list, including commit messages       </li>      </ul>     </div>    </div>    <br class="separator" />   </div>   <div id="footer" class="curved container">    <div class="col20">     <div class="container">      <h4>Other Downloads</h4>      <ul>       <li><a href="${tomcatUrl}download-connectors.cgi">Tomcat Connectors</a></li>       <li><a href="${tomcatUrl}download-native.cgi">Tomcat Native</a></li>       <li><a href="${tomcatUrl}taglibs/">Taglibs</a></li>       <li><a href="${tomcatDocUrl}deployer-howto.html">Deployer</a></li>      </ul>     </div>    </div>    <div class="col20">     <div class="container">      <h4>Other Documentation</h4>      <ul>       <li><a href="${tomcatUrl}connectors-doc/">Tomcat Connectors</a></li>       <li><a href="${tomcatUrl}connectors-doc/">mod_jk Documentation</a></li>       <li><a href="${tomcatUrl}native-doc/">Tomcat Native</a></li>       <li><a href="${tomcatDocUrl}deployer-howto.html">Deployer</a></li>      </ul>     </div>    </div>    <div class="col20">     <div class="container">      <h4>Get Involved</h4>      <ul>       <li><a href="${tomcatUrl}getinvolved.html">Overview</a></li>       <li><a href="${tomcatUrl}svn.html">SVN Repositories</a></li>       <li><a href="${tomcatUrl}lists.html">Mailing Lists</a></li>       <li><a href="http://wiki.apache.org/tomcat/FrontPage">Wiki</a></li>      </ul>     </div>    </div>    <div class="col20">     <div class="container">      <h4>Miscellaneous</h4>      <ul>       <li><a href="${tomcatUrl}contact.html">Contact</a></li>       <li><a href="${tomcatUrl}legal.html">Legal</a></li>       <li><a href="http://www.apache.org/foundation/sponsorship.html">Sponsorship</a></li>       <li><a href="http://www.apache.org/foundation/thanks.html">Thanks</a></li>      </ul>     </div>    </div>    <div class="col20">     <div class="container">      <h4>Apache Software Foundation</h4>      <ul>       <li><a href="${tomcatUrl}whoweare.html">Who We Are</a></li>       <li><a href="${tomcatUrl}heritage.html">Heritage</a></li>       <li><a href="http://www.apache.org">Apache Home</a></li>       <li><a href="${tomcatUrl}resources.html">Resources</a></li>      </ul>     </div>    </div>    <br class="separator" />   </div>   <p class="copyright">Copyright ©1999-${year} Apache Software Foundation. All Rights Reserved</p>  </div> </body></html>

nginx负载均衡session,nginx,tomcat负载均衡,redis,负载均衡

这时候修改nginx配置文件nginx.conf，把三台tomcat的ip地址以及端口号加入进去，使用nginx做代理

#user nobody;worker_processes 1;#error_log logs/error.log;#error_log logs/error.log notice;#error_log logs/error.log info;#pid  logs/nginx.pid;events { worker_connections 1024;}http { include  mime.types; default_type application/octet-stream; #log_format main '$remote_addr - $remote_user [$time_local] "$request" ' #     '$status $body_bytes_sent "$http_referer" ' #     '"$http_user_agent" "$http_x_forwarded_for"'; #access_log logs/access.log main; sendfile  on; #tcp_nopush  on; #keepalive_timeout 0; keepalive_timeout 65; #gzip on; upstream localhost1 {      #ip_hash;    server 192.168.1.143:8080;    server 192.168.1.143:8081;    server 192.168.1.143:8082;  }  server {  listen  81;  server_name localhost;  #charset koi8-r;  #access_log logs/host.access.log main;  location / {    proxy_connect_timeout 3;     proxy_send_timeout  30;     proxy_read_timeout  30;     proxy_pass http://localhost1;   }  #error_page 404    /404.html;  # redirect server error pages to the static page /50x.html  #  error_page 500 502 503 504 /50x.html;  location = /50x.html {   root html;  }  # proxy the PHP scripts to Apache listening on 127.0.0.1:80  #  #location ~ /.php$ {  # proxy_pass http://127.0.0.1;  #}  # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000  #  #location ~ /.php$ {  # root   html;  # fastcgi_pass 127.0.0.1:9000;  # fastcgi_index index.php;  # fastcgi_param SCRIPT_FILENAME /scripts$fastcgi_script_name;  # include  fastcgi_params;  #}  # deny access to .htaccess files, if Apache's document root  # concurs with nginx's one  #  #location ~ //.ht {  # deny all;  #} } # another virtual host using mix of IP-, name-, and port-based configuration # #server { # listen  8000; # listen  somename:8080; # server_name somename alias another.alias; # location / { #  root html; #  index index.html index.htm; # } #} # HTTPS server # #server { # listen  443; # server_name localhost; # ssl     on; # ssl_certificate  cert.pem; # ssl_certificate_key cert.key; # ssl_session_timeout 5m; # ssl_protocols SSLv2 SSLv3 TLSv1; # ssl_ciphers HIGH:!aNULL:!MD5; # ssl_prefer_server_ciphers on; # location / { #  root html; #  index index.html index.htm; # } #}}

这时候，分别启动三台tomcat以及nginx，访问http://192.168.1.133:81，这时候每次刷新页面，都会随机访问8080或者8081或者8082，而且页面上出现的session id也都是不一样的，我们应该如何让这三台tomcat共享session呢，我们使用redis来做。

这时候，在已经按照三台tomcat的服务器192.168.1.143上，安装redis，安装步骤如下：

$ wget http://download.redis.io/releases/redis-3.2.3.tar.gz$ tar xzf redis-3.2.3.tar.gz$ cd redis-3.2.3$ make MALLOC=libc#启动redis src前面是安装的路径$ src/redis-server &#关闭redissrc/redis-cli shutdown#使用redis 放入键值对 key value$ src/redis-cli127.0.0.1:6379> set foo barOK127.0.0.1:6379> get foo"bar"$

安装完redis之后，在三个tomcat的lib文件夹内分别上传这五个所依赖的jar，分别是

commons-pool2-2.0.jar

jedis-2.5.2.jar

tomcat-redis-session-manager1.2.jar

tomcat-juli.jar

tomcat-juli-adapters.jar

所有jar在这里了，下载地址

然后分别修个三个tomcat的context.xml文件，增加如下的配置

<?xml version='1.0' encoding='utf-8'?><Context> <!-- Default set of monitored resources --> <WatchedResource>WEB-INF/web.xml</WatchedResource>  <!-- 这里增加redis session共享的配置 6379是redis的端口--> <Valve className="com.orangefunction.tomcat.redissessions.RedisSessionHandlerValve" />  <Manager className="com.orangefunction.tomcat.redissessions.RedisSessionManager"  host="127.0.0.1"  port="6379"  database="0"  maxInactiveInterval="60" /> </Context>

这时候，分别重启三个tomcat以及nginx，查看tomcat日志之后，发现没有任何异常报错，说明我们成功了，接下来开始测试。

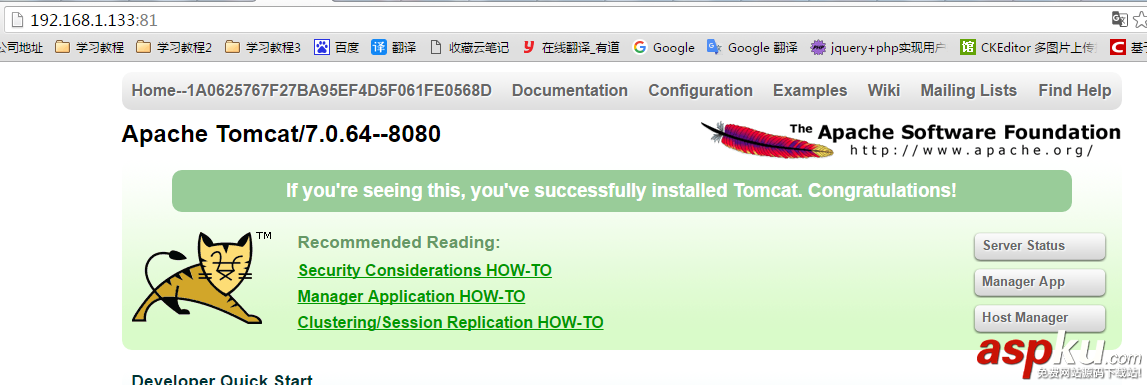

我们访问nginx服务器地址：http://192.168.1.133:81/

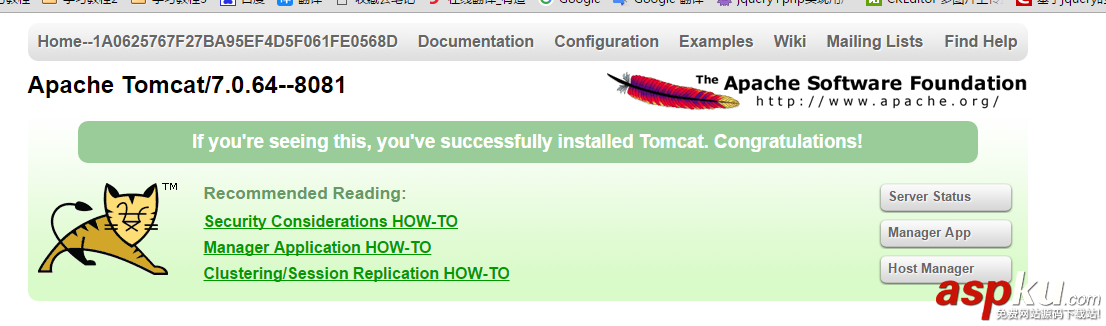

得到的是8080端口的 tomcat1 ，session id为1A0625767F27BA95EF4D5F061FE0568D

nginx负载均衡session,nginx,tomcat负载均衡,redis,负载均衡
