详解Nginx搭建图片服务器过程

在此之前如果你是一个Nginx新手可以先参阅：

Windows nginx安装教程及简单实践

linux下安装nginx（图文教程）

本章知识点

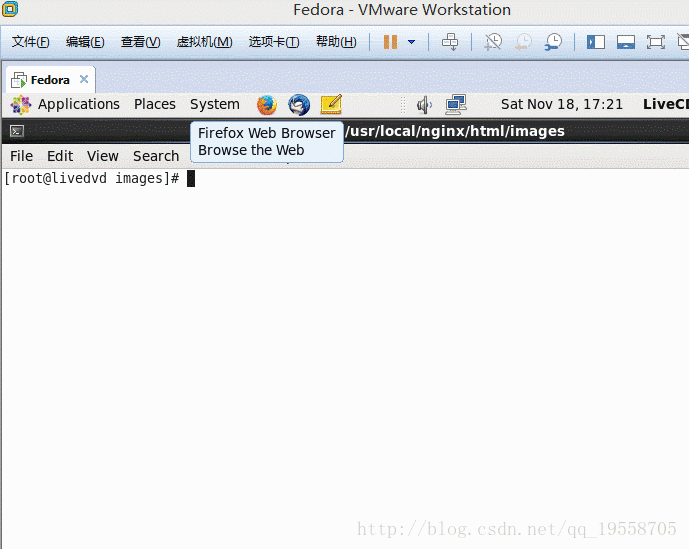

效果图：

需求：实现图片的上传和批量上传

技术：Nginx，Vsftpd，Spring，SpringMVC，KindEditor，CentOS

说明：本章节内容主要是实现图片的上传功能。使用 KindEditer 是为了更好的演示图片的上传，回显，批量效果。后台代码与KindEditer没有直接关系，放心阅读。另外源码中有Mybatis的jar，不用理会，本章内容用不到，是为后续内容做准备！

源码：见文章底部

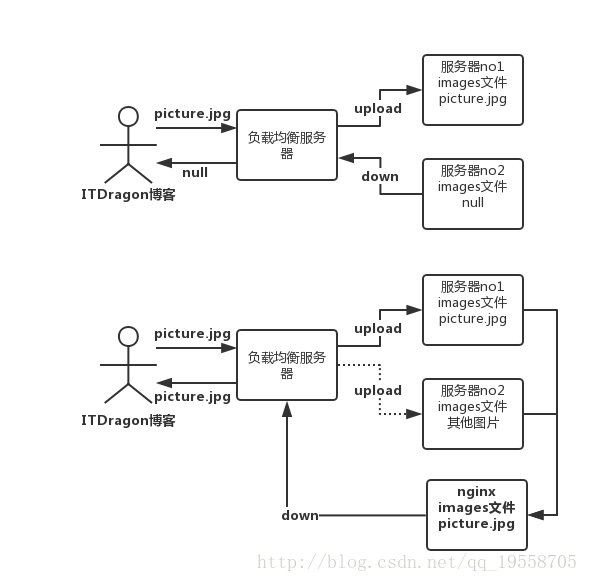

场景：用户将图片上传到 tomcat 服务器上，再由 tomcat 服务器通过FTP上传到 Nginx 服务器上。

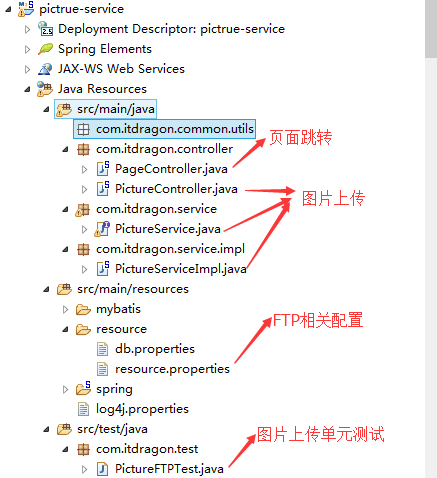

项目结构：

单元测试

首先要攻破核心技术。通过单元测试实现图片上传的功能。

package com.itdragon.test;import java.io.File;import java.io.FileInputStream;import org.apache.commons.net.ftp.FTP;import org.apache.commons.net.ftp.FTPClient;import org.junit.Test;public class PictureFTPTest {  // 测试 ftp 上传图片功能  @Test  public void testFtpClient() throws Exception {    // 1. 创建一个FtpClient对象    FTPClient ftpClient = new FTPClient();    // 2. 创建 ftp 连接    ftpClient.connect("192.168.0.11", 21);    // 3. 登录 ftp 服务器    ftpClient.login("ftpuser", "root");    // 4. 读取本地文件    FileInputStream inputStream = new FileInputStream(new File("F://hello.png"));    // 5. 设置上传的路径    ftpClient.changeWorkingDirectory("/usr/local/nginx/html/images");    // 6. 修改上传文件的格式为二进制    ftpClient.setFileType(FTP.BINARY_FILE_TYPE);    // 7. 服务器存储文件，第一个参数是存储在服务器的文件名，第二个参数是文件流    ftpClient.storeFile("hello.jpg", inputStream);    // 8. 关闭连接    ftpClient.logout();      }  }

说明：这里的ip地址，端口，ftp用户名，密码，本地文件路径，以及Nginx服务器图片路径等，这些字符串参数都要根据自己实际设置的来填写的。如果你的Nginx和Vsftpd安装是按照我提供的链接来做的。那你只需要改ip地址即可。

Maven 的Web 项目

搭建Maven的Web 项目，之前有写过。这里就不过多描述。

项目核心配置文件

首先是 Maven 的核心文件 pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">  <modelVersion>4.0.0</modelVersion>  <groupId>com.itdragon.upload</groupId>  <artifactId>pictrue-service</artifactId>  <version>0.0.1-SNAPSHOT</version>  <packaging>war</packaging>  <!-- 集中定义依赖版本号 -->  <properties>    <junit.version>4.12</junit.version>    <spring.version>4.1.3.RELEASE</spring.version>    <mybatis.version>3.2.8</mybatis.version>    <mybatis.spring.version>1.2.2</mybatis.spring.version>    <mybatis.paginator.version>1.2.15</mybatis.paginator.version>    <mysql.version>5.1.6</mysql.version>    <slf4j.version>1.6.4</slf4j.version>    <jackson.version>2.4.2</jackson.version>    <druid.version>1.0.9</druid.version>    <httpclient.version>4.3.5</httpclient.version>    <jstl.version>1.2</jstl.version>    <servlet-api.version>2.5</servlet-api.version>    <jsp-api.version>2.0</jsp-api.version>    <joda-time.version>2.5</joda-time.version>    <commons-lang3.version>3.3.2</commons-lang3.version>    <commons-io.version>1.3.2</commons-io.version>    <commons-net.version>3.3</commons-net.version>    <pagehelper.version>3.4.2</pagehelper.version>    <jsqlparser.version>0.9.1</jsqlparser.version>    <commons-fileupload.version>1.3.1</commons-fileupload.version>    <jedis.version>2.7.2</jedis.version>    <solrj.version>4.10.3</solrj.version>  </properties>  <dependencies>    <!-- 时间操作组件 -->    <dependency>      <groupId>joda-time</groupId>      <artifactId>joda-time</artifactId>      <version>${joda-time.version}</version>    </dependency>    <!-- Apache工具组件 -->    <dependency>      <groupId>org.apache.commons</groupId>      <artifactId>commons-lang3</artifactId>      <version>${commons-lang3.version}</version>    </dependency>    <dependency>      <groupId>org.apache.commons</groupId>      <artifactId>commons-io</artifactId>      <version>${commons-io.version}</version>    </dependency>    <dependency>      <groupId>commons-net</groupId>      <artifactId>commons-net</artifactId>      <version>${commons-net.version}</version>    </dependency>    <!-- Jackson Json处理工具包 -->    <dependency>      <groupId>com.fasterxml.jackson.core</groupId>      <artifactId>jackson-databind</artifactId>      <version>${jackson.version}</version>    </dependency>    <!-- httpclient -->    <dependency>      <groupId>org.apache.httpcomponents</groupId>      <artifactId>httpclient</artifactId>      <version>${httpclient.version}</version>    </dependency>    <!-- 单元测试 -->    <dependency>      <groupId>junit</groupId>      <artifactId>junit</artifactId>      <version>${junit.version}</version>      <scope>test</scope>    </dependency>    <!-- 日志处理 -->    <dependency>      <groupId>org.slf4j</groupId>      <artifactId>slf4j-log4j12</artifactId>      <version>${slf4j.version}</version>    </dependency>    <!-- Mybatis -->    <dependency>      <groupId>org.mybatis</groupId>      <artifactId>mybatis</artifactId>      <version>${mybatis.version}</version>    </dependency>    <dependency>      <groupId>org.mybatis</groupId>      <artifactId>mybatis-spring</artifactId>      <version>${mybatis.spring.version}</version>    </dependency>    <dependency>      <groupId>com.github.miemiedev</groupId>      <artifactId>mybatis-paginator</artifactId>      <version>${mybatis.paginator.version}</version>    </dependency>    <dependency>      <groupId>com.github.pagehelper</groupId>      <artifactId>pagehelper</artifactId>      <version>${pagehelper.version}</version>    </dependency>    <!-- MySql -->    <dependency>      <groupId>mysql</groupId>      <artifactId>mysql-connector-java</artifactId>      <version>${mysql.version}</version>    </dependency>    <!-- 连接池 -->    <dependency>      <groupId>com.alibaba</groupId>      <artifactId>druid</artifactId>      <version>${druid.version}</version>    </dependency>    <!-- Spring -->    <dependency>      <groupId>org.springframework</groupId>      <artifactId>spring-context</artifactId>      <version>${spring.version}</version>    </dependency>    <dependency>      <groupId>org.springframework</groupId>      <artifactId>spring-beans</artifactId>      <version>${spring.version}</version>    </dependency>    <dependency>      <groupId>org.springframework</groupId>      <artifactId>spring-webmvc</artifactId>      <version>${spring.version}</version>    </dependency>    <dependency>      <groupId>org.springframework</groupId>      <artifactId>spring-jdbc</artifactId>      <version>${spring.version}</version>    </dependency>    <dependency>      <groupId>org.springframework</groupId>      <artifactId>spring-aspects</artifactId>      <version>${spring.version}</version>    </dependency>    <!-- JSP相关 -->    <dependency>      <groupId>jstl</groupId>      <artifactId>jstl</artifactId>      <version>${jstl.version}</version>    </dependency>    <dependency>      <groupId>javax.servlet</groupId>      <artifactId>servlet-api</artifactId>      <version>${servlet-api.version}</version>      <scope>provided</scope>    </dependency>    <dependency>      <groupId>javax.servlet</groupId>      <artifactId>jsp-api</artifactId>      <version>${jsp-api.version}</version>      <scope>provided</scope>    </dependency>    <!-- 文件上传组件 -->    <dependency>      <groupId>commons-fileupload</groupId>      <artifactId>commons-fileupload</artifactId>      <version>${commons-fileupload.version}</version>    </dependency>    <!-- Redis客户端 -->    <dependency>      <groupId>redis.clients</groupId>      <artifactId>jedis</artifactId>      <version>${jedis.version}</version>    </dependency>    <!-- solr客户端 -->    <dependency>      <groupId>org.apache.solr</groupId>      <artifactId>solr-solrj</artifactId>      <version>${solrj.version}</version>    </dependency>  </dependencies>  <build>    <finalName>${project.artifactId}</finalName>    <plugins>      <!-- 资源文件拷贝插件 -->      <plugin>        <groupId>org.apache.maven.plugins</groupId>        <artifactId>maven-resources-plugin</artifactId>        <version>2.7</version>        <configuration>          <encoding>UTF-8</encoding>        </configuration>      </plugin>      <!-- java编译插件 -->      <plugin>        <groupId>org.apache.maven.plugins</groupId>        <artifactId>maven-compiler-plugin</artifactId>        <version>3.2</version>        <configuration>          <source>1.7</source>          <target>1.7</target>          <encoding>UTF-8</encoding>        </configuration>      </plugin>    </plugins>    <pluginManagement>      <plugins>        <!-- 配置Tomcat插件 -->        <plugin>          <groupId>org.apache.tomcat.maven</groupId>          <artifactId>tomcat7-maven-plugin</artifactId>          <version>2.2</version>        </plugin>      </plugins>    </pluginManagement>  </build></project>
