ORACLE 11g从 11.2.0.1升级到11.2.0.4 详细实战教程

2024-08-29 13:59:58
字体:
来源:转载
供稿:网友

 1、准备安装

查看当前oracle版本,确定是比较旧的11.2.0.1

[oracle@hch_test_121_90 ~]$ rlwrap sqlplus / as sysdba SQL*Plus: Release 11.2.0.1.0 Production on Fri Mar 17 15:20:45 2017 Copyright (c) 1982, 2009, Oracle. All rights reserved. Connected to: Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - 64bit Production With the Partitioning, OLAP, Data Mining and Real Application Testing options SQL> exit Disconnected from Oracle Database 11g Enterprise Edition Release 11.2.0.1.0 - 64bit Production With the Partitioning, OLAP, Data Mining and Real Application Testing options [oracle@hch_test_121_90 ~]$

上传11.2.0.4的安装包p13390677_112040_Linux-x86-64_1of7.zip、p13390677_112040_Linux-x86-64_2of7.zip到服务器上。Oracle11.2.0.4的安装包下载,请查阅我的blog地址,这上面有下载源:http://blog.csdn.net/mchdba/article/details/51418063

 升级准备:

解压缩: [oracle@hch_test_121_90 oracle]$ unzip p13390677_112040_Linux-x86-64_1of7.zip [oracle@hch_test_121_90 oracle]$ unzip p13390677_112040_Linux-x86-64_2of7.zip 打开启动图像界面 [oracle@hch_test_121_90 oracle]$ cd database/ [oracle@hch_test_121_90 database]$ ./runInstaller Starting Oracle Universal Installer... Checking Temp space: must be greater than 120 MB. Actual 6024 MB Passed Checking swap space: must be greater than 150 MB. Actual 1798 MB Passed Checking monitor: must be configured to display at least 256 colors. Actual 16777216 Passed Preparing to launch Oracle Universal Installer from /tmp/OraInstall2017-03-17_03-11-29PM. Please wait ...[oracle@hch_test_121_90 database]$ [oracle@hch_test_121_90 database]$

2、开始升级

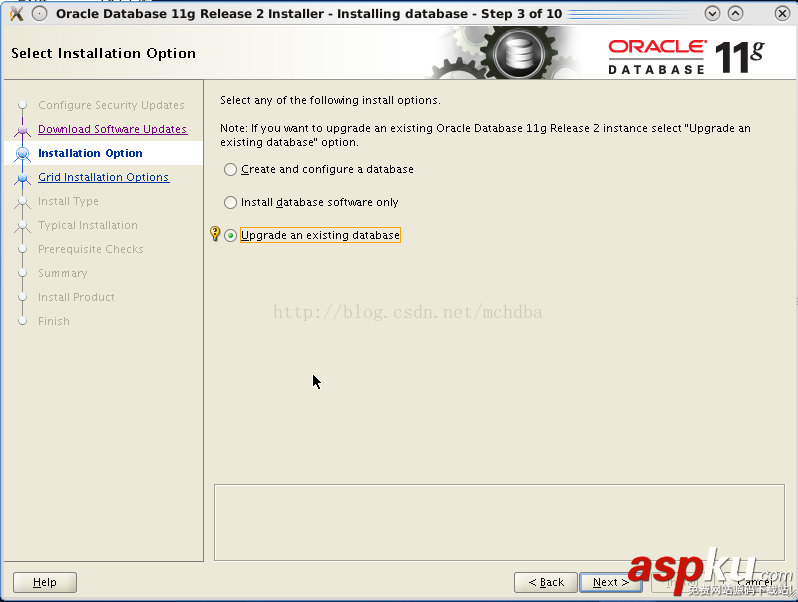

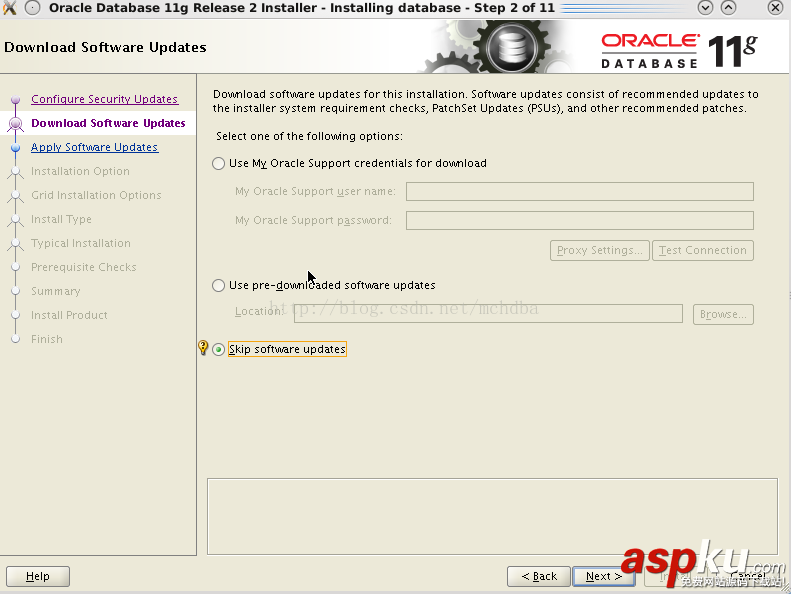

C:/pic/oracle/100.png,填写邮箱地址(也可以忽略不填写),然后下一步

oracle11g,oracle11g升级教程


oracle11g,oracle11g升级教程


oracle11g,oracle11g升级教程

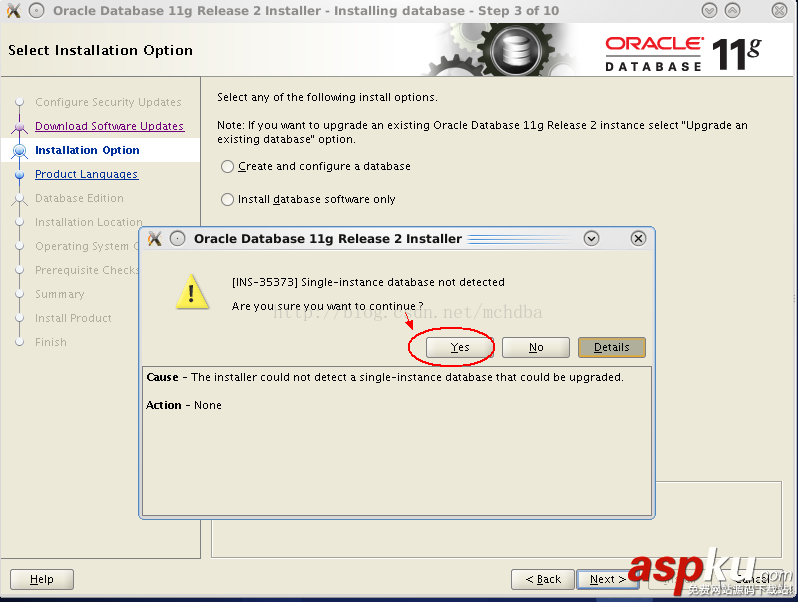

然后继续进行,有个INS-35373错误,选择Yes,如下

 oracle11g,oracle11g升级教程

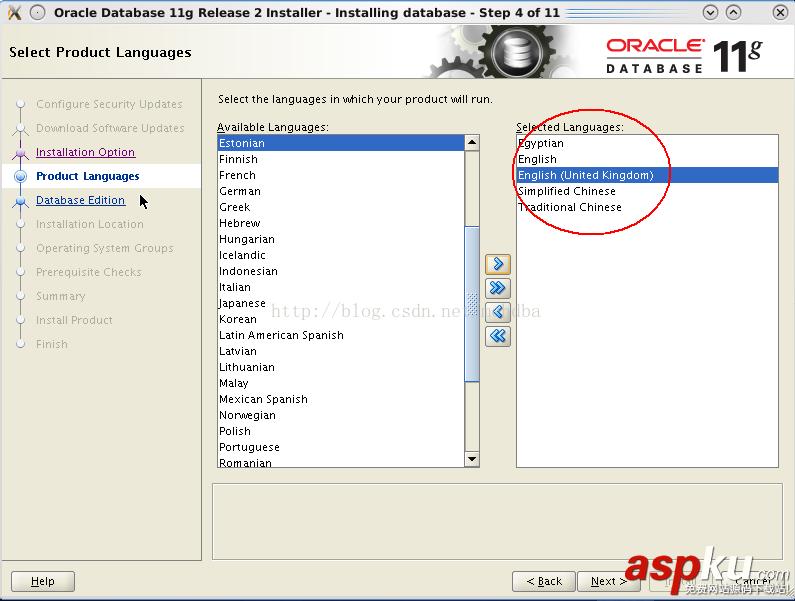

 然后选择好语言种类,简体中文、繁体中文、英语、美式英语等,如104.png所示:

oracle11g,oracle11g升级教程

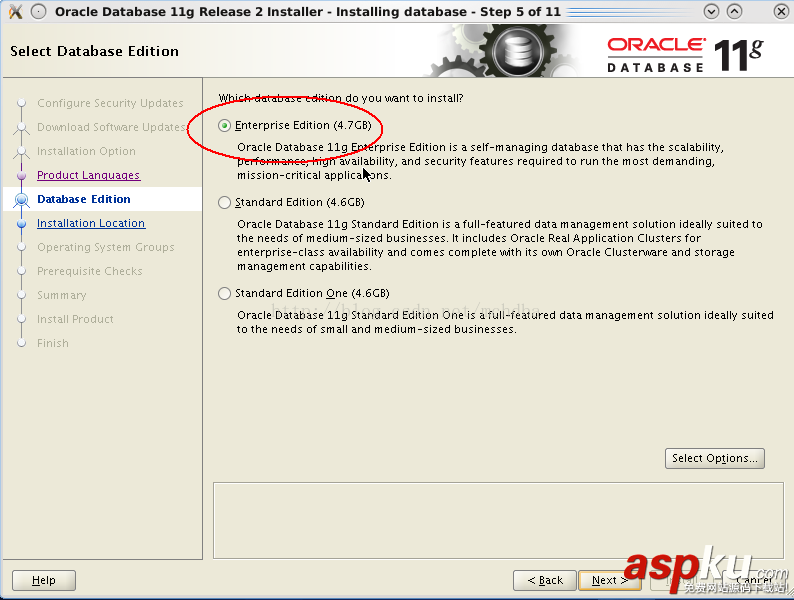

继续下一步,选择企业版,如

oracle11g,oracle11g升级教程

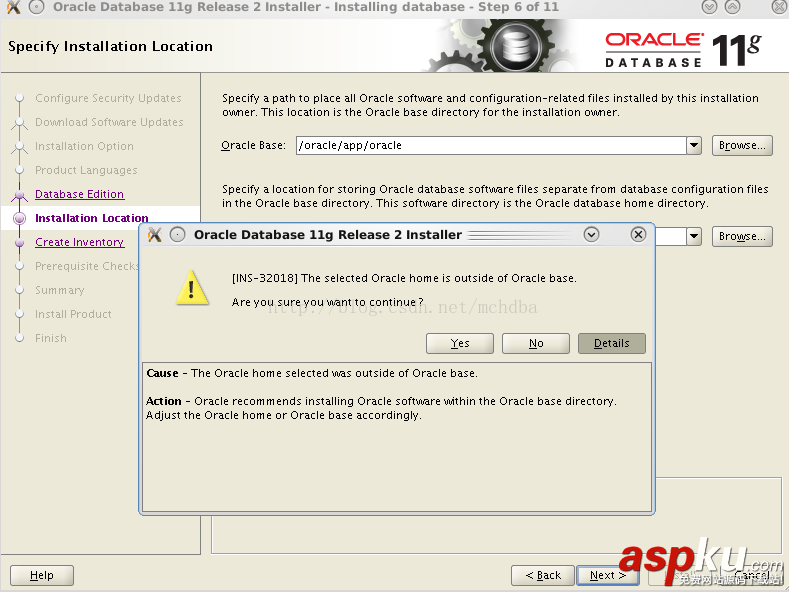

接下来,开始选择oracle目录了,是选择新建的目录呢还是选择原来的老版本11.2.0.1的目录呢?这里最好选择一个新的目录,因为万一升级失败了,老的oracle版本软件目录没有被覆盖掉,还可以继续使用的,否则升级失败,就基本只有彻底暴力清除所有文件以及注册信息,之后重新安装oracle了。

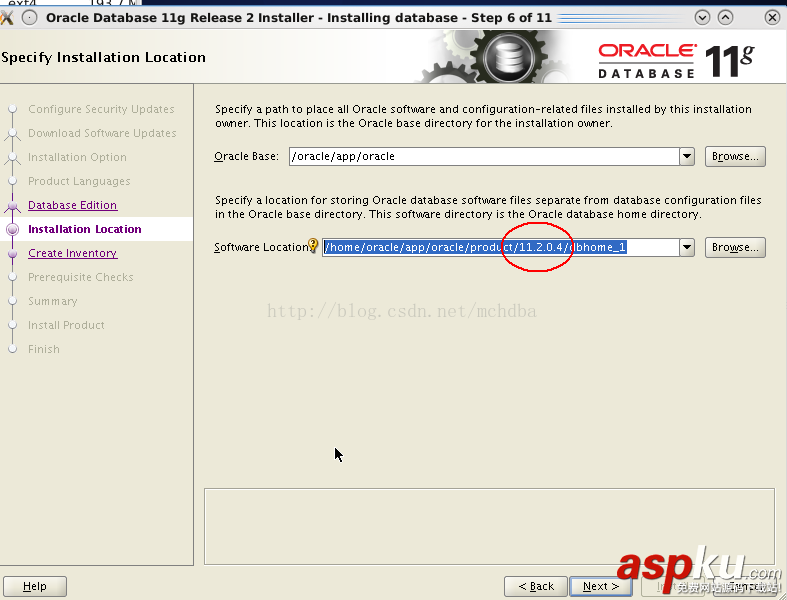

我这里就选择一个新的目录11.2.0.4的目录,如106.png、107.png所示

oracle11g,oracle11g升级教程

oracle11g,oracle11g升级教程

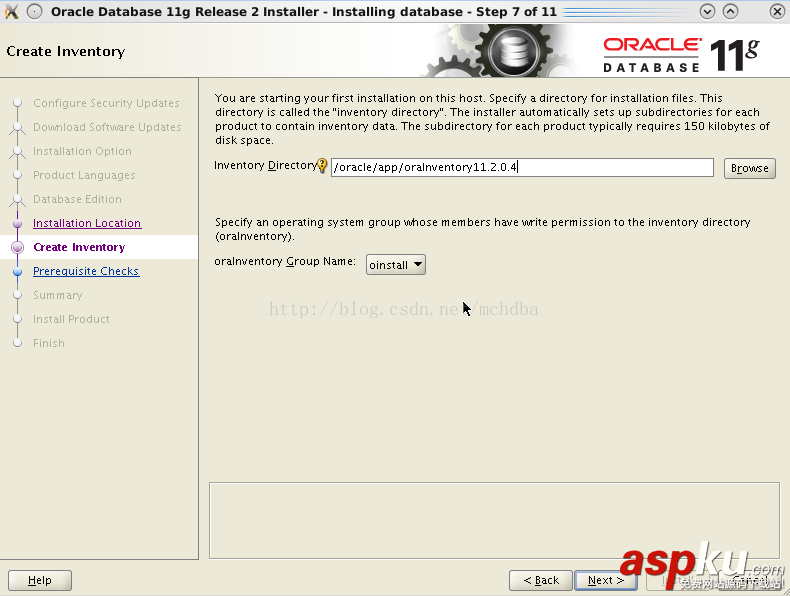

接下来,继续,选择新的的Inventory Directory目录,默认的会报错,如108.png所示

 oracle11g,oracle11g升级教程

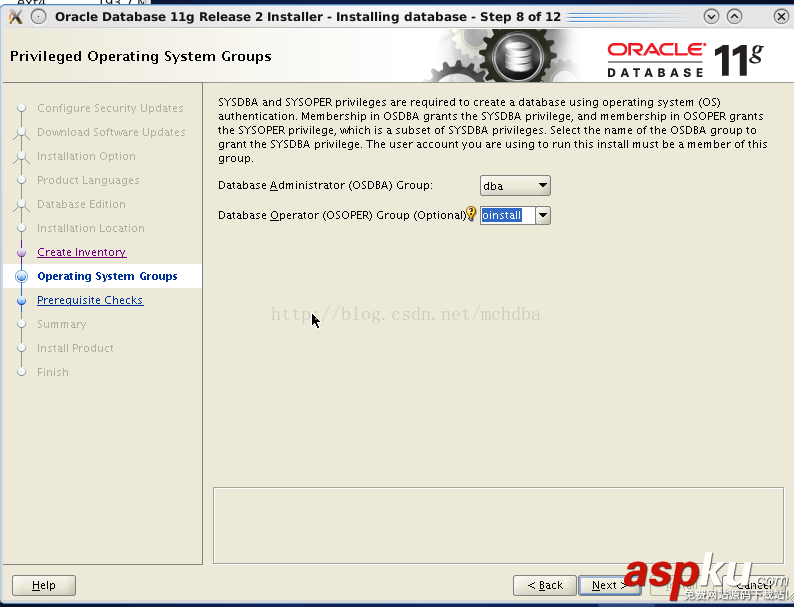

接下来选择用户组和操作组,如109.png所示:

 oracle11g,oracle11g升级教程

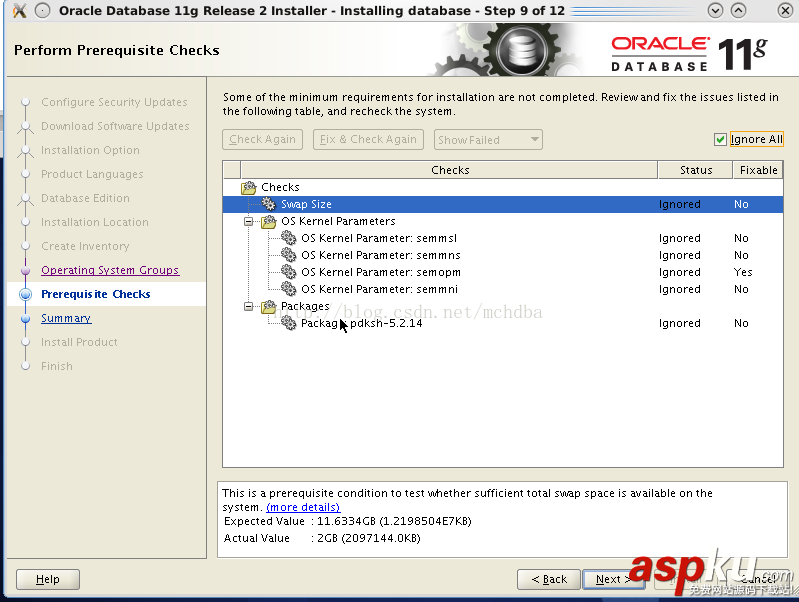

 接下来,会有checking各种lib包,一些比较偏的,缺少了也没事,直接Ignore忽略掉就ok,如110.png所示:

oracle11g,oracle11g升级教程

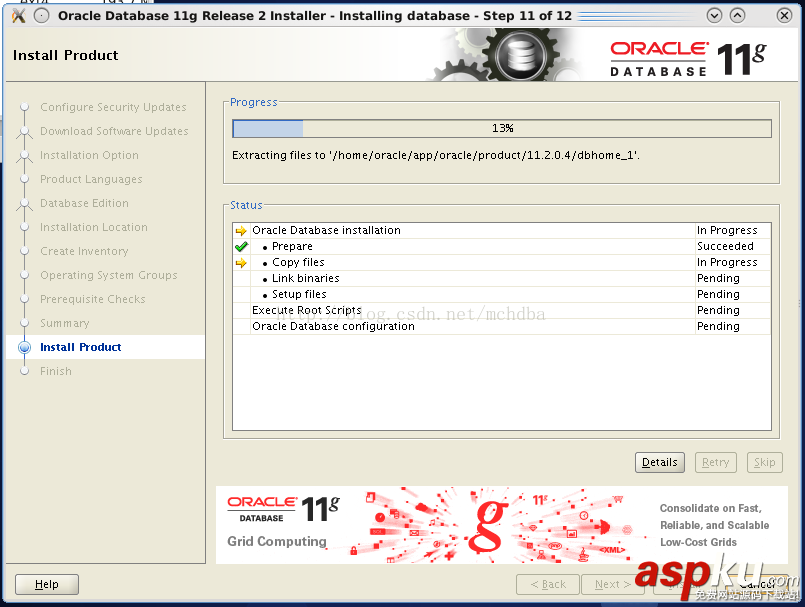

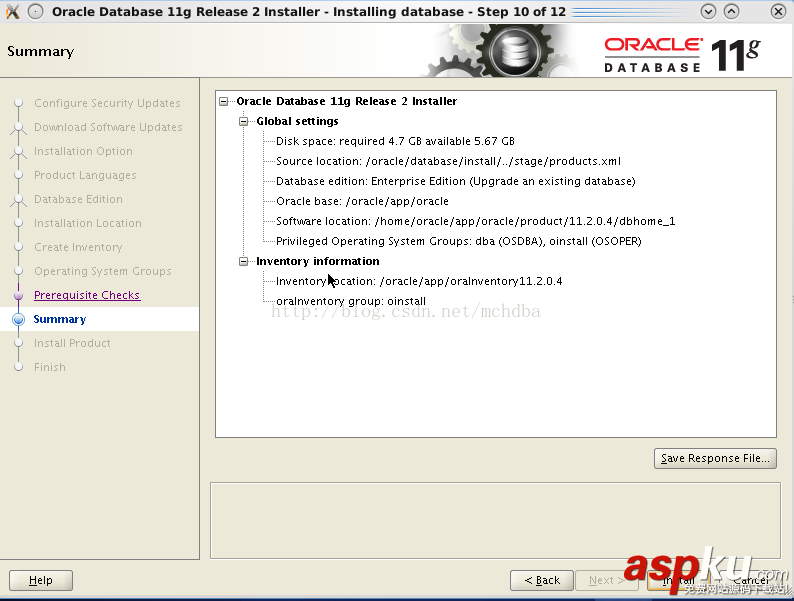

 下一步看安装的目录以及基本信息,如111.png所示:

oracle11g,oracle11g升级教程


oracle11g,oracle11g升级教程


oracle11g,oracle11g升级教程

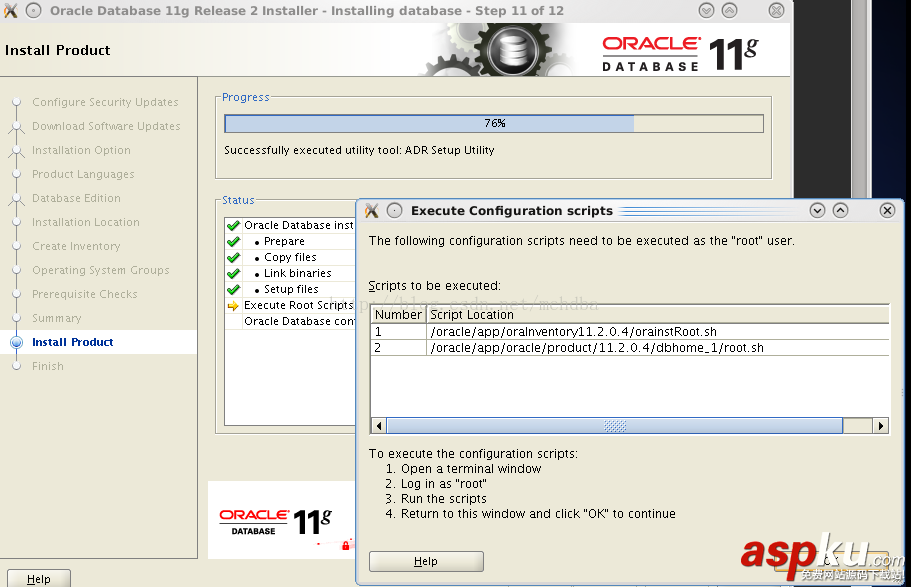

重新打开xshell,ssh连接到数据库,在命令行去执行命令:

[root@hch_test_121_90 oracle]# bash -x/oracle/app/oraInventory11.2.0.4/orainstRoot.sh[root@hch_test_121_90 oracle]# bash -x/oracle/app/oracle/product/11.2.0.4/dbhome_1/root.sh

执行过程如下:

[root@hch_test_121_90 oracle]# bash -x /oracle/app/oraInventory11.2.0.4/orainstRoot.sh + AWK=/bin/awk + CHMOD=/bin/chmod + CHGRP=/bin/chgrp + CP=/bin/cp + ECHO=/bin/echo + MKDIR=/bin/mkdir ++ /usr/bin/id ++ /bin/awk '-F(' '{print $1}' ++ /bin/awk -F= '{print $2}' + RUID=0 + '[' 0 '!=' 0 ']' + '[' -d /etc ']' + /bin/chmod 755 /etc + '[' -f /oracle/app/oraInventory11.2.0.4/oraInst.loc ']' + /bin/cp /oracle/app/oraInventory11.2.0.4/oraInst.loc /etc/oraInst.loc + /bin/chmod 644 /etc/oraInst.loc + /bin/echo 'Changing permissions of /oracle/app/oraInventory11.2.0.4. Adding read,write permissions for group. Removing read,write,execute permissions for world. ' Changing permissions of /oracle/app/oraInventory11.2.0.4. Adding read,write permissions for group. Removing read,write,execute permissions for world. + /bin/chmod -R g+rw,o-rwx /oracle/app/oraInventory11.2.0.4 + '[' 0 '!=' 0 ']' + /bin/echo 'Changing groupname of /oracle/app/oraInventory11.2.0.4 to oinstall.' Changing groupname of /oracle/app/oraInventory11.2.0.4 to oinstall. + /bin/chgrp -R oinstall /oracle/app/oraInventory11.2.0.4 + '[' 0 '!=' 0 ']' + /bin/echo 'The execution of the script is complete.' The execution of the script is complete. [root@hch_test_121_90 oracle]# [root@hch_test_121_90 oracle]# [root@hch_test_121_90 ~]# sh /oracle/app/oracle/product/11.2.0.4/dbhome_1/root.sh Performing root user operation for Oracle 11g The following environment variables are set as:  ORACLE_OWNER= oracle  ORACLE_HOME= /oracle/app/oracle/product/11.2.0.4/dbhome_1 Enter the full pathname of the local bin directory: [/usr/local/bin]: /oracle/app/oracle/product/11.2.0.4/dbhome_1/bin The contents of "dbhome" have not changed. No need to overwrite. The contents of "oraenv" have not changed. No need to overwrite. The contents of "coraenv" have not changed. No need to overwrite. Entries will be added to the /etc/oratab file as needed by Database Configuration Assistant when a database is created Finished running generic part of root script. Now product-specific root actions will be performed. Finished product-specific root actions. [root@hch_test_121_90 ~]#

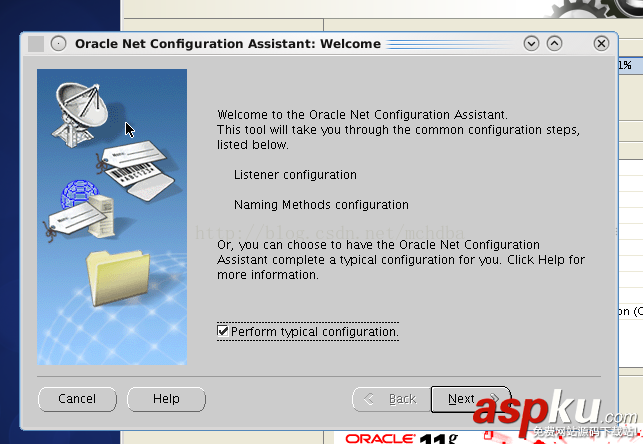

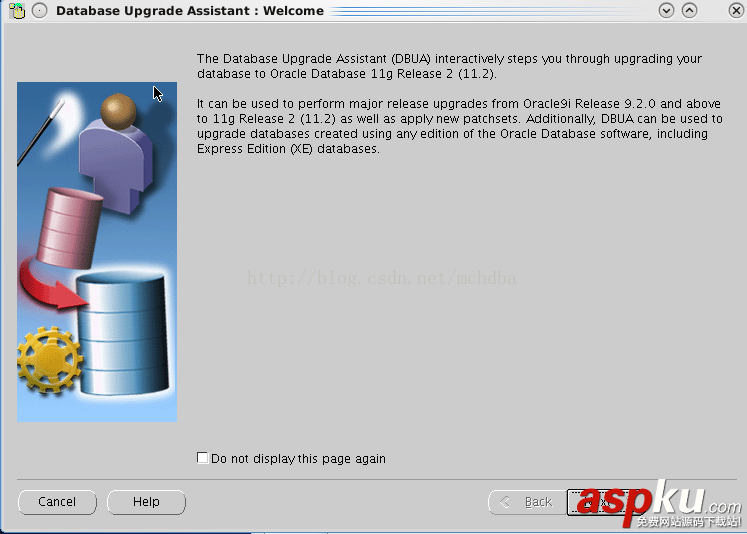

之后回到vnc远程的窗口,点击界面的OK,会提示安装Oracle Net Configuration Assistant: Welcome操作:


 oracle11g,oracle11g升级教程

oracle11g,oracle11g升级教程

设置sys密码,如115.png所示

oracle11g,oracle11g升级教程

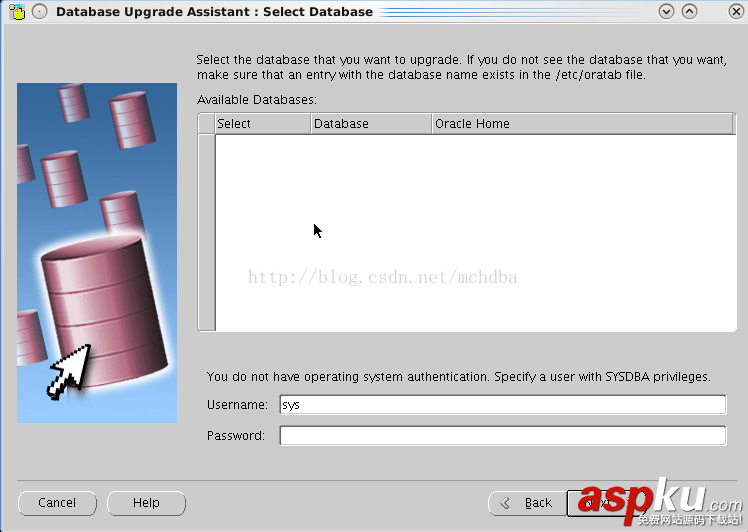

看到这里,问题来了,中间没有数据库让你选择去升级,问题在哪里呢,在/etc/oratab没有配置,所以赶紧去配置:

[root@hch_test_121_90 ~]# more /etc/oratab # # This file is used by ORACLE utilities. It is created by root.sh # and updated by either Database Configuration Assistant while creating # a database or ASM Configuration Assistant while creating ASM instance. # A colon, ':', is used as the field terminator. A new line terminates # the entry. Lines beginning with a pound sign, '#', are comments. # # Entries are of the form: # $ORACLE_SID:$ORACLE_HOME:<N|Y>: # # The first and second fields are the system identifier and home # directory of the database respectively. The third filed indicates # to the dbstart utility that the database should , "Y", or should not, # "N", be brought up at system boot time. # # Multiple entries with the same $ORACLE_SID are not allowed. # powerdes:/hom/oracle/app/oracle/product/11.2.0/dbhome_1:Y [root@hch_test_121_90 ~]#

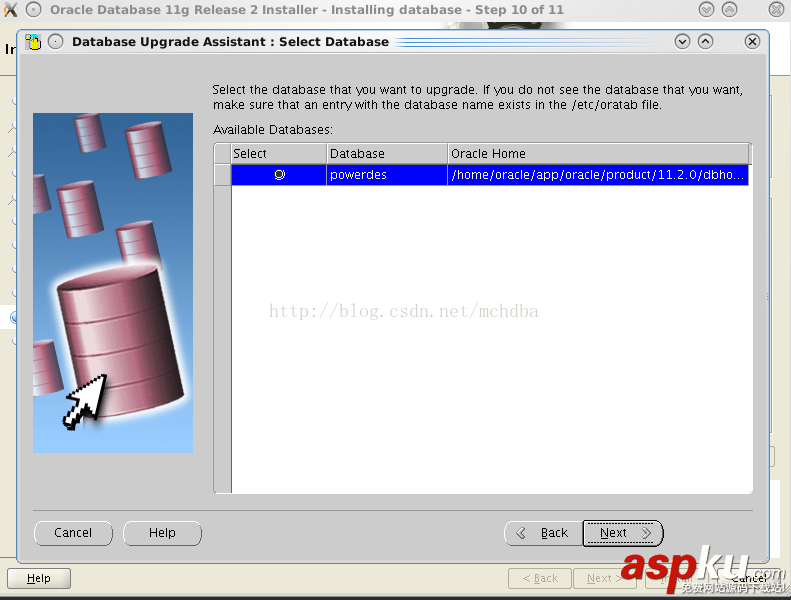

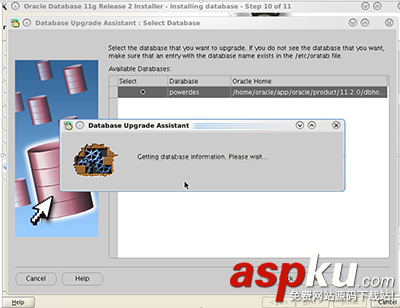

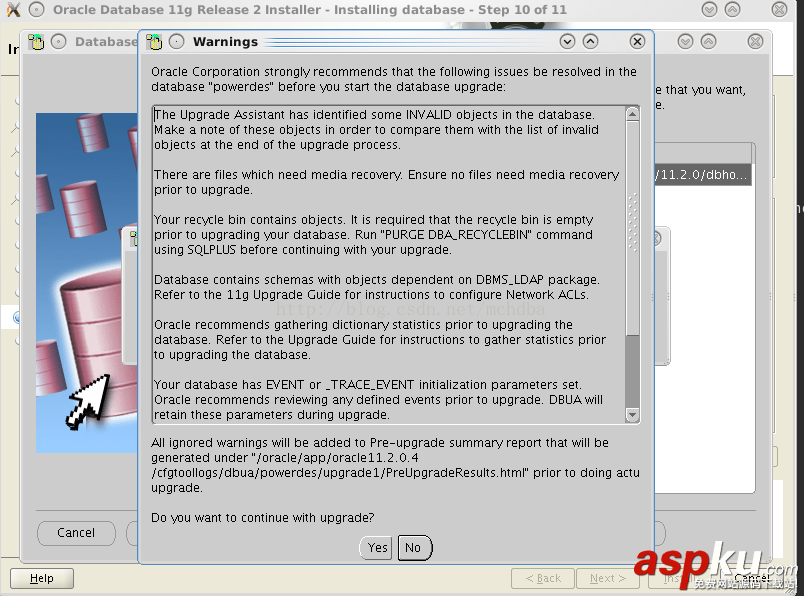

配置完后,前面的步骤重新来一遍,到此就会有下面的出现的database选择项让我们选择,如116.png、117.png、118.png所示:

oracle11g,oracle11g升级教程

oracle11g,oracle11g升级教程

oracle11g,oracle11g升级教程

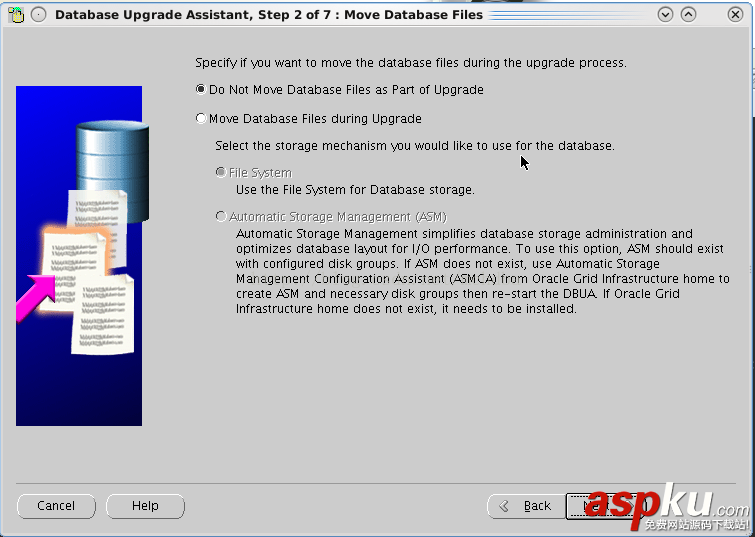

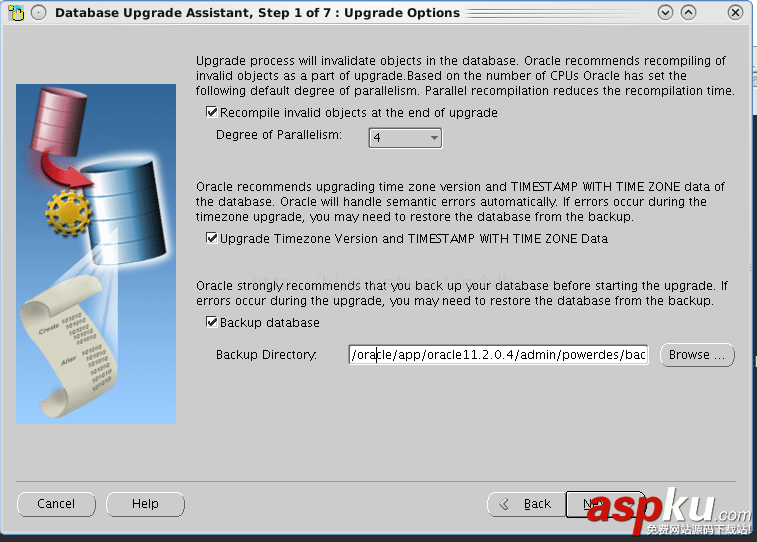

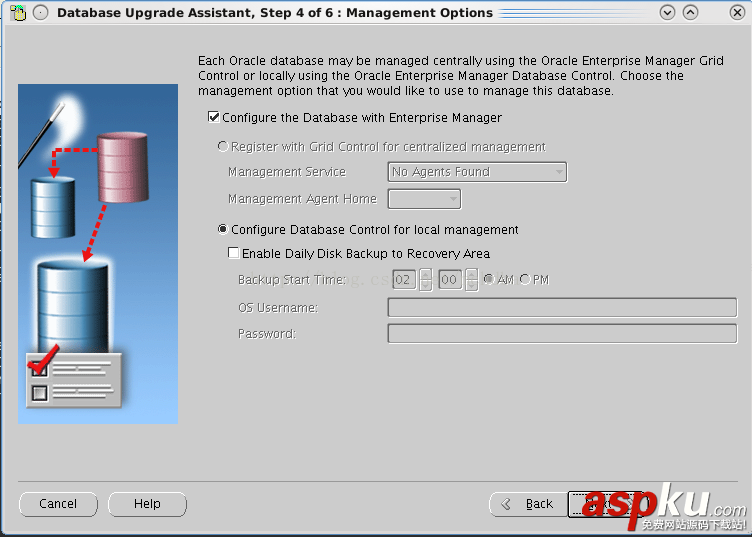

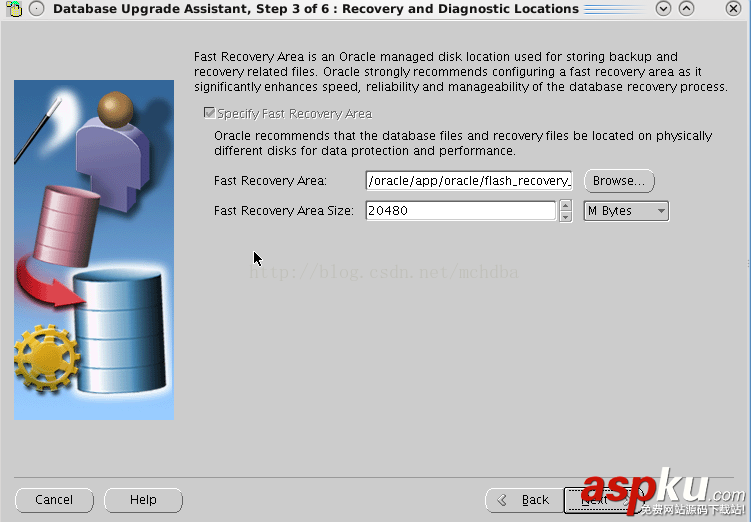

接下来,选择升级时区以及备份数据库,如119.png所示:

oracle11g,oracle11g升级教程


oracle11g,oracle11g升级教程


oracle11g,oracle11g升级教程


oracle11g,oracle11g升级教程

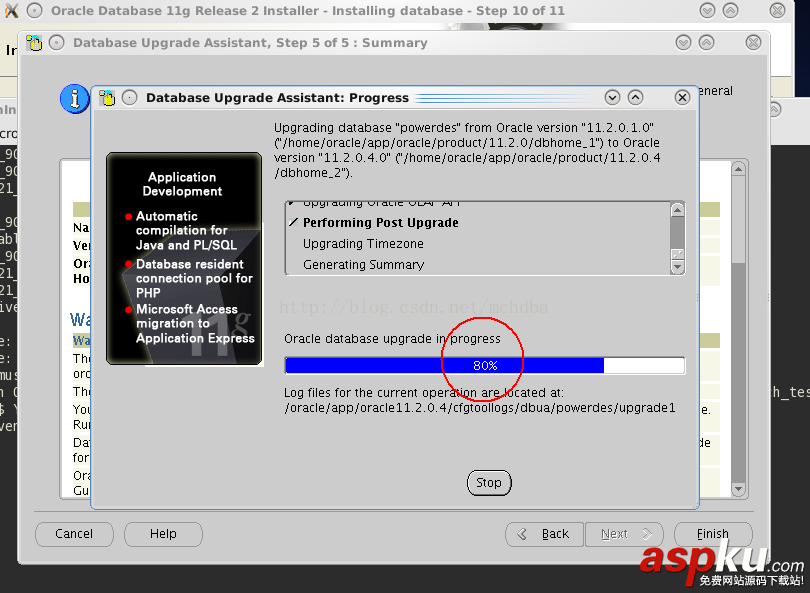

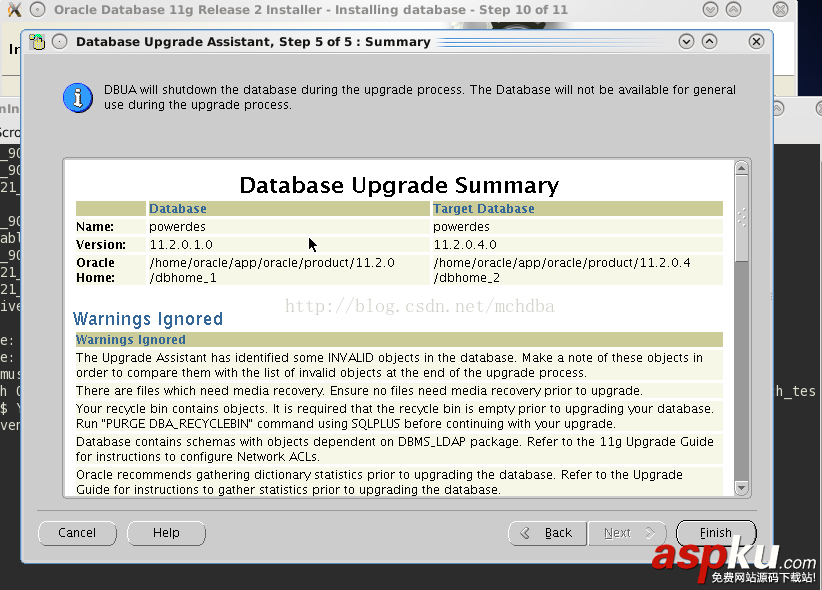

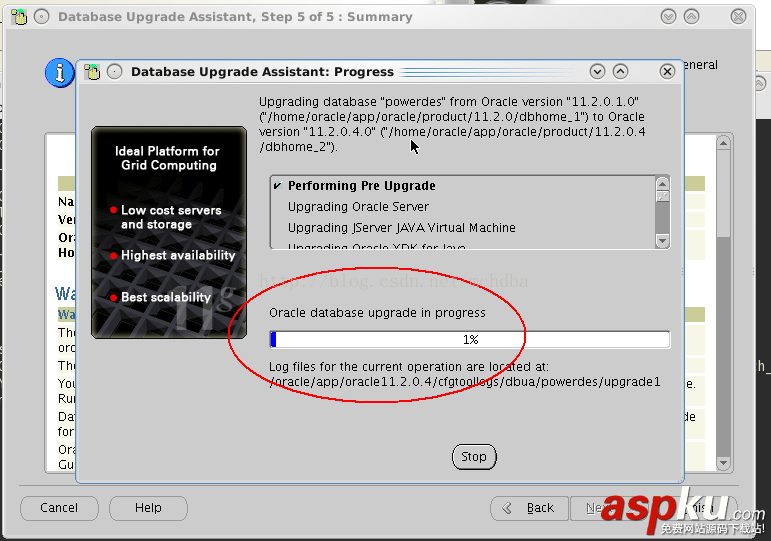

 接下来,点击“Finish”按钮(这个时间会比较长,至少1个小时吧,我这里用了1.5个小时,可能在ssd上时间比较短),如图123.png、124.png、125.png所示

oracle11g,oracle11g升级教程

oracle11g,oracle11g升级教程

oracle11g,oracle11g升级教程

OK,等待进度条变成100%,然后基本的升级就好了,就完成了,后续记得修改.bash_profile里面的ORACLE_HOME目录为新的11.2.0.4目录即可。

以上所述是小编给大家介绍的ORACLE 11g从 11.2.0.1升级到11.2.0.4 详细实战教程,希望对大家有所帮助,如果大家有任何疑问请给我留言,小编会及时回复大家的。在此也非常感谢大家对VeVb武林网网站的支持
