一,设计背景
由于所在公司ORACLE数据库较多,传统人工监控表空间的方式较耗时,且无法记录历史表空间数据,无法判断每日表空间增长量,在没有gridcontrol/cloudcontrol软件的情况下,笔者设计如下表空间监控方案,大家也可以根据自己的实际情况对下面的方案进行修改。
二,设计思路
通过dblink将来查询到的表空间数据集中汇总到一张表里通过crontab跑定时任务从各台服务器获取表空间使用情况信息。
三,具体实施步骤

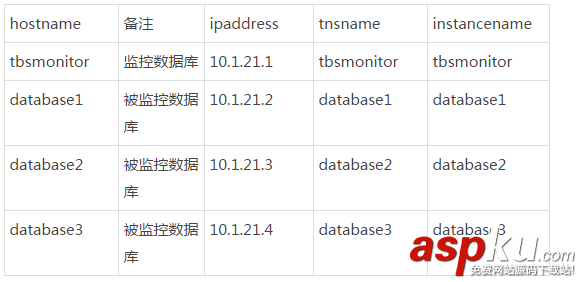

1.所在oracle数据库ip地址信息(下面为举例说明具体情况要根据所在环境设置)
2.在tbsmonitor主机上创建tbsmonitor表空间
复制代码代码如下:
create tablespace tbsmonitor datafile '/opt/u01/app/oradata/tbsmonitor/tsmonitor.dbf' size 50M autoextend on;
3.在tbsmonitor和database1/database2/database3上建立tbsmonitor用户用来做表空间监控。
create user tsmonitor identified by I11m8cb default tablespace tsmonitor;
4.为了tbsmonitor用户赋权用来查找表空间使用情况。
grant resource to tbsmonitor;grant create session to tbsmonitor;grant create table to tbsmonitor;grant select on dba_data_files to tbsmonitor;grant select on dba_free_space to tbsmonitor;
5.在tbsmonitor上建立database1/ database2/ database3的tnsnames.ora连接,在tnsnames.ora文件中加入
DATABASE1 = (DESCRIPTION= (ADDRESS=(PROTOCOL=TCP)(HOST=10.1.21.1)(PORT=1521)) (CONNECT_DATA=(SID= database1)))DATABASE2 = (DESCRIPTION= (ADDRESS=(PROTOCOL=TCP)(HOST=10.1.21.2)(PORT=1521)) (CONNECT_DATA=(SID= database2)))DATABASE3 = (DESCRIPTION= (ADDRESS=(PROTOCOL=TCP)(HOST=10.1.21.3)(PORT=1521)) (CONNECT_DATA=(SID= database3)))
6.修改/etc/hosts文件,如果有dns服务器的话可以略过
10.1.21.2 database110.1.21.3 database210.1.21.4 database3
7.在tbsmonitor主机设置dblink,这样就能通过dblink从被监控服务器远程抽取表空间信息。
create database link TO_DATABASE1 connect to TSMONITOR identified by I11m08cb using 'DATABASE1';create database link TO_DATABASE2 connect to TSMONITOR identified by I11m08cb using 'DATABASE2';create database link TO_DATABASE3 connect to TSMONITOR identified by I11m08cb using 'DATABASE3';
8.建立tbsmonitor表,表空间统计数据将插入这张表。
create table tbsmonitor.tbsmonitor( ipaddress VARCHAR2(200), instancename VARCHAR2(200), tablespace_name VARCHAR2(200), datafile_count NUMBER, size_mb NUMBER, free_mb NUMBER, used_mb NUMBER, maxfree NUMBER, pct_used NUMBER, pct_free NUMBER, time DATE) tablespace tbsmonitor;
9. 在crontab中运行每日0点1分更新数据库表空间信息的脚本tbsmonitor.sh(我根据业务需要每日统计一次,大家也可以通过业务要求修改统计频率)
1 0 * * * /opt/u01/app/oracle/tbsmonitor.sh
#!/bin/bash#FileName: tbsmonitor.sh#CreateDate:2016-01-1#version:1.0#Discription:take the basic information to insert into the table tbs_usage# Author:FUZHOU HOT#Email:15980219172@139.comORACLE_SID= tbsmonitorORACLE_BASE=/opt/u01/appORACLE_HOME=/opt/u01/app/oraclePATH=$ORACLE_HOME/bin:$PATH;export PATHexport ORACLE_SID ORACLE_BASE ORACLE_HOMEdate>>/opt/u01/app/oracle/tbsmonitor.shsqlplus sys/I11m08cb as sysdba <<EOF >> /opt/u01/app/oracle/tbsmonitor.log 2>&1@/opt/u01/app/oracle/tbsmonitor/ tbsmonitor.sql;@/opt/u01/app/oracle/tbsmonitor/database1.sql;@/opt/u01/app/oracle/tbsmonitor/database2.sql;@/opt/u01/app/oracle/tbsmonitor/database3.sql;EOFecho >> /opt/u01/app/oracle/ tbsmonitor.log
11.创建插入脚本(拿database1举例,以此类推)
/opt/u01/app/oracle/tbsmonitor/database1.sql; /opt/u01/app/oracle/tbsmonitor/database2.sql;/opt/u01/app/oracle/tbsmonitor/database3.sql;/opt/u01/app/oracle/tbsmonitor/ tbsmonitor.sql;
Sql脚本如下
insert into tsmonitor.tbsmonitor SELECT utl_inaddr.get_host_address('DATABASE1') ipaddress,(select instance_name from v$instance) instancename,df.tablespace_name,COUNT(*) datafile_count,ROUND(SUM(df.BYTES) / 1048576) size_mb,ROUND(SUM(free.BYTES) / 1048576, 2) free_mb,ROUND(SUM(df.BYTES) / 1048576 - SUM(free.BYTES) / 1048576, 2) used_mb,ROUND(MAX(free.maxbytes) / 1048576, 2) maxfree,100 - ROUND(100.0 * SUM(free.BYTES) / SUM(df.BYTES), 2) pct_used,ROUND(100.0 * SUM(free.BYTES) / SUM(df.BYTES), 2) pct_free,sysdate timeFROM dba_data_files@TO_DATABASE1 df,(SELECT tablespace_name,file_id,SUM(BYTES) BYTES,MAX(BYTES) maxbytesFROM dba_free_space@TO_DATABASE1GROUP BY tablespace_name, file_id) freeWHERE df.tablespace_name = free.tablespace_name(+)AND df.file_id = free.file_id(+)GROUP BY df.tablespace_nameORDER BY 6;
12.查看表空间使用占比可以使用如下语句(如果要查看某台机器可以带上条件where ipaddress='xxxx' and instance='xxxxx' and to_char(time,'yyyy-mm-dd')='xxxx-xx-xx')
SELECT IPADDRESS , Instancename, tablespace_name, datafile_count, size_mb "表空间大小(M)", used_mb "已使用空间(M)", TO_CHAR(ROUND((used_mb) / size_mb * 100, 2), '990.99') "使用比", free_mb "空闲空间(M)"FROM tbsmonitor. tbsmonitor order by "使用比" desc
13.查看每日增量可以使用如下脚本。(下面显示的是4-8日10.1.21.2表空间增长的情况)
select a.tablespace_name,(b.used_mb-a.used_mb) increase,a.ipaddress from(select * from tsmonitor.tbs_usage where to_char(time,'yyyy-mm-dd')='2016-01-04') a,(select * from tsmonitor.tbs_usage where to_char(time,'yyyy-mm-dd')='2016-01-08') bwhere a.tablespace_name=b.tablespace_name and a.IPADDRESS=b.IPADDRESS order by increase descselect * from tbsmonitor. tbsmonitor where ipaddress='10.1.21.2' and to_char(time,'yyyy-mm-dd')='2016-01-08'
