用C#创建PDA应用程序的柱形图控件

//*************************************
// pdachartcontrolcontrol
using system;
using system.collections;
using system.componentmodel;
using system.drawing;
using system.data;
using system.windows.forms;
using system.drawing.drawing2d;
#if netcfdesigntime
[assembly: system.cf.design.runtimeassemblyattribute("pdachartcontrol, version=1.10.0.0, _
culture=neutral, publickeytoken=null")]
namespace pdachartcontrol
{
/// <summary>
/// summary description for usercontrol1.
/// </summary>
public class pdachart : system.windows.forms.control
{
public system.windows.forms.hscrollbar hscrollbar1;

/// <summary>
/// required designer variable.
/// </summary>

// delegate declaration.
// public delegate void eventhandler(string text,color backcolor,int height);
//
// //声明事件的委托：
// //public delegate void myeventhandler(string text,color backcolor,int height);
// //定义一个公共事件成员
// public event eventhandler addcube;
// protected virtual void onaddcube(eventargs e)
// {
//
// }
//
private pdachartcontrol.mygraph objgraph=new mygraph();
private point mbeginpoint=new point(0,0) ;

private system.componentmodel.container components = null;

public pdachart()
{
　initializecomponent();
}

public enum charttypeenum { pillarchart, cakechart ,breaklinkchart};

#region windows 属性定义
private bool mhscrollbarvisible=true;
#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.defaultvalueattribute(0)]
[system.componentmodel.description("设置/读取滚动条是否可见")]
#endif
public bool hscrollbarvisible
{
　get
　{
　　return mhscrollbarvisible;
　}
　set
　{
　　mhscrollbarvisible =value;
　　this.invalidate();
　}
}
private charttypeenum mcharttype=charttypeenum.pillarchart;
#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.defaultvalueattribute(0)]
[system.componentmodel.description("设置/读取图形类型")]
#endif
public charttypeenum charttype
{
　get
　{
　　return mcharttype;
　}　
　set
　{
　　mcharttype =value;
　　this.invalidate();
　}
}

private int mpicheight=20;
#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.defaultvalueattribute(0)]
[system.componentmodel.description("设置/读取饼图高")]
#endif
public int picheight
{
　get
　{
　　return mpicheight;
　}
　set
　{
　　mpicheight =value;
　　this.invalidate();
　}
}

private font mtitlefont =new font("arial", 9, fontstyle.regular);

#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.description("设置/读取文本字体")]
#endif
public font titlefont
{
　get
　{
　　return mtitlefont;
　}
　set
　{
　　mtitlefont=value;
　　this.invalidate();
　}
}

private font mtextfont =new font("arial", 8, fontstyle.regular);
#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.description("设置/读取文本字体")]
#endif
public font textfont
{
　get
　{
　　return mtextfont;
　}
　set
　{
　　mtextfont=value;
　　this.invalidate();
　}
}
private static datatable mdatatable=new datatable() ;
#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.description("设置/读取数据表")]
#endif
public datatable datatable
{
　get
　{
　　return mdatatable;
　}
　set
　{
　　mdatatable=(datatable)value;
　　this.invalidate();
　}
}
private string mshowcolumnname;
#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.description("设置/读取显示列")]
#endif
public string showcolumnname
{
　get
　{
　　return mshowcolumnname;
　}
　set
　{
　　mshowcolumnname=value;
　　this.invalidate();
　}
}
private string mdatacolumnname;
#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.description("设置/读取数据列")]
#endif
public string datacolumnname
{
　get
　{
　　return mdatacolumnname;
　}
　set
　{
　　mdatacolumnname=value;
　　this.invalidate();
　}
}

private string mtitle="统计图";
#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.defaultvalueattribute("图表")]
[system.componentmodel.description("设置/读取标题")]
#endif
public string title
{
　get
　{
　　return mtitle;
　}
　set
　{
　　mtitle=value;
　　this.invalidate();
　}
}


private arraylist mcubedata;
#if !netcfdesigntime
//the actual data used to draw the line on the graph
public icollection cubedata
{
　get
　{
　　return mcubedata;
　}
　set
　{
　　mcubedata = new arraylist(value);
　　rectangle rcclient = this.clientrectangle;
　　rectangle rcgraphclient = new rectangle(rcclient.x + 21, rcclient.y + 5, rcclient.width - 21, rcclient.height - 21);
　　this.invalidate(rcgraphclient);
　}
}
#endif

private color mbackcolor=system.drawing.systemcolors.controllight;

#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.defaultvalueattribute(0)]
[system.componentmodel.description("设置/读取背景颜色")]
#endif
public override color backcolor
{
　get
　{
　　return mbackcolor;
　}
　set
　{
　　mbackcolor =value;
　　this.invalidate();
　}
}

private color maxesxcolor=system.drawing.systemcolors.highlighttext;

#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.defaultvalueattribute(0)]
[system.componentmodel.description("设置/读取x轴颜色")]
#endif
public color axesxcolor
{
　get
　{
　　return maxesxcolor;
　}
　set
　{
　　maxesxcolor =value;
　　this.invalidate();
　}
}

private color maxesycolor=system.drawing.systemcolors.info;
#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.defaultvalueattribute(0)]
[system.componentmodel.description("设置/读取y轴颜色")]
#endif
public color axesycolor
{
　get
　{
　　return maxesycolor;
　}
　set
　{
　　maxesycolor =value;
　　this.invalidate();
　}
}

private int mlenght = 4;
#if netcfdesigntime
// these design time attributes affect appearance of this property in the property grid.
[system.componentmodel.defaultvalueattribute(5)]
[system.componentmodel.description("立体长")]
#endif
//the lower y bound of the pdachart
public int lenght
{
　get
　{
　　return mlenght;
　}
　set
　{
　　mlenght = value;
　　this.invalidate();
　}
}
private int mmaxyvalue ;//图表y轴最大值
private int mmaxxvalue ;//图表x轴最大值

private color mgridlinecolor=system.drawing.color.cyan;
#if netcfdesigntime
[system.componentmodel.category("pdachart")]
[system.componentmodel.description("网格线的颜色.")]
#endif
//the color of the line of the pdachart.
public color gridlinecolor
{
　get
　{
　　return mgridlinecolor;
　}
　set
　{
　　mgridlinecolor =value;
　　this.invalidate();
　}
}
private bool mshowxtext = true;
#if netcfdesigntime
// these design time attributes affect appearance of this property in the property grid.
[system.componentmodel.category("chart")]
[system.componentmodel.defaultvalueattribute(true)]
[system.componentmodel.description("是否显示x轴的文本")]
#endif
// if true, shows the y-values on the left of the pdachart
public bool isshowxtext
{
　get
　{
　　return mshowxtext;
　}
　set
　{
　　mshowxtext = value;
　　this.invalidate();
　}
}
private bool mshowytext = true;
#if netcfdesigntime
// these design time attributes affect appearance of this property in the property grid.
[system.componentmodel.category("chart")]
[system.componentmodel.defaultvalueattribute(true)]
[system.componentmodel.description("是否显示y轴的数字")]
#endif
// if true, shows the y-values on the left of the pdachart
public bool isshowytext
{
　get
　{
　　return mshowytext;
　}
　set
　{
　　mshowytext = value;
　　this.invalidate();
　}
}
private bool mshowxscale = true;
#if netcfdesigntime
// these design time attributes affect appearance of this property in the property grid.
[system.componentmodel.category("chart")]
[system.componentmodel.defaultvalueattribute(true)]
[system.componentmodel.description("是否显示x轴的刻度.")]
#endif
// if true, shows the x-values on the bottom of the pdachart
public bool isshowxscale
{
　get
　{
　　return mshowxscale;
　}
　set
　{
　　mshowxscale = value;
　　this.invalidate();
　}　　
}

private bool mshowyscale = true;
#if netcfdesigntime
// these design time attributes affect appearance of this property in the property grid.
[system.componentmodel.category("chart")]
[system.componentmodel.defaultvalueattribute(true)]
[system.componentmodel.description("是否显示y轴的刻度")]
#endif
// if true, shows the y-values on the left of the pdachart
public bool isshowyscale
{
　get
　{
　　return mshowyscale;
　}
　set
　{
　　mshowyscale = value;
　　this.invalidate();
　}
}

private bool mshowgrid = true;
#if netcfdesigntime
// these design time attributes affect appearance of this property in the property grid.
[system.componentmodel.category("chart")]
[system.componentmodel.defaultvalueattribute(false)]
[system.componentmodel.description("是否显示网格线")]
#endif
// if true, shows horiztonal grid lines on the pdachart.
public bool isshowgrid
{
　get
　{
　　return mshowgrid;
　}
　set
　{
　　mshowgrid = value;
　　this.invalidate();
　}
}
#endregion
/// <summary>
/// clean up any resources being used.
/// </summary>
protected override void dispose( bool disposing )
{
　if( disposing )
　{
　　if( components != null )
　　　components.dispose();
　}
　base.dispose( disposing );
}

#region component designer generated code
/// <summary>
/// required method for designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void initializecomponent()
{
　this.paint += new system.windows.forms.painteventhandler(this.onpaint);
　this.hscrollbar1 = new system.windows.forms.hscrollbar();
　this.hscrollbar1.location = new system.drawing.point(1, 100);
　this.hscrollbar1.maximum = 1;
　this.hscrollbar1.largechange = 1;
　this.hscrollbar1.size = new system.drawing.size(100, 16);
　this.hscrollbar1.valuechanged += new system.eventhandler(this.hscrollbar1_valuechanged);

　this.controls.add(this.hscrollbar1);
}
#endregion
//
// private arraylist mcudedata;

protected override void onresize(eventargs e)
{
　//this.refresh();
}

graphics mgraphics;
pen mblackpen=new pen(color.black);
//偏差
int topheightwarp=16; //顶偏差(文本高)

int leftwidthwarp=0; //左偏差(最大数据文本宽)
int underheightwarp=10; //底偏差(底文本高)
int betweenlineheight=10;//水平线的高
int linecount=10;//水平线数

// //this paint function uses routines common to both platforms.

int clientheight;
int mwidth;
int yheight;
rectangle rcclient;
system.drawing.region region1;
public void onpaint(object sender, system.windows.forms.painteventargs e)
{
　//base.paint(null,e);
　mgraphics=e.graphics;
　//读取数据
　this.rcclient = this.clientrectangle;
　region1=new region ( this.rcclient);
　region1=region1.clone();

　clientheight=rcclient.height;
　objgraph.mgraphics=e.graphics; //mgraphics.measurestring//

　//计算最大的x轴、y轴坐标
　countmaxscalexscaley();
　underheightwarp=(int)objgraph.mgraphics.measurestring("文本",this.mtextfont).height+5;
　underheightwarp+=this.hscrollbar1.height;
　//作图的范围区（开始点、长、宽、高）
　mbeginpoint.x =this.clientrectangle.x+leftwidthwarp ;
　mbeginpoint.y =this.clientrectangle.y+rcclient.height-underheightwarp ;

　//写标题
　drawtitle(rcclient);
　int width=rcclient.width-this.mlenght-leftwidthwarp;
　mwidth=width;
　int height=rcclient.height-this.mlenght-topheightwarp-underheightwarp;
　this.yheight= height;
　int lenght=this.mlenght;

　//设置流动条
　// this.hscrollbar1.location = new system.drawing.point(0, rcclient.y+rcclient.height);
　initpage();
　if (this.hscrollbarvisible)
　{
　　this.hscrollbar1.left=0;
　　this.hscrollbar1.top=rcclient.height-this.hscrollbar1.height ;
　　this.hscrollbar1.maximum=this.pagecount-1;

　　if(rcclient.width<246)
　　　this.hscrollbar1.width= rcclient.width;
　　else
　　　this.hscrollbar1.width=246;
　}
　else
　{
　　this.hscrollbar1.left=0;
　　this.hscrollbar1.top=0 ;
　}
　//从此分别画图
　if (this.mmaxyvalue>10)
　{
　　//水平网络线
　　this.betweenlineheight=(int)objgraph.mgraphics.measurestring("文本",this.mtextfont).height;
　　this.linecount=height/betweenlineheight;
　}
　else
　{
　　this.betweenlineheight=height/10;
　　//线数应该是能整
　　this.linecount=10;
　}
　//画与它父相同背景颜色的区域，以隐藏角边
　color parentbackcolor=color.brown;

　objgraph.drawrectangle( parentbackcolor,new point(0,0),rcclient.width,rcclient.height);
　e.graphics.drawrectangle(new pen(parentbackcolor), rcclient);

　objgraph.drawpdachart(this.mgridlinecolor, this.maxesxcolor,this.maxesycolor,_
　this.mbackcolor,mbeginpoint,lenght,width,height, this.mshowxscale,this.mshowyscale);
　//画线和左文本(内部左下点)
　point p=mbeginpoint;
　p.x+=this.mlenght;
　p.y-=this.mlenght;
　drawgridlineandtexts(p,width);
　//mbeginpoint

　//画矩形与写文本
　//createcubes(mbeginpoint,width,rcclient.height);
　//mbeginpoint.x+=10;
　createpagecubes(mbeginpoint,width,clientheight);

　drawtitle(rcclient);
}
}

//以左下坐标p，颜色color,长lenght,宽width,高height,x轴文本textx，画立体图
public void addonecube(string textx,point p,color color,int lenght,int width, int height)
{
　try
　{
　　objgraph.drawcube (color,p,lenght,width,height);
　　//文本
　　int txtwidth=(int)objgraph.mgraphics.measurestring(textx,mtextfont).width;
　　int txtheight=(int)objgraph.mgraphics.measurestring(textx,mtextfont).height;

　　int x=(p.x+width/2)-txtwidth/2;
　　int y=p.y+txtheight/2;
　　this.objgraph.drawtext(textx,color.black,this.mtextfont,x,y-5);
　}
　catch(exception ex)
　{
　　string str=ex.message;
　}}

//一页立方体图形个数
int onepagecubecount=10;
int currentpage=0;//当前页
int pagecount=0;//多少页
//水平轴的相对值
int xscale;
//y轴的相对值
double yscale=0.2;

color[] color={color.red,color.blue,color.green,color.yellow,color.yellowgreen,color.magenta,_
color.cyan,color.coral,color.slategray,color.pink,color.crimson,color.dodgerblue,color.chartreuse };

//计算页
private void initpage()
{
　if(this.onepagecubecount==0) return;
　if (mdatatable.rows.count<onepagecubecount)
　　this.onepagecubecount=mdatatable.rows.count ;
　if(this.onepagecubecount==0) return;
　　pagecount=mdatatable.rows.count/this.onepagecubecount;
　//水平轴的相对值
　xscale=width/this.onepagecubecount ;
　//y轴的相对值
　if(this.mmaxyvalue<=0) return;
　{
　　if(this.mmaxyvalue==0) return;
　　this.yscale=double.parse(this.yheight.tostring())/double.parse( this.mmaxyvalue.tostring() ) ;//system.math.
　　//this.yscale=double.parse(this.yscale.tostring())/double.parse(this.linecount.tostring() );
　}
　// this.yscale=double.parse(system.convert.tostring(1))/double.parse( this.mmaxyvalue.tostring() ) ;//system.math.
}

private void hscrollbar1_valuechanged(object sender, system.eventargs e)
{
　//onpaint(object sender, system.windows.forms.painteventargs e)
　//清画出的图
　this.currentpage=hscrollbar1.value;
　// if (mgraphics.clip==null)
　// {
　　mgraphics=this.creategraphics ();
　　this.objgraph.mgraphics=mgraphics;
　// }
　//mgraphics.clip=this.region1;
　//画矩形与写文本，最多一屏
　//mgraphics.clear(this.mbackcolor) ;
　//mgraphics.resetclip();
　//createpagecubes(mbeginpoint,width,clientheight);
　system.windows.forms.painteventargs e1=new painteventargs( mgraphics,this.rcclient);
　onpaint(null,e1);
}
public void nextpage()
{
　this.objgraph.mgraphics=this.creategraphics ();
　this.currentpage++;
　bitmap bm = new bitmap(10,10);
　graphics g = graphics.fromimage(bm);

　if (this.currentpage>this.pagecount)
　　this.currentpage--;
　//画矩形与写文本，最多一屏
　//mgraphics.clear(color.red) ;
　//mgraphics.resetclip();
　createpagecubes(mbeginpoint,width,clientheight);
}

//在左下顶点，宽width，高height建立立方体
private void createpagecubes(point beginp ,int width,int height)
{
　if(mdatatable.rows.count==0) return;
　int between=10;
　switch(this.onepagecubecount)
　{
　　case 1:
　　　between= mwidth/2;
　　　break;
　　case 2:
　　　between= mwidth/3;
　　　break;
　　case 3:
　　　between= mwidth/4;
　　　break;
　　case 4:
　　　between= mwidth/5;
　　　break;
　　case 5:
　　　between= mwidth/6;
　　　break;
　　case 6:
　　　between= mwidth/7;
　　　break;
　　case 7:
　　　between= mwidth/8-1;
　　　break;
　　case 8:
　　　between= mwidth/9-2;
　　　break;
　　case 9:
　　　between=mwidth/9-5;
　　　break;
　　case 10:
　　　between=mwidth/10-5;
　　　break;
　}
int rowindex=this.onepagecubecount*this.currentpage;
point p=beginp;//dr.
p.x-=8;
for ( int i=0;i<this.onepagecubecount;i++ )
{
//p.x= this.xscale*(i+1)+10;
p.x+=between+this.mlenght;
double cubeheight=this.yscale*system.convert.toint32(mdatatable.rows[rowindex][this.mdatacolumnname]);
//if ((p.x >= 0) && (p.x <= width) && (p.y >= 0) && (p.y <= height))
//{
string text=mdatatable.rows[rowindex][this.mshowcolumnname].tostring() ;
string data=mdatatable.rows[rowindex][this.mdatacolumnname].tostring() ;
int colorindex=rowindex;
if (colorindex>=color.length)
colorindex=color.length-1;
if (this.mshowxtext==false) text=" ";
addonecube(text,p,color[i],this.mlenght,this.mlenght+4,system.convert.toint32(cubeheight));
//}
rowindex++;
}
}

//在左下顶点，宽width，高height建立立方体
private void createcubes(point beginp ,int width,int height)
{
if(mdatatable.rows.count==0) return;
//水平轴的相对值
int xscale=width/mdatatable.rows.count ;
//y轴的相对值
if(this.mmaxyvalue<=0) return;
int yscale=height/(this.mmaxyvalue*this.linecount) ;

int rowindex=0;
color[] color={color.red,color.blue,color.green,color.yellow,color.yellowgreen,color.magenta,_
color.cyan,color.coral,color.slategray,color.pink,color.crimson,color.dodgerblue,color.chartreuse };

foreach(datarow dr in mdatatable.rows)
{
rowindex+=1;
point p=beginp;//dr.
p.x= xscale*rowindex+10;
int cubeheight=yscale*system.convert.toint32(dr[this.mdatacolumnname]);
if ((p.x >= 0) && (p.x <= width) && (p.y >= 0) && (p.y <= height))
{
string text=dr[this.mshowcolumnname].tostring() ;
string data=dr[this.mdatacolumnname].tostring() ;
int colorindex=rowindex;
if (colorindex>=color.length)
colorindex=color.length-1;
if (this.mshowxtext==false) text=" ";
addonecube(text,p,color[colorindex-1],this.mlenght,this.mlenght+5,cubeheight);
//objgraph.drawcube (color,p,this.mlenght,width,height);
}
}
}
//计算最大的x、y轴坐标,左边文本宽，最小的线高
private void countmaxscalexscaley()
{
if(mdatatable.rows.count==0) return;

this.mmaxxvalue=mdatatable.rows.count ;
this.mmaxyvalue=0;
//this.l.
foreach(datarow dr in mdatatable.rows)
{
int cubeheight=system.convert.toint32(dr[this.mdatacolumnname]);
if (mmaxyvalue<cubeheight)
{
mmaxyvalue=cubeheight;
}
int textwidth=(int)objgraph.mgraphics.measurestring(system.convert.todouble( dr[this.mdatacolumnname])._
tostring() ,this.mtextfont).width+10;
if (leftwidthwarp<textwidth)
{
leftwidthwarp=textwidth;
}
}
//leftwidthwarp+=10;
}
//在顶部中心位置写标题
private void drawtitle(rectangle rcclient)
{
int width=(int)objgraph.mgraphics.measurestring(this.mtitle,mtitlefont).width;
int height=(int)objgraph.mgraphics.measurestring(this.mtitle,mtitlefont).height;
this.topheightwarp=height;
int x=rcclient.width/2- width/2;
int y=rcclient.y+height/2-5;
this.objgraph.drawtext(this.mtitle,color.blue,mtitlefont,x,y);
}

//画所有水平网络线
//p:起始点;width：线宽;betweenheight:二线之间高,count:线数
// private void drawgridlineandtexts(point p,int width)
// {
// for(int i=0;i<this.linecount;i++)
// {
// drawgridlineandtext(p,p,width,lenght);
// p.y-=betweenheight;
// }
// }


//由顶点与长、宽、高画颜色为color，背景色为的backcolor图表(3d)
private void drawgridlineandtexts(point p,int width)
{//是否显示网络水平线
if (this.mshowgrid)
{
this.objgraph.drawgridlines(this.mgridlinecolor,p,width-1,this.mlenght,this.betweenlineheight,this.linecount);
}

//是否显示左文本
if (this.mshowytext)
{
point p1=p;
//p1.x-=this.mlenght;
p1.y+=lenght;
double a1=double.parse(system.convert.tostring(this.linecount-1));
double a2=double.parse(this.mmaxyvalue.tostring());
double a=system.math.round(a2/a1,1);

for(int i=0;i<this.linecount;i++)
{
string text=system.convert.tostring(a*(i+1));
int txtwidth=(int)objgraph.mgraphics.measurestring(text,this.mtextfont).width;
p1.x=p.x-txtwidth-this.mlenght;;
p1.y-=this.betweenlineheight;
this.objgraph.drawtext(text,color.black,this.mtextfont,p1.x,p1.y);
}
}
}
//求数据列的和
private double sumcolumn(datatable dt,string columnname)
{
double sum=0.0;
foreach(datarow dr in dt.rows)
{
sum+=system.convert.todouble(dr[columnname]);
}
return sum;
}
}

#region
public class mygraph
{
//网络水平线中二线之间的高
//int betweenlineheight=20;
//最大maxycount:线数
// int maximumy=10;
// int lenght=5;
// int width=200;
// int height=300;
// bool isshowgrid=true;

public graphics mgraphics;

//背景色
// public color backcolor= system.drawing.systemcolors.control;
// //x轴颜色
// public color axesxcolor=system.drawing.systemcolors.highlighttext;
// //y轴颜色
// public color axesycolor=system.drawing.systemcolors.info;

//黑色笔
private pen mblackpen = new system.drawing.pen(color.fromargb(0,0,0));
//网格线笔
private pen mgridpen= new system.drawing.pen(color.fromargb(127, 127, 127));
//color backcolor= system.drawing.color.fromargb(((system.byte)(224)), ((system.byte)(224)), ((system.byte)(224)));

public mygraph()
{
//mgraphics=this.creategraphics(); //
// todo: 在此处添加构造函数逻辑
//
}

//由左下顶点与宽、高画颜色为color的平行四边形
public void drawrectangle3dtop(color color, point leftunderpoint,int width,int height)
{
try
{

//计算左上顶点
point p1=new point ();
p1.x=leftunderpoint.x+height;
p1.y=leftunderpoint.y-height;

//计算右上顶点
point p2=new point ();
p2.x=leftunderpoint.x+width+height;
p2.y=leftunderpoint.y-height;

//计算右下顶点
point p3=new point ();
p3.x=leftunderpoint.x+width;
p3.y=leftunderpoint.y;
point[] curvepoints =
{
leftunderpoint,
p1,
p2,
p3
};

// define fill mode.
//fillmode newfillmode = fillmode.winding;
// fill polygon to screen.
// create solid brush.
solidbrush brush = new solidbrush(color);
mgraphics.fillpolygon(brush, curvepoints);
//mgraphics.fillpolygon(brush, curvepoints, newfillmode);
//画边框
mgraphics.drawpolygon(this.mblackpen, curvepoints);
}
catch(exception ex)
{
string str=ex.message;
}

}
//由左下顶点与宽、高画颜色为color的平等四边形
public void drawrectangle3dright(color color, point leftunderpoint,int width,int height)
{
try
{
// create solid brush.
solidbrush brush = new solidbrush(color);

//计算左上顶点
point p1=new point ();
p1.x=leftunderpoint.x;
p1.y=leftunderpoint.y-height;

//计算右上顶点
point p2=new point ();
p2.x=p1.x+width;
p2.y=p1.y-width;

//计算右下顶点
point p3=new point ();
p3.x=leftunderpoint.x+width;
p3.y=leftunderpoint.y-width;
point[] curvepoints =
{
leftunderpoint,
p1,
p2,
p3
};

// define fill mode.
//fillmode newfillmode = fillmode.winding;
// fill polygon to screen.
mgraphics.fillpolygon(brush, curvepoints);
//画边框
mgraphics.drawpolygon(this.mblackpen, curvepoints);
//mgraphics.fillpolygon(brush, curvepoints, newfillmode);
}
catch(exception ex)
{
string str=ex.message;
}
}

//由左上角顶点与宽、高画颜色为color的平行四边形
public void drawrectangle(color color, point p,int width,int height)
{
rectangle rectangle1=new rectangle( p.x,p.y, width,height);

// create solid brush.
solidbrush brush = new solidbrush(color);
// fill polygon to screen.
mgraphics.fillrectangle(brush, rectangle1);

//画边框
mgraphics.drawrectangle(this.mblackpen,rectangle1);

}

//由左下顶点与长、宽、高画颜色为color的立方图形(3d)
public void drawcube(color color, point leftunderpoint,int lenght,int width,int height)
{
// create solid brush.
solidbrush brush = new solidbrush(color);


point lefttoppoint= leftunderpoint;
lefttoppoint.y-= height;

drawrectangle3dtop(color,lefttoppoint,width,lenght);
drawrectangle(color,lefttoppoint,width,height);

point rightp=leftunderpoint;
rightp.x+=width;
drawrectangle3dright(color.black,rightp,lenght,height);
}

//画x轴
public void drawaxesx(color color, point p,int width,int height)
{
drawrectangle3dtop(color,p,width,height);
}

//画y轴
public void drawaxesy(color color, point p,int width,int height)
{
drawrectangle3dright(color,p,width,height);
}

//由顶点与长、宽、高画颜色为color，背景色为的backcolor图表(3d)
public void drawpdachart(color gridlinecolor,color axesxcolor,color axesycolor,_
　color backcolor,point p,int lenght,int width,int height,bool isshowaxesx,bool isshowaxesy)
{
if(isshowaxesx)
{
//画x轴
drawaxesx(axesxcolor,p,width,lenght);
}
if(isshowaxesy)
{
//画y轴
drawaxesy(axesycolor,p,lenght,height);
}

////画图形区
point prectangle=p;
prectangle.x+=lenght;
prectangle.y-=lenght;
prectangle.y-=height;
drawrectangle(backcolor,prectangle,width,height);
}
//画一条水平网络线与对应的折线
public void drawgridline(color gridlinecolor,point p,int width,int lenght)
{
//draw the y scale;
point endp=p;
endp.x+=width;
pen pen=new pen( gridlinecolor);
//this.mgraphics.drawline(pen,p,endp);
//水平线
this.mgraphics.drawline(pen,p.x,p.y,endp.x,endp.y );
//左折线
this.mgraphics.drawline(pen,p.x,p.y,endp.x-lenght,endp.y+lenght );
}
//画所有水平网络线
//p:起始点;width：线宽;betweenheight:二线之间高,count:线数
public void drawgridlines(color gridlinecolor,point p,int width,int lenght,int betweenheight,int count)
{
pen pen=new pen( gridlinecolor);
for(int i=0;i<count;i++)
{
//drawgridline(gridlinecolor,p,width,lenght);
//水平线
this.mgraphics.drawline(pen,p.x,p.y,p.x+width,p.y );
//左折线
this.mgraphics.drawline(pen,p.x-lenght+1,p.y+lenght,p.x,p.y);
p.y-=betweenheight;
}
}

//在位置（x,y)处以颜色color、字体font写文本text
public void drawtext(string text,color color, font font,int x,int y)
{
// create solid brush.
solidbrush brush = new solidbrush(color);
this.mgraphics.drawstring(text, font, brush, x ,y);
}

//由点p(矩形左上角点),宽piewidth，高pieheight，颜色color画馅饼图
public void drawcake(color color,point p,int piewidth,int pielenght,int pieheight)
{
pen penblack=new pen( color.black);
//黑色最下面的椭圓
rectangle rc1 =new rectangle(p.x,p.y+pieheight,piewidth,pielenght);
this.mgraphics.drawellipse(penblack,rc1);

solidbrush objbrush = new solidbrush(color);

for(int i=0;i<pieheight;i++)
{
this.mgraphics.fillellipse(objbrush,p.x,p.y+i,piewidth,pielenght);
}
//黑色最上面的椭圓
rectangle rc =new rectangle(p.x,p.y,piewidth,pielenght);
this.mgraphics.drawellipse(penblack,rc);

this.mgraphics.drawline( penblack,p.x,p.y+pielenght/2,p.x,p.y+pieheight+pielenght/2);
this.mgraphics.drawline( penblack,p.x+piewidth,p.y+pielenght/2,p.x+piewidth,p.y+pieheight+pielenght/2);

}

//求隋圆任意一点x坐标的相对点
//角angle，中心点opoint，a，长半轴，b,短半轴
public double getellipsepx(double angle,int a,int b)
{
//角
double radians = angle * (math.pi/180);
double px=a*system.math.cos(radians) ;
return px;
}

//求隋圆任意一点y坐标的相对点
//角angle，中心点opoint，a，长半轴，b,短半轴
public double getellipsepy(double angle,int a,int b)
{
//角
double radians = angle * (math.pi/180);
double py=b*system.math.sin(radians);
return py;
}


//画线椭圆线
//角angle，中心点opoint，a，长半轴，b,短半轴
public void drawellipseline(double angle,point opoint,int a,int b)
{

int px=system.convert.toint32(getellipsepx(angle,a,b))+opoint.x ;
int py=system.convert.toint32(getellipsepy(angle,a,b))+opoint.y ;

pen penblack=new pen( color.black);

this.mgraphics.drawline( penblack,opoint.x,opoint.y,px,py);

//e.graphics.drawline( penblack,opoint.x,opoint.y,opoint.x+b,opoint.y);
}
//取扇形的点集（逆时针）
//角angle，已经画过的角finishangle,中心点opoint，长半轴a，短半轴b
public arraylist getpicpoints(double angle,double finishangle,point opoint,int a,int b)
{
//point[system.convert.toint32(angle)] curvepoints=new array() ;
//以步长为1求扇形弧线的坐标点
arraylist plist=new arraylist() ;
plist.add(opoint);
//plist.add(arcstartpoint);

for(int i=0;i<system.convert.toint32(angle);i++)
{
int px=system.convert.toint32(getellipsepx(i+finishangle,a,b))+opoint.x ;
int py=system.convert.toint32(getellipsepy(i+finishangle,a,b))+opoint.y ;
plist.add(new point(px,py));
//curvepoints.setvalue(
}
return plist;
}

//画扇形（逆时针）
//角度angle，已经画过的角finishangle,中心点opoint，长半轴a，短半轴b
public void drawpdapic(color color, string text,double angle,double finishangle,point opoint,int a,int b)
{
// create solid brush.
solidbrush brush = new solidbrush(color);
arraylist plist=getpicpoints(angle,finishangle,opoint,a,b);
point[] curvepoints=new point[plist.count] ;
for(int i=0;i<plist.count;i++)
curvepoints[i]=(point)plist[i];

mgraphics.fillpolygon(brush, curvepoints);
//画边框
mgraphics.drawpolygon(this.mblackpen, curvepoints);
//drawtext(text,color.black,this.
}
}
#endregion

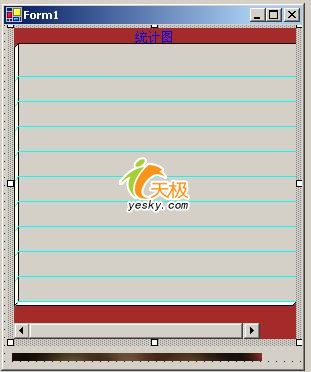

pdachartcontrol.pdachart mygraph=new pdachartcontrol.pdachart();

this.pdachart1.axesxcolor = system.drawing.systemcolors.highlighttext;
this.pdachart1.axesycolor = system.drawing.systemcolors.info;
this.pdachart1.backcolor = system.drawing.systemcolors.controllight;
this.pdachart1.charttype = pdachartcontrol.pdachart.charttypeenum.cakechart;
this.pdachart1.datacolumnname = "dataid";
this.pdachart1.gridlinecolor = system.drawing.color.cyan;
this.pdachart1.hscrollbarvisible = true;
this.pdachart1.isshowgrid = true;
this.pdachart1.location = new system.drawing.point(8, 24);
this.pdachart1.picheight = 20;
this.pdachart1.showcolumnname = "showid";
this.pdachart1.size = new system.drawing.size(224, 240);
this.pdachart1.text = "pdachart1";
this.pdachart1.textfont = new system.drawing.font("arial", 8f, system.drawing.fontstyle.regular);
this.pdachart1.title = "统计图";
this.pdachart1.titlefont = new system.drawing.font("arial", 9f, system.drawing.fontstyle.regular);
this.pdachart1.hscrollbar1.visible=false;
this.controls.add(this.pdachart1);

//测试数据
this.pdachart1.datatable=createquerytable();
this.pdachart1.datacolumnname= "dataid";
this.pdachart1.showcolumnname= "showid";

//建立查询明细表
private datatable createquerytable()
{
datatable dt=new datatable("query");
dt.columns.add("dataid");
dt.columns.add("showid");
for(int i=0;i<10;i++)
{
datarow dr=dt.newrow();
dr["dataid"]=(i+1)*10;
dr["showid"]=(i+1).tostring() ;
dt.rows.add(dr);
}
return dt;
}
