Top 命令解析

top命令经常用来监控linux的系统状况,比如CPU、内存的使用,程序员基本都知道这个命令,今天小编与大家分享下Top 命令解析，有兴趣的朋友不妨了解下。

Top 命令解析

TOP是一个动态显示过程,即可以通过用户按键来不断刷新当前状态.如果在前台执行该命令,它将独占前台,直到用户终止该程序为止.比较准确的说,top命令提供了实时的对系统处理器的状态监视.它将显示系统中CPU最“敏感”的任务列表.该命令可以按CPU使用.内存使用和执行时间对任务进行排序;而且该命令的很多特性都可以通过交互式命令或者在个人定制文件中进行设定.

top - 12:38:33 up 50 days, 23:15, 7 users, load average: 60.58, 61.14, 61.22

Tasks: 203 total, 60 running, 139 sleeping, 4 stopped, 0 zombie

Cpu(s) : 27.0%us, 73.0%sy, 0.0%ni, 0.0%id, 0.0%wa, 0.0%hi, 0.0%si, 0.0%st

Mem: 1939780k total, 1375280k used, 564500k free, 109680k buffers

Swap: 4401800k total, 497456k used, 3904344k free, 848712k cached

PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND

4338 oracle 25 0 627m 209m 207m R 0 11.0 297:14.76 oracle

4267 oracle 25 0 626m 144m 143m R 6 7.6 89:16.62 oracle

3458 oracle 25 0 672m 133m 124m R 0 7.1 1283:08 oracle

3478 oracle 25 0 672m 124m 115m R 0 6.6 1272:30 oracle

3395 oracle 25 0 672m 122m 113m R 0 6.5 1270:03 oracle

3480 oracle 25 0 672m 122m 109m R 8 6.4 1274:13 oracle

3399 oracle 25 0 672m 121m 110m R 0 6.4 1279:37 oracle

4261 oracle 25 0 634m 100m 99m R 0 5.3 86:13.90 oracle

25737 oracle 25 0 632m 81m 74m R 0 4.3 272:35.42 oracle

7072 oracle 25 0 626m 72m 71m R 0 3.8 6:35.68 oracle

16073 oracle 25 0 630m 68m 63m R 8 3.6 175:20.36 oracle

16140 oracle 25 0 630m 66m 60m R 0 3.5 175:13.42 oracle

16122 oracle 25 0 630m 66m 60m R 0 3.5 176:47.73 oracle

786 oracle 25 0 627m 63m 63m R 0 3.4 1:54.93 oracle

4271 oracle 25 0 627m 59m 58m R 8 3.1 86:09.64 oracle

4273 oracle 25 0 627m 57m 56m R 8 3.0 84:38.20 oracle

22670 oracle 25 0 626m 50m 49m R 0 2.7 84:55.82 oracle

一. TOP前五行统计信息

统计信息区前五行是系统整体的统计信息。

1. 第一行是任务队列信息

同 uptime 命令的执行结果:

[root@localhost ~]# uptime

13:22:30 up 8 min, 4 users, load average: 0.14, 0.38, 0.25

其内容如下：

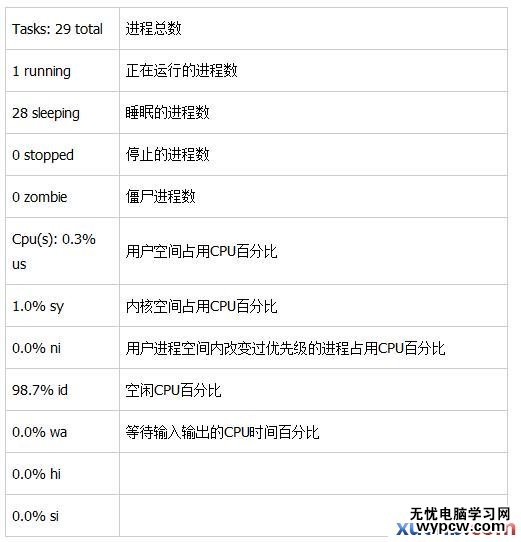

2. 第二、三行为进程和CPU的信息

当有多个CPU时，这些内容可能会超过两行。内容如下：

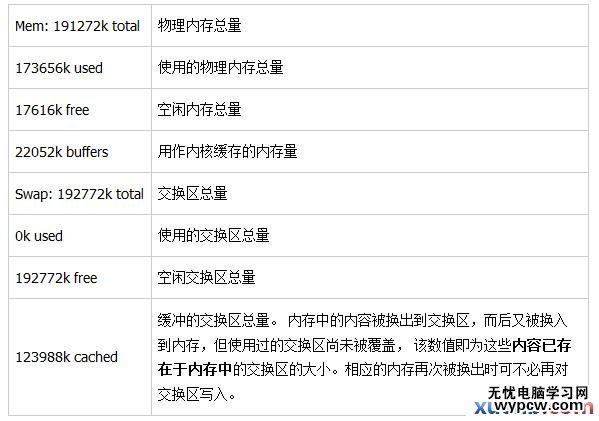

3. 第四五行为内存信息。

内容如下：

二. 进程信息

　top 的man 命令解释如下：

Listed below are top's available fields. They are always associated with the letter shown, regardless of the position you may have established for them with the 'o' (Order fields) interactive command.Any field is selectable as the sort field, and you control whether they are sorted high-to-low or low-to-high. For additional information on sort provisions see topic 3c. TASK Area Commands.

a: PID -- Process Id

The task's unique process ID, which periodically wraps, though never restarting at zero.

b: PPID -- Parent Process Pid

The process ID of a task's parent.

c: RUSER -- Real User Name

The real user name of the task's owner.

d: UID -- User Id

The effective user ID of the task's owner.

e: USER -- User Name

The effective user name of the task's owner.

f: GROUP -- Group Name

The effective group name of the task's owner.

g: TTY -- Controlling Tty

The name of the controlling terminal. This is usually the device (serial port, pty, etc.) from which the process was started, and which it uses for input oroutput. However, a task need not be associated with a terminal, in which case you'll see '?' displayed.

h: PR -- Priority

The priority of the task.

i: NI -- Nice value

The nice value of the task. A negative nice value means higher priority, whereas a positive nice value means lower priority. Zero in this field simply means priority will not be adjusted in determining a task's dispatchability.

j: P -- Last used CPU (SMP)

A number representing the last used processor. In a true SMP environment this will likely change frequently since the kernel intentionally uses weak affinity. Also, the very act of running top may break this weak affinity and cause more processes to change CPUs more often (because of the extra demand for cpu time).

k: %CPU -- CPU usage

The task's share of the elapsed CPU time since the last screen update, expressed as a percentage of total CPU time. In a true SMP environment, if 'Irix mode' is Off, top will operate in 'Solaris mode' where a task's cpu usage will be divided by the total number of CPUs. You toggle 'Irix/Solaris' modes with the 'I' interactive command.

l: TIME -- CPU Time

Total CPU time the task has used since it started. When 'Cumulative mode' is On, each process is listed with the cpu time that it and its dead children has used. You toggle 'Cumulative mode' with 'S', which is a command-line option and an interactive command. See the 'S' interactive command for additional information regarding this mode.

m: TIME+ -- CPU Time, hundredths

The same as 'TIME', but reflecting more granularity through hundredths of a sec ond.

n: %MEM -- Memory usage (RES)

A task's currently used share of available physical memory.

o: VIRT -- Virtual Image (kb)

The total amount of virtual memory used by the task. It includes all code, data and shared libraries plus pages that have been swAPPed out. (Note: you can define the STATSIZE=1 environment variable and the VIRT will be calculated from the /proc/#/state VmSize field.)

VIRT = SWAP + RES.

p: SWAP -- Swapped size (kb)

The swapped out portion of a task's total virtual memory image.

q: RES -- Resident size (kb)

The non-swapped physical memory a task has used.

RES = CODE + DATA.

r: CODE -- Code size (kb)

The amount of physical memory devoted to executable code, also known as the'text resident set' size or TRS.

s: DATA -- Data+Stack size (kb)

The amount of physical memory devoted to other than executable code, also known the 'data resident set' size or DRS.

t: SHR -- Shared Mem size (kb)

The amount of shared memory used by a task. It simply reflects memory that could be potentially shared with other processes.

u: nFLT -- Page Fault count

The number of major page faults that have occurred for a task. A page fault occurs when a process attempts to read from or write to a virtual page that is not currently present in its address space. A major page fault is when disk access is involved in making that page available.

v: nDRT -- Dirty Pages count

The number of pages that have been modified since they were last written to disk. Dirty pages must be written to disk before the corresponding physical memory location can be used for some other virtual page.

w: S -- Process Status

The status of the task which can be one of:

'D' = uninterruptible sleep

'R' = running

'S' = sleeping

'T' = traced or stopped

'Z' = zombie

Tasks shown as running should be more proPerly thought of as 'ready to run' --their task_struct is simply represented on the Linux run-queue. Even without a true SMP machine, you may see numerous tasks in this state depending on top's delay interval and nice value.

x: Command -- Command line or Program name

Display the command line used to start a task or the name of the associated program. You toggle between command line and name with 'c', which is both a command-line option and an interactive command. When you've chosen to display command lines, processes without a command line (like kernel threads) will be shown with only the program name in parentheses, as in this example: ( mdrecoveryd ) Either form of display is subject to potential truncation if it's too long to fit in this field's current width. That width depends upon other fields selected, their order and the current screen width.

Note: The 'Command' field/column is unique, in that it is not fixed-width. When displayed, this column will be allocated all remaining screen width (up to the maximum 512 characters) to provide for the potential growth of program names into command lines.

y: WCHAN -- Sleeping in Function

Depending on the availability of the kernel link map ('System.map'), this field will show the name or the address of the kernel function in which the task is currently sleeping. Running tasks will display a dash ('-') in this column.

Note: By displaying this field, top's own working set will be increased by over 700Kb. Your only means of reducing that overhead will be to stop and restart top.

z: Flags -- Task Flags

This column represents the task's current scheduling flags which are expressed in hexadecimal notation and with zeros suppressed. These flags are officially documented in <linux/sched.h>. Less formal documentation can also be found on the 'Fields select' and 'Order fields' screens.

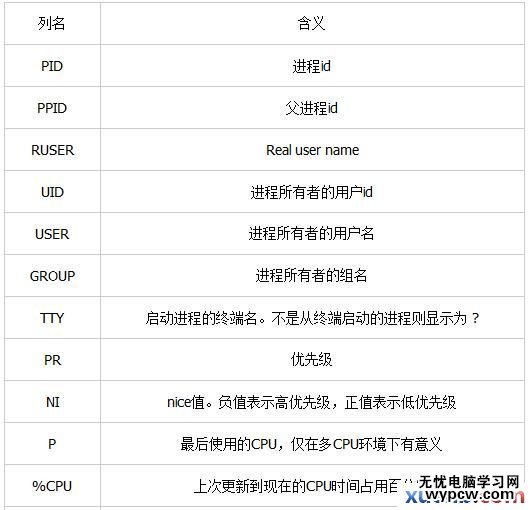

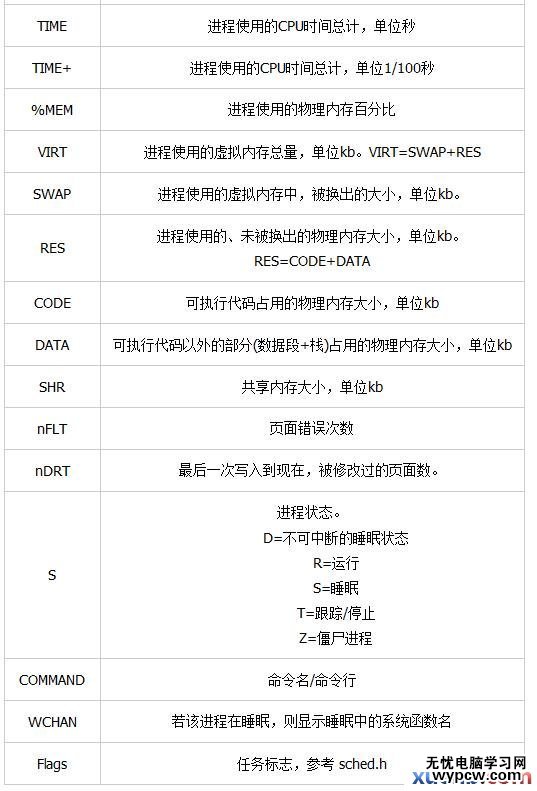

默认情况下仅显示比较重要的 PID、USER、PR、NI、VIRT、RES、SHR、S、%CPU、%MEM、TIME+、COMMAND 列。

2.1 用快捷键更改显示内容。

(1)更改显示内容通过 f键可以选择显示的内容。

按 f 键之后会显示列的列表，按 a-z 即可显示或隐藏对应的列，最后按回车键确定。

(2)按o键可以改变列的显示顺序。

按小写的 a-z 可以将相应的列向右移动，而大写的 A-Z 可以将相应的列向左移动。最后按回车键确定。

按大写的 F 或 O 键，然后按 a-z 可以将进程按照相应的列进行排序。而大写的 R 键可以将当前的排序倒转。

设置完按回车返回界面。

三. 命令使用

详细内容可以参考MAN 帮助文档。这里列举部分内容：

命令格式：

top [-] [d] [p] [q] [c] [C] [S] [n]

参数说明：

d： 指定每两次屏幕信息刷新之间的时间间隔。当然用户可以使用s交互命令来改变之。

p： 通过指定监控进程ID来仅仅监控某个进程的状态。

q：该选项将使top没有任何延迟的进行刷新。如果调用程序有超级用户权限，那么top将以尽可能高的优先级运行。

S： 指定累计模式

s ： 使top命令在安全模式中运行。这将去除交互命令所带来的潜在危险。

i： 使top不显示任何闲置或者僵死进程。

c： 显示整个命令行而不只是显示命令名

在top命令的显示窗口，我们还可以输入以下字母，进行一些交互：

帮助文档如下：

Help for Interactive Commands - procps version 3.2.7

Window 1:Def: Cumulative mode Off. System: Delay 4.0 secs; Secure mode Off.

Z,B Global: 'Z' change color mappings; 'B' disable/enable bold

l,t,m Toggle Summaries: 'l' load avg; 't' task/cpu stats; 'm' mem info

1,I Toggle SMP view: '1' single/separate states; 'I' Irix/Solaris mode

f,o . Fields/Columns: 'f' add or remove; 'o' change display order

F or O . Select sort field

<,> . Move sort field: '<' next col left; '>' next col right

R,H . Toggle: 'R' normal/reverse sort; 'H' show threads

c,i,S . Toggle: 'c' cmd name/line; 'i' idle tasks; 'S' cumulative time

x,y . Toggle highlights: 'x' sort field; 'y' running tasks

z,b . Toggle: 'z' color/mono; 'b' bold/reverse (only if 'x' or 'y')

u . Show specific user only

n or # . Set maximum tasks displayed

k,r Manipulate tasks: 'k' kill; 'r' renice

d or s Set update interval

W Write configuration file

q Quit

( commands shown with '.' require a visible task display window )

Press 'h' or '?' for help with windows,

h或者? : 显示帮助画面，给出一些简短的命令总结说明。

k ：终止一个进程。系统将提示用户输入需要终止的进程PID，以及需要发送给该进程什么样的信号。一般的终止进程可以使用15信号;如果不能正常结束那就使用信号9强制结束该进程。默认值是信号15。在安全模式中此命令被屏蔽。

i：忽略闲置和僵死进程。这是一个开关式命令。

q： 退出程序。

r： 重新安排一个进程的优先级别。系统提示用户输入需要改变的进程PID以及需要设置的进程优先级值。输入一个正值将使优先级降低，反之则可以使该进程拥有更高的优先权。默认值是10。

S：切换到累计模式。

s : 改变两次刷新之间的延迟时间。系统将提示用户输入新的时间，单位为s。如果有小数，就换算成ms。输入0值则系统将不断刷新，默认值是5 s。需要注意的是如果设置太小的时间，很可能会引起不断刷新，从而根本来不及看清显示的情况，而且系统负载也会大大增加。

f或者F :从当前显示中添加或者删除项目。

o或者O :改变显示项目的顺序。

l: 切换显示平均负载和启动时间信息。即显示影藏第一行

m： 切换显示内存信息。即显示影藏内存行

t ： 切换显示进程和CPU状态信息。即显示影藏CPU行

c： 切换显示命令名称和完整命令行。 显示完整的命令。 这个功能很有用。

M ： 根据驻留内存大小进行排序。

P：根据CPU使用百分比大小进行排序。

T： 根据时间/累计时间进行排序。

W： 将当前设置写入~/.toprc文件中。这是写top配置文件的推荐方法。
