iOS开发中最基本的位置功能实现示例

2020-07-26 03:34:09
字体:
来源:转载
供稿:网友

定位获取位置及位置编码-反编码
我们的应用程序,可以通过添加Core Location框架所包含的类,获取设备的地图位置。
添加CoreLocation.framework框架,导入#import<CoreLocation/CoreLocation.h>。
使用地图服务时,会消耗更多地设备电量.因此,在获取到设备的位置后,应该停止定位来节省电量。
我们通过一个demo来展示内容与效果

复制代码 代码如下:

//
// HMTRootViewController.h
// My-GPS-Map
//
// Created by hmt on 14-4-12.
// Copyright (c) 2014年 胡明涛. All rights reserved.
//

#import <UIKit/UIKit.h>

@interface HMTRootViewController : UIViewController <CLLocationManagerDelegate>

@end

//
// HMTRootViewController.m
// My-GPS-Map
//
// Created by hmt on 14-4-12.
// Copyright (c) 2014年 胡明涛. All rights reserved.
//

#import "HMTRootViewController.h"
#import <AddressBook/AddressBook.h>

@interface HMTRootViewController (){

CLLocationManager * _locationManage;
}

@property (nonatomic,retain) CLLocationManager * locationManage;

@end

@implementation HMTRootViewController

- (void)dealloc{

RELEASE_SAFELY(_locationManage);
[super dealloc];

}

- (id)initWithNibName:(NSString *)nibNameOrNil bundle:(NSBundle *)nibBundleOrNil
{
self = [super initWithNibName:nibNameOrNil bundle:nibBundleOrNil];
if (self) {
// Custom initialization
}
return self;
}

- (void)viewDidLoad
{
[super viewDidLoad];
// Do any additional setup after loading the view.

[self createGPSMap];
self.view.backgroundColor = [UIColor redColor];

}

- (void)createGPSMap{

// 初始化位置服务
self.locationManage = [[CLLocationManager alloc]init];

// 要求CLLocationManager对象返回全部信息
_locationManage.distanceFilter = kCLDistanceFilterNone;

// 设置定位精度
_locationManage.desiredAccuracy = kCLLocationAccuracyBest;

// 设置代理
_locationManage.delegate = self;

// 开始定位
[_locationManage startUpdatingLocation];

[_locationManage release];

}

- (void)locationManager:(CLLocationManager *)manager didUpdateLocations:(NSArray *)locations{

CLLocation * newLocation = [locations lastObject];
// 停止实时定位
[_locationManage stopUpdatingLocation];

// 取得经纬度
CLLocationCoordinate2D coord2D = newLocation.coordinate;
double latitude = coord2D.latitude;
double longitude = coord2D.longitude;
NSLog(@"纬度 = %f 经度 = %f",latitude,longitude);

// 取得精度
CLLocationAccuracy horizontal = newLocation.horizontalAccuracy;
CLLocationAccuracy vertical = newLocation.verticalAccuracy;
NSLog(@"水平方 = %f 垂直方 = %f",horizontal,vertical);

// 取得高度
CLLocationDistance altitude = newLocation.altitude;
NSLog(@"%f",altitude);

// 取得此时时刻
NSDate *timestamp = [newLocation timestamp];
// 实例化一个NSDateFormatter对象
NSDateFormatter* dateFormat = [[NSDateFormatter alloc] init];
// 设定时间格式
[dateFormat setDateFormat:@"yyyy-MM-dd HH:mm:ss a"];
[dateFormat setAMSymbol:@"AM"]; // 显示中文, 改成"上午"
[dateFormat setPMSymbol:@"PM"];
// 求出当天的时间字符串,当更改时间格式时,时间字符串也能随之改变
NSString *dateString = [dateFormat stringFromDate:timestamp];
NSLog(@"此时此刻时间 = %@",dateString);


// -----------------------------------------位置反编码--------------------------------------------
CLGeocoder * geocoder = [[CLGeocoder alloc]init];
[geocoder reverseGeocodeLocation:newLocation completionHandler:^(NSArray *placemarks, NSError *error) {

for (CLPlacemark * place in placemarks) {

NSLog(@"name = %@",place.name); // 位置名
NSLog(@"thoroughfare = %@",place.thoroughfare); // 街道
NSLog(@"subAdministrativeArea = %@",place.subAdministrativeArea); // 子街道
NSLog(@"locality = %@",place.locality); // 市
NSLog(@"subLocality = %@",place.subLocality); // 区
NSLog(@"country = %@",place.country); // 国家

NSArray *allKeys = place.addressDictionary.allKeys;
for (NSString *key in allKeys)
{
NSLog(@"key = %@, value = %@",key, place.addressDictionary[key]);
}
#pragma mark - 使用系统定义的字符串直接查询,记得导入AddressBook框架
NSLog(@"kABPersonAddressCityKey = %@", (NSString *)kABPersonAddressCityKey);
NSLog(@"city = %@", place.addressDictionary[(NSString *)kABPersonAddressCityKey]);
NSString *city = place.locality;
if(city == nil)
{
city = place.addressDictionary[(NSString *)kABPersonAddressStateKey];
}
}
}];
}


- (void)didReceiveMemoryWarning
{
[super didReceiveMemoryWarning];
// Dispose of any resources that can be recreated.
}

@end

程序运行结果:(以39.3,116.4为例)

复制代码 代码如下:

//  判断输入的地址
if (self.locationTextField.text == nil  ||  [self.locationTextField.text length] == 0) {
    return;


CLGeocoder *geocoder = [[CLGeocoder alloc] init];
/*  -----------------------------------------位置编码--------------------------------------------  */
[geocoder geocodeAddressString:_locationTextField.text completionHandler:^(NSArray *placemarks, NSError *error) {

    for (CLPlacemark *placemark in placemarks) {

        CLLocationCoordinate2D coordinate = placemark.location.coordinate;
        NSString *strCoordinate = [NSString stringWithFormat:@"纬度 = %3.5f/n 经度 = %3.5f",coordinate.latitude,coordinate.longitude];
        NSLog(@"%@",strCoordinate);
        NSDictionary *addressDictionary = placemark.addressDictionary;
        NSString *address = [addressDictionary objectForKey:(NSString *)kABPersonAddressStreetKey];
        NSString *state = [addressDictionary objectForKey:(NSString *)kABPersonAddressStateKey];
        NSString *city = [addressDictionary objectForKey:(NSString *)kABPersonAddressCityKey];
        NSLog(@"街道 = %@/n 省 = %@/n 城市 = %@",address,state,city);
    }
}];

地图的使用以及标注地图
使用CoreLocation框架获取了当前设备的位置,这一章介绍地图的使用。
首先,导入<MapKit.framework>框架:

复制代码 代码如下:

#import <MapKit/MapKit.h>

main代码示例

复制代码 代码如下:

main.h

#import <UIKit/UIKit.h>
#import <MapKit/MapKit.h>
//  引用地图协议
@interface HMTMainViewController : UIViewController<MKMapViewDelegate>

@end

main.m

//
//  HMTMainViewController.m
//  Map
//
//  Created by HMT on 14-6-21.
//  Copyright (c) 2014年 humingtao. All rights reserved.
//

#import "HMTMainViewController.h"
#import "HMTAnnotation.h"

@interface HMTMainViewController ()

@property (nonatomic ,strong) MKMapView *mapView;

@end

@implementation HMTMainViewController

- (id)initWithNibName:(NSString *)nibNameOrNil bundle:(NSBundle *)nibBundleOrNil

    self = [super initWithNibName:nibNameOrNil bundle:nibBundleOrNil];
    if (self) {
        // Custom initialization
    }
    return self;


- (void)viewDidLoad



    [super viewDidLoad];
    self.view.backgroundColor = [UIColor redColor];

    // Do any additional setup after loading the view.

    self.navigationItem.title = @"地图标注";
    self.mapView = [[MKMapView alloc] initWithFrame:CGRectMake(0, 0, 320, 568)];

    //  是否显示用户当前位置
    self.mapView.showsUserLocation = YES;
    //  设置代理
    self.mapView.delegate = self;

    //  地图显示类型
    /**
     *      MKMapTypeStandard = 0, //  标准地图
     *      MKMapTypeSatellite,    //  卫星地图
     *      MKMapTypeHybrid        //  混合地图
     */
    self.mapView.mapType = MKMapTypeStandard;
    //  经纬度
    CLLocationCoordinate2D coord2D = {39.910650,116.47030};
    //  显示范围,数值越大,范围就越大
    MKCoordinateSpan span = {0.1,0.1};
    //  显示区域
    MKCoordinateRegion region = {coord2D,span};
    //  给地图设置显示区域
    [self.mapView setRegion:region animated:YES];
    //  是否允许缩放
    //self.mapView.zoomEnabled = NO;
    //  是否允许滚动
    //self.mapView.scrollEnabled = NO;

    //  初始化自定义Annotation(可以设置多个)
    HMTAnnotation *annotation = [[HMTAnnotation alloc] initWithCGLocation:coord2D];
    //  设置标题
    annotation.title = @"自定义标注位置";
    //  设置子标题
    annotation.subtitle = @"子标题";
    //  将标注添加到地图上(执行这步,就会执行下面的代理方法viewForAnnotation)
    [self.mapView addAnnotation:annotation];

    [self.view addSubview:_mapView];



//   返回标注视图(大头针视图)
- (MKAnnotationView *)mapView:(MKMapView *)mapView viewForAnnotation:(id<MKAnnotation>)annotation{

    /**
     *  是不是有点像自定义UITableViewCell一样
     */
    static NSString *identifier = @"annotation";
    //  复用标注视图(MKPinAnnotationView是大头针视图,继承自MKAnnotation)
    MKPinAnnotationView *annotationView = (MKPinAnnotationView *)[mapView dequeueReusableAnnotationViewWithIdentifier:identifier];
    if (annotationView == nil) {
        annotationView = [[MKPinAnnotationView alloc] initWithAnnotation:annotation reuseIdentifier:identifier];
    }
    //  判断是否为自定义的标注视图
    if ([annotation isKindOfClass:[HMTAnnotation class]]) {

        //  设置大头针圆圈颜色
        annotationView.pinColor = MKPinAnnotationColorGreen;
        //  点击头针红色圆圈是否显示上面设置好的标题视图
        annotationView.canShowCallout = YES;
        //  要自定义锚点图片,可考虑使用MKAnnotationView;MKPinAnnotationView只能是以大头针形式显示!!!!
        annotationView.image = [UIImage imageNamed:@"customImage"];
        //  添加标题视图右边视图(还有左边视图,具体可自行查看API)
        UIButton *button = [UIButton buttonWithType:UIButtonTypeDetailDisclosure];
        [button addTarget:self action:@selector(didClickAnnotationViewRightButtonAction:) forControlEvents:UIControlEventTouchUpInside];
        annotationView.rightCalloutAccessoryView = button;
        //  是否以动画形式显示标注(从天而降)
        annotationView.animatesDrop = YES;
        annotationView.annotation = annotation;

        //  返回自定义的标注视图
        return annotationView;

    }else{

        //  当前设备位置的标注视图,返回nil,当前位置会创建一个默认的标注视图
        return nil;
    }



- (void)didClickAnnotationViewRightButtonAction:(UIButton *)button{

    NSLog(@"%d %s",__LINE__,__FUNCTION__);


//  更新当前位置调用
- (void)mapView:(MKMapView *)mapView didUpdateUserLocation:(MKUserLocation *)userLocation{

    NSLog(@"%d %s",__LINE__,__FUNCTION__);


//  选中标注视图
- (void)mapView:(MKMapView *)mapView didSelectAnnotationView:(MKAnnotationView *)view{

    NSLog(@"%d %s",__LINE__,__FUNCTION__);


//  地图的现实区域改变了调用
- (void)mapView:(MKMapView *)mapView regionDidChangeAnimated:(BOOL)animated{

    NSLog(@"%d %s",__LINE__,__FUNCTION__);


- (void)didReceiveMemoryWarning

    [super didReceiveMemoryWarning];
    // Dispose of any resources that can be recreated.


@end

自定义MKAnnotationView

复制代码 代码如下:

#import <Foundation/Foundation.h>
#import <MapKit/MapKit.h>
//  引入MKAnnotation协议,切记不能忘记!!!!!!!!!
@interface HMTAnnotation : NSObject<MKAnnotation>

@property (nonatomic,readonly) CLLocationCoordinate2D coordinate;  //  坐标
@property (nonatomic,copy) NSString *title;     //  位置名称
@property (nonatomic,copy) NSString *subtitle;  //  位置子信息(可选)

- (id)initWithCGLocation:(CLLocationCoordinate2D) coordinate;

@end

#import "HMTAnnotation.h"

@implementation HMTAnnotation

- (id)initWithCGLocation:(CLLocationCoordinate2D)coordinate{

    if (self = [super init]) {

        _coordinate = coordinate;
    }
    return self;


@end

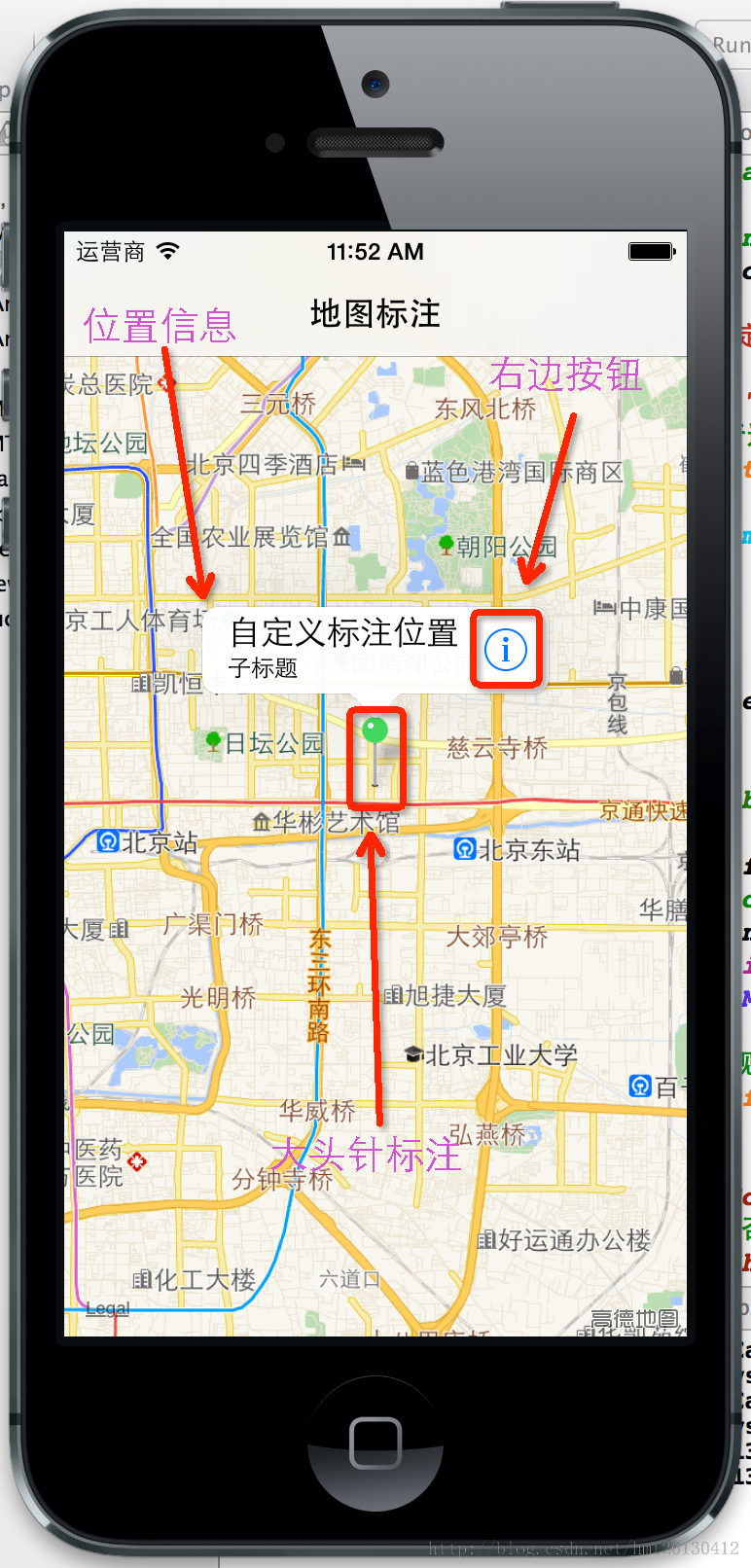

效果图:
