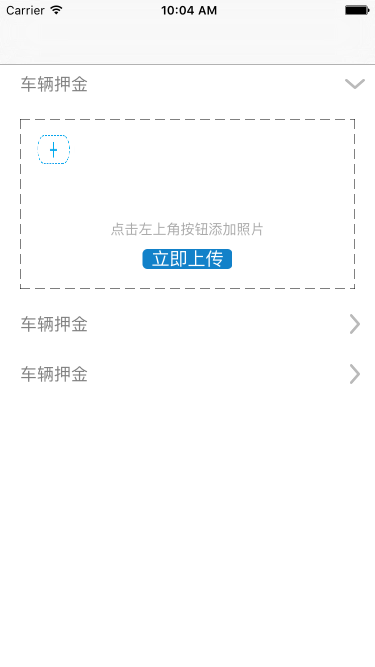

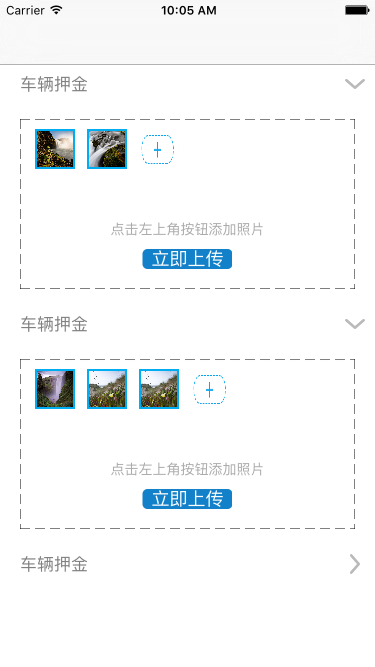

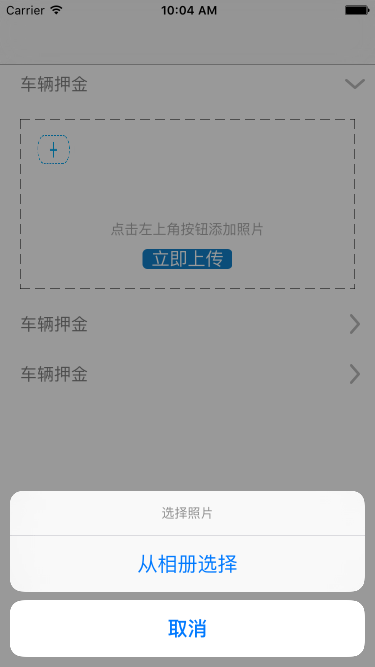

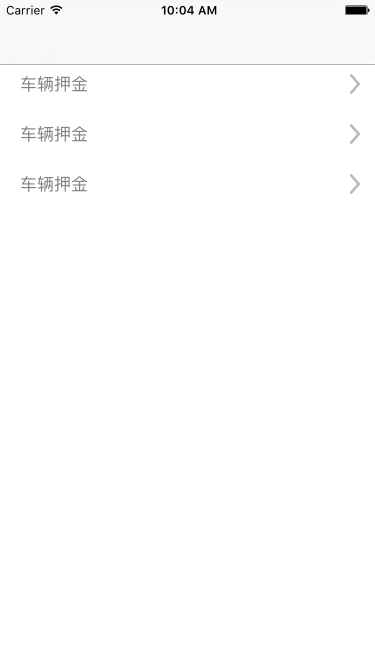

iOS开发之tableView点击下拉扩展与内嵌collectionView上传图片效果

#import "AppDelegate.h"#import "YCTableViewController.h"@interface AppDelegate ()@end@implementation AppDelegate- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {self.window = [[UIWindow alloc] initWithFrame:[UIScreen mainScreen].bounds];self.window.backgroundColor = [UIColor whiteColor];self.window.rootViewController = [[UINavigationController alloc] initWithRootViewController:[[YCTableViewController alloc] init]];[self.window makeKeyAndVisible];return YES;}

// Copyright © 2016年 Chason. All rights reserved.//#import <UIKit/UIKit.h>#import "DepositFeeHeader.h"#import "DepositFeeWithApplyTableViewCell.h"#import "AppModel.h"#import "MyCollectionViewCell.h"#import "SectionHeaderViewCollectionReusableView.h"@interface YCTableViewController : UITableViewController<UICollectionViewDataSource, UICollectionViewDelegate, UICollectionViewDelegateFlowLayout, UIImagePickerControllerDelegate, UIActionSheetDelegate, UINavigationControllerDelegate>@property (nonatomic, strong) NSMutableArray *dataArray;@property (nonatomic, strong) NSMutableArray *ownHobby;//上传图片数组1@property (nonatomic, strong) NSMutableArray *imageArray;//上传图片数组2@property (nonatomic, strong) UICollectionView *collection;@property (nonatomic, strong) UIActionSheet *actionSheet;@property (nonatomic, strong) AppModel *model;@property (nonatomic, assign) NSInteger reUpdate;@property (nonatomic, strong) NSString *imageString;@property (nonatomic, assign) NSInteger number;@end// Copyright © 2016年 Chason. All rights reserved.//#import "YCTableViewController.h"//手机屏幕的宽和高#define kScreenWidth [UIScreen mainScreen].bounds.size.width#define KScreenHeight [UIScreen mainScreen].bounds.size.height@interface YCTableViewController ()@end@implementation YCTableViewController- (void)viewDidLoad {[super viewDidLoad];_dataArray = [[NSMutableArray alloc] initWithCapacity:1];for (int i = 0; i < 3; i++) {AppModel *model = [[AppModel alloc] init];[_dataArray addObject:model];}_ownHobby = [NSMutableArray array];_reUpdate = 10000;//赋初值}- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section{AppModel *model = _dataArray[section];if ([model Is_Open]) {return 1;}else{return 0;}}- (NSInteger)numberOfSectionsInTableView:(UITableView *)tableView{[_ownHobby removeAllObjects];for (int i = 0; i < _dataArray.count; i++) {_imageArray= [NSMutableArray array];[_ownHobby addObject:_imageArray];}return _dataArray.count;}- (CGFloat)tableView:(UITableView *)tableView heightForFooterInSection:(NSInteger)section{AppModel *model = _dataArray[section];if (model.Is_Open == YES || section == _dataArray.count - 1) {return 0.01;}else {return 10;}}-(UIView *)tableView:(UITableView *)tableView viewForFooterInSection:(NSInteger)section{UIView *backView = [[UIView alloc] init];backView.backgroundColor = [UIColor whiteColor];return backView;}- (CGFloat)tableView:(UITableView *)tableView heightForHeaderInSection:(NSInteger)section{return 40;}- (CGFloat)tableView:(UITableView *)tableView heightForRowAtIndexPath:(NSIndexPath *)indexPath{return 200;}- (UIView *)tableView:(UITableView *)tableView viewForHeaderInSection:(NSInteger)section{DepositFeeHeader *depositHeader = [tableView dequeueReusableHeaderFooterViewWithIdentifier:@"deposit"];if (depositHeader == nil) {depositHeader = [[DepositFeeHeader alloc] initWithReuseIdentifier:@"deposit"];}depositHeader.tag = 1000 + section;[depositHeader.tap addTarget:self action:@selector(showDetail:)];CGFloat rota;AppModel *model = _dataArray[section];if ([model Is_Open] == NO) {rota=0;}else{rota=M_PI_2;}[UIView animateWithDuration:0.1 animations:^{depositHeader.listImage.transform = CGAffineTransformMakeRotation(rota);}];return depositHeader;}- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath{if (indexPath.section != _reUpdate) {AppModel *model = _dataArray[indexPath.section];DepositFeeWithApplyTableViewCell *cell = [[DepositFeeWithApplyTableViewCell alloc] initWithStyle:UITableViewCellStyleDefault reuseIdentifier:@"applyCell"];UICollectionViewFlowLayout *flowLayout = [[UICollectionViewFlowLayout alloc]init];flowLayout.minimumInteritemSpacing = 5;flowLayout.minimumLineSpacing = 5;flowLayout.sectionInset = UIEdgeInsetsMake(0 , 5 , 0 , 10 );flowLayout.itemSize = CGSizeMake(40 , 40);_collection = [[UICollectionView alloc]initWithFrame:CGRectMake(10, 10, cell.backView.frame.size.width - 20, 90) collectionViewLayout:flowLayout];[_collection registerClass:[SectionHeaderViewCollectionReusableView class] forSupplementaryViewOfKind:UICollectionElementKindSectionHeader withReuseIdentifier:@"head"];_collection.tag = indexPath.section;_collection.bounces = NO;_collection.delegate = self;_collection.dataSource = self;_collection.backgroundColor = [UIColor whiteColor];[_collection registerClass:[MyCollectionViewCell class] forCellWithReuseIdentifier:@"identifier"];[cell.backView addSubview:_collection];[cell.shouldBtn addTarget:self action:@selector(upImage:) forControlEvents:UIControlEventTouchUpInside];cell.shouldBtn.tag = indexPath.row + 2000;cell.selectionStyle = UITableViewCellSelectionStyleNone;return cell;}else{return nil;}}//对照片进行处理- (void)upImage:(UIButton *)btn{}-(void)textfiledShow{if ([_ownHobby[_number] count] == 9) {UIAlertController *alert1 = [UIAlertController alertControllerWithTitle:@"上传照片不能超过9张, 点击图片可以删除" message:@"" preferredStyle:UIAlertControllerStyleAlert];UIAlertAction *action = [UIAlertAction actionWithTitle:@"确定" style:UIAlertActionStyleDefault handler:^(UIAlertAction * _Nonnull action) {}];[alert1 addAction:action];[self.navigationController presentViewController:alert1 animated:YES completion:nil];}else{[self callActionSheet];}}//弹框提示相片来源- (void)callActionSheet{if ([UIImagePickerController isSourceTypeAvailable:UIImagePickerControllerSourceTypeCamera]) {self.actionSheet = [[UIActionSheet alloc] initWithTitle:@"选择照片" delegate:self cancelButtonTitle:@"取消" destructiveButtonTitle:nil otherButtonTitles:@"拍照", @"从相册选择", nil];}else{self.actionSheet = [[UIActionSheet alloc] initWithTitle:@"选择照片" delegate:self cancelButtonTitle:@"取消" destructiveButtonTitle:nil otherButtonTitles:@"从相册选择", nil];}[self.actionSheet showInView:self.tableView];}- (void)actionSheet:(UIActionSheet *)actionSheet clickedButtonAtIndex:(NSInteger)buttonIndex{NSUInteger sourceType = UIImagePickerControllerSourceTypePhotoLibrary;//pand是否支持相机if ([UIImagePickerController isSourceTypeAvailable:UIImagePickerControllerSourceTypeCamera]) {switch (buttonIndex) {case 0:sourceType = UIImagePickerControllerSourceTypeCamera;break;case 1:sourceType = UIImagePickerControllerSourceTypePhotoLibrary;break;default:return;}}else{if (buttonIndex == 1) {return;}else{sourceType = UIImagePickerControllerSourceTypeSavedPhotosAlbum;}}UIImagePickerController *imagePicker = [[UIImagePickerController alloc] init];imagePicker.delegate = self;imagePicker.allowsEditing = YES;imagePicker.sourceType = sourceType;[self.navigationController presentViewController:imagePicker animated:YES completion:^{}];}-(void)imagePickerController:(UIImagePickerController *)picker didFinishPickingMediaWithInfo:(NSDictionary<NSString *,id> *)info{[picker dismissViewControllerAnimated:YES completion:^{}];[_ownHobby[_number] addObject:[info objectForKey:UIImagePickerControllerOriginalImage]];[_collection reloadData];}

-(UICollectionViewCell *)collectionView:(UICollectionView *)collectionView cellForItemAtIndexPath:(NSIndexPath *)indexPath{_number = collectionView.tag;if ([_ownHobby[_number] count] == indexPath.row) {MyCollectionViewCell *cell = [collectionView dequeueReusableCellWithReuseIdentifier:@"identifier" forIndexPath:indexPath];UITapGestureRecognizer *tap = [[UITapGestureRecognizer alloc]initWithTarget:self action:@selector(textfiledShow)];[cell.imageView addGestureRecognizer:tap];cell.imageView.userInteractionEnabled = YES;cell.cellStyle = cellStyleAdd;cell.layer.masksToBounds = NO;cell.layer.borderWidth = 0;cell.layer.cornerRadius = 0;[cell layoutSubviews];return cell;}else{MyCollectionViewCell *cell = [collectionView dequeueReusableCellWithReuseIdentifier:@"identifier" forIndexPath:indexPath];cell.photo.image = _ownHobby[_number][indexPath.row];cell.cellStyle = 1;[cell layoutSubviews];[cell.imageView removeFromSuperview];return cell;}}-(NSInteger)numberOfSectionsInCollectionView:(UICollectionView *)collectionView{return 1;}-(NSInteger)collectionView:(UICollectionView *)collectionView numberOfItemsInSection:(NSInteger)section{return [_ownHobby[_number] count] + 1;}#pragma mark 头视图size-(CGSize)collectionView:(UICollectionView *)collectionView layout:(UICollectionViewLayout *)collectionViewLayout referenceSizeForHeaderInSection:(NSInteger)section{CGSize size = {0.01, 0.01};return size;}#pragma mark 每个Item大小-(CGSize)collectionView:(UICollectionView *)collectionView layout:(UICollectionViewLayout *)collectionViewLayout sizeForItemAtIndexPath:(NSIndexPath *)indexPath{return CGSizeMake(40, 40);}-(CGFloat)lengthWithString:(NSString *)string{return [string length];}-(void)collectionView:(UICollectionView *)collectionView didSelectItemAtIndexPath:(NSIndexPath *)indexPath{if ([_ownHobby[_number] count]) {[_ownHobby[_number] removeObjectAtIndex:indexPath.row];[_collection reloadData];}}- (void)showDetail:(UITapGestureRecognizer *)tap{AppModel *model = _dataArray[tap.view.tag - 1000];if ([model Is_Open]) {model.Is_Open = NO;}else{model.Is_Open = YES;}[self.tableView reloadSections:[NSIndexSet indexSetWithIndex:tap.view.tag - 1000] withRowAnimation:UITableViewRowAnimationNone];}@end

//header// Copyright © 2016年 Chason. All rights reserved.//#import <UIKit/UIKit.h>@interface DepositFeeHeader : UITableViewHeaderFooterView@property (nonatomic, strong) UILabel *titleLabel;@property (nonatomic, strong) UIImageView *listImage;//尾按钮@property (nonatomic, strong) UIGestureRecognizer *tap;@end// Copyright © 2016年 Chason. All rights reserved.//#import "DepositFeeHeader.h"//手机屏幕的宽和高#define kScreenWidth [UIScreen mainScreen].bounds.size.width#define KScreenHeight [UIScreen mainScreen].bounds.size.height@implementation DepositFeeHeader- (instancetype)initWithReuseIdentifier:(NSString *)reuseIdentifier{self = [super initWithReuseIdentifier:reuseIdentifier];if (self) {UIView *backView = [[UIView alloc] initWithFrame:CGRectMake(0, 0, kScreenWidth, 40)];backView.backgroundColor = [UIColor whiteColor];[self addSubview:backView];self.titleLabel = [[UILabel alloc] initWithFrame:CGRectMake(20, 10, kScreenWidth - 45, 20)];self.titleLabel.text = @"车辆押金";self.titleLabel.userInteractionEnabled = YES;self.titleLabel.textColor = [UIColor grayColor];[backView addSubview:self.titleLabel];self.listImage = [[UIImageView alloc] initWithFrame:CGRectMake(kScreenWidth - 25, 10, 10, 20)];self.listImage.image = [UIImage imageNamed:@"jiantou.png"];[backView addSubview:self.listImage];UIImageView *headerLine = [[UIImageView alloc] initWithFrame:CGRectMake(0, 0, kScreenWidth, 1)];headerLine.image = [UIImage imageNamed:@"line"];[backView addSubview:headerLine];UIImageView *footerLine = [[UIImageView alloc] initWithFrame:CGRectMake(0, 39, kScreenWidth, 1)];footerLine.image = [UIImage imageNamed:@"line"];[backView addSubview:footerLine];self.tap = [[UITapGestureRecognizer alloc] init];[self addGestureRecognizer:self.tap];}return self;}@end//cell// Copyright © 2016年 Chason. All rights reserved.//#import <UIKit/UIKit.h>@interface DepositFeeWithApplyTableViewCell : UITableViewCell@property (nonatomic, strong) UIView *backView;@property (nonatomic, strong) UIButton *cameraBtn;@property (nonatomic, strong) UIImageView *photoImg;@property (nonatomic, strong) UILabel *updatePresent;@property (nonatomic, strong) UIButton *shouldBtn;@end// Copyright © 2016年 Chason. All rights reserved.//#import "DepositFeeWithApplyTableViewCell.h"//手机屏幕的宽和高#define kScreenWidth [UIScreen mainScreen].bounds.size.width#define KScreenHeight [UIScreen mainScreen].bounds.size.height@implementation DepositFeeWithApplyTableViewCell- (instancetype)initWithStyle:(UITableViewCellStyle)style reuseIdentifier:(NSString *)reuseIdentifier{self = [super initWithStyle:style reuseIdentifier:reuseIdentifier];if (self) {_backView = [[UIView alloc] initWithFrame:CGRectMake(20, 15, kScreenWidth - 40, 170)];[self addSubview:_backView];[self addDottedLineFromImageView:_backView];self.updatePresent = [[UILabel alloc] initWithFrame:CGRectMake(0, 0, kScreenWidth - 40, 20)];self.updatePresent.center = CGPointMake((kScreenWidth - 40) / 2, 110);self.updatePresent.text = @"点击左上角按钮添加照片";self.updatePresent.textColor = [UIColor lightGrayColor];self.updatePresent.textAlignment = NSTextAlignmentCenter;self.updatePresent.font = [UIFont systemFontOfSize:14];[_backView addSubview:self.updatePresent];self.shouldBtn = [UIButton buttonWithType:UIButtonTypeCustom];self.shouldBtn.frame = CGRectMake((kScreenWidth - 40) / 2 - 45, 130, 90, 20);[self.shouldBtn setTitleColor:[UIColor whiteColor] forState:UIControlStateNormal];[self.shouldBtn setTitle:@"立即上传" forState:UIControlStateNormal];self.shouldBtn.layer.cornerRadius = 5;self.shouldBtn.backgroundColor = [UIColor colorWithRed:18/255.0 green:129/255.0 blue:201/255.0 alpha:1];[_backView addSubview:self.shouldBtn];}return self;}//添加虚线框- (void)addDottedLineFromImageView:(UIView *)superView{CGFloat w = superView.frame.size.width;CGFloat h = superView.frame.size.height;CGFloat padding = 20;//创建四个imageView作边框for (NSInteger i = 0; i<4; i++) {UIImageView *imageView = [[UIImageView alloc] init];imageView.backgroundColor = [UIColor clearColor];if (i == 0) {imageView.frame = CGRectMake(0, 0, w, padding);}else if (i == 1){imageView.frame = CGRectMake(0, 0, padding, h);}else if (i == 2){imageView.frame = CGRectMake(0, h - padding, w, padding);}else if (i == 3){imageView.frame = CGRectMake(w - padding, 0, padding, h);}[superView addSubview:imageView];UIGraphicsBeginImageContext(imageView.frame.size); //开始画线[imageView.image drawInRect:CGRectMake(0, 0, imageView.frame.size.width, imageView.frame.size.height)];CGContextSetLineCap(UIGraphicsGetCurrentContext(), kCGLineCapRound); //设置线条终点形状CGFloat lengths[] = {10,5};CGContextRef line = UIGraphicsGetCurrentContext();CGContextSetStrokeColorWithColor(line, [UIColor blackColor].CGColor);CGContextSetLineDash(line, 0, lengths, 2); //画虚线CGContextMoveToPoint(line, 0, 0); //开始画线if (i == 0) {CGContextAddLineToPoint(line, w, 0);}else if (i == 1){CGContextAddLineToPoint(line, 0, w);}else if (i == 2){CGContextMoveToPoint(line, 0, padding);CGContextAddLineToPoint(line, w, padding);}else if (i == 3){CGContextMoveToPoint(line, padding, 0);CGContextAddLineToPoint(line, padding, w);}CGContextStrokePath(line);imageView.image = UIGraphicsGetImageFromCurrentImageContext();}}@end

#import <UIKit/UIKit.h>@interface SectionHeaderViewCollectionReusableView : UICollectionReusableView@property(nonatomic, strong)UILabel *titleLabel;@end#import "SectionHeaderViewCollectionReusableView.h"@implementation SectionHeaderViewCollectionReusableView-(instancetype)initWithFrame:(CGRect)frame{self = [super initWithFrame:frame];if (self) {[self createViews];}return self;}-(void)createViews{_titleLabel = [[UILabel alloc]init];[self addSubview:_titleLabel];}-(void)layoutSubviews{[super layoutSubviews];_titleLabel.frame = CGRectMake(20, 30, 375, 50);_titleLabel.font = [UIFont systemFontOfSize:20];}@endcollectionView的item#import <UIKit/UIKit.h>@interface MyCollectionViewCell : UICollectionViewCelltypedef enum : NSInteger{cellStyleDefault = 0,cellStyleSelected = 1,cellStyleAdd = 2,}CollectionViewCellStyle;@property(nonatomic, assign)CollectionViewCellStyle cellStyle;@property(nonatomic, strong)UIImageView *photo;@property(nonatomic, strong)UIImageView *imageView;@property(nonatomic, strong)NSArray *array;@property(nonatomic, strong)NSMutableArray *dataArray;-(void)layoutSubviews;@end#import "MyCollectionViewCell.h"@implementation MyCollectionViewCell-(instancetype)initWithFrame:(CGRect)frame{self = [super initWithFrame:frame];if (self) {_photo = [[UIImageView alloc]init];_imageView = [[UIImageView alloc]init];}return self;}-(void)layoutSubviews{[super layoutSubviews];[_photo setFrame:self.bounds];_imageView.frame = self.bounds;switch (_cellStyle) {case cellStyleDefault:self.layer.borderColor = [UIColor colorWithRed:0 green:0.68 blue:0.94 alpha:1].CGColor;self.layer.masksToBounds = YES;self.layer.borderWidth = 1.8;//self.layer.cornerRadius = 20;self.backgroundColor = [UIColor whiteColor];[self.contentView addSubview:_photo];break;case cellStyleSelected:self.layer.borderColor = [UIColor colorWithRed:0 green:0.68 blue:0.94 alpha:1].CGColor;self.layer.masksToBounds = YES;self.layer.borderWidth = 1.8;//self.layer.cornerRadius = 20;self.backgroundColor = [UIColor colorWithRed:0 green:0.68 blue:0.94 alpha:1];[self.contentView addSubview:_photo];break;case cellStyleAdd:[self.imageView setImage:[UIImage imageNamed:@"addPhoto.png"]];self.backgroundColor = [UIColor whiteColor];[self.contentView addSubview:_imageView];break;default:break;}}@end

#import <Foundation/Foundation.h>#import <UIKit/UIKit.h>@interface AppModel : NSObject@property (nonatomic, assign) BOOL Is_Open;@end#import "AppModel.h"@implementation AppModel@end//设置model是为了设置一个bool类型的变量,用来记录tableview的cell是否展开,从而进行reloadSection操作,进行动画展开或收缩.
