iOS指纹验证TouchID应用学习教程

2020-07-26 02:59:03
字体:
来源:转载
供稿:网友

指纹验证这个功能现在在一些app中经常常见,常常与数字解锁,手势解锁联合起来使用。前几天接到说实现一个指纹验证的功能,捣鼓了挺久,然后今天,我就简单的介绍下指纹验证,会做个简单的demo实现一下基本的功能。

支持系统和机型:iOS系统的指纹识别功能最低支持的机型为iPhone 5s,最低支持系统为iOS 8。实现起来呢,其实还是很简单的,下面我们就用纯代码方式实现一个简单的demo1。

第一部分:调用原生服务实现指纹验证

这部分了解个大概就可以了

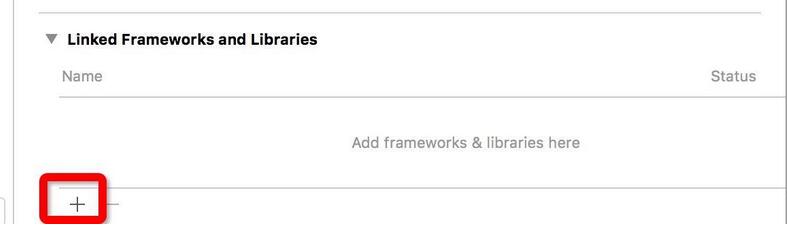

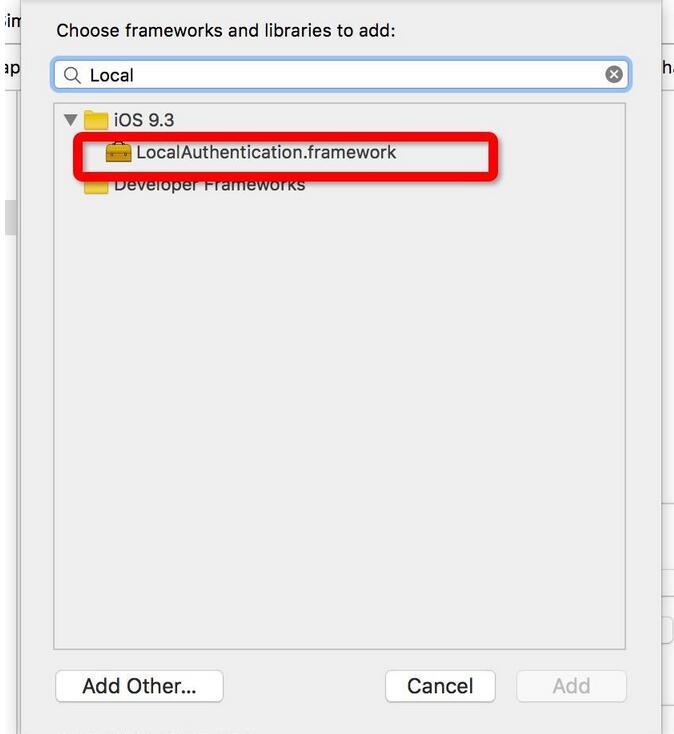

第一步:添加LocalAuthentication.framework库

第二步:在appdelegate.m中添加代码
这个不说其实大家也都知道的吧。

#import "AppDelegate.h"#import "ViewController.h"@interface AppDelegate ()@end@implementation AppDelegate- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions { //appdelegate _window = [[UIWindow alloc]initWithFrame:[UIScreen mainScreen].bounds]; _window.backgroundColor = [UIColor whiteColor]; [_window makeKeyAndVisible]; ViewController *vc = [[ViewController alloc]init]; UINavigationController *na = [[UINavigationController alloc]initWithRootViewController:vc]; _window.rootViewController = na; return YES;}

第三步
引入头文件

  #import <LocalAuthentication/LocalAuthentication.h>

第四步:实现指纹验证

这一步就是很重要的地方了,在- (void)viewDidLoad中写入验证实现的代码,这里只有两步,因为LAContext在官方文档中只有两个方法:

 -canEvaluatePolicy:error: //-(BOOL)canEvaluatePolicy:(LAPolicy)policy error:(NSError * __autoreleasing *)error __attribute__((swift_error(none))); -evaluatePolicy:localizedReason:reply: //- (void)evaluatePolicy:(LAPolicy)policy localizedReason:(NSString *)localizedReason reply:(void(^)(BOOL success, NSError * __nullable error))reply;

一个是判断设备是否支持touchid,一个是进行验证返回不同的结果,之前在网上经常可以一些文章中写了,指纹验证的第一步都是先判断设备的系统版本等等,现在似乎都不需要了,只要调用该方法就可以了。全部的代码 如下:

- (void)viewDidLoad { [super viewDidLoad]; self.title = @"TouchIDSimpleDemoOne"; LAContext *context = [[LAContext alloc]init]; NSError *error; NSString *result = @"需要你身份验证呢";  if ([context canEvaluatePolicy:LAPolicyDeviceOwnerAuthenticationWithBiometrics error:&error]) { [context evaluatePolicy:LAPolicyDeviceOwnerAuthenticationWithBiometrics localizedReason:result reply:^(BOOL success, NSError *error) { if (success) { //验证成功,主线程处理UI //这个地方呢就是写一些验证成功之后需要做些什么事情的代码。 NSLog(@"验证成功"); } else { //以下是一些验证失败的原因啥的 NSLog(@"%@",error.localizedDescription); switch (error.code) {  case LAErrorSystemCancel:  {  NSLog(@"切换到其他APP,系统取消验证Touch ID");  //切换到其他APP,系统取消验证Touch ID  break;  }  case LAErrorUserCancel:  {  NSLog(@"用户取消验证Touch ID");  //用户取消验证Touch ID  break;  }  case LAErrorUserFallback:  {  NSLog(@"用户选择输入密码");  [[NSOperationQueue mainQueue] addOperationWithBlock:^{  //用户选择其他验证方式,切换主线程处理  }];  break;  }  default:  {  NSLog(@"LAErrorAuthenticationFailed,授权失败");  //授权失败  [[NSOperationQueue mainQueue] addOperationWithBlock:^{  //其他情况,切换主线程处理  }];  break;  } } } }];  }else { //不支持指纹识别,LOG出错误详情 switch (error.code) { case LAErrorTouchIDNotEnrolled: { NSLog(@"设备Touch ID不可用,用户未录入"); break; } case LAErrorPasscodeNotSet: { NSLog(@"系统未设置密码"); break; } case LAErrorTouchIDNotAvailable: { NSLog(@"设备Touch ID不可用,例如未打开"); break; } default: { NSLog(@"系统未设置密码"); break; } } NSLog(@"%@",error.localizedDescription); } }
//指纹验证返回值typedef NS_ENUM(NSInteger, LAError){ /// Authentication was not successful, because user failed to provide valid credentials. LAErrorAuthenticationFailed = kLAErrorAuthenticationFailed, /// Authentication was canceled by user (e.g. tapped Cancel button). LAErrorUserCancel = kLAErrorUserCancel, /// Authentication was canceled, because the user tapped the fallback button (Enter Password). LAErrorUserFallback = kLAErrorUserFallback, /// Authentication was canceled by system (e.g. another application went to foreground). LAErrorSystemCancel = kLAErrorSystemCancel, /// Authentication could not start, because passcode is not set on the device. LAErrorPasscodeNotSet = kLAErrorPasscodeNotSet, /// Authentication could not start, because Touch ID is not available on the device. LAErrorTouchIDNotAvailable = kLAErrorTouchIDNotAvailable, /// Authentication could not start, because Touch ID has no enrolled fingers. LAErrorTouchIDNotEnrolled = kLAErrorTouchIDNotEnrolled, /// Authentication was not successful, because there were too many failed Touch ID attempts and /// Touch ID is now locked. Passcode is required to unlock Touch ID, e.g. evaluating /// LAPolicyDeviceOwnerAuthenticationWithBiometrics will ask for passcode as a prerequisite. LAErrorTouchIDLockout NS_ENUM_AVAILABLE(10_11, 9_0) = kLAErrorTouchIDLockout, /// Authentication was canceled by application (e.g. invalidate was called while /// authentication was in progress). LAErrorAppCancel NS_ENUM_AVAILABLE(10_11, 9_0) = kLAErrorAppCancel, /// LAContext passed to this call has been previously invalidated. LAErrorInvalidContext NS_ENUM_AVAILABLE(10_11, 9_0) = kLAErrorInvalidContext} NS_ENUM_AVAILABLE(10_10, 8_0);

以上呢,就是一个简单的demo了,可能有些小问题,到时候需要的话可以自调整。这里附上这个demo的guithub链接看这里看这里,链接在这呢。

第二部分:利用现有的第三方组件实现

这个部分可以好好学习一下。

在这里呢,我要推荐一个别人写的一个第三方的组件,就是[WJTouchID](https://github.com/hu670014125/WJTouchID);这个控件的话,在这个链接上其实已经有写出怎么用了,其实不需要我再都说什么,但是我还是要说下吧。

调用时只需要一两行代码调用,但是回调函数还是需要写不少东西的。

1:复制文件进去

2:引入头文件

#import "WJTouchID.h"

3:遵守协议

@interface ViewController ()<WJTouchIDDelegate>

4: 创建对象

@property (nonatomic, strong) WJTouchID *touchID;

5:调用

- (void)viewDidLoad { [super viewDidLoad]; //初始化 WJTouchID *touchid = [[WJTouchID alloc]init]; [touchid startWJTouchIDWithMessage:WJNotice(@"自定义信息", @"The Custom Message") fallbackTitle:WJNotice(@"", @"Fallback Title") delegate:self]; self.touchID = touchid;}

6:实现回调函数

@required //TouchID验证成功- (void)WJTouchIDAuthorizeSuccess; //TouchID验证失败- (void)WJTouchIDAuthorizeFailure;@optional //当前设备不支持指纹识别- (void)WJTouchIDIsNotSupport; //当前软件被挂起取消了授权(如突然来了电话,应用进入前台)- (void)WJTouchIDAuthorizeErrorAppCancel; //取消TouchID验证 (用户点击了取消)- (void)WJTouchIDAuthorizeErrorUserCancel; //在TouchID对话框中点击输入密码按钮- (void)WJTouchIDAuthorizeErrorUserFallback; //在验证的TouchID的过程中被系统取消 例如突然来电话、按了Home键、锁屏...- (void)WJTouchIDAuthorizeErrorSystemCancel; //无法启用TouchID,设备没有设置密码- (void)WJTouchIDAuthorizeErrorPasscodeNotSet; //多次连续使用Touch ID失败,Touch ID被锁,需要用户输入密码解锁- (void)WJTouchIDAuthorizeErrorTouchIDLockout; //当前软件被挂起取消了授权 (授权过程中,LAContext对象被释)- (void)WJTouchIDAuthorizeErrorInvalidContext; //设备没有录入TouchID,无法启用TouchID- (void)WJTouchIDAuthorizeErrorTouchIDNotEnrolled; //该设备的TouchID无效- (void)WJTouchIDAuthorizeErrorTouchIDNotAvailable;

这些方法实现结束后呢,这个功能也基本上算是完成了。因为好像篇幅太长了,看得人肯定也嫌烦,所以我准备另写一篇做一个在app被唤醒的时候启动指纹验证,分别用弹出控制器和弹出自定义view这两个方式来实现,感兴趣的话可以看下。

以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持武林网。
