写在前面：

项目需求用到这个功能，主要目的是实现老师设置位置签到范围，学生在一定范围内进行签到的功能。

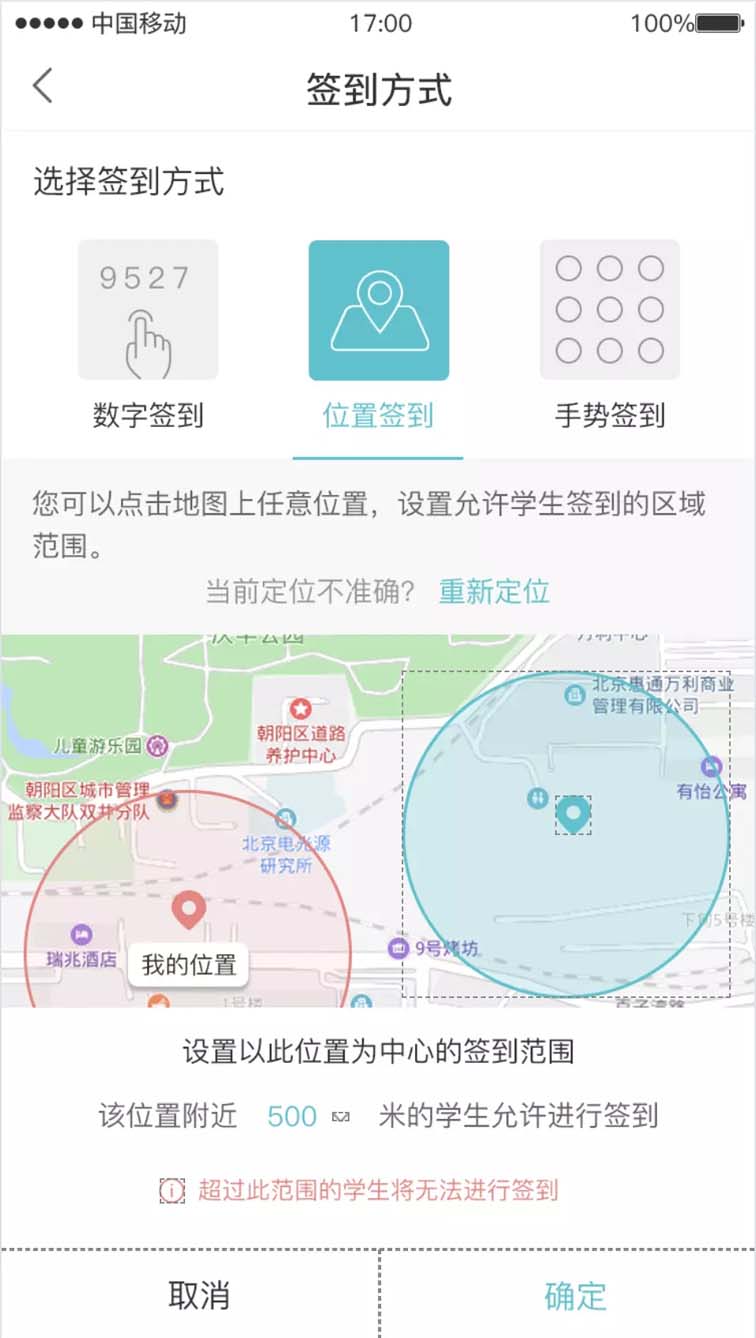

功能如下方截图：

屏幕快照 2019-01-28 上午10.29.26.png

简要介绍：

下面记录一下主要的实现流程，功能的实现主要是根据百度地图开发者官网提供的api文档，各项功能之间组合。百度地图的SDK现在分成了地图功能和定位功能两块不同的SDK，BaiduMapAPI这个是基础的地图功能，BMKLocationKit这个是定位功能。项目里实现定位签到功能用的的SDK包括上面说的这两个模块，所以在用cocopods引入framework的时候，需要引入： #百度地图 pod 'BMKLocationKit' pod 'BaiduMapKit'

功能实现

一、在APPdelegate.m文件中引入：

#import <BaiduMapAPI_Base/BMKBaseComponent.h>#import <BMKLocationKit/BMKLocationComponent.h>

加入功能代码：

#pragma mark 百度地图设置- (void)configBaiduMap { NSString *ak = @"xxxx"; BMKMapManager *mapManager = [[BMKMapManager alloc] init]; self.mapManager = mapManager; BOOL ret = [mapManager start:ak generalDelegate:nil]; [[BMKLocationAuth sharedInstance] checkPermisionWithKey:ak authDelegate:self]; if (!ret) {  NSLog(@"manager start failed!"); } }

二、在用到地图定位功能的viewController中

#import <BMKLocationKit/BMKLocationComponent.h>#import <BaiduMapAPI_Base/BMKBaseComponent.h>//引入base相关所有的头文件#import <BaiduMapAPI_Map/BMKMapComponent.h>//引入地图功能所有的头文件

遵循协议<BMKMapViewDelegate,BMKLocationManagerDelegate>

声明全局变量

@property (nonatomic, strong) BMKUserLocation *userLocation; //当前位置对象@property (nonatomic, strong) BMKLocationManager *locationManager;/** locationManager*/@property (nonatomic, strong) BMKMapView *mapView;/** 百度地图*///@property (nonatomic, strong) BMKPointAnnotation* annotation ;/** 标记*/@property (nonatomic, strong) NSMutableArray *annotationArr;/** 标记数组*/@property (nonatomic, strong) NSMutableArray *circleArr;/** 圆形数组*/

地图SDK文档中建议在以下代码中如此设置，目的是控制内存

- (void)viewWillAppear:(BOOL)animated { [super viewWillAppear:animated]; [_mapView viewWillAppear]; _mapView.delegate = self;}- (void)viewWillDisappear:(BOOL)animated { [super viewWillDisappear:animated]; [_mapView viewWillDisappear]; _mapView.delegate = nil;}- (void)dealloc { if (_mapView) {  _mapView = nil; }}

初始化数组，这两个数组在接下来会用到

- (NSMutableArray *)annotationArr {  if (!_annotationArr) {  _annotationArr = [NSMutableArray array]; } return _annotationArr;}- (NSMutableArray *)circleArr { if (!_circleArr) {  _circleArr = [NSMutableArray array]; } return _circleArr;}

添加地图view

#pragma mark 添加地图- (void)addSignMapBgView { if (!self.mapBgView) {  UIView *mapBgView = [UIView new];  self.mapBgView = mapBgView;  mapBgView.backgroundColor = [CommUtls colorWithHexString:APP_BgColor];  [self addSubview:mapBgView];  [mapBgView makeConstraints:^(MASConstraintMaker *make) {   make.top.equalTo(self.tipView.bottom);   make.left.right.bottom.equalTo(0);  }];    _mapView = [[BMKMapView alloc] initWithFrame:CGRectZero];//  _mapView.delegate = self;  [_mapView setZoomLevel:21];//精确到5米  _mapView.showsUserLocation = YES;//显示定位图层  [mapBgView addSubview:_mapView];  [_mapView makeConstraints:^(MASConstraintMaker *make) {   make.edges.equalTo(0);  }];  _mapView.userTrackingMode = BMKUserTrackingModeNone;   }}

初始化地图定位：这里我用的是一次定位而没有选择持续定位。

#pragma mark 初始化locationManager- (void)initUserLocationManager { //因为mapView是在一个分离出来的view中创建的，所以在这里将signSetTypeView中的mapView赋给当前viewcontroller的mapView； self.mapView = self.mainView.signSetTypeView.mapView; self.mapView.delegate = self;// self.annotation = [[BMKPointAnnotation alloc] init];  // self.mapView是BMKMapView对象 //精度圈设置 BMKLocationViewDisplayParam *param = [[BMKLocationViewDisplayParam alloc] init]; //设置显示精度圈，默认YES param.isAccuracyCircleShow = YES; //精度圈 边框颜色 param.accuracyCircleStrokeColor = [UIColor colorWithRed:242/255.0 green:129/255.0 blue:126/255.0 alpha:1]; //精度圈 填充颜色 param.accuracyCircleFillColor = [UIColor colorWithRed:242/255.0 green:129/255.0 blue:126/255.0 alpha:0.3]; [self.mapView updateLocationViewWithParam:param];  self.userLocation = [[BMKUserLocation alloc] init]; //初始化实例 _locationManager = [[BMKLocationManager alloc] init]; //设置delegate _locationManager.delegate = self; //设置返回位置的坐标系类型 _locationManager.coordinateType = BMKLocationCoordinateTypeBMK09LL; //设置距离过滤参数 _locationManager.distanceFilter = kCLDistanceFilterNone; //设置预期精度参数 _locationManager.desiredAccuracy = kCLLocationAccuracyBest; //设置应用位置类型 _locationManager.activityType = CLActivityTypeAutomotiveNavigation; //设置是否自动停止位置更新 _locationManager.pausesLocationUpdatesAutomatically = NO; //设置是否允许后台定位 //_locationManager.allowsBackgroundLocationUpdates = YES; //设置位置获取超时时间 _locationManager.locationTimeout = 15; //设置获取地址信息超时时间 _locationManager.reGeocodeTimeout = 15; //请求一次定位 [self requestLocation];}

请求定位，获取经纬度

#pragma mark 请求定位- (void)requestLocation {  [_locationManager requestLocationWithReGeocode:YES withNetworkState:YES completionBlock:^(BMKLocation * _Nullable location, BMKLocationNetworkState state, NSError * _Nullable error) {  if (error)  {   NSLog(@"locError:{%ld - %@};", (long)error.code, error.localizedDescription);  }  if (location) {//得到定位信息，添加annotation      if (location.location) {    NSLog(@"LOC = %@",location.location);   }   if (location.rgcData) {    NSLog(@"rgc = %@",[location.rgcData description]);   }      if (!location) {    return;   }   if (!self.userLocation) {    self.userLocation = [[BMKUserLocation alloc] init];   }   self.userLocation.location = location.location;   [self.mapView updateLocationData:self.userLocation];   CLLocationCoordinate2D mycoordinate = location.location.coordinate;   self.mapView.centerCoordinate = mycoordinate;      //赋予初始值   self.viewModel.lat = [NSString stringWithFormat:@"%f", location.location.coordinate.latitude];   self.viewModel.lng = [NSString stringWithFormat:@"%f",location.location.coordinate.longitude];   self.viewModel.radius = @"50";      //打印经纬度   NSLog(@"didUpdateUserLocation lat %f,long %f",location.location.coordinate.latitude,location.location.coordinate.longitude);  }  NSLog(@"netstate = %d",state); }];}

地图长按选点功能实现：

//长按地图选点- (void)mapview:(BMKMapView *)mapView onLongClick:(CLLocationCoordinate2D)coordinate {  if (self.annotationArr.count > 0) {  [mapView removeAnnotations:self.annotationArr];  [self.annotationArr removeAllObjects];    BMKPointAnnotation *annotation = [[BMKPointAnnotation alloc]init];  annotation.coordinate = coordinate;  [self.annotationArr addObject:annotation];  [mapView addAnnotations:self.annotationArr]; } else {  BMKPointAnnotation *annotation = [[BMKPointAnnotation alloc]init];  annotation.coordinate = coordinate;  [self.annotationArr addObject:annotation];  [mapView addAnnotations:self.annotationArr]; } //弹出半径选择框 [self showLocationSelectRadiusViewWithCoordinate:coordinate];}

选点后弹出选择定位范围弹框

#pragma mark 弹出位置弹框- (void)showLocationSelectRadiusViewWithCoordinate:(CLLocationCoordinate2D)coordinate { ExtraActLocationSignPopView *popView = [ExtraActLocationSignPopView new]; [popView show]; @weakify(self); [popView.locatioonSureSignal subscribeNext:^(NSString *x) {  @strongify(self);  self.viewModel.radius = x;  CGFloat radius = [x floatValue];  [self circleWithCenterWithCoordinate2D:coordinate radius:radius]; }];}

设置好定位点以及半径范围后绘制范围圈，开始的时候声明的circleArr在这里用来盛放添加的区域圆形，在添加新的圆圈的时候，将之前旧的移除，保证每次绘制的范围都是最新的，同理annotationArr也是这个功能，因为API有提供的- (void)addOverlays:(NSArray *)overlays;这个方法：/** *向地图窗口添加一组Overlay，需要实现BMKMapViewDelegate的-mapView:viewForOverlay:函数来生成标注对应的View *@param overlays 要添加的overlay数组 */

#pragma mark 添加区域圆形覆盖- (void)circleWithCenterWithCoordinate2D:(CLLocationCoordinate2D )coor radius:(CGFloat)radius {  NSLog(@"coordinate lat %f,long %f",coor.latitude,coor.longitude); //赋予点击选点值 self.viewModel.lat = [NSString stringWithFormat:@"%f", coor.latitude]; self.viewModel.lng = [NSString stringWithFormat:@"%f",coor.longitude];  if (self.circleArr.count > 0) {  [_mapView removeOverlays:self.circleArr];  [self.circleArr removeAllObjects];    BMKCircle *circle = [BMKCircle circleWithCenterCoordinate:coor radius:radius];  [self.circleArr addObject:circle];  [_mapView addOverlays:self.circleArr]; } else {  BMKCircle *circle = [BMKCircle circleWithCenterCoordinate:coor radius:radius];  [self.circleArr addObject:circle];  [_mapView addOverlays:self.circleArr]; }}#pragma mark 重绘overlay- (BMKOverlayView *)mapView:(BMKMapView *)mapView viewForOverlay:(id <BMKOverlay>)overlay{ if ([overlay isKindOfClass:[BMKCircle class]]){  BMKCircleView* circleView = [[BMKCircleView alloc] initWithOverlay:overlay];  circleView.fillColor = [UIColor colorWithRed:33/255.0 green:196/255.0 blue:206/255.0 alpha:0.3];  circleView.strokeColor = [UIColor colorWithRed:33/255.0 green:196/255.0 blue:206/255.0 alpha:1];  circleView.lineWidth = 1.0;  return circleView; } return nil;}

至此，在地图上选点进行签到功能基本实现，另外，关于自定义的范围圆圈的颜色，边框大小都是可以自定义的，选点的标记也是可以自定义的，官方文档有说明

总结

以上就是这篇文章的全部内容了，希望本文的内容对大家的学习或者工作具有一定的参考学习价值，如果有疑问大家可以留言交流，谢谢大家对武林网的支持。
