iOS设置圆角阴影避免离屏渲染

2020-07-26 02:20:17

字体：大中小

来源：转载

供稿：网友

iOS 控件设置圆角，避免离屏渲染。

离屏渲染：指GPU（图形处理器）在当前屏幕缓冲区外新开辟一个渲染缓冲区进行工作。这会给我们带来额外的性能损耗，如果这样的操作达到一定数量，会触发缓冲区的频繁合并和上下文的的频繁切换，会出现卡顿、掉帧现象。造成离屏渲染的原因有很多，如：shouldRasterize（光栅化）、mask（遮罩层）、shadows（阴影）、EdgeAnntialiasing（抗锯齿）、cornerRadius（圆角）等等。

下面说一下什么情况下设置圆角会造成离屏渲染：

//设置cornerRadius>0且masksToBounds为YESview.layer.cornerRadius = 10.f;view.layer.masksToBounds = YES; //设置cornerRadius>0且masksToBounds为YESview.layer.cornerRadius = 10.f;view.clipToBounds = YES; //像下面设置view.layer.maskUIBezierPath *path = [UIBezierPath bezierPathWithRoundedRect:imgView.bounds byRoundingCorners:UIRectCornerAllCorners cornerRadii:CGSizeMake(10.f, 10.f)];CAShapeLayer *maskLayer = [[CAShapeLayer alloc] init];maskLayer.frame = view.bounds;maskLayer.path = path.CGPath;view.layer.mask = maskLayer;

上面第一种应该是最常用的，是在设置了圆角及masksToBounds为YES时，才会触发离屏渲染，而masksToBounds默认是NO，也就是说只要不设置这个属性就能避免很多情况了，下面说一下如何切一个不触发离屏渲染的圆角：

UIView、UITextField、UITextView等大部分控件都可以像下面这样设置：

view.layer.cornerRadius = 10.f;view.layer.masksToBounds = NO;

有一些特殊情况，UILabel设置时，不要设置label.backgroundColor，应设置：

label.layer.cornerRadius = 10.f;label.layer.backgroundColor = [UIColor whiteColor].CGColor;

有图片的UIButton、UIIMageView，用drawInRect绘制UIImage圆角：

UIBezierPath *bezierPath = [UIBezierPath bezierPathWithRoundedRect:rect cornerRadius:cornerRadius];UIGraphicsBeginImageContextWithOptions(rect.size, false, [UIScreen mainScreen].scale);CGContextAddPath(UIGraphicsGetCurrentContext(), bezierPath.CGPath);CGContextClip(UIGraphicsGetCurrentContext());[self drawInRect:rect]; CGContextDrawPath(UIGraphicsGetCurrentContext(), kCGPathFillStroke);UIImage *image = UIGraphicsGetImageFromCurrentImageContext();UIGraphicsEndImageContext();

查看离屏渲染，模拟器可以选中“Debug - Color Off-screen Rendered”开启调试，真机可以用Instruments检测，“Instruments - Core Animation - Debug Options - Color Offscreen-Rendered Yellow”开启调试，开启后，有离屏渲染的图层会变成高亮的黄色。

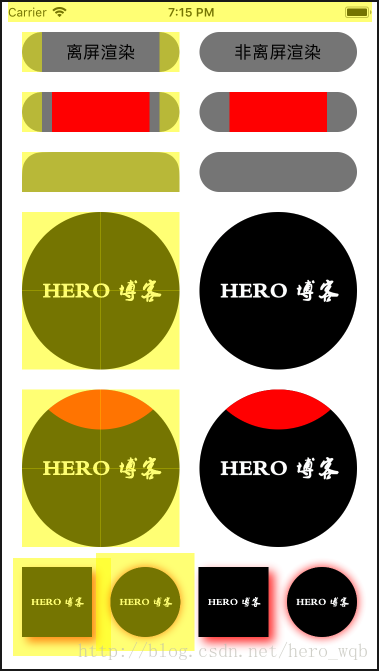

写了个离屏渲染的样例：

下面贴上代码：

控制器ViewController：

#import "ViewController.h"#import "UIImage+HWCorner.h" #define KMainW [UIScreen mainScreen].bounds.size.width @interface ViewController () @end @implementation ViewController - (void)viewDidLoad { [super viewDidLoad];  self.view.backgroundColor = [UIColor whiteColor];  //创建控件 [self creatControl];} - (void)creatControl{ CGFloat margin = 20.f; CGFloat controlW = (KMainW - margin * 3) * 0.5;  NSArray *titleArray = @[@"离屏渲染", @"非离屏渲染"]; for (int i = 0; i < titleArray.count; i++) { CGFloat controlX = margin + (controlW + margin) * i; //UILabel UILabel *label = [[UILabel alloc] initWithFrame:CGRectMake(controlX, 30, controlW, 40)]; label.layer.backgroundColor = [[UIColor grayColor] CGColor]; label.text = titleArray[i]; label.textAlignment = NSTextAlignmentCenter; label.layer.cornerRadius = label.bounds.size.height * 0.5; label.layer.masksToBounds = i == 0 ? YES : NO; [self.view addSubview:label];  //UIView UIView *view = [[UIView alloc] initWithFrame:CGRectMake(controlX, CGRectGetMaxY(label.frame) + margin, controlW, 40)]; view.backgroundColor = [UIColor grayColor]; view.layer.cornerRadius = view.bounds.size.height * 0.5; view.layer.masksToBounds = i == 0 ? YES : NO; [self.view addSubview:view];  //UIView若未添加子控件，设置view.layer.masksToBounds = YES;也不会造成离屏渲染 UIView *subView = [[UIView alloc] initWithFrame:CGRectMake(30, 0, controlW - 60, 40)]; subView.backgroundColor = [UIColor redColor]; [view addSubview:subView];  //UITextView UITextView *textView = [[UITextView alloc] initWithFrame:CGRectMake(controlX, CGRectGetMaxY(view.frame) + margin, controlW, 40)]; textView.userInteractionEnabled = NO; textView.backgroundColor = [UIColor grayColor]; if (i == 0) {  /*  这里换了一种实现方法，用UIBezierPath赋值layer.mask，两种方式都会造成离屏渲染  textView.layer.cornerRadius = textView.bounds.size.height * 0.5;  textView.layer.masksToBounds = YES;  */  UIBezierPath *path = [UIBezierPath bezierPathWithRoundedRect:textView.bounds byRoundingCorners:UIRectCornerTopLeft | UIRectCornerTopRight cornerRadii:CGSizeMake(textView.bounds.size.height * 0.5, textView.bounds.size.height * 0.5)];  CAShapeLayer *maskLayer = [[CAShapeLayer alloc] init];  maskLayer.frame = textView.bounds;  maskLayer.path = path.CGPath;  textView.layer.mask = maskLayer; }else {  textView.layer.cornerRadius = textView.bounds.size.height * 0.5;  textView.layer.masksToBounds = NO; } [self.view addSubview:textView];  //UIButton UIButton *button = [[UIButton alloc] initWithFrame:CGRectMake(controlX, CGRectGetMaxY(textView.frame) + margin, controlW, controlW)]; if (i == 0) {  [button setImage:[UIImage imageNamed:@"hero_1"] forState:UIControlStateNormal];  button.layer.cornerRadius = button.bounds.size.width * 0.5;  button.layer.masksToBounds = YES; }else {  [button setImage:[[UIImage imageNamed:@"hero_1"] drawCornerInRect:button.bounds cornerRadius:button.bounds.size.width * 0.5] forState:UIControlStateNormal]; } [self.view addSubview:button];  //UIImageView设置圆角 UIImageView *imageView = [[UIImageView alloc] initWithFrame:CGRectMake(controlX, CGRectGetMaxY(button.frame) + margin, controlW, controlW)]; if (i == 0) {  [imageView setImage:[UIImage imageNamed:@"hero_1"]];  imageView.layer.cornerRadius = imageView.bounds.size.width * 0.5;  imageView.layer.masksToBounds = YES; }else {  [imageView setImage:[[UIImage imageNamed:@"hero_1"] drawCornerInRect:imageView.bounds cornerRadius:imageView.bounds.size.width * 0.5]]; } [self.view addSubview:imageView];  //UIImageView若未添加子控件，设置imageView.layer.masksToBounds = YES;也不会造成离屏渲染 UIView *subImageView = [[UIView alloc] initWithFrame:CGRectMake(0, 0, controlW, 40)]; subImageView.backgroundColor = [UIColor redColor]; subImageView.layer.cornerRadius = imageView.bounds.size.width * 0.5; [imageView addSubview:subImageView];  //UIImageView设置阴影 CGFloat imgW = 70.f; CGFloat imgPadding = (KMainW - imgW * 4 - margin * 2) / 3; UIImageView *shadowImgView = [[UIImageView alloc] initWithFrame:CGRectMake(margin + (imgW + imgPadding) * 2 * i, CGRectGetMaxY(imageView.frame) + margin, imgW, imgW)]; [shadowImgView setImage:[UIImage imageNamed:@"hero_1"]]; shadowImgView.layer.shadowColor = [UIColor redColor].CGColor; shadowImgView.layer.shadowOpacity = 0.8f; shadowImgView.layer.shadowOffset = CGSizeMake(5, 5); shadowImgView.layer.shadowRadius = 5.f; if (i == 1) {  UIBezierPath *path = [UIBezierPath bezierPathWithRect:shadowImgView.bounds];  shadowImgView.layer.shadowPath = path.CGPath; } [self.view addSubview:shadowImgView];  //UIImageView设置阴影+圆角 UIImageView *shadowCorImgView = [[UIImageView alloc] initWithFrame:CGRectMake(margin + imgW + imgPadding + (imgW + imgPadding) * 2 * i, CGRectGetMinY(shadowImgView.frame), imgW, imgW)]; [shadowCorImgView setImage:[[UIImage imageNamed:@"hero_1"] drawCornerInRect:imageView.bounds cornerRadius:imageView.bounds.size.width * 0.5]]; shadowCorImgView.layer.shadowColor = [UIColor redColor].CGColor; shadowCorImgView.layer.shadowOpacity = 0.8f; shadowCorImgView.layer.shadowOffset = CGSizeMake(0, 0); shadowCorImgView.layer.shadowRadius = 5.f; if (i == 1) {  UIBezierPath *path = [UIBezierPath bezierPathWithRoundedRect:shadowCorImgView.bounds cornerRadius:shadowCorImgView.bounds.size.height * 0.5];  shadowCorImgView.layer.shadowPath = path.CGPath; } [self.view addSubview:shadowCorImgView]; }} @end

UIImage分类，UIImage+HWCorner：

#import <UIKit/UIKit.h> @interface UIImage (HWCorner) //绘制图片圆角- (UIImage *)drawCornerInRect:(CGRect)rect cornerRadius:(CGFloat)cornerRadius; @end /*** ---------------分割线--------------- ***/  #import "UIImage+HWCorner.h" @implementation UIImage (HWCorner) //绘制图片圆角- (UIImage *)drawCornerInRect:(CGRect)rect cornerRadius:(CGFloat)cornerRadius{ UIBezierPath *bezierPath = [UIBezierPath bezierPathWithRoundedRect:rect cornerRadius:cornerRadius]; UIGraphicsBeginImageContextWithOptions(rect.size, false, [UIScreen mainScreen].scale); CGContextAddPath(UIGraphicsGetCurrentContext(), bezierPath.CGPath); CGContextClip(UIGraphicsGetCurrentContext()); [self drawInRect:rect];  CGContextDrawPath(UIGraphicsGetCurrentContext(), kCGPathFillStroke); UIImage *image = UIGraphicsGetImageFromCurrentImageContext(); UIGraphicsEndImageContext();  return image;} @end

最后说一下，只有在大量的离屏渲染情况时才会出现卡顿、掉帧等现象，没必要过分追求容不下一丝黄色。性能上Instruments工具还可以检测很多。
