SwiftUI 为我们提供了各种梯度选项，所有这些选项都可以通过多种方式使用。

Gradient 渐变器

A color gradient represented as an array of color stops, each having a parametric location value.

gradient是一组颜色的合集，每个颜色都忽略位置参数

LinearGradient 线性渐变器

线性渐变器拥有沿轴进行渐变函数，我们可以自定义设置颜色空间、起点和终点。

下面我们看看LinearGradient效果

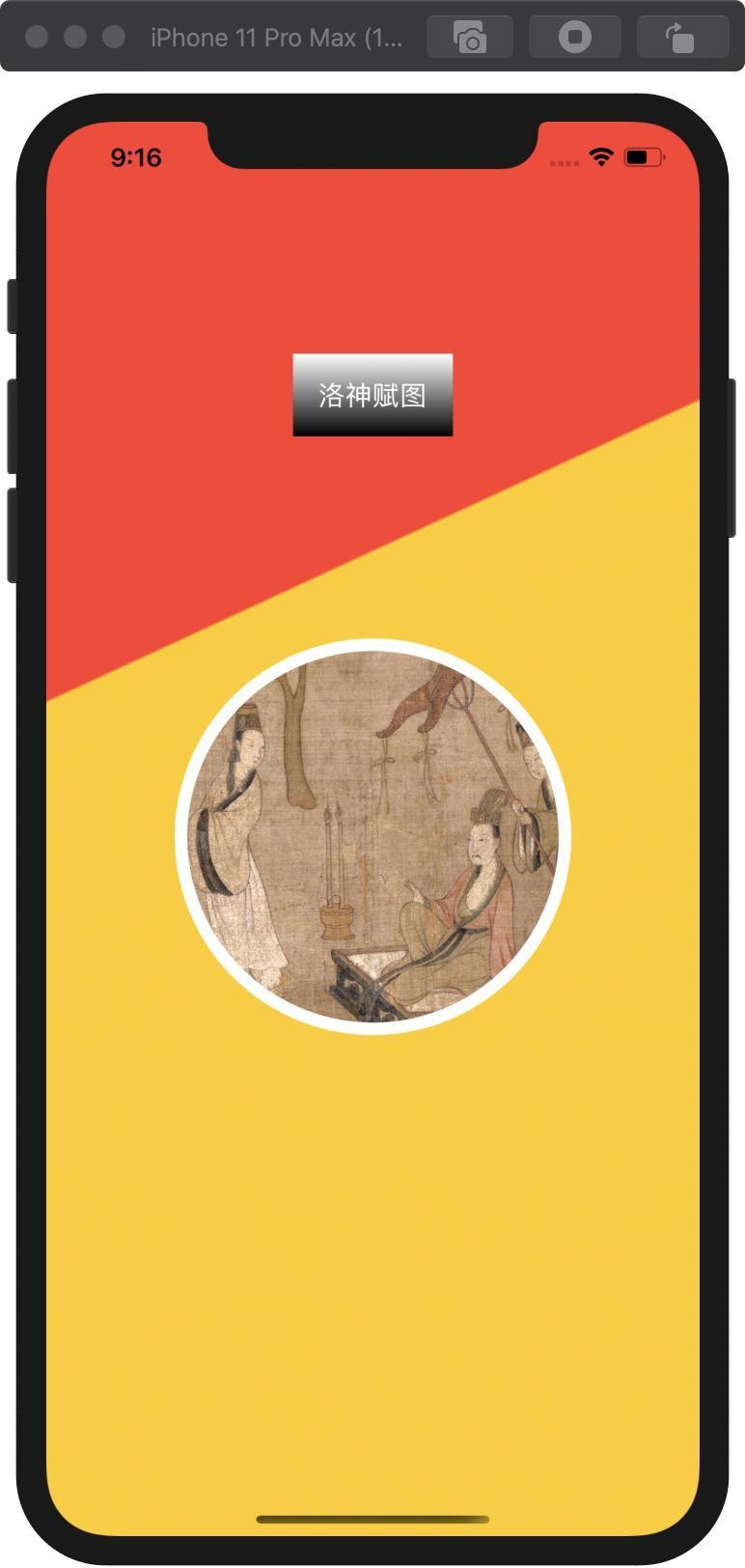

import SwiftUIstruct LineView: View {   var gradient: Gradient {      let stops: [Gradient.Stop] = [        .init(color: .red, location: 0.5),        .init(color: .yellow, location: 0.5)      ]      return Gradient(stops: stops)    }        var body: some View {            ZStack {          LinearGradient(gradient: gradient,                 startPoint: .top,                 endPoint: .trailing)            .edgesIgnoringSafeArea(.all)                    Image("1")            .resizable()            .aspectRatio(contentMode: .fit)            .clipShape(Circle())            .overlay(Circle()              .stroke(lineWidth: 8)              .foregroundColor(.white))            .frame(width: 250)                  Text("洛神赋图")              .padding()              .foregroundColor(.white)          .cornerRadius(8)              .background(LinearGradient(gradient: Gradient(colors: [.white, .black]), startPoint: .top, endPoint: .bottom))          .offset(y:-280)        }    }}

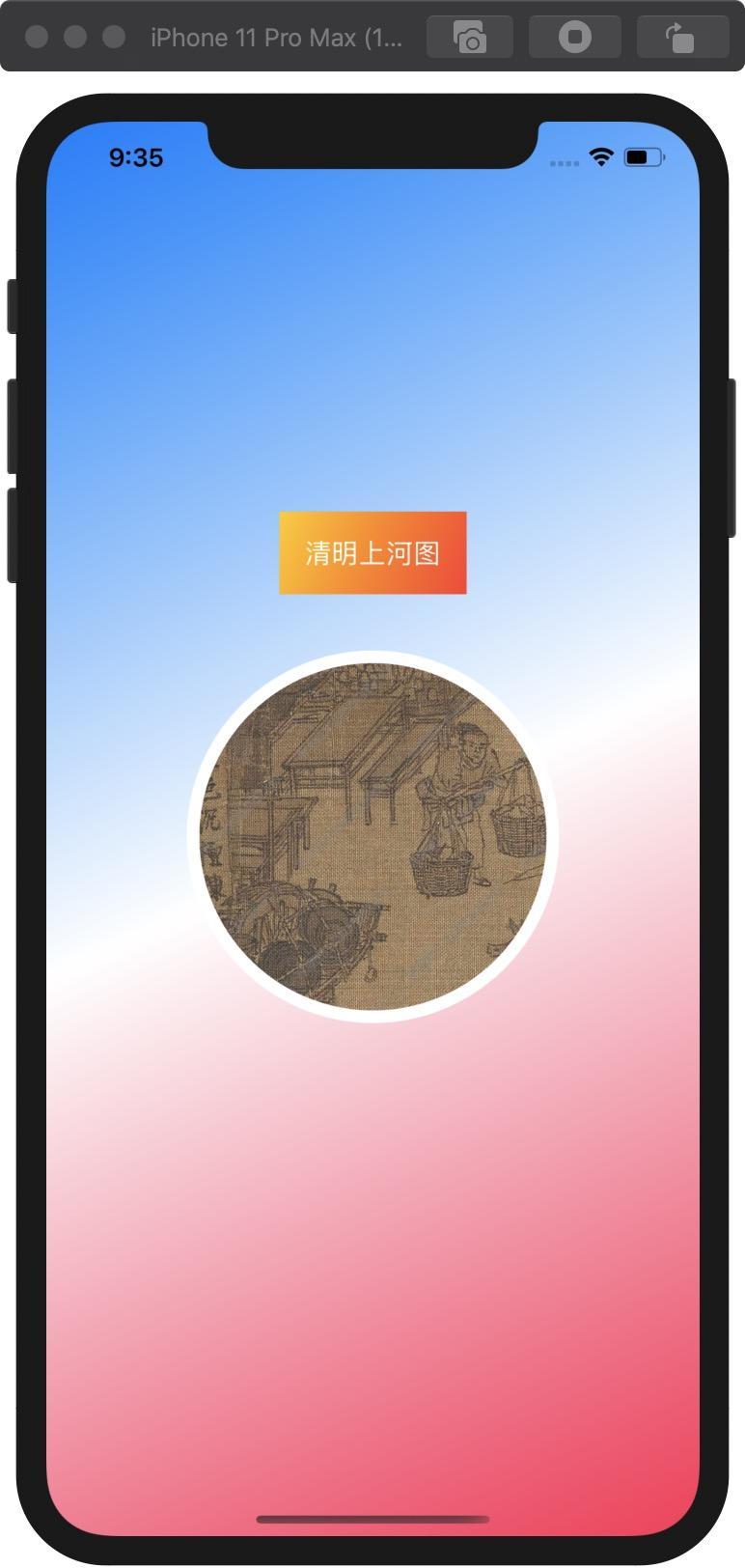

import SwiftUIstruct LineGradient3Color: View {    var body: some View {    ZStack {      LinearGradient(gradient:        Gradient(          colors: [.blue, .white, .pink]),              startPoint: .topLeading,              endPoint: .bottomTrailing)        .edgesIgnoringSafeArea(.all)            Image("2")        .resizable()        .aspectRatio(contentMode: .fit)        .clipShape(Circle())        .overlay(Circle()          .stroke(lineWidth: 8)          .foregroundColor(.white))        .frame(width: 250)            Text("清明上河图")        .padding()        .foregroundColor(.white)        .cornerRadius(8)        .background(LinearGradient(gradient: Gradient(          colors: [.yellow, .red]),                      startPoint: .topLeading,          endPoint: .bottomTrailing))        .offset(y:-180)    }  }}

Radial Gradient 径向渐变

在径向渐变中，我们必须指定起始半径点，端半径点与中心点，从径向渐变开变.

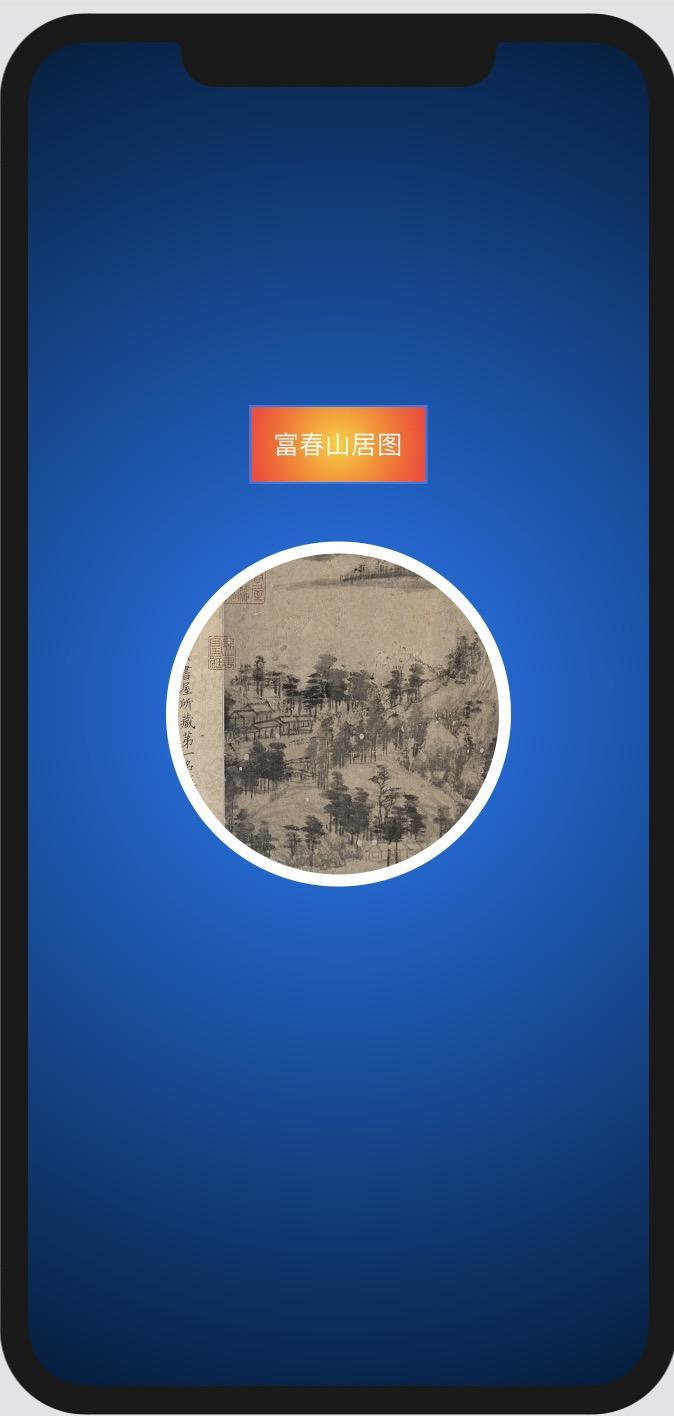

import SwiftUIstruct RadialView: View {   var body: some View {     ZStack {       RadialGradient(gradient: Gradient(        colors: [.blue, .black]),        center: .center,        startRadius: 2,        endRadius: 650)         .edgesIgnoringSafeArea(.all)              Image("3")         .resizable()         .aspectRatio(contentMode: .fit)         .clipShape(Circle())         .overlay(Circle()           .stroke(lineWidth: 8)           .foregroundColor(.white))         .frame(width: 250)              Text("富春山居图")         .padding()         .foregroundColor(.white)         .cornerRadius(8)         .background(          RadialGradient(gradient: Gradient(           colors: [.yellow, .red]),                  center: .center,                   startRadius: 2,               endRadius: 60))         .offset(y:-180)     }   }}

Angular Gradient

在角渐变中，我们只需要通过中心点。

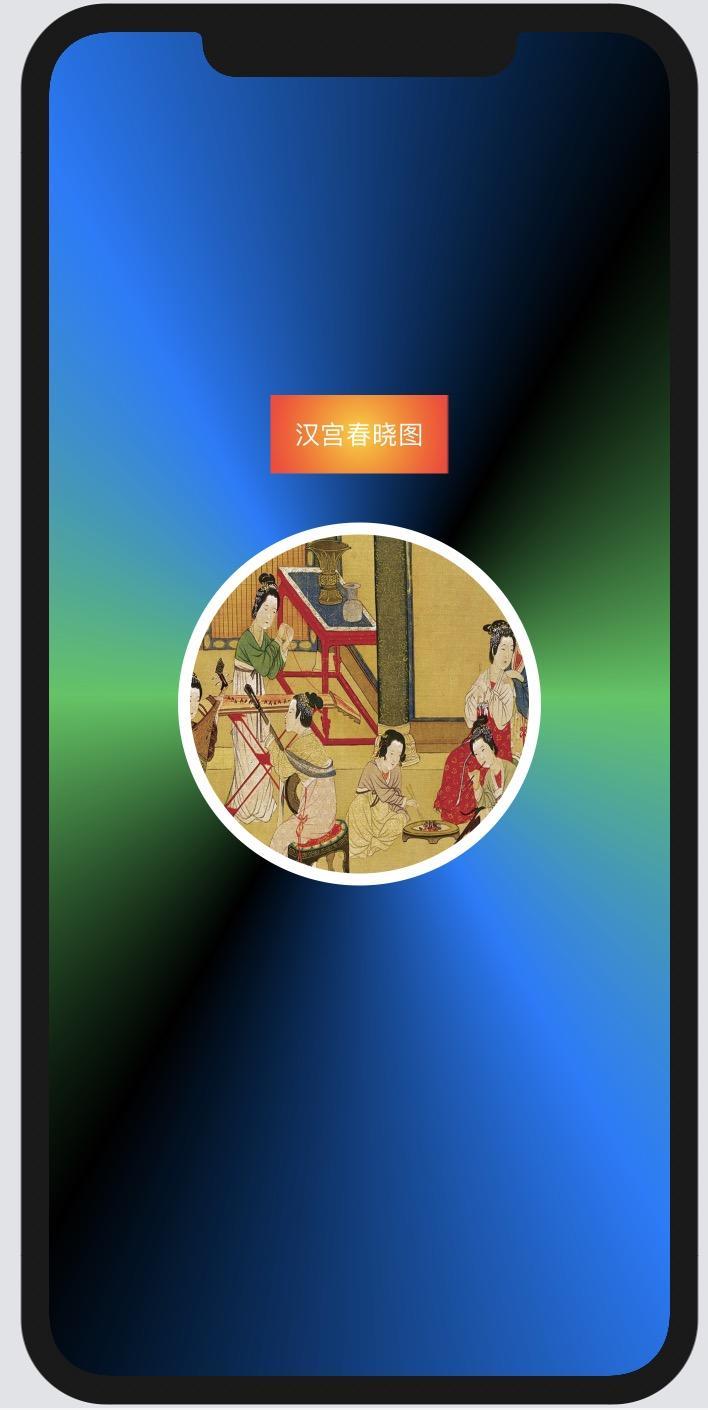

import SwiftUIstruct AngularView: View {    var body: some View {     ZStack {      AngularGradient(gradient: Gradient(        colors: [.green, .blue, .black, .green, .blue, .black, .green]),        center: .center)         .edgesIgnoringSafeArea(.all)              Image("4")         .resizable()         .aspectRatio(contentMode: .fit)         .clipShape(Circle())         .overlay(Circle()           .stroke(lineWidth: 8)           .foregroundColor(.white))         .frame(width: 250)              Text("汉宫春晓图")         .padding()         .foregroundColor(.white)         .cornerRadius(8)         .background(          RadialGradient(gradient: Gradient(           colors: [.yellow, .red]),                 center: .center,                   startRadius: 2,              endRadius: 60))         .offset(y:-180)     }   }

以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持武林网。
