H3C配置IPSEC 教程实例(图文)

2020-07-24 12:20:15
字体:
来源:转载
供稿:网友

  H3C配置IPSEC 思路跟思科差不多,无非就是命令不一样的,下面就演示一下

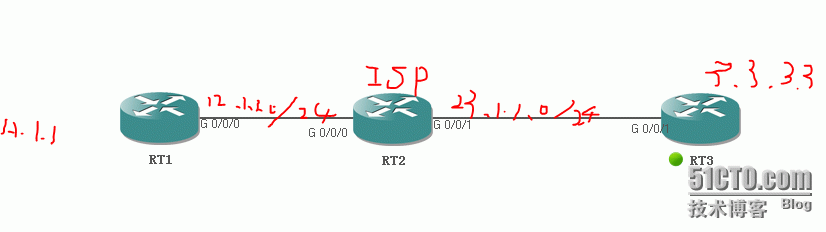

  拓扑:


  RT1背后有个1.1.1.1网段,RT3背后有个3.3.3.3网段,ISP没有这两条路由

  RT2:

  system-view

  System View: return to User View with Ctrl+Z.

  [RT2]int g0/0/0

  [RT2-GigabitEthernet0/0/0]ip add 12.1.1.2 24

  [RT2-GigabitEthernet0/0/0]quit

  [RT2]int g0/0/1

  [RT2-GigabitEthernet0/0/1]ip add 23.1.1.2 24

  [RT2-GigabitEthernet0/0/1]quit

  RT1:

  acl number 3000

  rule 0 permit ip source 1.1.1.0 0.0.0.255 destination 3.3.3.0 0.0.0.255

  ike proposal 1

  encryption-algorithm 3des-cbc

  authentication-algorithm md5

  authentication-metod pre-share

  dh group2

  ike peer cisco

  id-type ip

  pre-shared-key simple cisco

  remote-address 23.1.1.3

  local-address 12.1.1.1

  #

  ipsec proposal cisco

  transform esp

  esp authentication-algorithm md5

  esp encryption-algorithm 3des

  ipsec policy cisco 10 isakmp

  security acl 3000

  ike-peer cisco

  proposal cisco

  int g0/0/0

  ipsec policy cisco

  ip route-static 0.0.0.0 0.0.0.0 12.1.1.2

  RT3:

  acl number 3000

  rule 0 permit ip source 3.3.3.0 0.0.0.255 destination 1.1.1.0 0.0.0.255

  ike proposal 1

  encryption-algorithm 3des-cbc

  authentication-algorithm md5

  authentication-metod pre-share

  dh group2

  ike peer cisco

  id-type ip

  pre-shared-key simple cisco

  remote-address 12.1.1.1

  local-address 23.1.1.3

  #

  ipsec proposal cisco

  transform esp

  esp authentication-algorithm md5

  esp encryption-algorithm 3des

  ipsec policy cisco 10 isakmp

  security acl 3000

  ike-peer cisco

  proposal cisco

  int g0/0/1

  ipsec policy cisco

  ip route-static 0.0.0.0 0.0.0.0 23.1.1.2

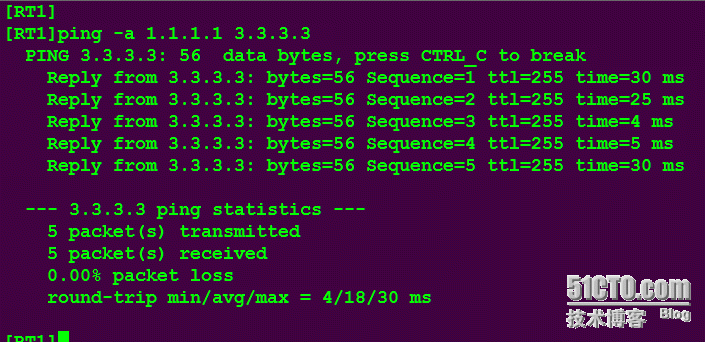

  效果:
