详解iOS App中图片的线段涂鸦功能的添加方法

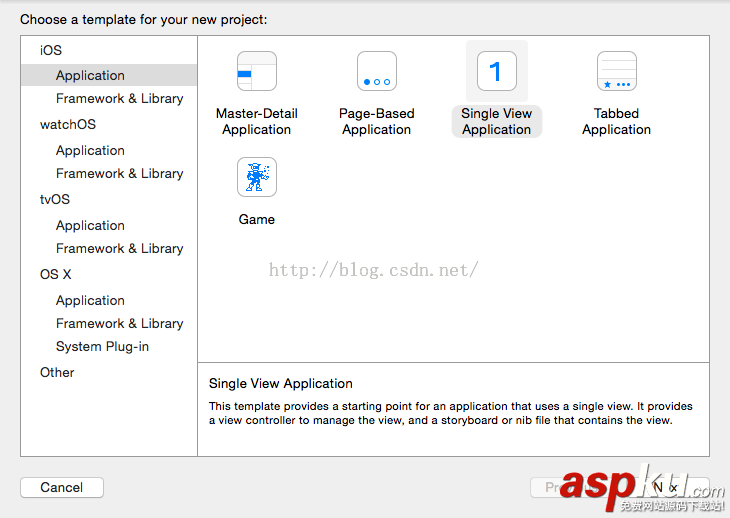

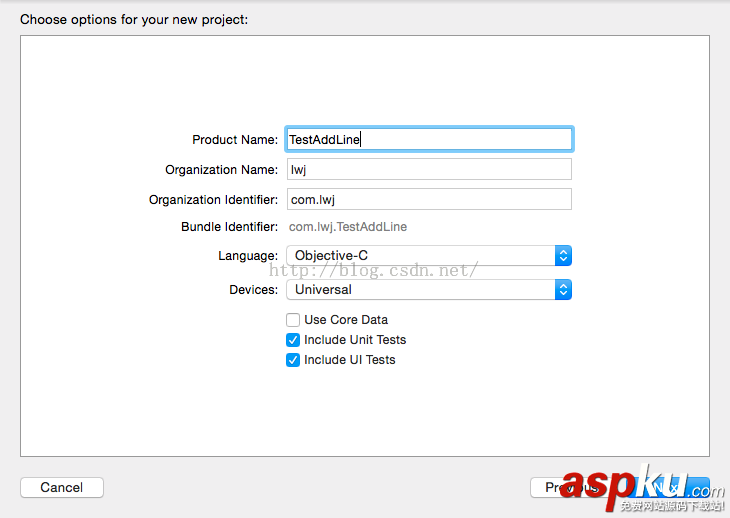

- (void)viewDidLoad {
    [super viewDidLoad];
    // Do any additional setup after loading the view, typically from a nib.

    UIImageView *imageV = [[UIImageView alloc]initWithFrame:CGRectMake(10, 120, screen_Width-20, screen_Height-150)];
    imageV.image = [UIImage imageNamed:@"640-960-1.jpg"];
    [self.view addSubview:imageV];

    UIButton *testBtn = [[UIButton alloc]initWithFrame:CGRectMake(screen_Width/2.0-60, 60, 120, 36)];
    [testBtn setTitleColor:[UIColor blackColor] forState:UIControlStateNormal];
    [testBtn setTitle:@"添加直线" forState:UIControlStateNormal];
    [testBtn addTarget:self action:@selector(addLineAct:) forControlEvents:UIControlEventTouchUpInside];
    [self.view addSubview:testBtn];
}

- (void)addLineAct:(id)sender{
    NSLog(@"测试按钮");
}

@property(nonatomic,strong) NSMutableArray * completeLines; //已经画好的线条 存入数组
@property(nonatomic,strong) NSMutableDictionary* LinesInProscess; //正在画的线条 存入字典
@property(nonatomic,strong) UIColor *lineColor;//线条颜色
@property (nonatomic)float lineWidth;//线条的粗细

//初始化
- (id)initWithFrame:(CGRect)frame{
    if (self = [super initWithFrame:frame]) {
        //初始化变量
        _completeLines = [[NSMutableArray alloc]init];
        _LinesInProscess = [[NSMutableDictionary alloc]init];
        //设置透明背景
        self.backgroundColor = [UIColor clearColor];

    }

    return  self;
}

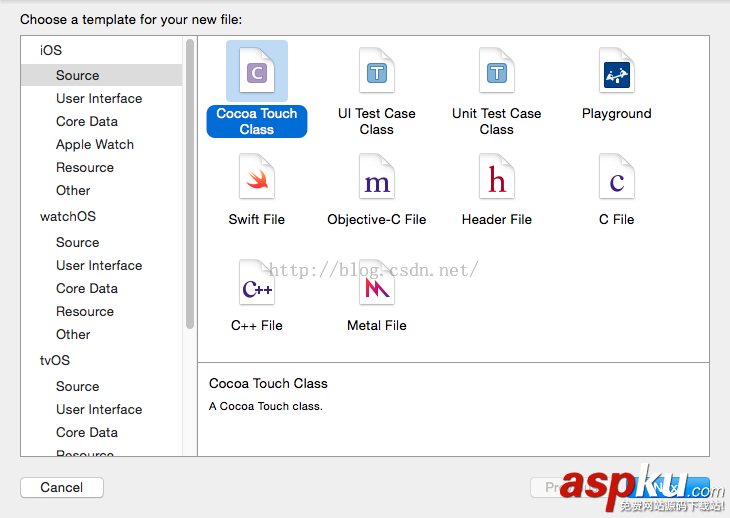

#import <Foundation/Foundation.h>
#import <UIKit/UIKit.h>

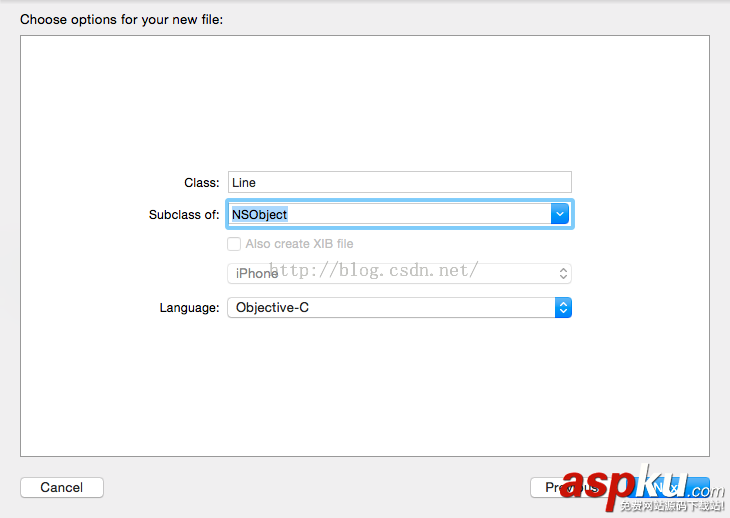

@interface Line : NSObject

@property(nonatomic)CGPoint begin; //线条开始点

@property(nonatomic)CGPoint end; //线条结束点

@end

// Only override drawRect: if you perform custom drawing.
// An empty implementation adversely affects performance during animation.

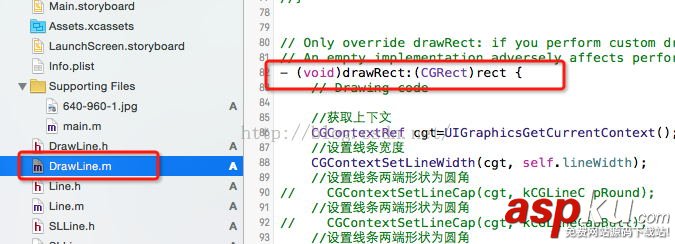

- (void)drawRect:(CGRect)rect {
    // Drawing code

    //获取上下文
    CGContextRef cgt=UIGraphicsGetCurrentContext();
    //设置线条宽度
    CGContextSetLineWidth(cgt, self.lineWidth);
    //设置线条两端形状为圆角
    CGContextSetLineCap(cgt, kCGLineCapRound);

    //设置颜色
    [self.lineColor set];
    //绘制已经完成的线段
    for (Line *line in _completeLines){
        CGContextMoveToPoint(cgt, [line begin].x, [line begin].y);
        CGContextAddLineToPoint(cgt, [line end].x, [line end].y );
        CGContextStrokePath(cgt);
    }


    //绘制正在画的线段
    for (NSArray *v in _LinesInProscess) {
        Line *line =[_LinesInProscess objectForKey:v];
        CGContextMoveToPoint(cgt, [line begin].x, [line begin].y);
        CGContextAddLineToPoint(cgt, [line end].x, [line end].y );
        CGContextStrokePath(cgt);
    }

}

//清空画板
-(void)clearAll
{
    [_completeLines removeLastObject];
    [_LinesInProscess removeAllObjects];
    [self setNeedsDisplay];
}


-(void)touchesBegan:(NSSet *)touches withEvent:(UIEvent *)event
{
    //判断是否连按
    for (UITouch *t in touches) {
        if ([t tapCount]>1) {
            //第二次画线时第一条线还未完成时结束画线
            [self clearAll];
            return;
        }

        //NSValue 作为键使用
        NSValue *key=[NSValue valueWithNonretainedObject:t];

        // 根据触摸位置创建Line对象
        CGPoint loc=[t locationInView:self];
        Line *newLine=[[Line alloc]init ];
        newLine.begin=loc;
        newLine.end=loc;
        //将当前正在画的线存入字典
        [_LinesInProscess setObject:newLine forKey:key];

    }
}

-(void)touchesMoved:(NSSet *)touches withEvent:(UIEvent *)event
{
    //手指移动过程中按照当前手指的位置动态更新线条
    for (UITouch * t in touches) {
        NSValue *key=[NSValue valueWithNonretainedObject:t];
        // 找对象当前UITouch对象的Line对象
        Line *line =[_LinesInProscess objectForKey:key];

        CGPoint loc=[t locationInView:self];
        line.end=loc;
    }
    [self setNeedsDisplay];
}

-(void)endTouches:(NSSet *) touches
{
    //画线完成之后将当前线条加入_completeLines 数组中 同时删除字典_LinesInProscess里的线条
    for (UITouch *t in touches) {
        NSValue *key=[NSValue valueWithNonretainedObject:t];
        Line *line =[_LinesInProscess objectForKey:key];
        if (line) {
            [_completeLines addObject:line];
            [_LinesInProscess removeObjectForKey:key];
        }
    }
    [self setNeedsDisplay];
}

-(void)touchesCancelled:(NSSet *)touches withEvent:(UIEvent *)event
{
    [self endTouches:touches];
}

-(void)touchesEnded:(NSSet *)touches withEvent:(UIEvent *)event
{
    [self endTouches:touches];
}

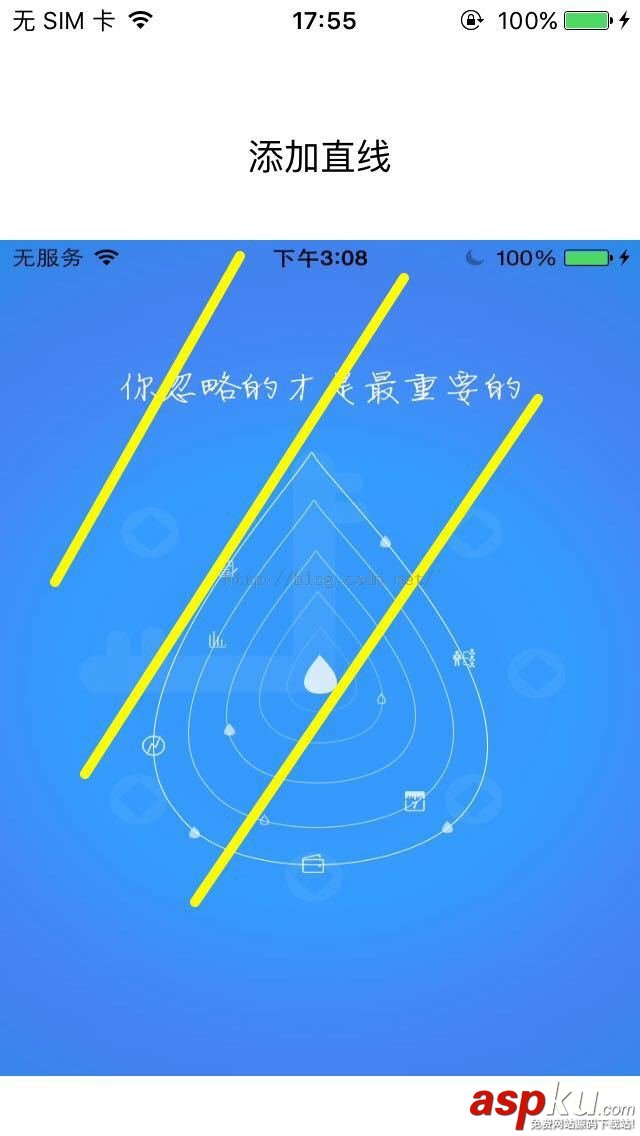

- (void)addLineAct:(id)sender{
    NSLog(@"测试按钮");

    DrawLine *touchdrawView = [[DrawLine alloc]initWithFrame:imageV.frame];

    touchdrawView.lineColor = [UIColor yellowColor];
    touchdrawView.lineWidth = 5.0;
    touchdrawView.tag = 902;
    [self.view addSubview:touchdrawView];


}

//添加剪头
double r = sqrt((line.end.x-line.begin.x)*(line.end.x-line.begin.x)+(line.begin.y-line.end.y)*(line.begin.y-line.end.y));//线条长度
CGContextMoveToPoint(cgt,line.end.x,line.end.y);
//P1
CGContextAddLineToPoint(cgt,line.end.x-(10*(line.begin.y-line.end.y)/r),line.end.y-(10*(line.end.x-line.begin.x)/r));
//P3
CGContextAddLineToPoint(cgt,line.end.x+(20*(line.end.x-line.begin.x)/r), line.end.y-(20*(line.begin.y-line.end.y)/r));
//P2
CGContextAddLineToPoint(cgt,line.end.x+(10*(line.begin.y-line.end.y)/r),line.end.y+(10*(line.end.x-line.begin.x)/r));

CGContextAddLineToPoint(cgt, line.end.x,line.end.y);
CGContextDrawPath(cgt,kCGPathFillStroke);
CGContextStrokePath(cgt);
